Hard Pipework Kit for 1.9 8v TDi BLS / BRM PD105 and BMM PD140 Engine

Price:
£250.00
SKU:
DSD1282
Shipping:
Calculated at checkout
* Engine Code:

(Maximum Size: . Type: )
Coloured Silicones are custom order and may take up to 7 working days to dispatch. Black Silicones are in stock.


Product Description

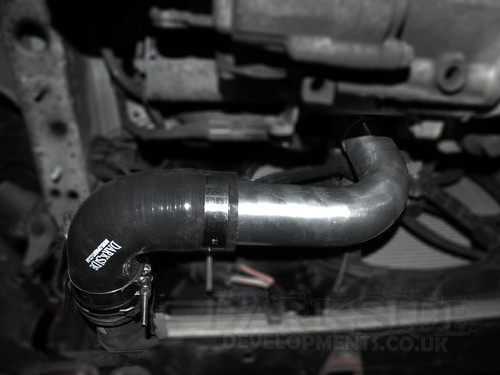

Alloy Hard Boost Pipe Kit for 1.9 TDi PD105 BLS Engines

 Fits VW / Audi / Seat / Skoda with 1.9 TDi PD105 BLS / BRM and the 2.0 8v PD140 BMM Engine
  • 57mm Alloy pipes to fit perfectly in place of the stock pipes
  • Replaces unnecessary joints which can cause boost leaks
  • High quality 3ply silicone hoses
  • Stainless T-Bolt clamps for secure fitting
  • Made in UK

 This Intercooler Kit replaces the standard rubber and plastic hoses with the clip connectors that can cause boost leaks. The Alloy Pipe Kit on its own eliminates some of these problematic connectors.

There are a number of different options available with this kit, dependent on your Turbo and Intercooler setup. Please select the options above to get the final price for your kit

Dependant of the options selected, this kit consists of:

Darkside Developments Alloy Pipe Kit with MAP Sensor Boss
Darkside Developments Clip Connector Adapters
Darkside Developments Silicone Hoses
 Viton O-Ring Seals on Clip Connector Adapters
Stainless Steel Clamps


Turbo Options
Standard / Hybrid Turbo - Turbo Clip Connector Adapter and Silicone Hose
GTB Turbo Kit - 90 Degree Silicone Hose

EGR / ASV Options
Retain EGR Valve / ASV Clip Connector - Clip Connector Adapter and Silicone Hose
EGR and ASV Removed - Silicone Hoses


This pipe kit will fit vehicles with the following Engine Codes:
VW Golf Mk5 - BLS 105, BMM 140
VW Jetta - BLS 105, BMM 140
US Spec VW Jetta - BRM 105, BMM 140
VW Caddy - BLS 105, BMM 140
Audi A3 8P - BLS 105, BMM 140
Seat Leon - BLS 105, BMM 140
Skoda Octavia - BLS 105, BMM 140


If you decide to swap from the Stock/Hybrid Turbocharger to our GTB Turbo Kit at a later date, the kit is exactly te same you would just no longer need the Clip Connector Adapters

This pipework will NOT work with an S3 Intercooler as the right hand side outlet is at the top where as the S3 Intercooler Inlet and Outlet are both at the bottom


All the silicones included in the kit may require slight Trimming to suit your set up, These are left long to take in to consideration tolerances between cars

We now offer a range of Silicone Colours - Black Silicones are in stock where as the other colours are special order and may take up to 1 week to dispatch


(Sometimes the turbo clip can be quite tight to push in due the tolerances we have them machined to. We have found that warming the turbo compressor housing with a heat gun helps the clip push in)




MADE IN THE UK
