1.9 8v TDI Head Gasket
Multi Layer Steel (MLS) Head Gasket for the 1.9 8v TDi Engines

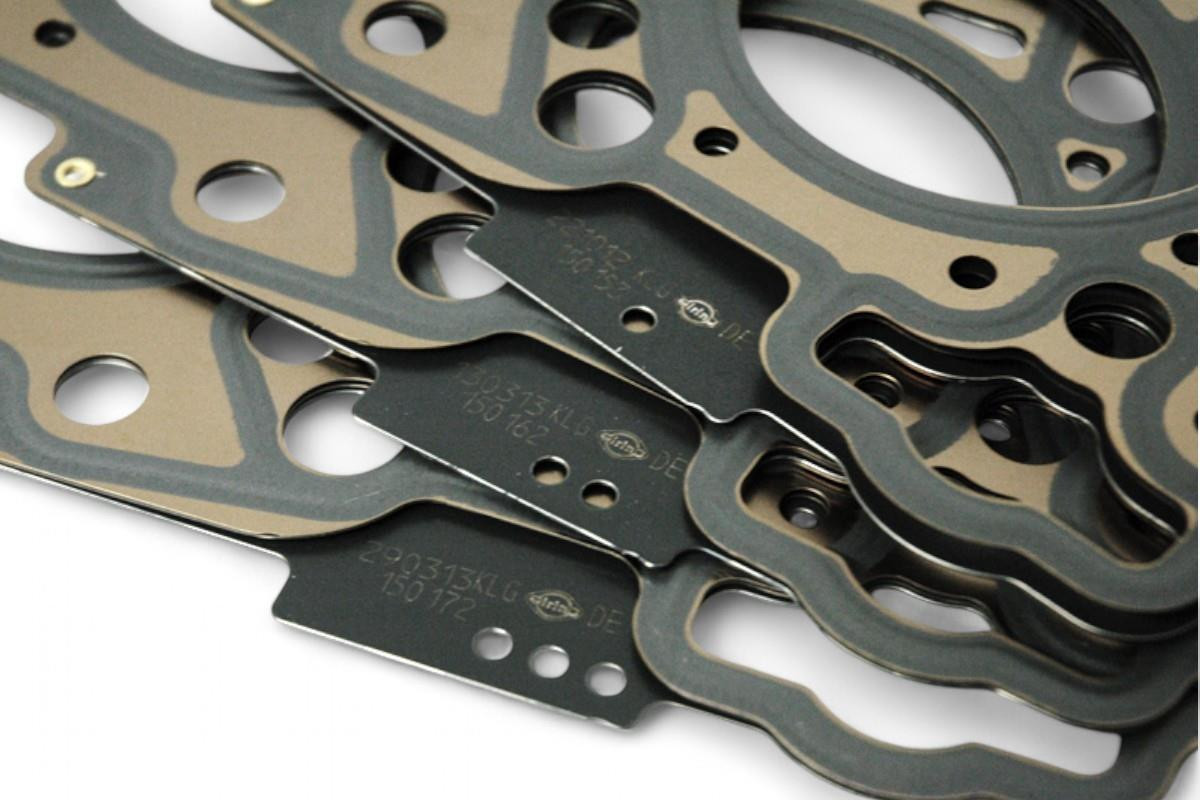

Please select from the option list which thickness gasket you require. This is based on the piston protrusion when the Engine is built up. The number of holes can be seen on the Silver Tab that sticks out on the front of the Engine
When changing the head gasket, please ensure you get the same thickness as previously fitted (unless the rods or pistons have been changed), otherwise you will have running issues
The diameter is 81mm for the standard 79.5mm 1.9 TDI Bore size
1 Hole Head Gasket
-
Thickness: 1.45mm
-
From Piston Crown Protrusion: 0.91mm
-
To Piston Crown Protrusion: 1.0mm
Part Number: 038 103 383 DE - 038103383 DE - 038103383DE
2 Hole Head Gasket
-
Thickness: 1.53mm
-
From Piston Crown Protrusion: 1.01mm
-
To Piston Crown Protrusion: 1.1mm
Part Number: 038 103 383 DF - 038103383 DF - 038103383DF
3 Hole Head Gasket
-
Thickness: 1.61mm
-
From Piston Crown Protrusion: 1.11mm
-
To Piston Crown Protrusion: 1.2mm
VW Part Number: 038 103 383 DG - 038103383 DG - 038103383DG
This will fit the following vehicles with the engine codes listed below:
Audi A3 ATD (100) AXR (101) BXE (105) BLS (105) BKC (105) ASZ (131)
Audi A3 Cabriolet BLS (105)
Audi A4 / Avant AVB (100) BKE (115) AJM (115) BRB (116) AWX (131) AVF (131)
Audi A4 / Avant / quattro AVB (100) BKE (115) ATJ (115) BRB (116) AWX (131) AVF (131)
Audi A6 / Avant AJM (115) AWX (131) AVF (131)
Audi A6 / Avant / quattro AWX (131) AVF (131)
Seat Alhambra ANU (90) BVK (115) AUY (115) ASZ (131) BTB (150)
Seat Altea BXF (90) BXE (105) BLS (105) BKC (105) BJB (105)
Seat Cordoba / Vario BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
Seat Ibiza BXJ (90) BMT (100) ATD (100) AXR (101) BLS (105) BLT (131) ASZ (131) BUK (160) BPX (160)
Seat Leon BXF (90) AXR (101) BXE (105) BLS (105) BKC (105) ASZ (131) ARL (150)
Seat Toledo AXR (101) BXE (105) BLS (105) BKC (105) BJB (105) ASZ (131) ARL (150)
Skoda Fabia ATD (100) AXR (101) BSW (105) BLS (105) BLT (131) ASZ (131)
Skoda Octavia ATD (100) AXR (101) BXE (105) BLS (105) BKC (105) BJB (105) ASZ (131)
Skoda Roomster AXR (101) BSW (105) BLS (105)
Skoda Routan AXR (101) BSW (105) BLS (105)
Skoda Superb AVB (100) BXE (105) BLS (105) BSV (105) AWX (131) AVF (131)
VW Beetle BEW (100) ATD (100) BSW (105)
VW Beetle Cabrio AXR (101) BSW (105)
VW Bora BEW (100) ATD (100) AXR (101) BRM (103) BXE (105) BKC (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Caddy BSU (75) BLS (105) BJB (105)
VW Transporter T5 BRR (84) AXC (85) BRS (102) AXB (105)
VW Clasico / Jetta BEW (100) AXR (101)
VW Golf BXJ (90) BXF (90) BRU (90) BEW (100) ATD (100) AXR (101) BXE (105) BLS (105) BKC (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Golf Plus BXJ (90) BXF (90) BRU (90) BXE (105) BLS (105) BKC (105)
VW Jetta BEW (100) ATD (100) AXR (101) BRM (103) BXE (105) BLS (105) BKC (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Jetta Variant BEW (100) ATD (100) AXR (101) BXE (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW New Beetle BEW (100) BSW (105)
VW Passat / Variant AVB (100) BXE (105) BLS (105) BKC (105) ATJ (115) AJM (115) BPZ (116) AWX (131) AVF (131)
VW Passat syncro ATJ (115)
VW Polo BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
VW Polo Classic / Variant BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
VW Sharan ANU (90) BVK (115) AUY (115) ASZ (131) BTB (150)
VW Touran BXJ (90) BXF (90) BRU (90) AVQ (100) BXE (105) BLS (105) BKC (105)
VW Transporter T5 BRR (84) AXC (85) BRS (102) AXB (105)
VW Vento BRM (103) BXE (105) BKC (105)
VW Vento Variant BXE (105)
