Here at Darkside Developments, we like to be realistic with our power figures, this is why we have put together a collection of Dyno Graphs from cars we have tuned to give you an accurate power figure of what your car could achieved with one of our Custom Remaps. We are well aware that a lot of tuners may claim higher figures which we have found to be either unrealistic or achieved by pushing the cars way past their safe limit. All our Remaps are 100% custom for each car so not all cars will make the same power. This is why we have also given a power range figure of what each engine normally achieves.

All our results are 100% Genuine and have been achieved with one of our Custom Remaps. All results have been proven using our Dyno Dynamics Dyno.

VE Engines

Engine: 1.9 TDI 8v VE90 Engine Code(s): ALH / AGR Stock Power: 90bhp Darkside Remap: 110-120bhp

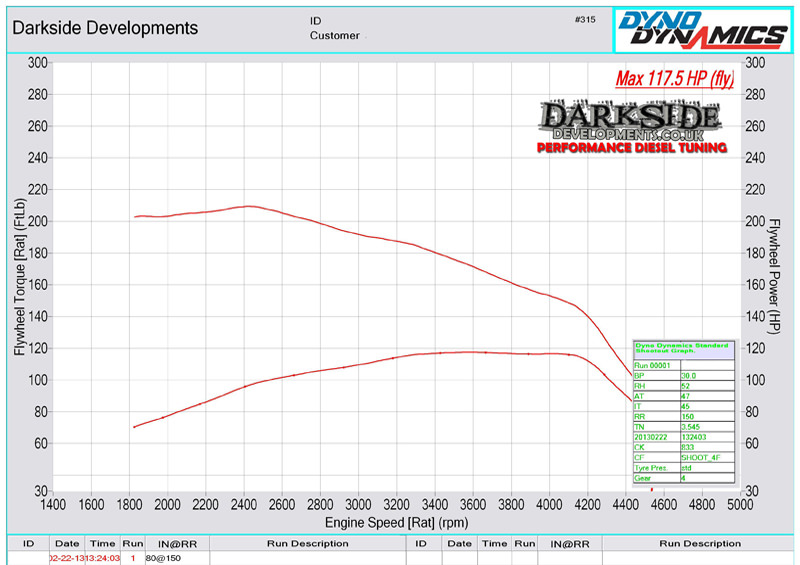

1.9 TDI 8v VE ALH / AGR Dyno Graph
Engine: 1.9 TDI 8v VE110 Engine Code(s): AHF / ASV Stock Power: 110bhp Darkside Remap: 125-135bhp
1.9 TDI 8v VE AHF / ASV Dyno Graph

PD Engines

Engine: 1.4 TDI 6v PD70 / 75 / 80 Engine Code(s): AMF / BHC / BAY / BNM / BWB / BNV / BMS Stock Power: 70 / 75 / 80bhp Darkside Remap: 90-100bhp

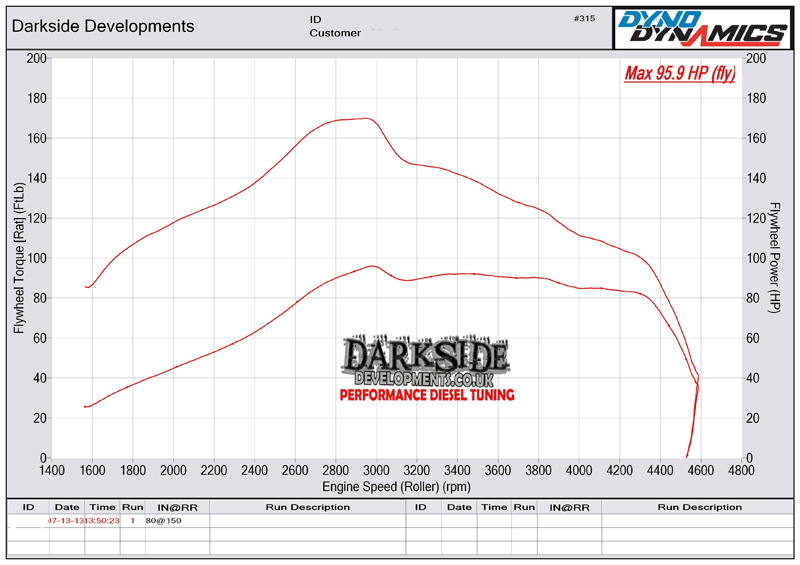

1.4 TDI 6v PD AMF / BHC / BAY / BNM / BWB / BNV / BMS Dyno Graph
Engine: 1.4 TDI 6v PD90 Engine Code(s): ATL Stock Power: 90bhp Darkside Remap: 115-125bhp

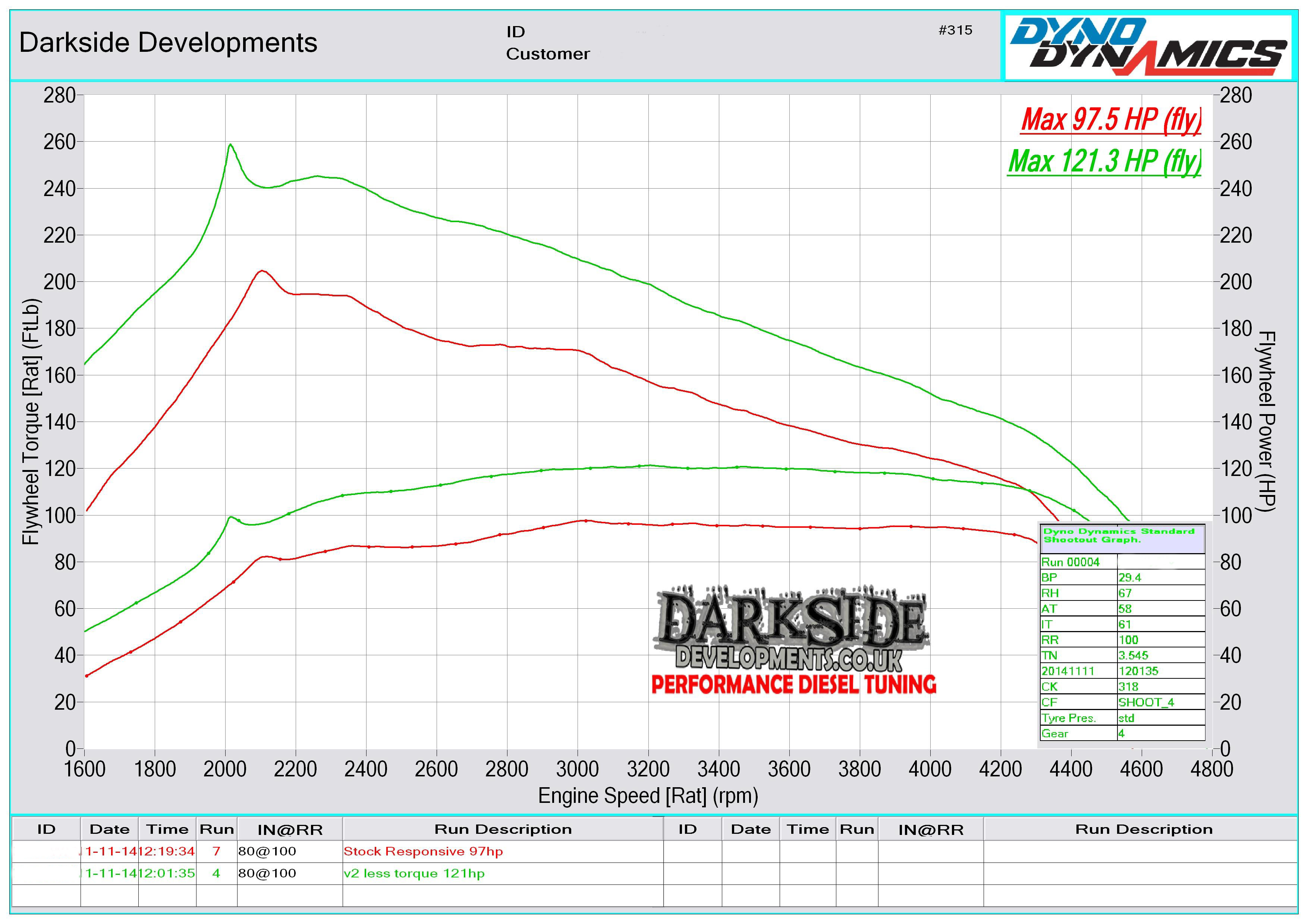

1.4 TDI 6v PD ATL Dyno Graph
Engine: 1.9 TDI 8v PD90 Engine Code(s): BRU / BXF / BXJ / ANU Stock Power: 90bhp Darkside Remap: 140-145bhp
1.9 TDI 8v PD BRU / BXF / BXJ / ANU Dyno Graph

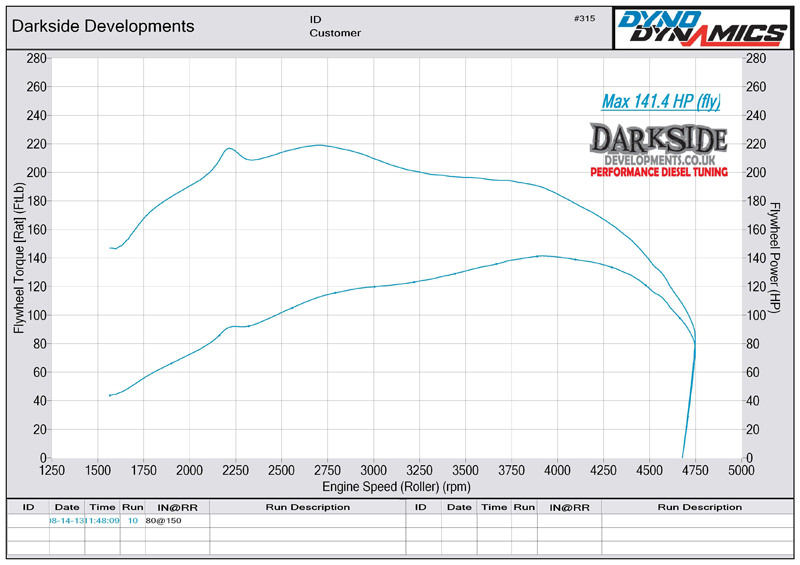

Engine: 1.9 TDI 8v PD100 Engine Code(s): ATD / AXR / AVB Stock Power: 100bhp Darkside Remap: 130-140bhp
1.9 TDI 8v PD ATD / AXR / AVB Dyno Graph
Engine: 1.9 TDI 8v PD105 Engine Code(s): BKC / BJB / BXE / BLS Stock Power: 105bhp Darkside Remap: 140-150bhp

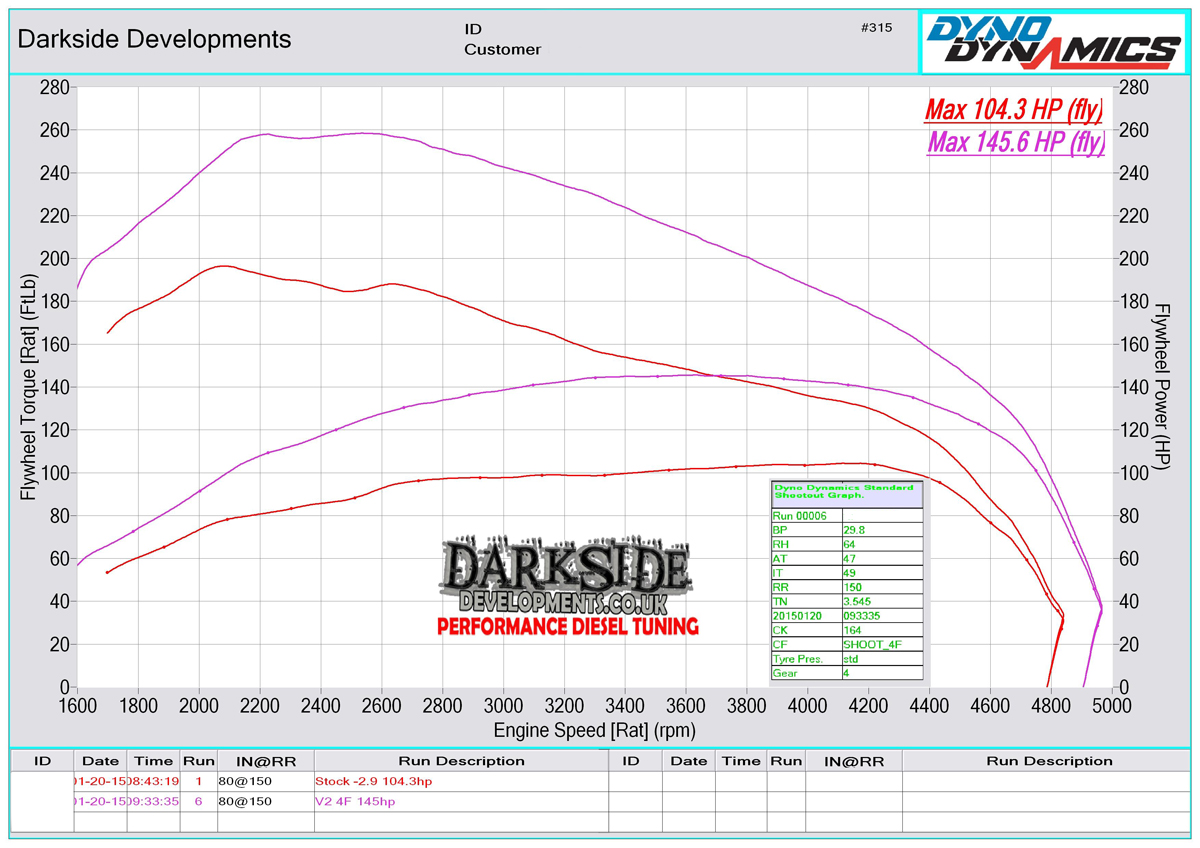

1.9 TDI 8v PD BKC / BJB / BXE / BLS Dyno Graph
Engine: 1.9 TDI 8v PD115 Engine Code(s): AJM / ATJ / AUY / BVK Stock Power: 115bhp Darkside Remap: 145-155bhp
1.9 TDI 8v PD AJM / ATJ / AUY / BVK Dyno Graph
Engine: 1.9 TDI 8v PD130 Engine Code(s): AVF / AWX / ASZ / BLT Stock Power: 130bhp Darkside Remap: 165-175bhp

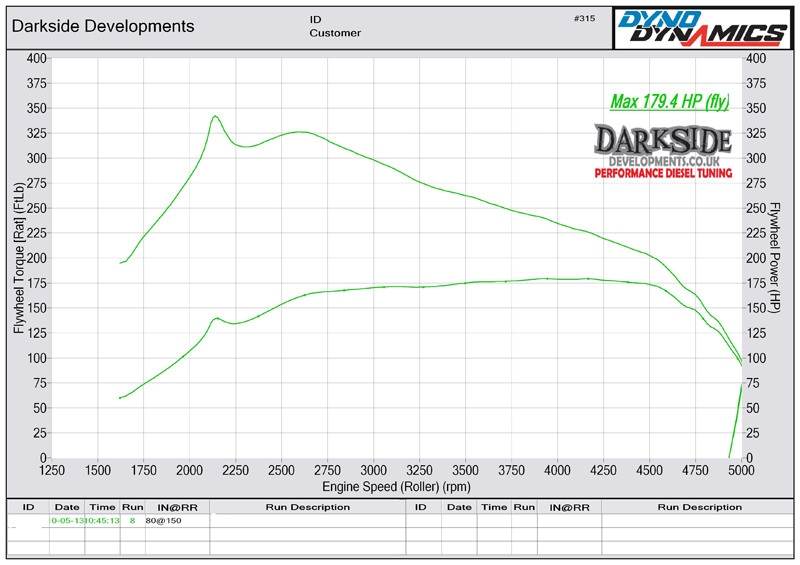

1.9 TDI 8v PD AVF / AWX / ASZ / BLT Dyno Graph
Engine: 1.9 TDI 8v PD150 Engine Code(s): ARL / BTB Stock Power: 150bhp Darkside Remap: 185-195bhp

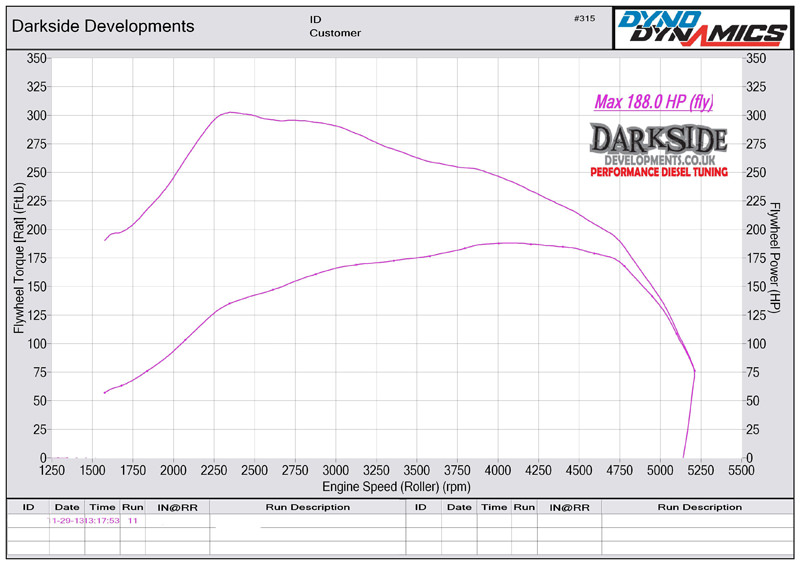

1.9 TDI 8v PD ARL / BTB Dyno Graph

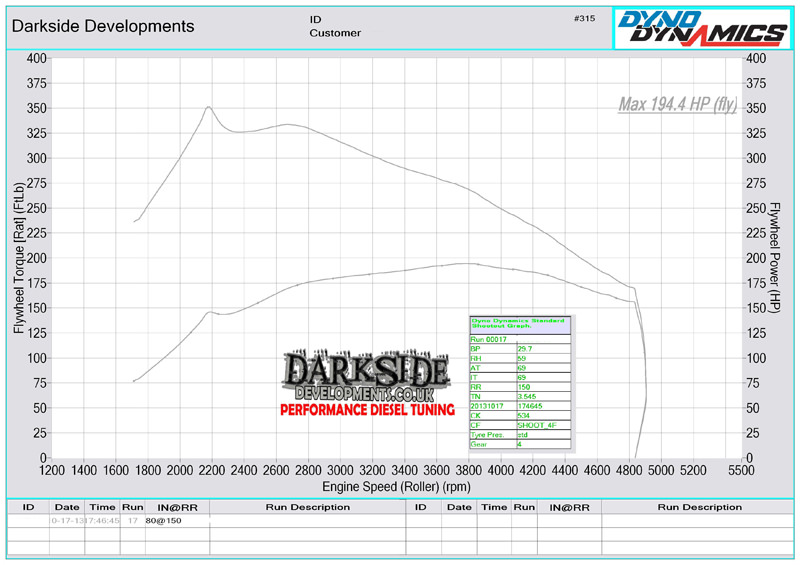

Engine: 1.9 TDI 8v PD160 Engine Code(s): BUK / BPX Stock Power: 160bhp Darkside Remap: 190-200bhp
1.9 TDI 8v PD BUK / BPX Dyno Graph

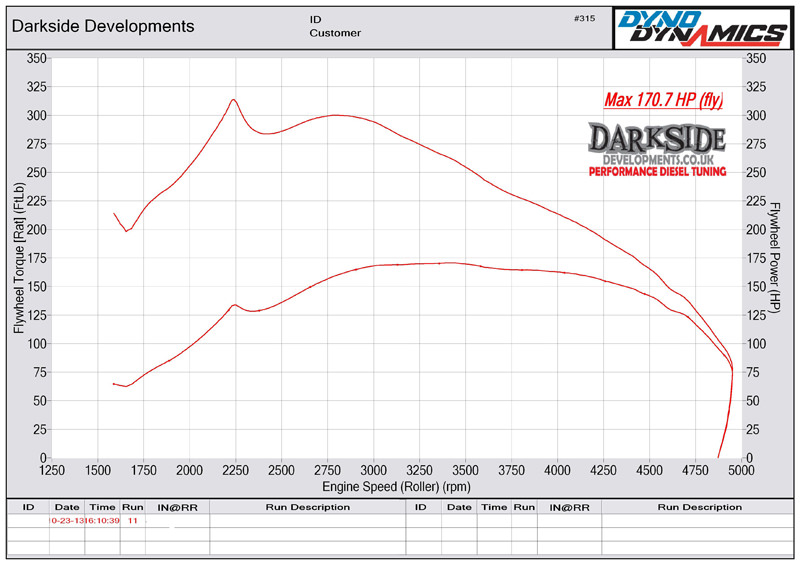

Engine: 2.0 TDI 8v PD140 Engine Code(s): BMM / BMP Stock Power: 140bhp Darkside Remap: 160-170bhp
2.0 TDI 8v PD BMM / BMP Dyno Graph

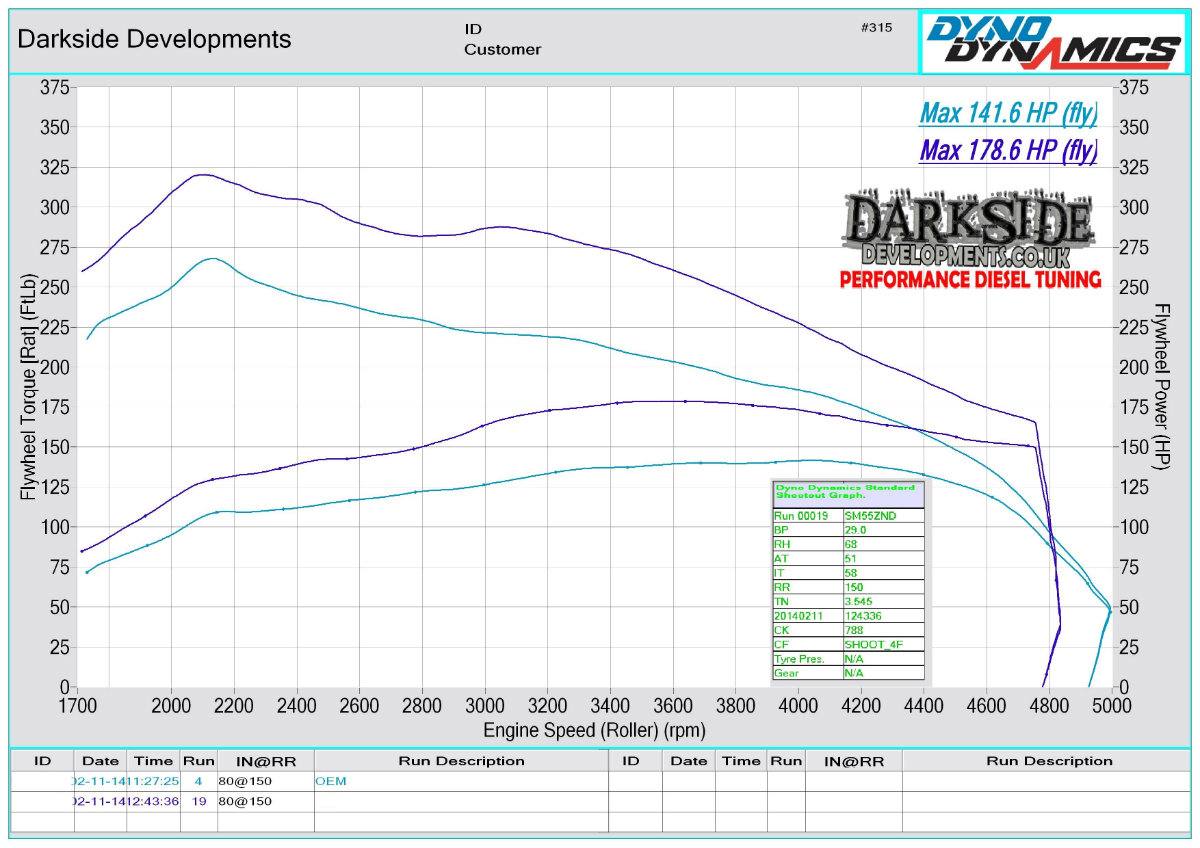

Engine: 2.0 TDI 16v PD140 Engine Code(s): BKD / BRE / BLB / BKP / AZV / BRF / BNA Stock Power: 140bhp Darkside Remap: 170-180bhp
2.0 TDI 16v PD BKD / BRE / BLB / BKP / AZV / BRF / BNA Dyno Graph
Engine: 2.0 TDI 16v PPD170 Engine Code(s): BMN / BMR Stock Power: 170bhp Darkside Remap: 195-205bhp

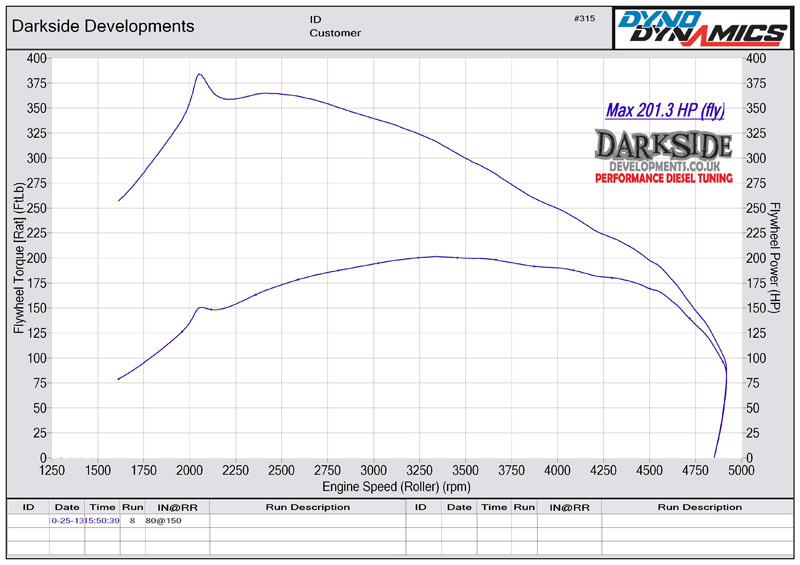

2.0 TDI 16v PPD BMN / BMR Dyno Graph

4 Cyl CR Engines

Engine: 1.2 / 1.4 TDI 16v CR75 Engine Code(s): CFWA / CJLA Stock Power: 75bhp Darkside Remap: 90-100bhp
1.2 / 1.4 TDI 16v CR CFWA / CJLA Dyno Graph
Engine: 1.6 TDI 16v CR105 Engine Code(s): CAYE / CAYA / CAYC / CAYD / CLNA / CLSA Stock Power: 105bhp Darkside Remap: 140-150bhp

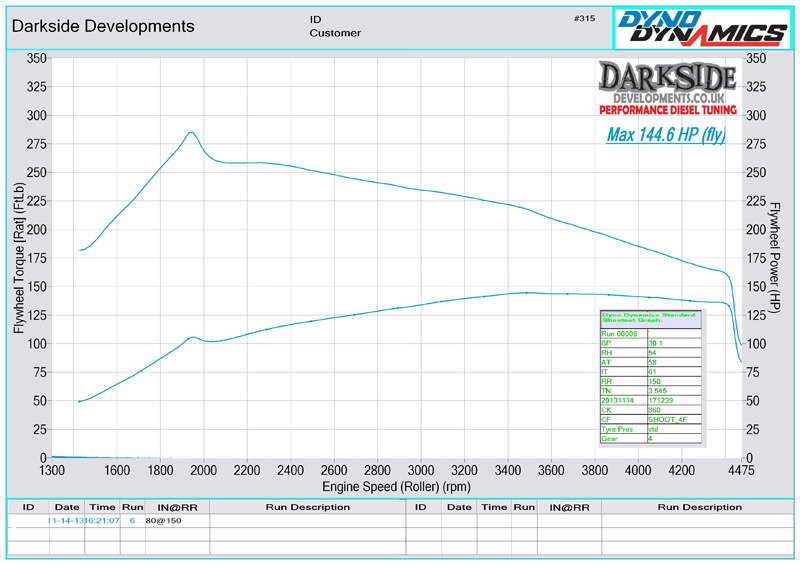

1.6 TDI 16v CR CAYE / CAYA / CAYC / CAYD / CLNA / CLSA Dyno Graph
Engine: 2.0 TDI 16v CR110 Engine Code(s): CBDC / CLCA Stock Power: 110bhp Darkside Remap: 170-185bhp

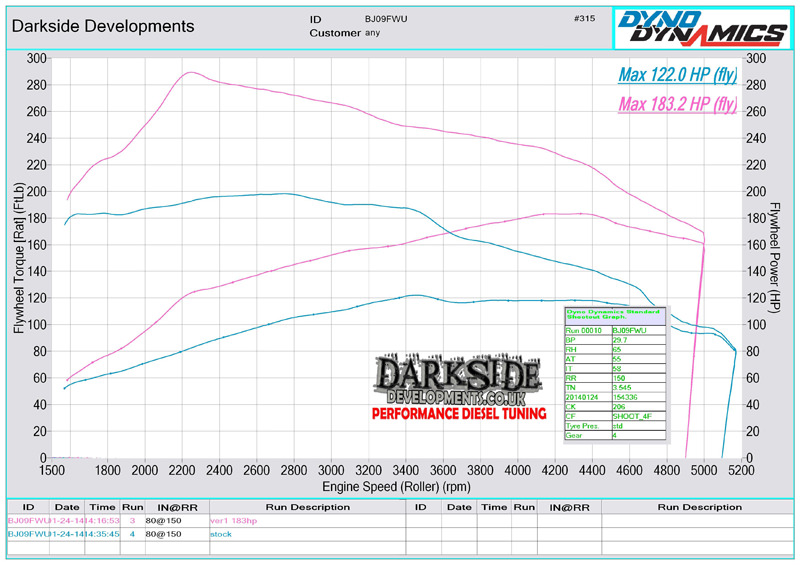

2.0 TDI 16v CR CBDC / CLCA Dyno Graph
Engine: 2.0 TDI 16v CR120 / 140 Engine Code(s): CBAA / CFAA / CAGA / CJCA / CJCB / CBAB / CBDB / CFFB / CJAA / CFHC / CFHD / CAGC / CJCB / CAGB / CMEA / CAGA Stock Power: 120 / 140bhp Darkside Remap: 170-185bhp
2.0 TDI 16v CR CBAA / CFAA / CAGA / CJCA / CJCB / CBAB / CBDB / CFFB / CJAA / CFHC / CFHD / CAGC / CJCB / CAGB / CMEA / CAGA Dyno Graph
Engine: 2.0 TDI 16v CR163 / 170 Engine Code(s): CAHB / CGLA / CFGB / CBBB / CEGA / CFJA / CAHB / CGLB / CAHA / CGLD / CMGA / CGLC / CMGB Stock Power: 163 / 170bhp Darkside Remap: 195-205bhp

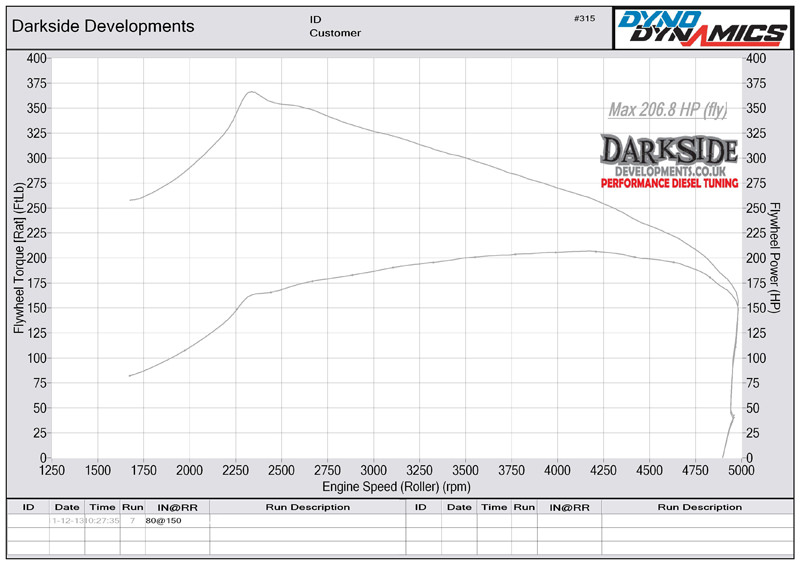

2.0 TDI 16v CR CAHB / CGLA / CFGB / CBBB / CEGA / CFJA / CAHB / CGLB / CAHA / CGLD / CMGA / CGLC / CMGB Dyno Graph
Engine: 2.0 TDI 16v CR184 Engine Code(s): CUNA / CUPA / CUWA / DFMA / DGCA Stock Power: 184bhp Darkside Remap: 215-220bhp
2.0 TDI 16v CR CUNA / CUPA / CUWA / DFMA / DGCA Dyno Graph
Engine: 2.0 TDI 16v CR110 / 150 Engine Code(s): DFSC, CUUF, DFSF, CUUD, DFSD, CUUA, CUUE, DFSE, DEKA, DFSB, DELA, CVCA, CUVC, CUUB, CRBC, CRLB Stock Power: 110 / 150bhp Darkside Remap: 180bhp
2.0 TDI 16v CR DFSC, CUUF, DFSF, CUUD, DFSD, CUUA, CUUE, DFSE, DEKA, DFSB, DELA, CVCA, CUVC, CUUB Dyno Graph
Engine: 2.0 TDI 16v CR122 Engine Code(s): DTRC / DTRE / DTRF Stock Power: 75/102/122bhp Darkside Remap: 197bhp
2.0 TDI 16v CR DTRC Dyno Graph

6 Cyl CR Engines

Engine: 2.7 TDI CR180 Engine Code(s): BSG / BPP Stock Power: 180bhp Darkside Remap: 200-210bhp

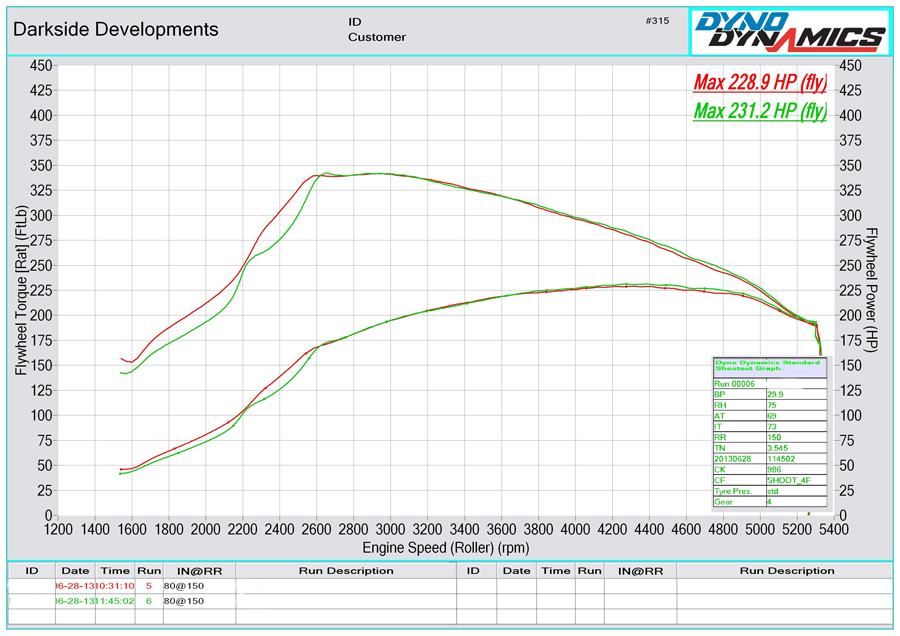

2.7 TDI CR BSG / BPP Dyno Graph
Engine: 2.7 TDI CR190 Engine Code(s): CAMB / CGKB / CANB / CAND / CAMA / CGKA / CANA / CANC Stock Power: 190bhp Darkside Remap: 215-225bhp
2.7 TDI CR CAMB / CGKB / CANB / CAND / CAMA / CGKA / CANA / CANC Dyno Graph
Engine: 3.0 TDI CR223 Engine Code(s): BKN / BNG / BUN / BMK / BKS / ASB / BUG Stock Power: 223bhp Darkside Remap: 260-270bhp
3.0 TDI CR BKN / BNG / BUN / BMK / BKS / ASB / BUG Dyno Graph
Engine: 3.0 TDI CR204/225 Engine Code(s): CLAB / CLAA / CASD / CJMA / CWWB / CDYB / CASB / CATA Stock Power: 225bhp Darkside Remap: 250-260bhp
3.0 TDI CR CLAB / CLAA / CASD / CJMA / CWWB / CDYB / CASB / CATA Dyno Graph
Engine: 3.0 TDI CR240 / 245 Engine Code(s): CAPA / CCLA / CCWA / CDYA / CDYC / CASA / CCMA / CJGA / CASC / CNRB / CDUC / CDUD / CKVB / CKVC / CJGB / CLZB / CRCA / CJGD / CDTA / CMHA Stock Power: 240 / 245bhp Darkside Remap: 290-300bhp

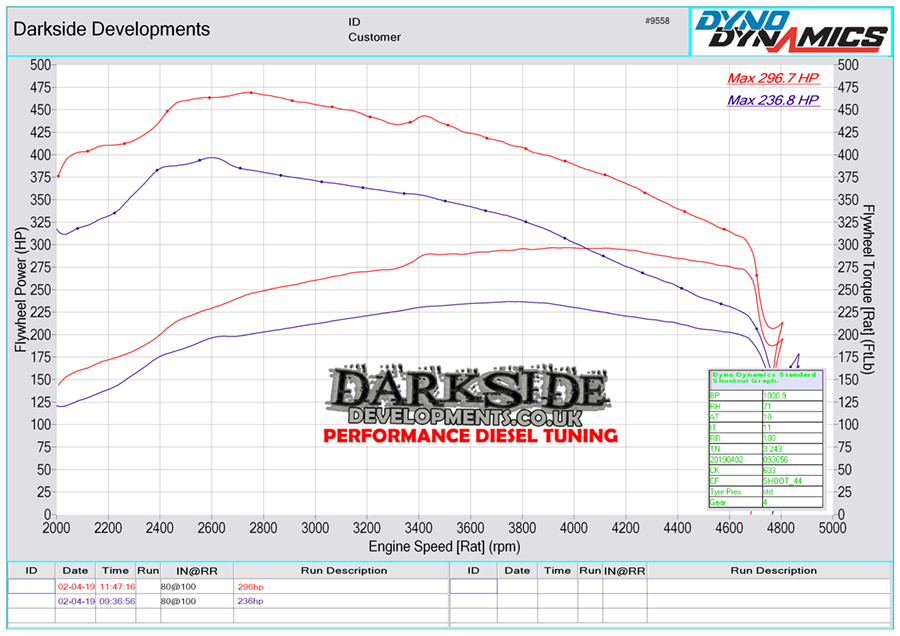

3.0 TDI CR CAPA / CCLA / CCWA / CDYA / CDYC / CASA / CCMA / CJGA / CASC / CNRB / CDUC / CDUD / CKVB / CKVC / CJGB / CLZB / CRCA / CJGD / CDTA / CMHA Dyno Graph
Engine: 3.0 TDI CR190 / 218 Engine Code(s): CSWB / CRTE / CZVF / CZVC / CRTF / CZVA / CRTE / CZZA / CZVE Stock Power: 190 / 218bhp Darkside Remap: 300bhp
3.0 TDI CR CSWB / CRTE / CZVF / CZVC / CRTF / CZVA / CRTE / CZZA / CZVE Dyno Graph
Engine: 3.0 TDI CR258 / 272 Engine Code(s): CVMD / CUEA / CVZA / CRTC / CRTD Stock Power: 258 / 272bhp Darkside Remap: 320bhp
3.0 TDI CR CVMD / CUEA / CVZA / CRTC / CRTD Dyno Graph
Engine: 3.0 TDI CR313 / 335 Engine Code(s): CGQB / CVUA / CVUB / CVUC Stock Power: 313 / 335bhp Darkside Remap: 360-380bhp

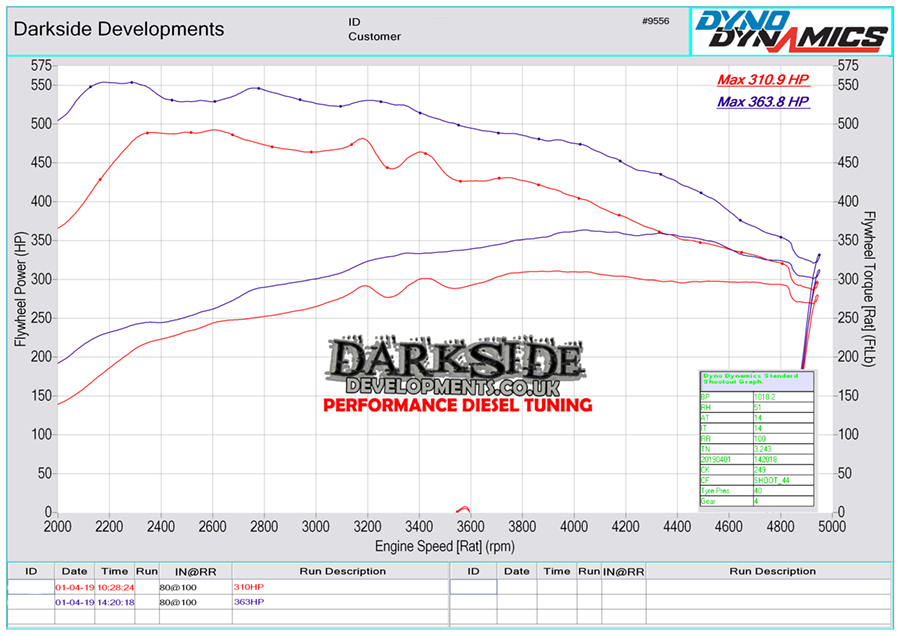

3.0 TDI CR CGQB / CVUA / CVUB / CVUC Dyno Graph

8 / 10 Cyl Engines

Engine: 4.0 TDI CR435 / 421 Engine Code(s): CZAC / DCDB Stock Power: 435 / 421bhp Darkside Remap: 510-515bhp
4.0 TDI CR CZAC / DCDB Dyno Graph
Engine: 4.2 TDI PD320 / 326 Engine Code(s): BMC / BVN / BTR Stock Power: 320 / 326bhp Darkside Remap: 360-370bhp
4.2 TDI PD BMC / BVN / BTR Dyno Graph
Engine: 4.2 TDI CR340 / 385 Engine Code(s): CCFA / CTEC Stock Power: 340bhp Darkside Remap: 360-380bhp
4.2 TDI PD CCFA / CTEC Dyno Graph
Engine: 5.0 TDI PD313 Engine Code(s): AJS / BKW / AYH / BWF / BLE Stock Power: 313bhp Darkside Remap: 350-370bhp
5.0 TDI PD AJS / BKW / AYH / BWF / BLE Dyno Graph
Engine: 5.0 TDI PD350 Engine Code(s): CBWA Stock Power: 350bhp Darkside Remap: 375-395bhp
5.0 TDI PD CBWA Dyno Graph

Transporter Engines

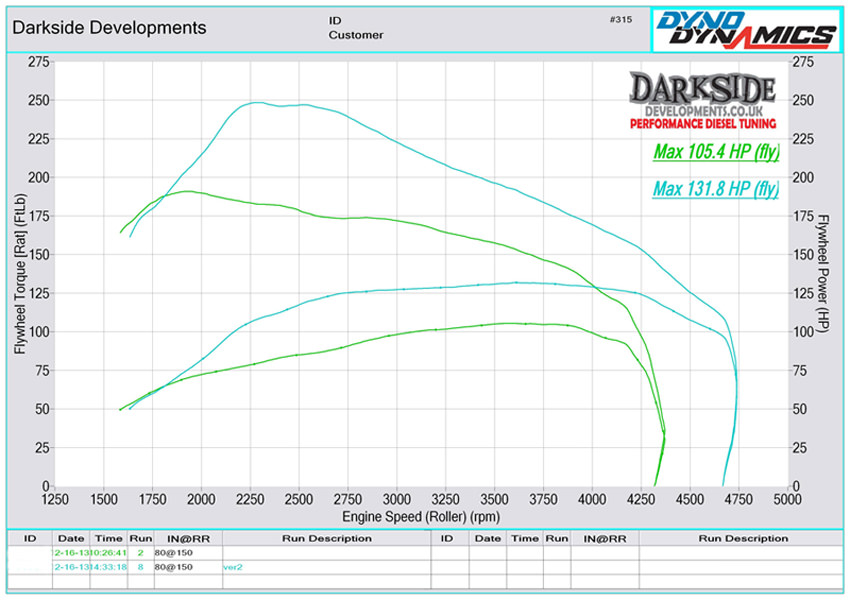

Engine: 1.9 TDI 8v PD85 / 105 Engine Code(s): BRR / BRS / AXC / AXB Stock Power: 85 / 105bhp Darkside Remap: 125-135bhp
1.9 TDI 8v PD BRR / BRS / AXC / AXB Dyno Graph
Engine: 2.5 TDI PD130 Engine Code(s): BNZ / AXD Stock Power: 130bhp Darkside Remap: 165-175bhp

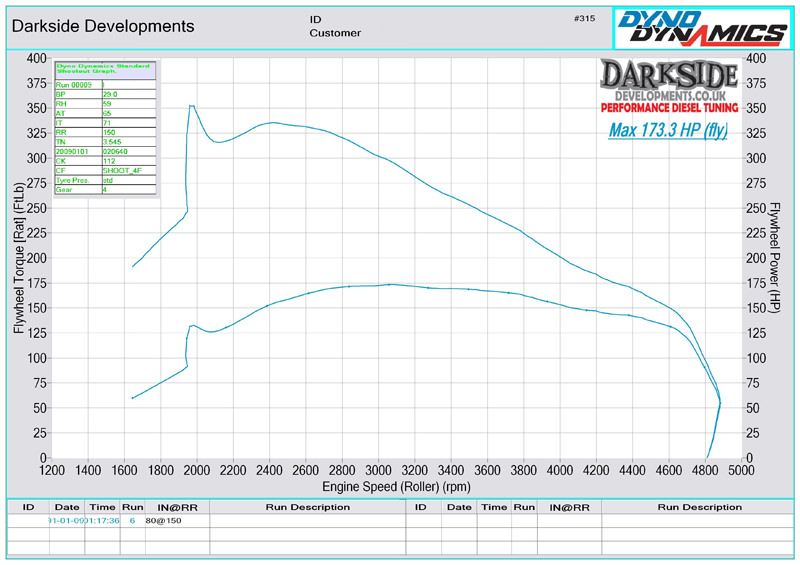

2.5 TDI PD BNZ / AXD Dyno Graph
Engine: 2.5 TDI PD174 Engine Code(s): BPC / AXE Stock Power: 174bhp Darkside Remap: 190-200bhp

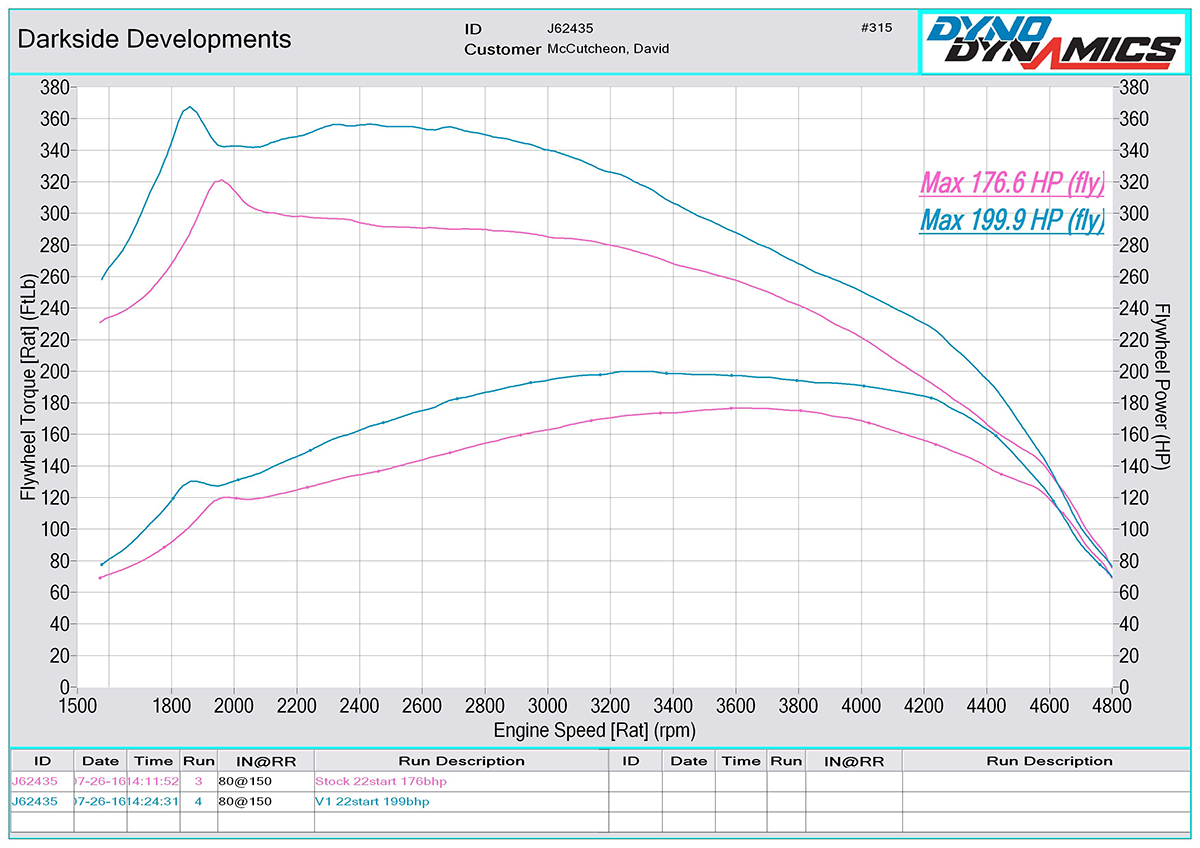

2.5 TDI PD BPC / AXE Dyno Graph

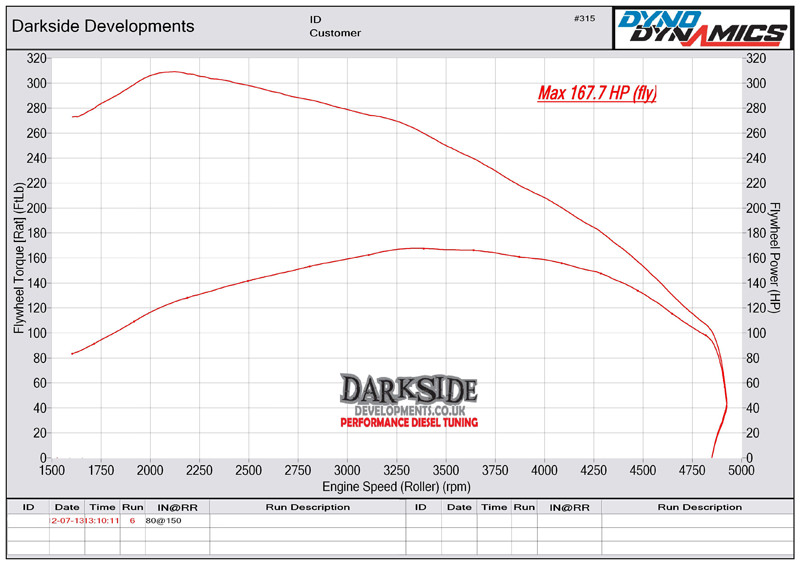

Engine: 2.0 TDI 16v CR84 / 102 Engine Code(s): CAAA / CAAB Stock Power: 84 / 102bhp Darkside Remap: 165-180bhp
2.0 TDI 16v CR CAAA / CAAB Dyno Graph
Engine: 2.0 TDI 16v CR136 / 140 Engine Code(s): CAAE / CAAC / CCHA Stock Power: 136 / 140bhp Darkside Remap: 165-180bhp
2.0 TDI 16v CR CAAE / CAAC / CCHA Dyno Graph
Engine: 2.0 TDI 16v CR180 (165) Engine Code(s): CFCA (These engine always fail to achieve stock power) Stock Power: 180 (165)bhp Darkside Remap: 180-185bhp
2.0 TDI 16v CR CFCA (These engine always fail to achieve stock power) Dyno Graph
Engine: 2.0 TDI 16v CR84 / 102 / 114 Engine Code(s): CXGA / CXGB / CXHB Stock Power: 84 / 102 / 114 bhp Darkside Remap: 170-180bhp
2.0 TDI 16v CR CXGA / CXGB / CXHB Dyno Graph
Engine: 2.0 TDI 16v CR150 Engine Code(s): CXFA, CXHA Stock Power: 150bhp Darkside Remap: 180bhp
2.0 TDI 16v CR CXFA / CXHA
Engine: 2.0 TDI 16v CR204 Engine Code(s): CXEB Stock Power: 204bhp Darkside Remap: 230bhp
2.0 TDI 16v CR CXEB Dyno Graph
