Dyno Test Cell / Rolling Road


 PRICES

Regular Prices:

2 Dyno Pulls = £50 +VAT (£60 inc VAT)

 Additional Pulls = £10 +VAT (£12 inc VAT)

Dyno Day Prices:

2 Dyno Pulls = £30 +VAT (£36 inc VAT)

Additional Pulls = £10 +VAT (£12 inc VAT)



Free Before and After Pulls with our Custom Remaps



 THE CELL

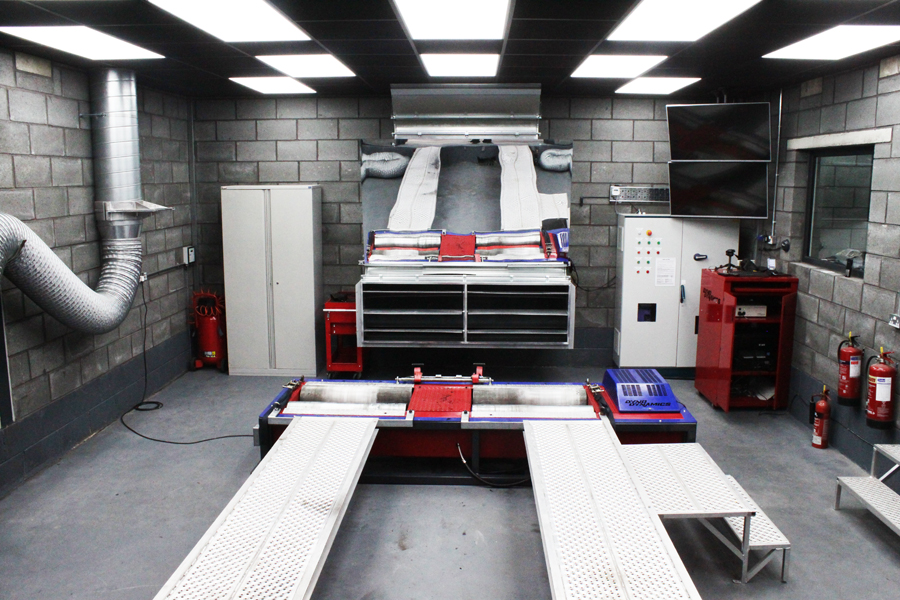

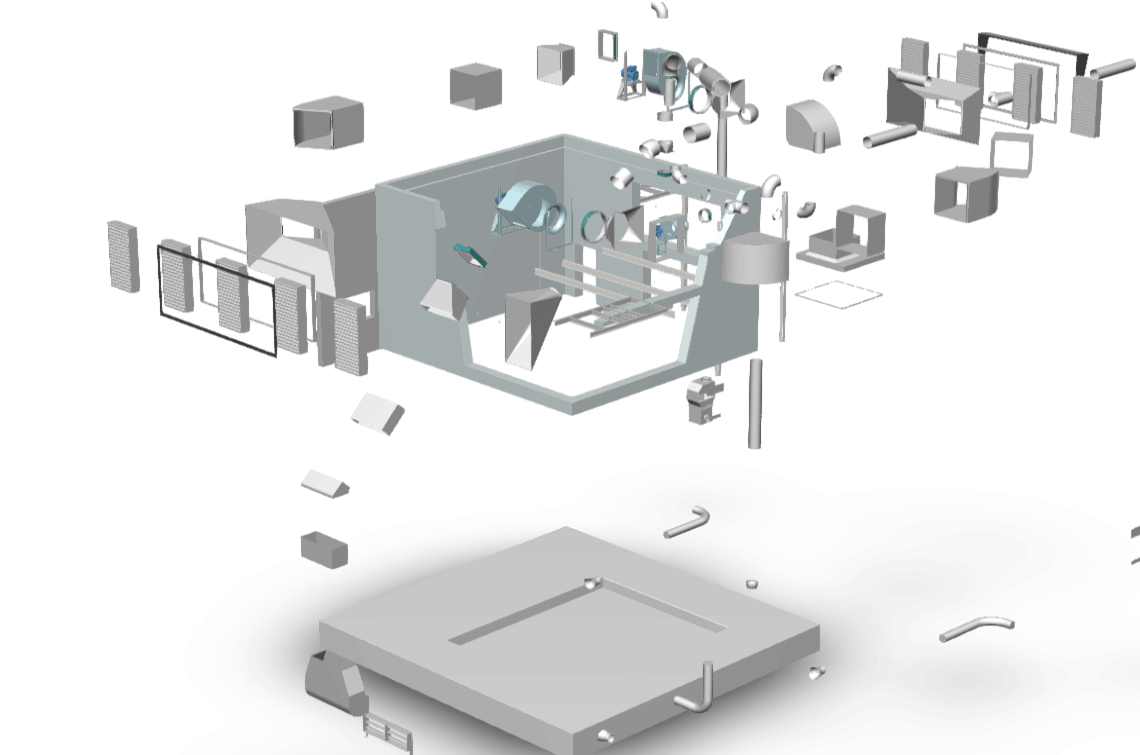

Here at Darkside Developments we have spent many hours meticulously planning to create a Dyno Cell that would meet all of our exacting specifications.

Our new purpose built Dyno Cell is separate to the rest of our main unit allowing us to specify the building construction to maintain low external noise levels. A car at 150mph producing 120db internally will measure 75db directly outside the cell. At our boundary the noise is no greater than surrounding levels, our neighbours don't even know we are testing.

The building itself along with the cooling and extraction equipment inside now allows us to closely replicate real driving conditions inside a soundproof and temperature controlled environment that is comfortable for the operator and everyone close by.

fd09-kristoffer-stewart-leon-dyno.jpg tn-moores-motors-seat-ibiza-2.jpg ov14-ben-cussins-mk3-leon-cr150.jpg





 THE FANS

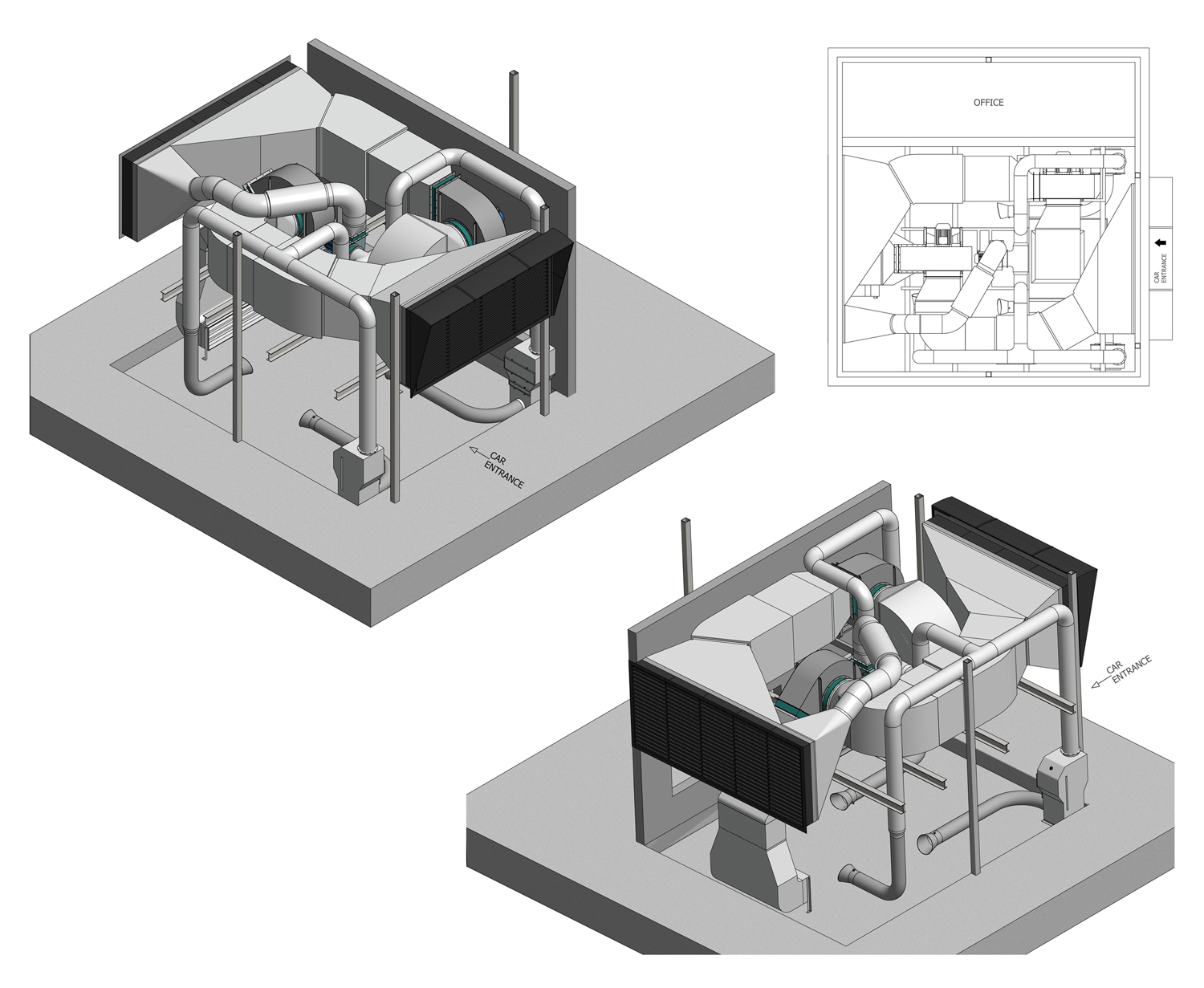

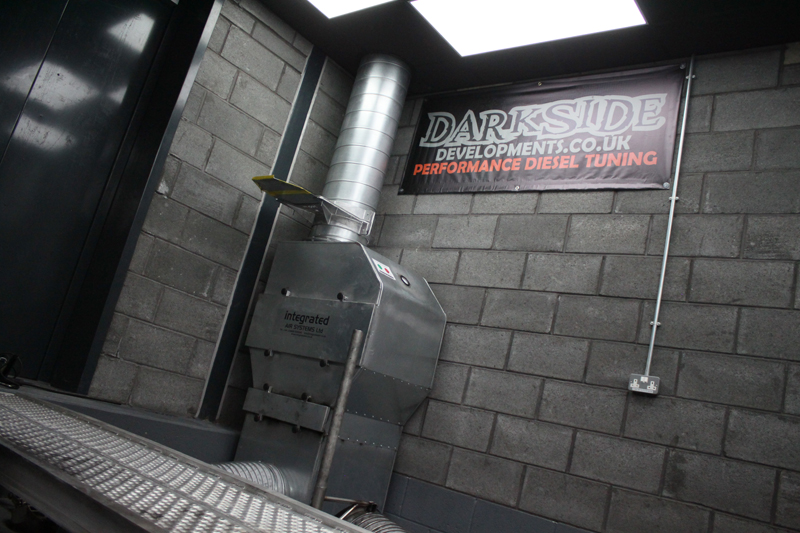

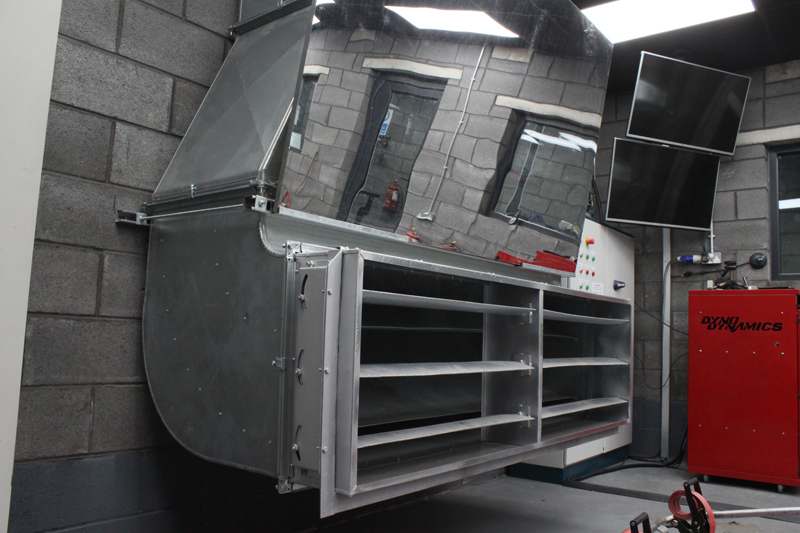

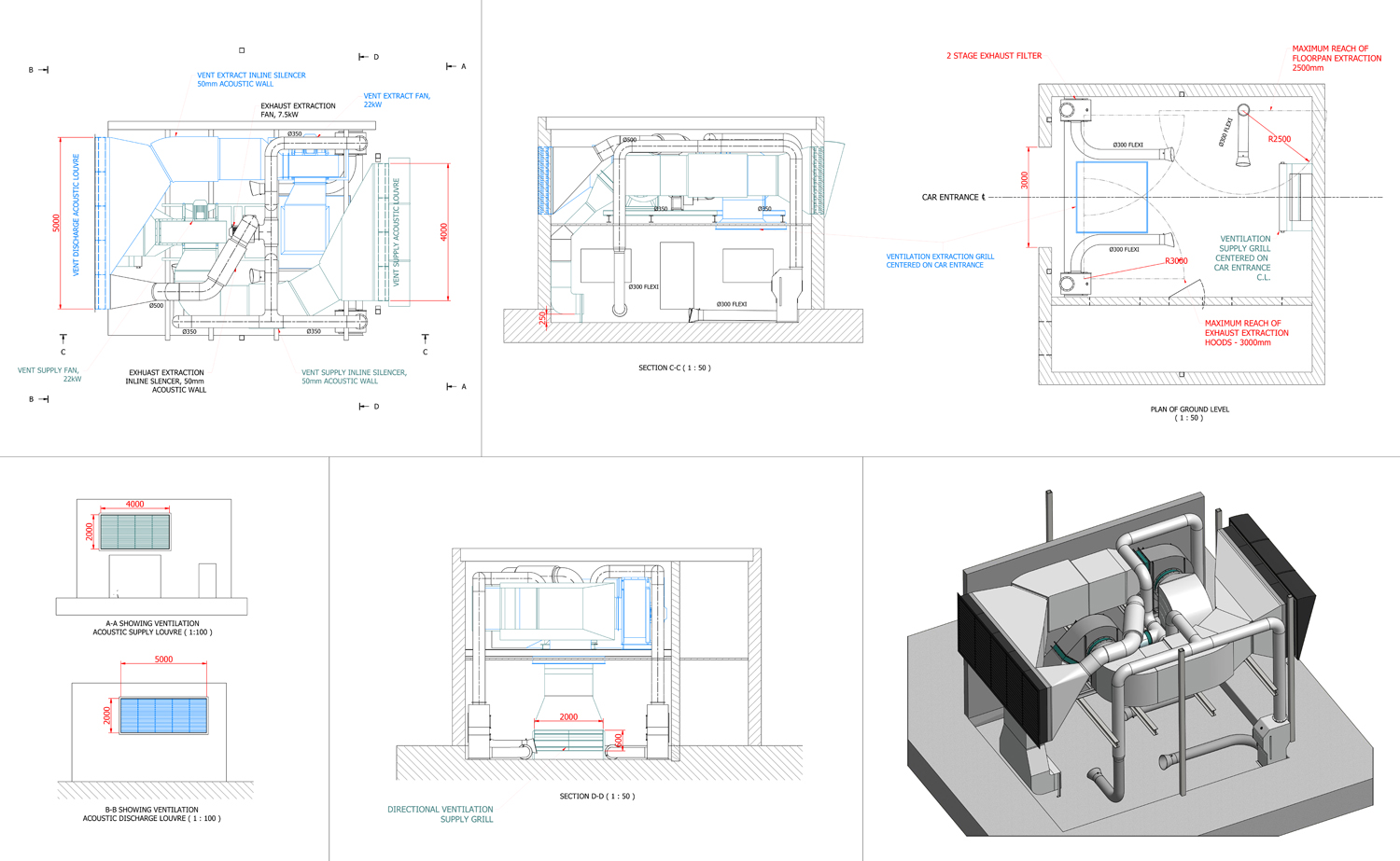

Our new Cooling and Extraction System has been specifically designed for our new Dyno Cell with the intention of providing the best possible representation of real driving conditions as well as being able to cope with some of the heaviest smoking diesels that we see quite often! We can continously test 800HP+ cars without overheating of not only the engine but the tryes, exhaust or other ancillaries, which is often overlooked when building a cell.

Here are some Techincal Specifications:

  • 400 air changes per hour which equates to 47200cubic meters/hour or 13.1cubic meters/sec.
  • Two x 22kW 25,000m3/H intake and extraction fans
  • Large cooling fan outlet with 50+MPH exit speed
  • 7.5kw 5000m3/H Exhaust extract fan
  • Twin-bank filtered exhaust gas extraction system with 450 degree flexible hose assembly, custom made nozzles and stands
  • Additional unfiltered extraction hose for external wastegate etc.
  • Supplementary fans for oil coolers or rear engined vehicles

We have specified a complex control system that allows the use of a wireless remote to activate and vary the fan speed whist in the vehicle. The control system also maintains a super accurate 2 millibar negative pressure using a pressure differential sensor with PID controller that will ensure perfectly clean air is present in the cell at all times without affecting engine performance or dyno results.

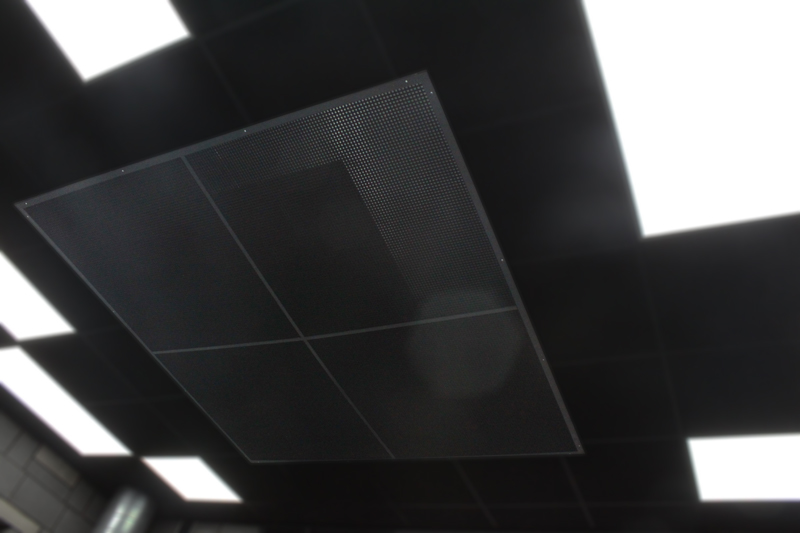

extraction.jpg fans-1.jpg ducting-2.jpg




 THE DYNO

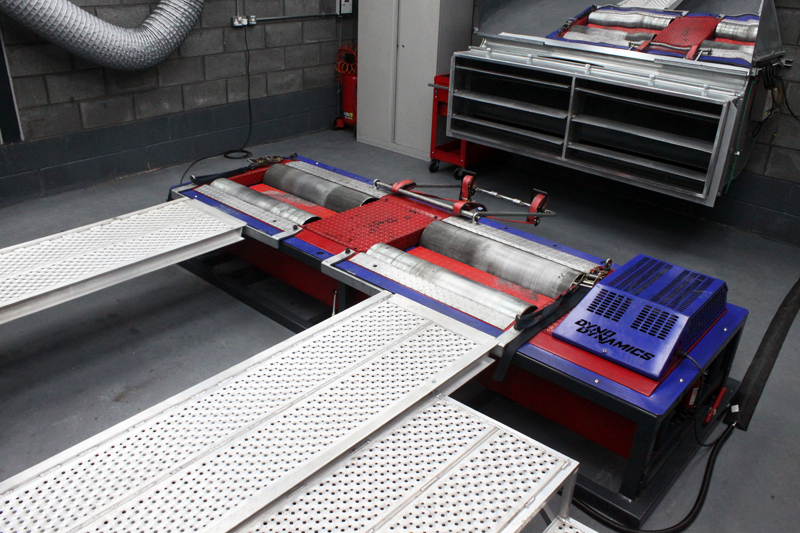

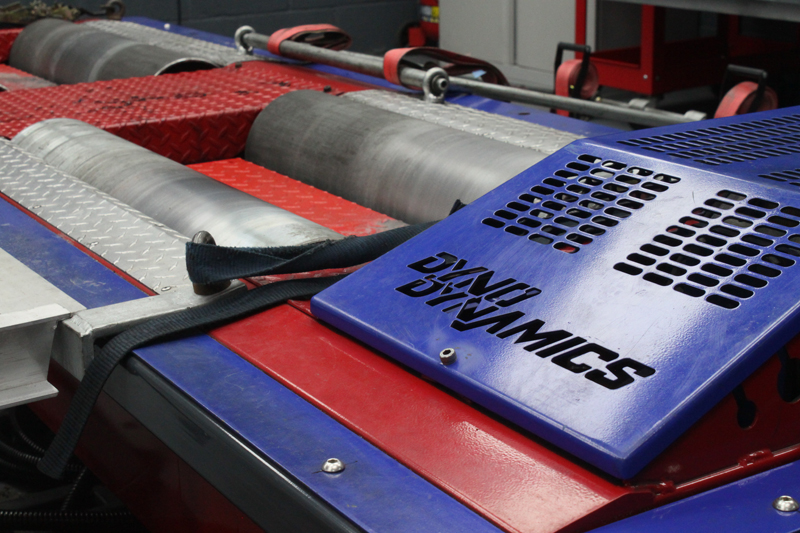

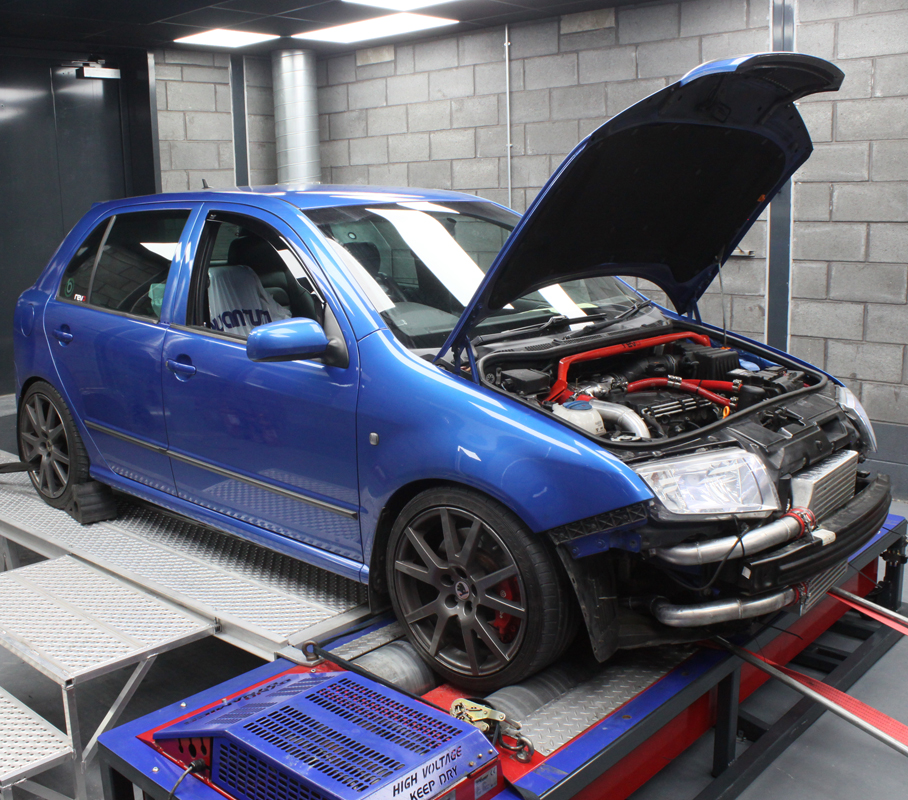

Inside the Dyno Cell we have installed our Dyno Dynamics Two Wheel Drive 450DS Digital chassis dyno.

We have specifically chosen the Dyno Dymnamics purely because of its accuracy, reliability and repeatability. The latest digital control system means that once the car is being run, the operator cannot influence the results of the dyno run. This means our customers can be assured of the integrity of the results we produce. We pride ourselves in saying we won't ever give out inflated figures.

The dyno itself is capable of handling a total of 1200BHP, axle torque up to 3600ft/lb and a Max speed of 155mph.

We have built the cell with the intention of upgrading the dyno in the near future to an AWD model with minimal modification to the cell required.

Vehicles we can tune on our Dyno Dynamics 2WD dyno:

  • Front Wheel Drive vehicles
  • Rear Wheel Drive vehicles
  • 4WD/AWD vehicles with selectable single axle drive
  • Haldex (or similar) Equipped Quattro / 4 Motion cars
  • Motorcycles

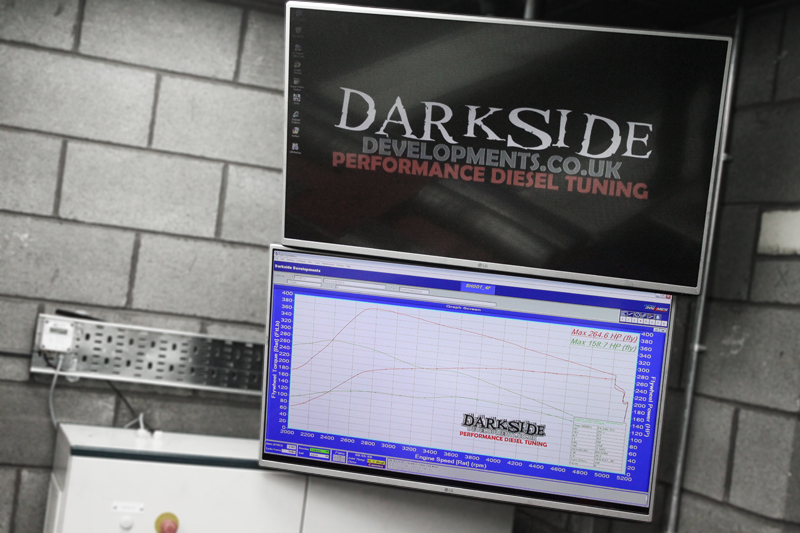

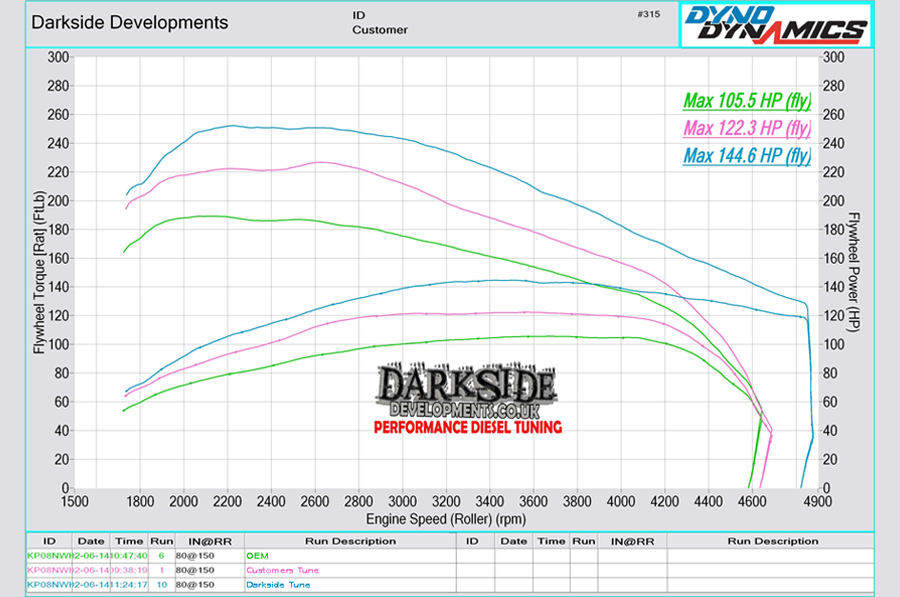

screens.jpg dyno-3.jpg dyno-graph.jpg

AWD DYNO COMING SOON...



 OTHER FEATURES

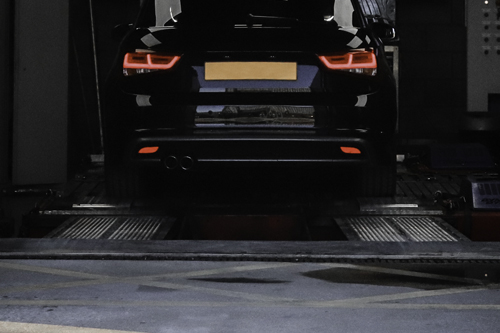

Ground Level Entry

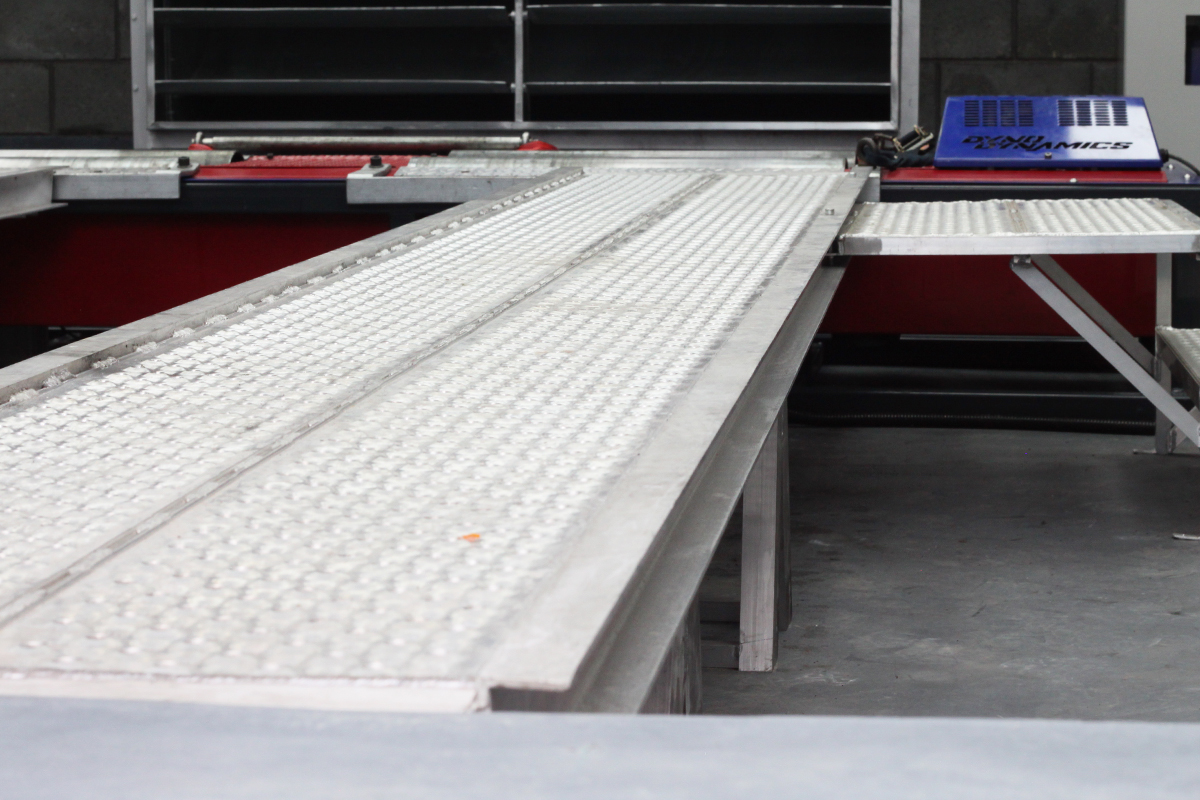

Our custom made entry ramps have been made with modified cars in mind. Built at ground level, all vehicles can easily access our rolling road, even the super low ones!

Pneumatic Lift

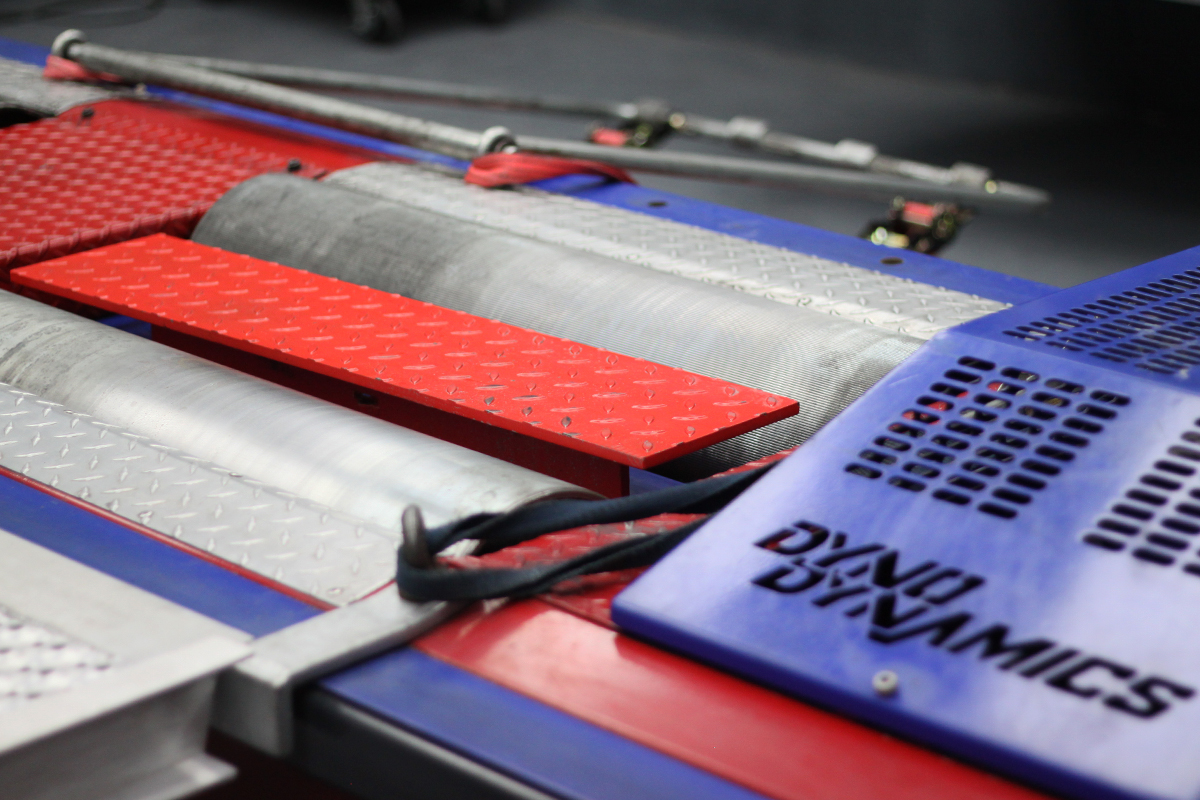

As well as the ground level ramps we have also fabricated a pneumatic lift system that slowly lowers and raises the vehicle between the rollers whist braking the free roller so the entry and exit is as smooth as possible.

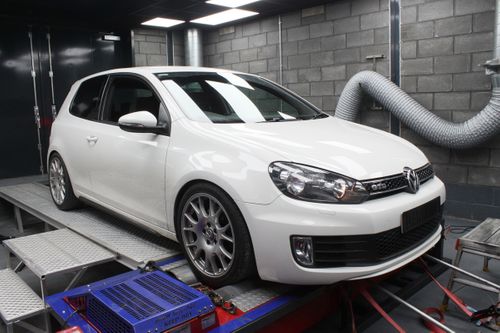

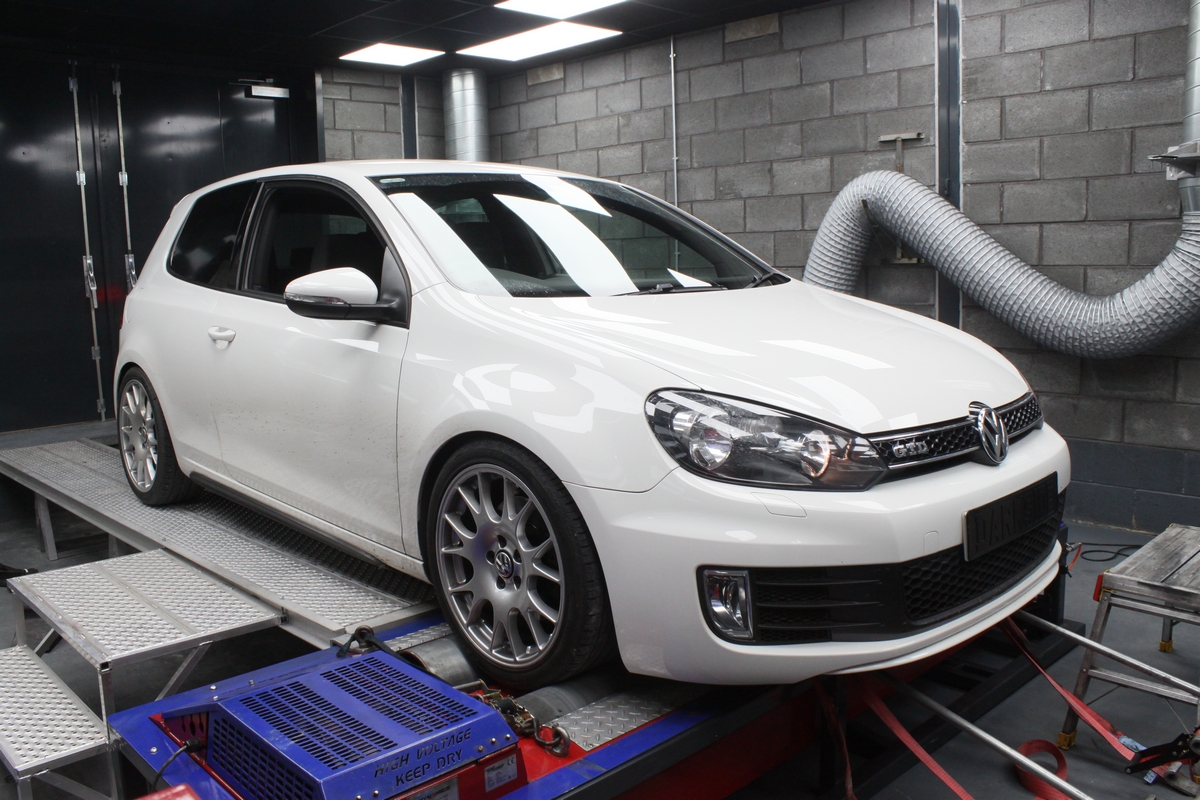

HD Video

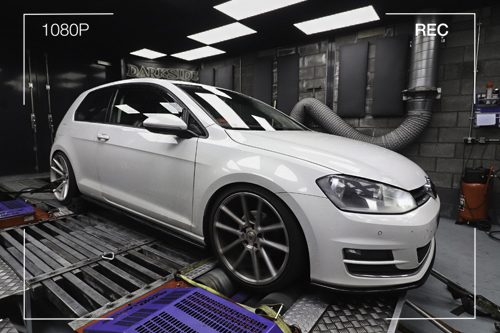

Our cell has a 1080P HD Wide Angle Lens Video Camera with built in microphone. As well as security we can use this to save, upload or play back videos of the cars we run on the dyno at any time.

ramps.jpg lift-brake.jpg tn-dave-king-mk6-gtd.jpg






Click HERE to see the making of our Dyno Cell
