1.9 8v TDi VE Engine MLS Head Gasket

SKU:
DSD1588.1
Shipping:
Calculated at Checkout
  • 1.9 8v TDi VE Engine MLS Head Gasket
  • 1.9 8v TDi VE Engine MLS Head Gasket
  • 1.9 8v TDi VE Engine MLS Head Gasket
  • 1.9 8v TDi VE Engine MLS Head Gasket
£25.00

Description

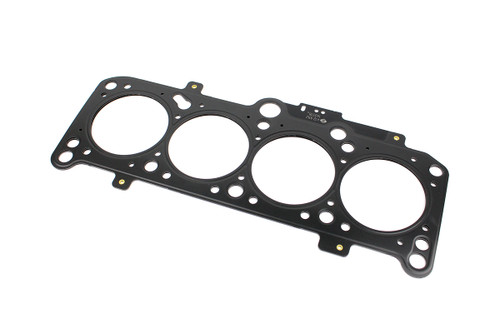

1.9 8v TDI VE Head Gasket

Multi Layer Steel (MLS) Head Gasket for the 1.9 8v TDi VE Engines

Please select from the option list which thickness gasket you require. This is based on the piston protrusion when the Engine is built up. The number of holes can be seen on the Silver Tab that sticks out on the front of the Engine

When changing the head gasket, please ensure you get the same thickness as previously fitted (unless the rods or pistons have been changed), otherwise you will have running issues

The diameter is 81mm for the standard 79.5mm 1.9 TDI Bore size

Please enter your reg / chassis number when ordering as there are 2 types of Head Gaskets available



1 Hole Head Gasket

  • Thickness: 1.45mm
  • From Piston Crown Protrusion: 0.91mm
  • To Piston Crown Protrusion: 1.0mm

028 103 383 BP  -  028103383 BP  -  028103383BP

  • Thickness: 1.55mm
  • From Piston Crown Protrusion: 0.91mm
  • To Piston Crown Protrusion: 1.0mm

038 103 383 AL  -  038103383 AL  -  038103383AL



2 Hole Head Gasket

  • Thickness: 1.53mm
  • From Piston Crown Protrusion: 1.01mm
  • To Piston Crown Protrusion: 1.1mm

028 103 383 BQ  -  028103383 BQ  -  028103383BQ

  • Thickness: 1.63mm
  • From Piston Crown Protrusion: 1.01mm
  • To Piston Crown Protrusion: 1.1mm

038 103 383 AM  -  038103383 AM  -  038103383AM



3 Hole Head Gasket

  • Thickness: 1.61mm
  • From Piston Crown Protrusion: 1.11mm
  • To Piston Crown Protrusion: 1.2mm

028 103 383 BR  -  028103383 BR  -  028103383BR

  • Thickness: 1.71mm
  • From Piston Crown Protrusion: 1.11mm
  • To Piston Crown Protrusion: 1.2mm

    038 103 383 AN  -  038103383 AN  -  038103383AN



This will fit the following vehicles with the engine codes listed below:

VW Beetle - ALH 90

VW Golf Mk3 - AHU 90, AFN 110

VW Golf Mk4 - ALH / AGR 90, AHF / ASV 110

VW Bora - ALH / AGR 90, AHF / ASV 110

VW Passat - 1Z / AHU 90, AFN / AVG 110

VW Caddy - ALH / AHU / 1Z 90

VW Polo - ALH / AGR 90, ASV 110

VW Sharan - ALH / AHU 90, AVG / AFN 110

VW Vento - 1Z / ALH / AHU 90

Audi A3 - ALH / AGR 90, AHF / ASV 110

Audi A4 - AFF 75, ALH / 1Z / AHH / AHU 90, AFN 110

Audi A6 - 1Z / AHH / AHU 90, AFN 110

Skoda Octavia - ALH / AGR 90, AHF / ASV 110

Seat Leon - ALH / AGR 90, AHF / ASV 110

Seat Toledo - ALH / AGR 90, AHF / ASV 110

Seat Ibiza - ALH / AGR 90, ASV 110
