Transporter T5 / Touareg 2.5 TDi 5 Cylinder Cast Manifold

Price:
£250.00
SKU:
DSD1518
Shipping:
Calculated at checkout
* Vehicle:

(Maximum Size: . Type: )
* Model Year:

(Maximum Size: . Type: )


Product Description

Cast Manifold for 2.5 TDi 5 Cylinder PD Engines with Standard Turbo

Replacement Manifold for 5 Cylinder VW Transporter T5 and VW Touareg (Manual)

This Cast Iron Manifold is a direct replacement for the standard Manifold found on the VW Transporter and VW Touareg 2.5 TDi T5 PD130, PD163 Engines

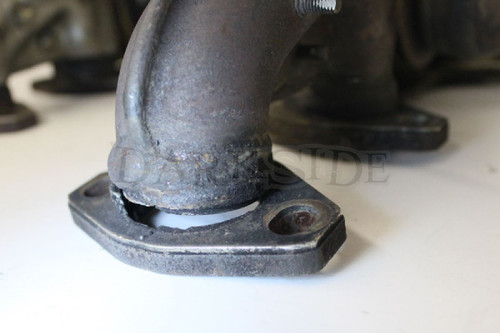

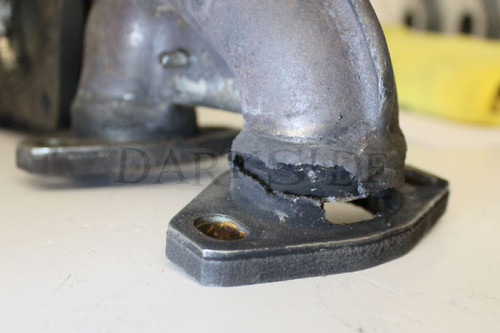

The common problem with the standard OEM manifold is that the pressed steel is prone for cracking around the welds, usually on Cylinder 5. Please see all our photos for examples of the damage

The standard replacement Manifold (which will crack again) costs £370 + VAT from VW. This is for the Bare Manifold, so the Gaskets, Nuts and Studs would need to be purchased separately

Please note that this Manifold only works the standard OEM Turbo or Hybrids based on that

These manifolds are subject to a strict QC procedure which includes CNC machining the cylinder head mating face and pressure testing the EGR take off to ensure no possibility of exhaust gas leaks.



Included in this kit:

1 x Cast Iron Manifold
Turbo Flange Assembly
1 x Tapered EGR Washer
1 x Turbo to Manifold Gasket
1 x Downpipe Gasket
1 x Exhaust Manifold Gasket
1 x Turbo to Engine Sealing Gasket
4 x M8 Bolts - Bolt Turbo to Manifold
4 x M8 Nuts - for Turbo to Manifold
10 x M8x20mm Studs
10 x M8x12mm Exhaust Nuts


 The kit is designed to fit the following vehicles:

VW Transporter T5 - AXD 131 BLJ 163 (Manual and Auto)

Please note fitment to the following will require slight modification as clearance between manifold and turbine housing is very tight VW Transporter T5 - AXE 174

VW Touareg - BLK 163, BAC 174 (Manual Gearbox)



OE Part Number

070 253 017 A  -  070253017 A  -  070253017A

 Please refer to the fitting guide when installing this part or forward it the the mechanic/garage carrying out the work. Return reason "does not fit" will not be accepted on this item.

A guide with fitting tips is available to email via PDF

Here is a good written Guide on the T5 Forum - http://www.vwt4forum.co.uk/showthread.php?t=206854


Product Videos

Darkside Developments - VW Transporter T5 / Touareg 2.5 TDI Cast Manifold Installation Guide (03:00)
This guide will take you through step by step how to install our Transporter T5 / Touareg 2.5 TDI Cast Manifold. On earlier models the common problem with the standard OEM manifold is that the pressed steel is prone for cracking around the welds, usually on Cylinder 5. On later models the common problem with the standard OEM manifold is that the exhaust studs snap and cause the manifold to warp, sometimes this can be linlished flat but sometimes the warping in too bad. Our Cast Manifold are available here: http://www.darksidedevelopments.co.uk/cast-manifolds/
