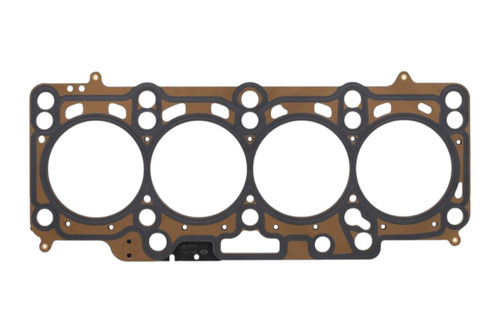

VAG 2.0 TDI Common Rail Engine (Oval Port) MLS Head Gasket

SKU:
DSD4806.1
Shipping:
Calculated at Checkout
  • VAG 2.0 TDI Common Rail Engine (Oval Port) MLS Head Gasket
£30.00

Description

VAG 2.0 TDI Common Rail Engine (Oval Port) MLS Head Gasket

OEM Replacement MLS (Multi Layer Steel) Cylinder Head Gasket for VAG 2.0 TDI Common Rail (Oval Port) Diesel Engines

Please select from the option list which thickness gasket you require. This is based on the piston protrusion when the Engine is built up. The number of holes can be seen on the Silver Tab that sticks out on the front of the Engine.

When changing the head gasket, please ensure you get the same thickness as previously fitted (unless the rods or pistons have been changed), otherwise you will have running issues.

  • OEM Replacement Gasket
    • 1 Hole Head Gasket:

    Thickness: 1.55 mm

    Notches/Holes Number: 1

    Piston Protrusion: from 0.91 mm, until 1 mm

    Diameter: 82.2 mm (for 81mm Bore Size)

    Gasket Design: Multilayer Steel (MLS)

    Number of layers: 4 layer


    2 Hole Head Gasket:

    Thickness: 1.63 mm

    Notches/Holes Number: 2

    Piston Protrusion: from 1.01 mm, until 1.1 mm

    Diameter: 82.2 mm (for 81mm Bore Size)

    Gasket Design: Multilayer Steel (MLS)

    Number of layers: 4 layer


    3 Hole Head Gasket:

    Thickness: 1.71 mm

    Notches/Holes Number: 3

    Piston Protrusion: from 1.11 mm, until 1.2 mm

    Diameter: 82.2 mm (for 81mm Bore Size)

    Gasket Design: Multilayer Steel (MLS)

    Number of layers: 4 layer


    Cylinder Head Bolts can be found:

    https://www.darksidedevelopments.co.uk/products/head-bolt-set-for-1-6-2-0-tdi-common-rail-diesel-engines.html

    Head Set for 2.0 TDI Common Rail Oval Port Engines

    https://www.darksidedevelopments.co.uk/products/head-set-for-2-0-tdi-common-rail-oval-port-engines.html

    Fitment Data

    This item will fit Vehicles with the following Engine Codes:

    Audi A1 - CFHB (136) CFHD (143)

    Audi A3 / S3 - CFFA (136) CLJA (140) CFFB (140) CFGB (170)

    Audi A3 Cabriolet - CFFA (136) CFFB (140)

    Audi A4 / Avant - CJCC (120) CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CMGB (177) CGLC (177)

    Audi A4 / S4 / Avant / quattro - CJCC (120) CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CMGB (177) CGLC (177)

    Audi A4 allroad quattro - CJCB (136) CJCA (143) CJCD (150) CGLD (163) CGLC (177)

    Audi A5 / S5 Cabriolet - CJCA (143) CJCD (150) CGLD (163) CGLC (177)

    Audi A5 / S5 Coupe Sport - CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CGLC (177)

    Audi A6 / Avant - CGLE (136) CGLD (163) CMGB (177) CGLC (177)

    Audi A6 / S6 / Avant / quattro - CGLE (136) CGLD (163) CMGB (177) CGLC (177)

    Audi Q3 - CFFA (136) CLJA (140) CFFB (140) CFGD (163) CLLB (177) CFGC (177)

    Audi Q5 - CJCB (136) CJCA (143) CJCD (150) CGLD (163) CGLA (163) CMGA (170) CGLB (170) CMGB (177) CGLC (177)

    Audi TT / TTS Coupe / Roadster - CFGB (170)

    Seat Alhambra - CFFE (116) CFFA (136) CFFB (140) CFGB (170) CFGC (177)

    Seat Altea - CFHC (140) CFJA (170)

    Seat Exeo - CJCC (120) CJCA (143) CGLB (170)

    Seat Ibiza - CFHD (143)

    Seat Leon - CLCB (140) CFHC (140) CFJA (170)

    Skoda Octavia - CLCA (110) CFHF (110) CLCB (140) CFHC (140)

    Skoda Superb - CLJA (140) CFFB (140) CFGB (170)

    Skoda Yeti - CFHF (110) CFHA (110) CLCA (110) CFHC (140) CLCB (140) CFJA (170)

    VW Amarok - CNFA (122) CDBA (122) CNFB (140) CDCA (163) CSHA (180) CNEA (180)

    VW Beetle - CFFB (140)

    VW Beetle Cabrio - CFFB (140)

    VW Caddy - CFHE (85) CLCA (110) CFHF (110) CLCB (140) CFHC (140) CFJA (170)

    VW Campmobile Type 2 / T2 - CAAB (102) CAAD (114) CCHB (136) CCHA (140) CAAC (140) CFCA (180)

    VW CC - CFFA (136) CFFB (140) CLLA (170) CFGB (170) CFGC (177)

    VW Crafter - CKTB (109) CSLB (114) CKTC (136) CSLC (140) CKUC (142) CSNA (163) CKUB (163)

    VW Diesel Industrial Motor - null

    VW Eos - CFFA (136) CFFB (140)

    VW Golf - CLCA (110) CFHB (136) CFFA (136) CFHC (140) CFFB (140) CFGB (170)

    VW Golf Cabriolet - CFHC (140)

    VW Golf Plus - CLCA (110) CFHB (136) CFHC (140)

    VW Jetta - CLCA (110) CFFB (140) CLCB (140) CFHC (140)

    VW Jetta Variant - CLCA (110)

    VW Novo Fusca - CFFB (140)

    VW Passat / Variant - CFFA (136) CKRA (140) CFFB (140) CLLA (170) CFGB (170) CFGC (177)

    VW Passat CC - CFFA (136) CFFB (140) CLLA (170) CFGB (170)

    VW Scirocco - CFHB (136) CFHC (140) CFGB (170) CFGC (177)

    VW Sharan - CFFE (116) CFFA (136) CFFB (140) CFGB (170) CFGC (177)

    VW Tiguan - CFFD (110) CFFA (136) CLJA (140) CFFB (140) CFGB (170) CFGC (177)

    VW Touran - CLCA (110) CFHF (110) CFHC (140) CFJA (170) CFJB (177)

    VW Transporter Kombi - CAAA (84) CAAB (102) CAAD (114) CCHB (136) CAAE (136) CCHA (140) CAAC (140) CFCA (180)

    VW Vent o - CLCA (110) CFFB (140) CLCB (140) CFHC (140)

    VW Vento Variant - CLCA (110)

    Replaces Genuine VAG 1 Hole Gasket Part Numbers:

    03L103383AJ - 03L103383 AJ - 03L 103 383 AJ
    03L103383BF - 03L103383 BF - 03L 103 383 BF
    03L103383BM - 03L103383 BM - 03L 103 383 BM

    Replaces Genuine VAG 2 Hole Gasket Part Numbers:

    03L103383AK - 03L103383 AK - 03L 103 383 AK
    03L103383BG - 03L103383 BG - 03L 103 383 BG
    03L103383BN - 03L103383 BN - 03L 103 383 BN

    Replaces Genuine VAG 3 Hole Gasket Part Numbers:

    03L103383AL - 03L103383 AL - 03L 103 383 AL
    03L103383BH - 03L103383 BH - 03L 103 383 BH
    03L103383BP - 03L103383 BP - 03L 103 383 BP
