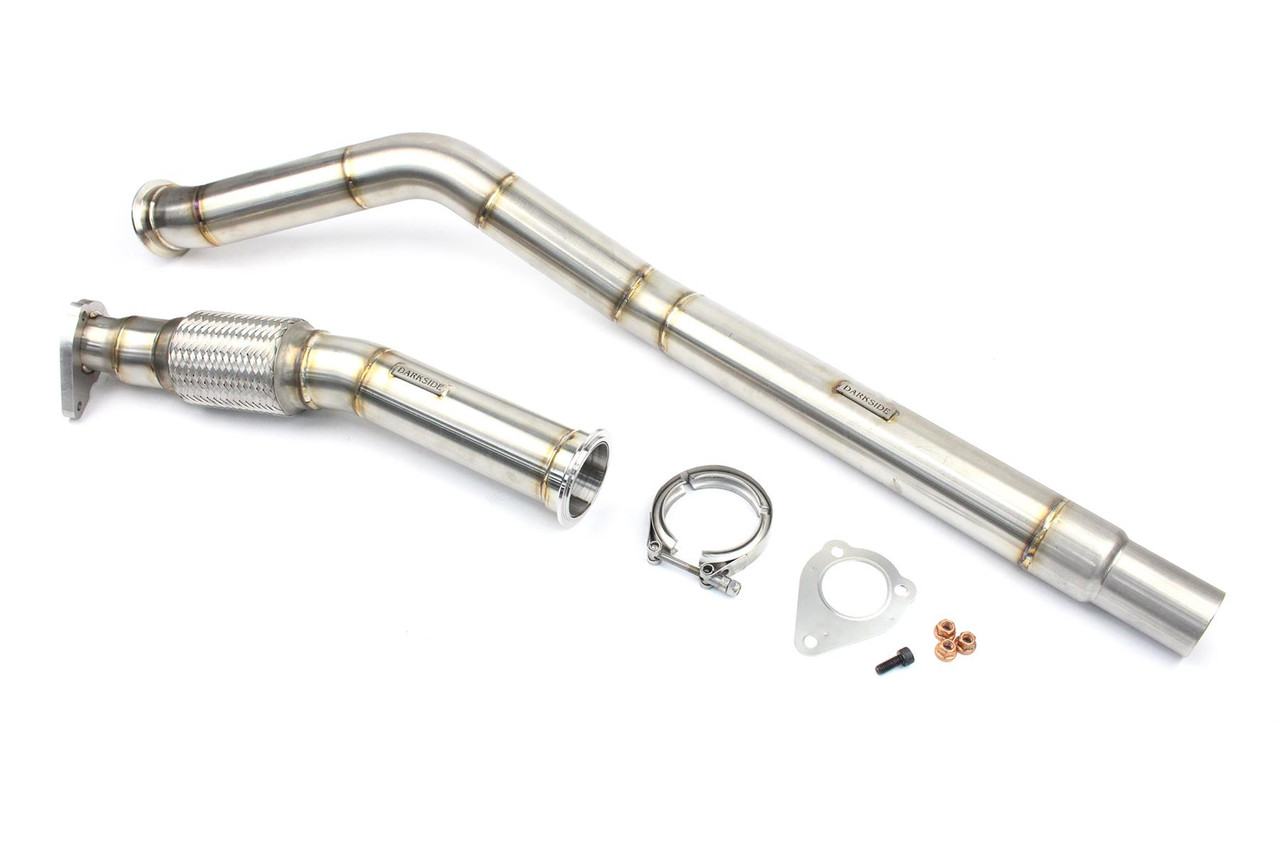

Darkside 2.5" Stainless De-Cat Downpipe Audi A4 B6 / VW Passat B5 1.9 TDi

Darkside 2.5" Stainless Steel De-Cat Downpipe for B5/B6 Platform 1.9 TDI Audi A4 / Volkswagen Passat

This 2.5" Stainless Steel De-Cat Downpipe is a direct replacement for the Standard Downpipe as well as removing the Catalytic Converter (CAT) on the B5/B6 Platform 1.9 TDI Vehicles.

Custom made in the UK, this Downpipe is fabricated in house from 2.5" Aircraft Grade 316L TIG Welded Stainless Steel.

We have designed this pipe with a slip joint to reduce down to the stock exhaust size to slot nicely into the standard system, but this can easily be removed or swapped out for a larger diameter slip joint.

The pipe is assembled in two pieces to assist with installation and has a Stainless V-Band clamp to connect the pieces together.

Made in the UK

Aircraft Grade 316L Stainless Steel

TIG Welded in House

DOES NOT FIT 1.9 VE ENGINES WITH WASTEGATE TURBO

This Kit Consists of:

2-Piece Stainless Steel CAT Delete Downpipe
1x Stainless V-Band Clamp
1x Downpipe Gasket
3x Exhaust Nuts
1x M8 Bolt
1x Stainless T-Bolt Clamp

This Kit will fit Vehicles with the following Engine Codes:

Audi A4 / Avant - AHH (90) AVB (100) AJM (115) AWX (131) AVF (131)

Audi A4 / S4 / Avant / quattro - AVB (100) AWX (131) AVF (131)

Audi A6 / Avant - AJM (115) AWX (131) AVF (131)

Audi A6 / S6 / Avant / quattro - AWX (131) AVF (131)

Skoda Superb - AVB (100) AWX (131) AVF (131)

VW Passat / Variant - AHH (90) AVB (100) ATJ (115) AJM (115) AWX (131) AVF (131)

Replaces Genuine VAG Part Numbers:

PLEASE CONFIRM YOUR REG / VIN ABOVE, AVF ENGINES REQUIRE A DIFFERENT LOWER PIPE.

Vehicles fitted with 8E0 253 301 S - 8E0253301 S - 8E0253301S lower pipe require DSD9499.2

Does Not fit AVF 4 motion Models with part number 3B0 254 200 DX - 3B0254200 DX - 3B0254200DX

Fits AVF 4 motion Models with part number 8E0 254 200 DX - 8E0254200 DX - 8E0254200DX

Our DPF Delete Pipes are generally supplied with only a Lambda Sensor Boss and sometimes an EGT boss. On most models the Pre-Turbo EGT Boss is located in the Exhaust Manifold on the Turbocharger. All other EGT and Pressure Sensors are not required when removing the DPF, leaving them in the downpipe can eventually lead to sensor failure, creating a fault in the ECU and possibly a Check Engine Light in the Instrument Cluster. With the correct DPF Delete Software, these sensors are removed entirely so they can be unplugged and removed from the car. If your tuner cannot remove these faults, the sensors should be left plugged in and tied up out of the way.

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country.
