Darkside Front Mount Intercooler (FMIC) for Audi A4 B7 2.7 / 3.0 TDI

Darkside Audi B7 Platform 2.7 / 3.0 TDi 2.25" 57mm Front Mount Intercooler (FMIC)

This Uprated Intercooler is a direct replacement for the standard side mount Intercoolers found on the Audi A4 3.0 TDi B7 Platform Vehicles

This kit will need you to retain the stock Intercooler hose from the Turbo and the ASV (Anti-Shudder Valve) We include the 2 alloy pipes to connect the Intercooler to the stock hoses

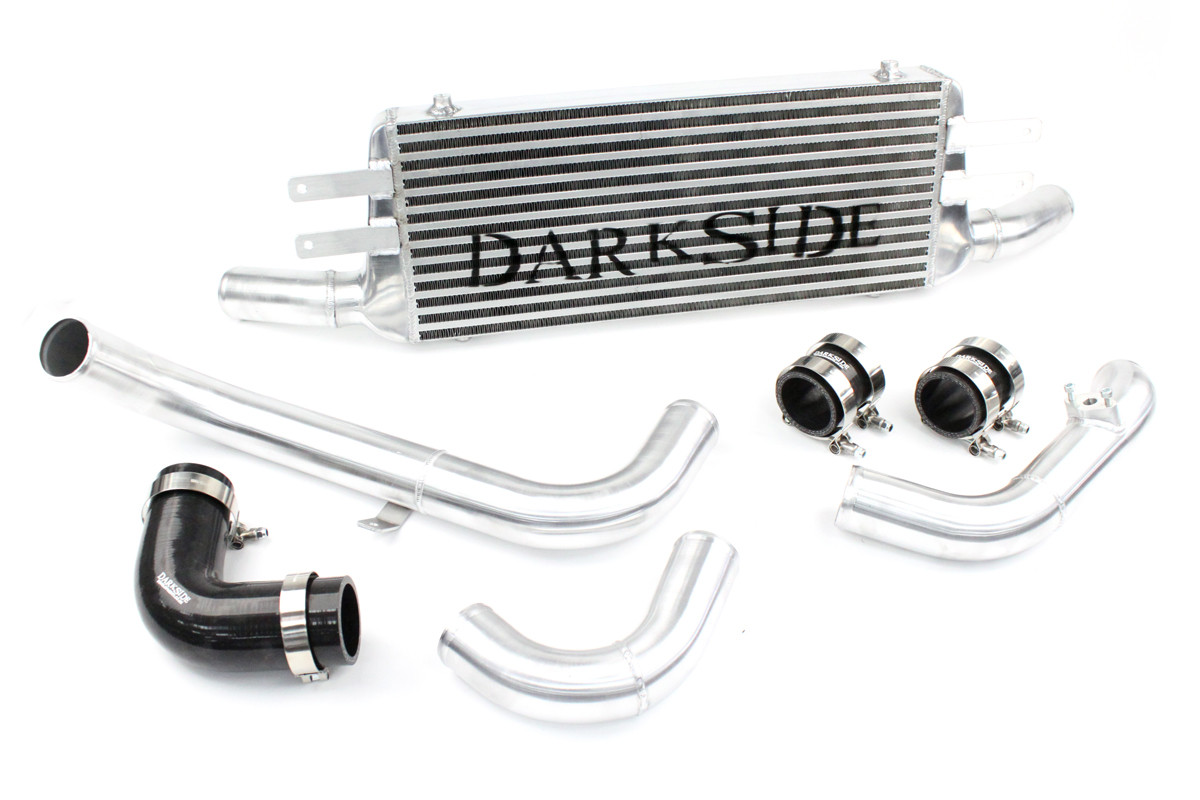

Included in this kit:

Darkside 2.25" 57mm Front Mount Intercooler
2.25" 57mm Alloy Intercooler pipe to Stock Turbo Hose
2.25" 57mm Alloy Intercooler pipe to ASV Hose
2x 57mm 2.25" Straight Silicone Couplers
1x 57mm 2.25" Silicone 90 Degree Elbow
6x 57mm 67-67 T-Bolt Clamps
All bolts and fittings required for Intercooler fitment

Intercooler Specifications:

Width: 560mm | 22.05"

Height: 230mm | 9.06"

Depth: 65mm | 2.56"

Weight: 5.3kg | 11.69lbs (Approx.)

Intercooler Core Type: Bar and Plate

Replaces Genuine VAG Part Numbers:

8E0 145 805 AD - 8E0145805 AD - 8E0145805AD
8E0 145 806 L - 8E0145806 L - 8E0145806L

This will fit vehicles with the following Engine Codes:

Audi A4 - BSG (163) BPP (179) BKN (204) ASB (232)

We cannot guarantee fitment of this kit on the Audi A6 as the bumper and crash bar are different to the Audi A4

This kit will require you to cut the Crash Bar as there is no room for the Intercooler to sit behind it. You may also be required to trim the bumper / Undertray for a perfect fitment. The Intercooler will not fit if you have front parking sensors.

Power steering cooler may need relocation along with the module box mounted on the lower left side of the radiator.

We have a full fitting guide available. This PDF Guide will be sent across with the order

PLEASE NOTE - THIS INTERCOOLER WILL NOT FIT WITH THE FOG LIGHTS STILL IN PLACE
