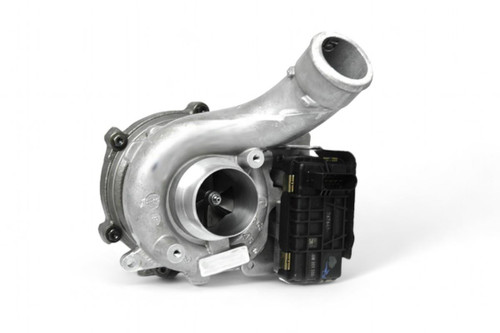

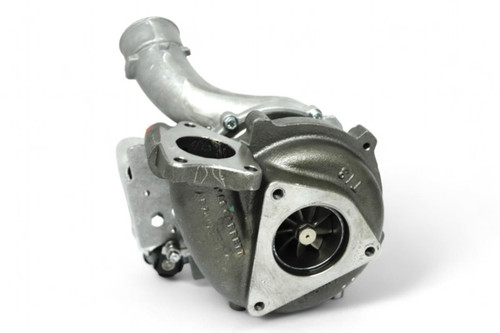

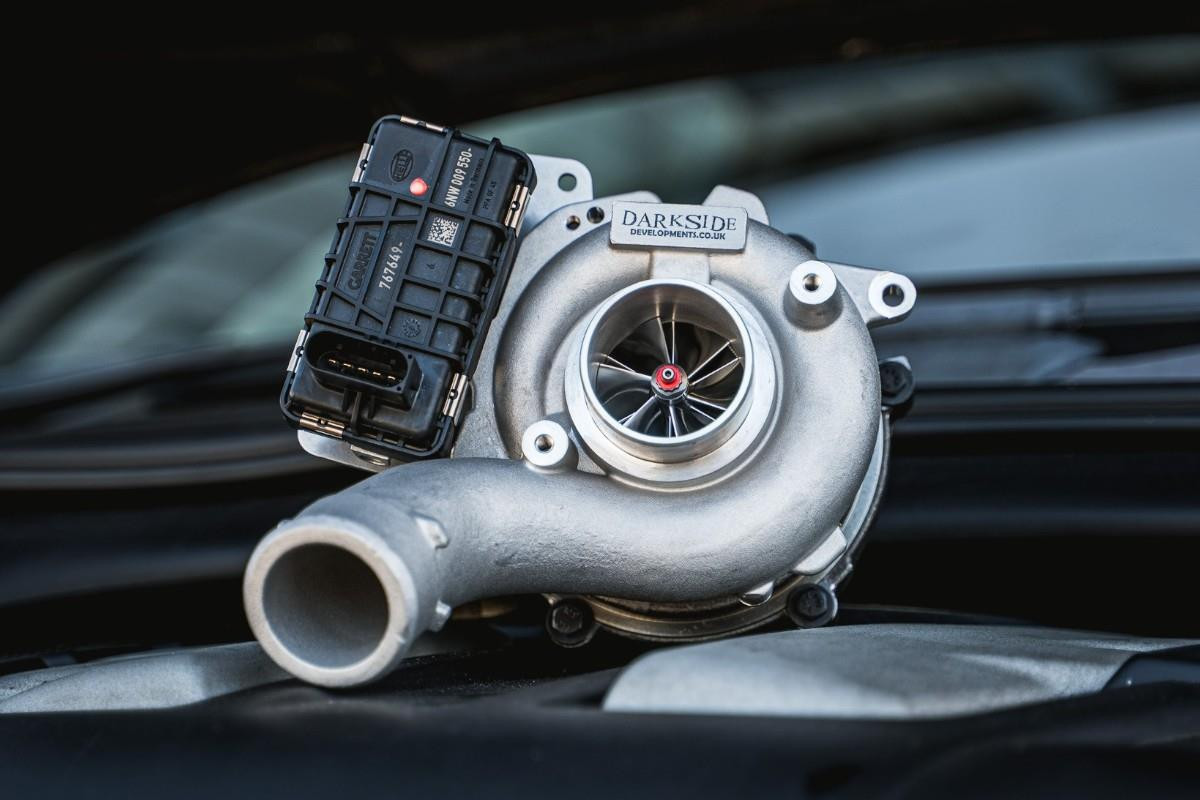

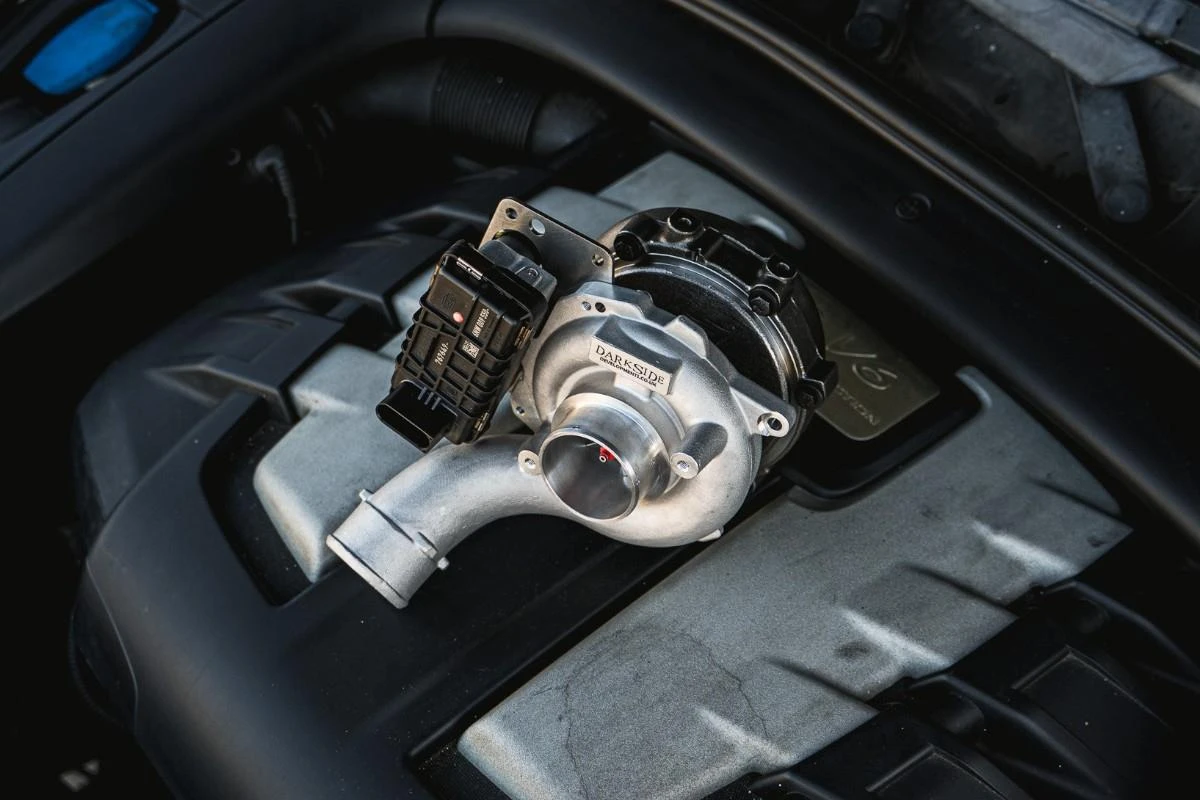

Darkside VAG 3.0 TDI V6 GTB2566VK Hybrid Turbocharger with Electronic Actuator

Darkside GTB2566VK Hybrid Turbocharger with Electronic actuator for Audi B8 / Touareg / Cayenne 3.0 TDI V6 Diesel Engines

Our Darkside GTB2566VK Hybrid has been converted from a Garrett GTB2260VK commonly found on VAG 3.0 TDI V6 Diesel Engines in the Audi B8 Platform / Touareg / Porsche Cayenne.

This turbo is built at our facilities in the UK and is completely setup and flowed to spec, we use an upgraded Billet 6+6 Compressor Wheel and an upgraded 5+5 Turbine Wheel.

Can be used as a direct replacement upgrade on the 3.0 TDI vehicles fitted with the stock GTB2056VK or GTB2260VK listed below but can be also used as an interchangable turbo on the Darkside 1.9 / 2.0 TDI GTB Turbo Kits, please contact us prior to ordering if you are unsure of fitment.

Increase in performance

Maintain economy and drivability

Quicker spool and lower manifold pressures at high RPMs

Low EMP's when running High Boost Pressures

Billet 6+6 Blade Compressor Wheel

Rated from 350bhp to 400bhp

Direct bolt on upgrade

Built in the UK

Turbo Specifications:

Custom Billet Compressor Wheel
Inducer: 49.62mm
Exducer: 61.98mm
Blade: 6+6

Turbine Wheel
Inducer: 50mm
Exducer: 49mm
Blade: 5+5

Options:

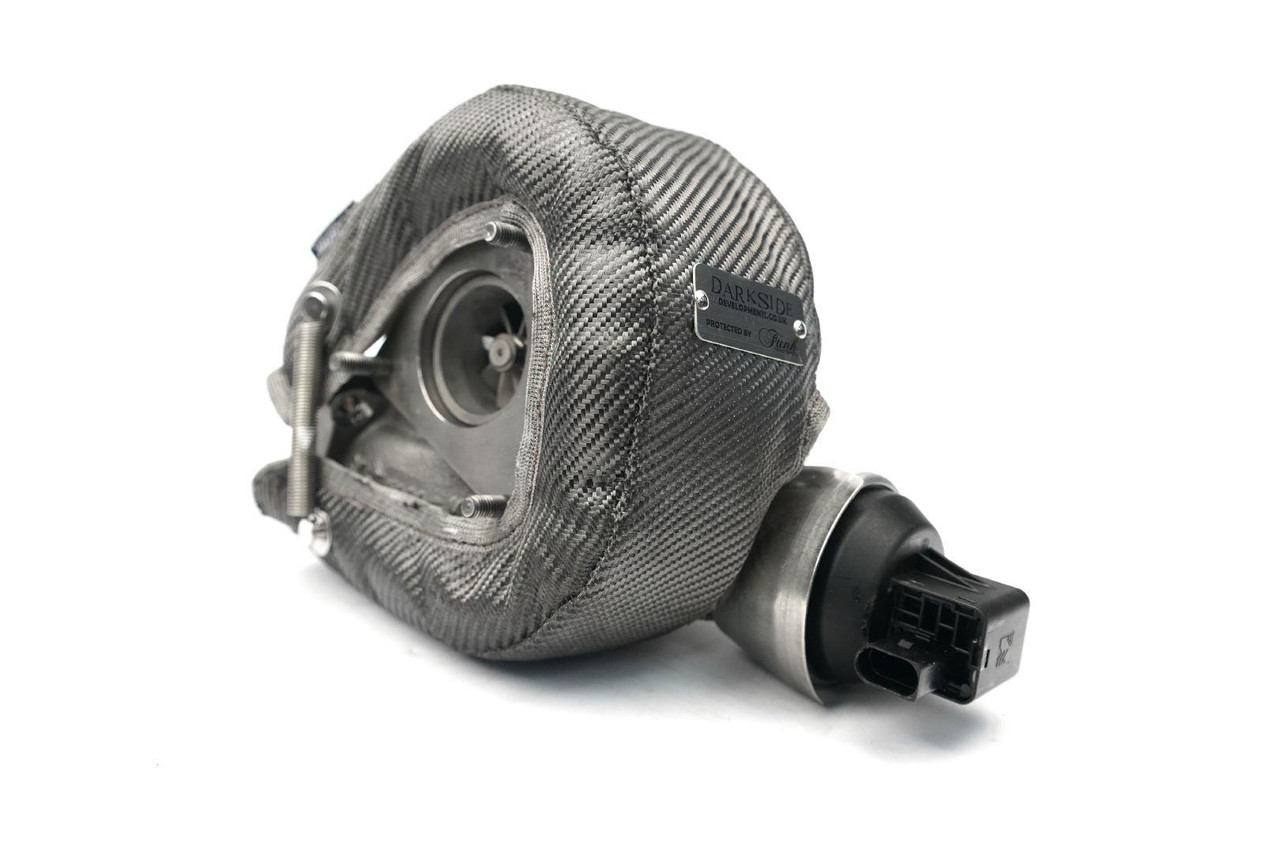

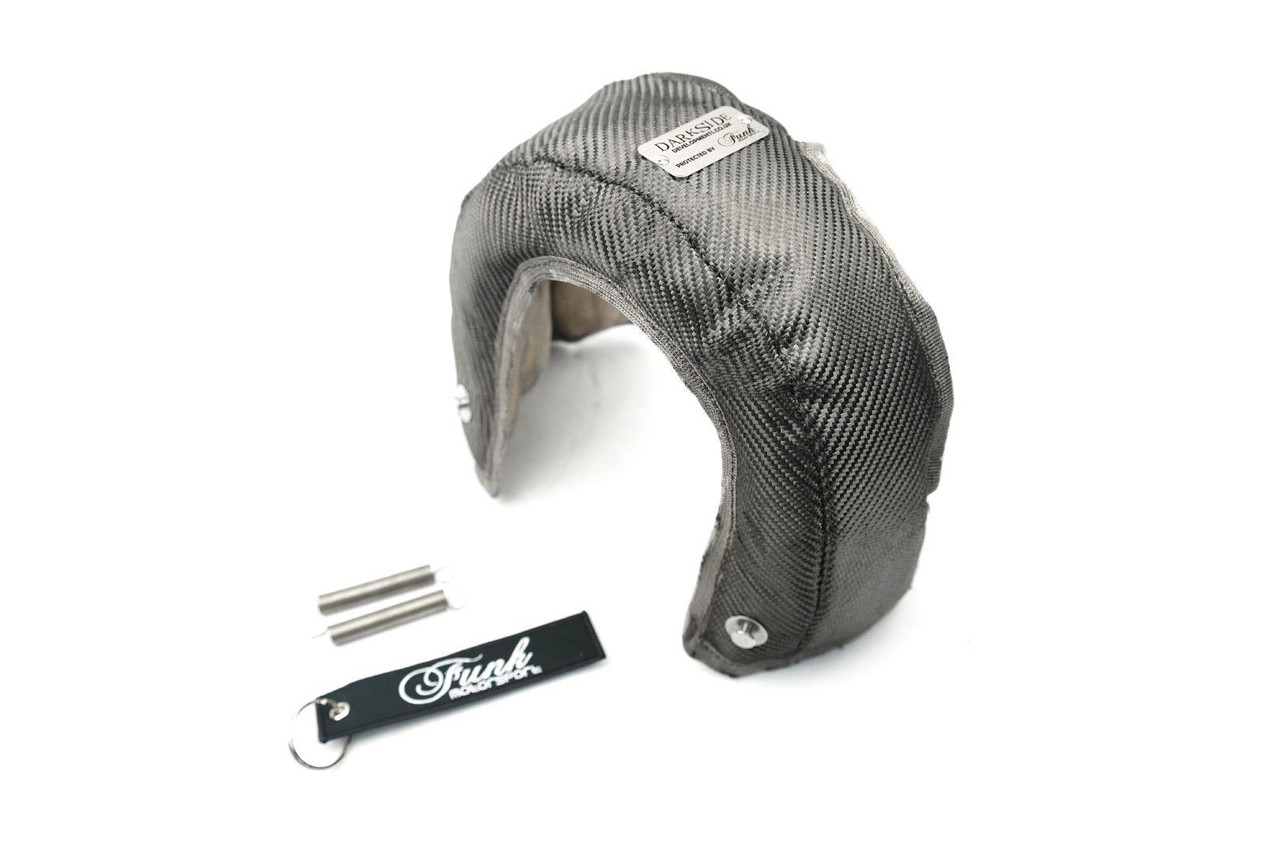

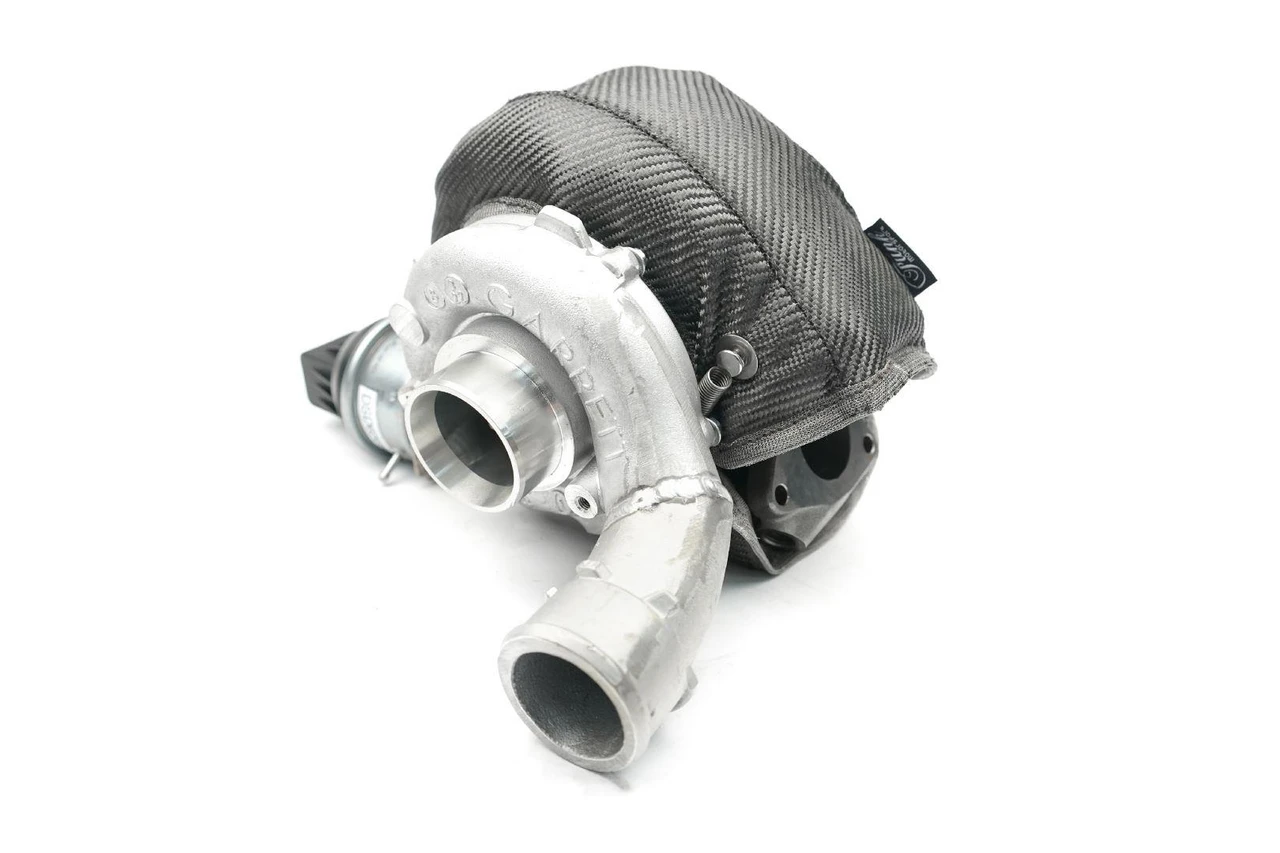

We now inlcude the option to add one of our Darkside x Funk Motorsport turbo blankets and/or for the compressor housing to be Cerakoted black.

VAG 2.7 & 3.0 TDI Turbo Gasket Fitting Kit:

https://www.darksidedevelopments.co.uk/products/vag-2-7-3-0-tdi-turbo-gasket-fitting-kit-for-gtb1756vk-gtb2056vk-gtb2260vk-gtb2566vk.html

This item will fit Vehicles with the following Engine Codes:

GTB2260VK Elongated Flange:

Audi A4 / Avant - CCWB (211) CCWA (239) CCLA (239) CAPA (240)

Audi A4 / S4 / Avant / quattro - CCWB (211) CCWA (239) CCLA (239) CAPA (240)

Audi A4 allroad quattro - CCWA (239)

Audi A5 / S5 Cabriolet - CCWA (239)

Audi A5 / S5 Coupe Sport - CCWB (211) CCWA (239) CAPA (240)

Audi Q5 - CCWB (211) CCWA (239)

GTB2260VK Even Spaced Flange:

Audi A6 / Avant - CDYB (211) CDYC (239) CDYA (239)

Audi A6 / S6 / Avant / quattro - CDYB (211) CDYC (239) CDYA (239)

Audi A6 allroad quattro - CDYB (211) CDYC (239) CDYA (239)

Audi Q7 - CASB (211) CCMA (239) CASA (240)

VW Phaeton - CARA (234) CEXA (239) CEXB (245)

VW Touareg - CASD (204) CASB (211) CATA (221) CASC (239) CASA (240)

GTB2056VK Even Spaced Flange

VW Touareg - CATA (225)

Replaces Genuine VAG Part Numbers:

GTB2260VK Elongated Flange:

059145722S - 059145722 S - 059 145 722 S
059145722L - 059145722 L - 059 145 722 L
059145721B - 059145721 B - 059 145 721 B
059145722K - 059145722 K - 059 145 722 K
059145654AL - 059145654 AL - 059 145 654 AL

GTB2260VK Even Spaced Flange:

059145722R - 059145722 R - 059 145 722 R
059145722M - 059145722 M - 059 145 722 M
059145722J - 059145722 J - 059 145 722 J

GTB2056VK Even Spaced Flange:

059145873F - 059145873 F - 059 145 873 F

Replaces Genuine Garrett Part Numbers:

GTB2260VK Elongated Flange:

776469-5 - 776469-0005 - 776469-0005S - 776469-5005 - 776469-5005S
776469-4 - 776469-0004 - 776469-0004S - 776469-5004 - 776469-5004S
769705-8 - 769705-0008 - 769705-0008S - 769705-5008 - 769705-5008S
769705-7 - 769705-0007 - 769705-0007S - 769705-5007 - 769705-5007S
769705-6 - 769705-0006 - 769705-0006S - 769705-5006 - 769705-5006S

GTB2260VK Even Spaced Flange:

776470-3 - 776470-0003 - 776470-0003S - 776470-5003 - 776470-5003S
776470-1 - 776470-0001 - 776470-0001S - 776470-5001 - 776470-5001S

GTB2056VK Even Spaced Flange:

783762-5002S - 783762 5002S - 7837625002S
