Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit

SKU:
DSD5772
Shipping:
Calculated at Checkout
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
  • Darkside High Pressure Front Mounted S-Tronic Gearbox Oil Cooler Kit
£450.00

Description

Darkside Universal Front Mounted S-Tronic Oil Cooler Kit

Darkside Oil Cooler with all fittings and hose required to fit all S-Tronic equipped models.

Oil Coolers are an important addition to high performance applications. S-Tronic Gearbox Oil can easily overheat causing it to becomes thinner and offer less protection to vital gearbox parts, resulting in premature gearbox wear. This can also affect the performance and function of the gearbox.

This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

After testing on our own A5 Project car we soon found that regular universal oil coolers were not up to the job of handling the high pressures produced by the S-Tronic gearbox.  With gearbox software we saw oil pressure as high as 20 BAR

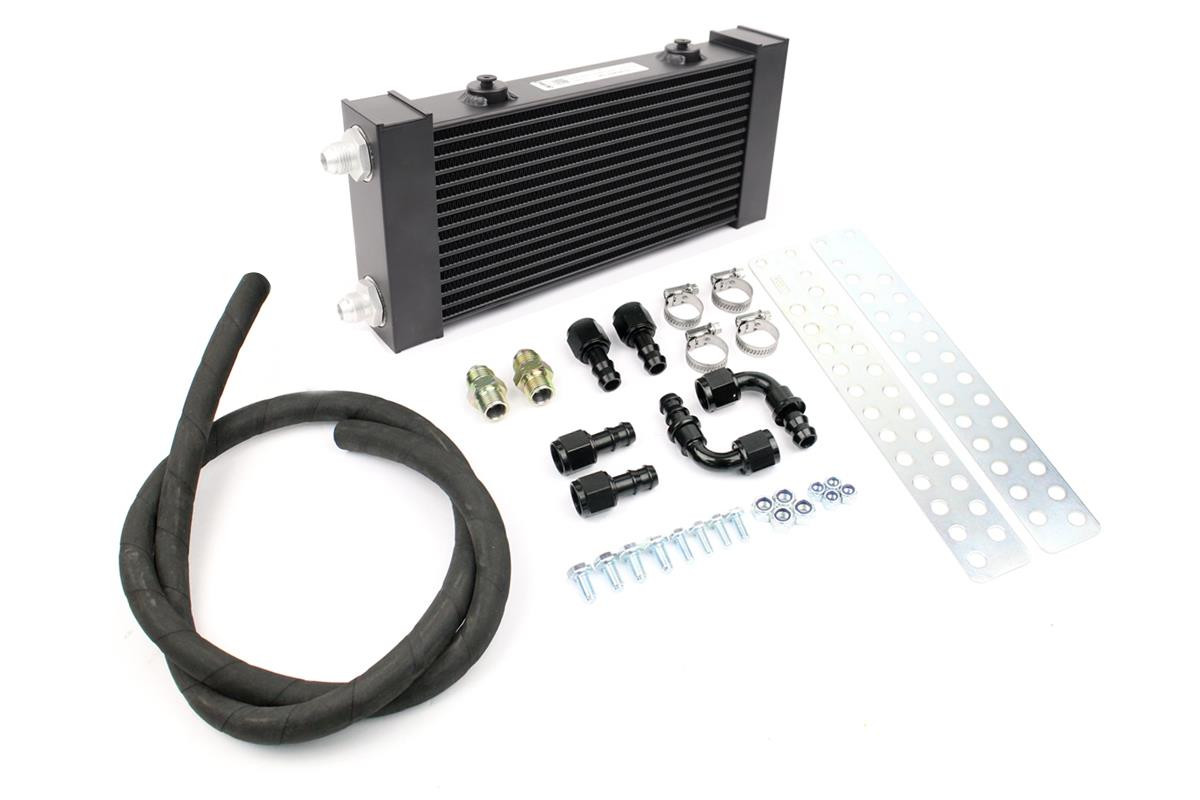

Included in the Kit:

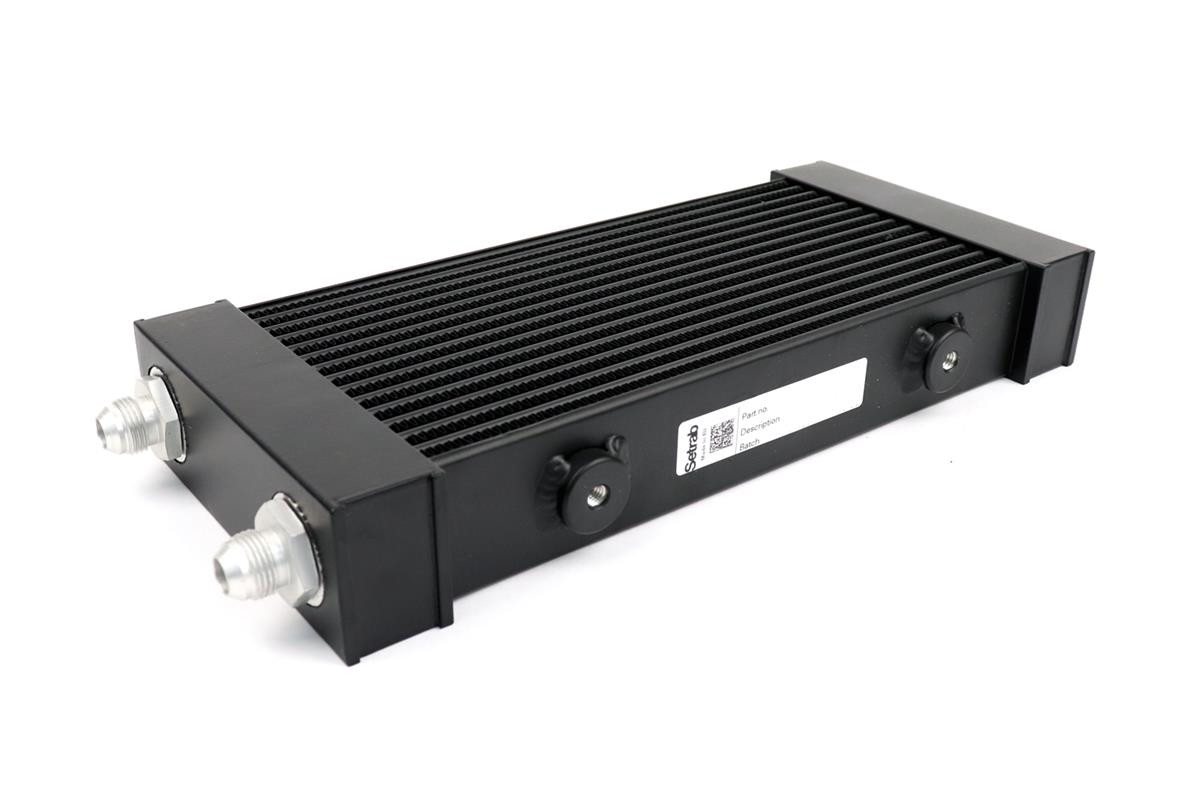

Setrab Proline 14 Row Oil Cooler
2 x S-Tronic to AN8 Hose Adaptors
4 x Straight Connectors
4 x 90 Push Fit Connectors
4m Push Fit Hose
4 x Jubilee Clamps
Universal Bracket Kit

To fit the following vehicles:

All S-Tronic equipped models


Oil Cooler Sizes:

W (Overall) - 328mm / W (Core) - 260mm x H - 148.4mm x D - 50mm

Oil Cooler Specifications:

Max Pressure: 25 bar
Max Pressure: 25 bar
Burst Pressure: 50 bar
Working Temperature: -40°C to 150°C
Inner Cleanliness: ISO 4406 16/14
General Dimensional Tolerances: ISO 2768-v
Material: Aluminium alloys
Max Connection Tightening Torque: 40 Nm
