Darkside Oil Cooler Kit for 1.6 / 2.0 TDI Oval Port Common Rail
Darkside Performance Universal Front Mounted Oil Cooler Kit for 1.6 / 2.0 TDI Oval Port Common Rail Diesel Engines (2011-) Complete Darkside Developments Universal Front Mounted Oil Cooler Kit with fittings and hose required to fit 1.6 / 2.0 TDI CR Oval Port Diesel Engines. Oil Coolers are an important addition to high performance engines. Engine Oil can easily overheat causing it to becomes thinner and offer less protection to vital engine parts, resulting in premature engine wear. This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place. Please bare in mind that the Common Rail Oval Port engines do not have a thermostat for the oil cooler, this means that oil will constantly flow through the cooler, if you would like to utilise a thermostat we have an inline option listed below. Our CNC Machined take off plate replaces the stock heat exchange unit allowing fitment of an external oil cooler whilst still circulating the coolant.Oil Cooler Specifications:

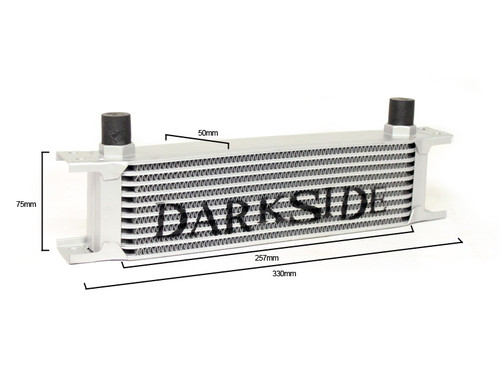

10 ROW Oil Cooler:
Max Pressure: 10 BAR (145psi)
Width (Overall): 330mm (12in)
Width (Core): 257mm (10.11in)
Height: 75mm (2.95in)
Depth: 50mm (1.97in)
13 ROW Oil Cooler:
Max Pressure: 10 BAR (145psi)
Width (Overall): 330mm (12in)
Width (Core): 257mm (10.11in)
Height: 100mm (3.94in)
Depth: 50mm (1.97in)
This Kit Consists of:
1x Darkside Oil Cooler (10 or 13 Row)1x CNC Machined Oil Cooler Takeoff Plate
4m of AN-8 Oil Cooler Hose
4x AN-8 Straight Oil Cooler Fittings
4x AN-8 90 Degree Oil Cooler Fittings
2x Dowty Washers
2x Male AN-8 to Male M22 Fittings
Oil Cooler Seal Kit
Mikalor Clamps
Universal Bracket Kit
Fitment Data
This Kit will fit Vehicles with the following Engine Codes:
Audi A1 - CAYB (90) CAYC (105) CFHB (136) CFHD (143)
Audi A3 / S3 - CAYB (90) CAYC (105) CFFA (136) CLJA (140) CFFB (140) CFGB (170)
Audi A3 Cabriolet - CAYC (105) CFFA (136) CFFB (140)
Audi A4 / Avant - CJCC (120) CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CMGB (177) CGLC (177)
Audi A4 / S4 / Avant / quattro - CJCC (120) CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CMGB (177) CGLC (177)
Audi A4 allroad quattro - CJCB (136) CJCA (143) CJCD (150) CGLD (163) CGLC (177)
Audi A5 / S5 Cabriolet - CJCA (143) CJCD (150) CGLD (163) CGLC (177)
Audi A5 / S5 Coupe Sport - CJCB (136) CMFA (143) CJCA (143) CMFB (150) CJCD (150) CGLD (163) CGLC (177)
Audi A6 / Avant - CGLE (136) CGLD (163) CMGB (177) CGLC (177)
Audi A6 / S6 / Avant / quattro - CGLE (136) CGLD (163) CMGB (177) CGLC (177)
Audi Q3 - CFFA (136) CLJA (140) CFFB (140) CFGD (163) CLLB (177) CFGC (177)
Audi Q5 - CJCB (136) CJCA (143) CJCD (150) CGLD (163) CGLA (163) CMGA (170) CGLB (170) CMGB (177) CGLC (177)
Audi TT / TTS Coupe / Roadster - CFGB (170)
Seat Alhambra - CFFE (116) CFFA (136) CFFB (140) CFGB (170) CFGC (177)
Seat Altea - CAYB (90) CAYC (105) CFHC (140) CFJA (170)
Seat Exeo - CJCC (120) CJCA (143) CGLB (170)
Seat Ibiza - CFWA (75) CAYB (90) CLNA (105) CAYC (105) CFHD (143)
Seat Leon - CAYB (90) CAYC (105) CLCB (140) CFHC (140) CFJA (170)
Seat Tole do - CAYB (90) CLNA (105) CAYC (105)
Skoda Fabia - CAYA (75) CFWA (75) CAYB (90) CAYC (105)
Skoda Octavia - CAYC (105) CLCA (110) CFHF (110) CLCB (140) CFHC (140)
Skoda Rapid - CAYB (90) CWXB (105) CLNA (105) CAYC (105)
Skoda Roomster - CFWA (75) CAYB (90) CAYC (105)
Skoda Routan - CFWA (75) CAYB (90) CAYC (105)
Skoda Superb - CAYC (105) CFFB (140) CLJA (140) CFGB (170)
Skoda Yeti - CAYC (105) CLCA (110) CFHF (110) CFHA (110) CLCB (140) CFHC (140) CFJA (170)
VW - CFWA (75) CWXA (90) CWXB (105) CLNA (105)
VW Amarok - CNFA (122) CDBA (122) CNFB (140) CDCA (163) CSHA (180) CNEA (180)
VW Ameo - CWXA (90)
VW Beetle - CAYC (105) CFFB (140)
VW Beetle Cabrio - CAYC (105) CFFB (140)
VW Caddy - CAYE (75) CFHE (85) CAYD (102) CLCA (110) CFHF (110) CLCB (140) CFHC (140) CFJA (170)
VW Campmobile Type 2 / T2 - CAAB (102) CAAD (114) CCHB (136) CCHA (140) CAAC (140) CFCA (180)
VW CC - CFFA (136) CFFB (140) CLLA (170) CFGB (170) CFGC (177)
VW Crafter - CSLA (109) CKTB (109) CSLB (114) CKTC (136) CSLC (140) CKUC (142) CSNA (163) CKUB (163)
VW Diesel Industrial Motor - null
VW Eos - CFFA (136) CFFB (140)
VW Golf - CAYB (90) CAYC (105) CLCA (110) CFHB (136) CFFA (136) CFHC (140) CFFB (140) CFGB (170)
VW Golf Cabriolet - CAYC (105) CFHC (140)
VW Golf Plus - CAYB (90) CAYC (105) CLCA (110) CFHB (136) CFHC (140)
VW Jetta - CAYB (90) CAYC (105) CLCA (110) CFFB (140) CLCB (140) CFHC (140)
VW Jett a Variant - CLCA (110)
VW Novo Fusca - CAYC (105) CFFB (140)
VW Passat / Variant - CAYC (105) CFFA (136) CKRA (140) CFFB (140) CLLA (170) CFGB (170) CFGC (177)
VW Passat CC - CFFA (136) CFFB (140) CLLA (170) CFGB (170)
VW Polo - CAYA (75) CFWA (75) CWXA (90) CAYB (90) CWXB (105) CLNA (105) CAYC (105)
VW Scirocco - CFHB (136) CFHC (140) CFGB (170) CFGC (177)
VW Sharan - CFFE (116) CFFA (136) CFFB (140) CFGB (170) CFGC (177)
VW Tiguan - CFFD (110) CFFA (136) CLJA (140) CFFB (140) CFGB (170) CFGC (177)
VW Touran - CAYB (90) CAYC (105) CLCA (110) CFHF (110) CFHC (140) CFJA (170) CFJB (177)
VW Transporter Kombi - CAAA (84) CAAB (102) CAAD (114) CCHB (136) CAAE (136) CCHA (140) CAAC (140) CFCA (180)
VW Vento - CAYC (105) CLCA (110) CFFB (140) CLCB (140) CFHC (140)
VW Vento Variant - CLCA (110)
Replaces Genuine VAG Part Numbers:
03L117021B - 03L117021 B - 03L 117 021 B
03L117021C - 03L117021 C - 03L 117 021 C
