DQ250 Race DSG Oil Cooler Kit - Race / Motorsport Spec Oil Cooler

Uprated Race Spec Oil Cooler with all fittings and hose required to fit Vehicles with DQ250 02E DSG Transmission

Oil Coolers are an important addition to high performance applications. DSG Gearbox Oil can easily overheat causing it to becomes thinner and offer less protection to vital gearbox parts, resulting in premature gearbox wear. This can also affect the performance and function of the gearbox.

This kit includes universal brackets allowing the cooler to be mounted where best suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

Oil Cooler Sizes:

W (Overall) - 328mm / W (Core) - 260mm x H - 148.4mm x D - 50mm

Oil Cooler Specs:

Max Pressure: 25 bar
Max Pressure: 25 bar
Burst Pressure: 50 bar
Working Temperature: -40°C to 150°C
Inner Cleanliness: ISO 4406 16/14
General Dimensional Tolerances: ISO 2768-v
Material: Aluminium alloys
Max Connection Tightening Torque: 40 Nm

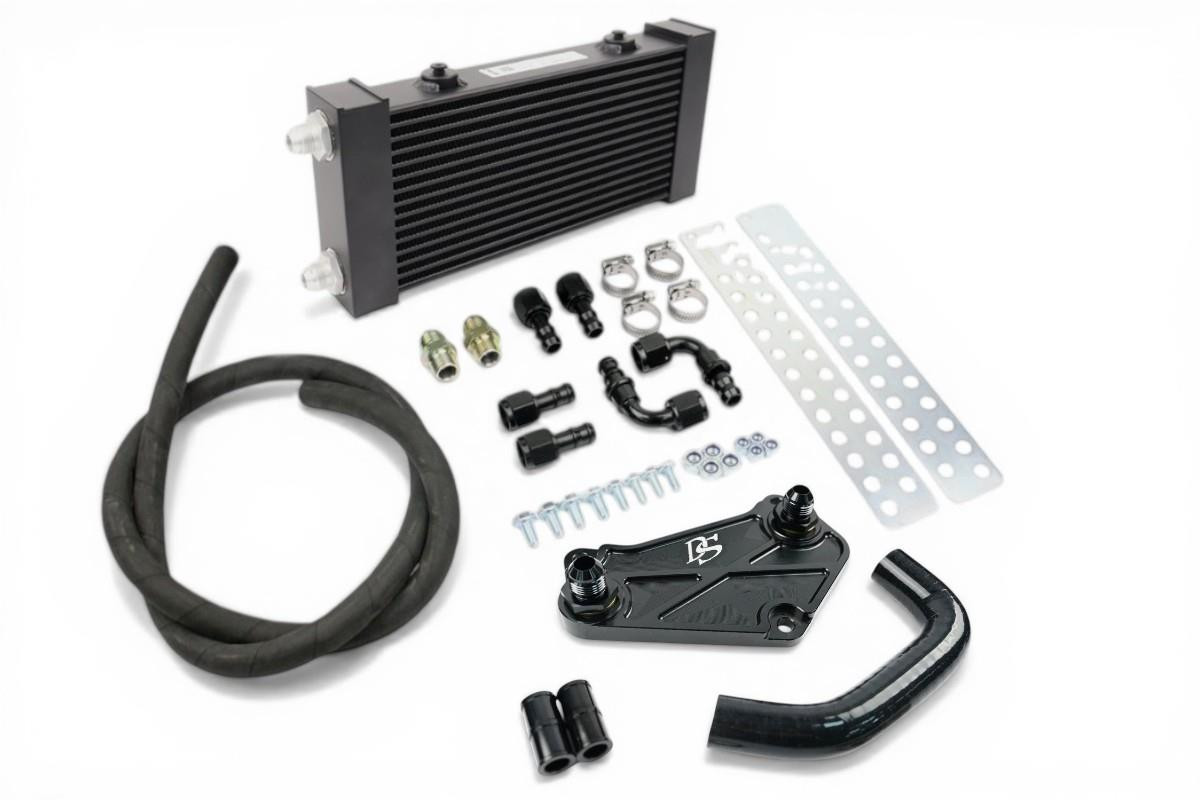

This Kit Consists of:

Setrab Proline 14 Row Oil Cooler
DSG Oil Cooler Adapter Plate
2x AN8 Oil Cooler Adapter
4x AN8 Straight Fittings
4x AN8 90 Degree Fittings
2x Oil Cooler O-Rings
4m of AN8 Oil Cooler Hose
Jubilee Clamps
