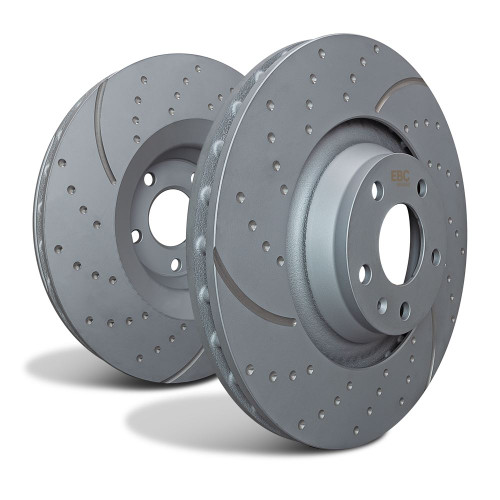

EBC GD SERIES SPORT 294mm Rear Brake Disc Set for BMW 3 Series E46 - 34211165563

EBC GD SERIES SPORT 294mm Rear Brake Disc Set for BMW 3 Series E46 - 34211165563

EBC GD Series sport rotors are 100% machined in the UK from R90-approved blanks, with the majority cast in the EU. They are a superb solution for fast street cars and 4x4s.

Now in their third generation, the rotors feature silver corrosion protection. The GD wide aperture slots help maintain even pad wear, run cooler, and expel dirt, mud, water, and dust from the braking area.

The dimple drilled rotor was invented by EBC back in the 90’s and has been imitated by many because of its ability to offer pad degassing without "Through Drilling" disc or rotor holes which has been shown to promote rotor cracks.

The wide aperture slots on the EBC units actually draw cool air under the brake pad and rotor interface and help cool the temperatures of the pad contact which can shoot up to well over 1000 degrees at the very heart of the brake pad during heavy braking and can cause brake fade or loss of brake effect.

All rotors including GD Sport Rotors are machined and finished in the UK or in the USA.

R90 Approved

Drilled and Grooved

Suitable for Fast Street Cars and 4x4's

Silver Corrosion Protection

Size:

Fitting Position: Rear Axle
Style: Vented
Number of Bolt Holes: 5
Diameter: 294mm
Height: 60mm
Thickness New: 19mm
Thickness Min: 17mm
PCD: 120
Centre Bore: 79

This item will fit the following Vehicles:

BMW 3 Series (E46) 320 2.00 Turbo Diesel 2001-2005
BMW 3 Series (E46) 320 2.00 Turbo Diesel 150 2001-2006
BMW 3 Series (E46) 320 2.00 Turbo Diesel 2003-2007
BMW 3 Series (E46) 320 2.20 2000-2007
BMW 3 Series (E46) 320 Touring 2.20 2000-2006
BMW 3 Series (E46) 325 2.50 2000-2007
BMW 3 Series (E46) 328 2.80 1998-2000

Replaces Genuine BMW Part Number:

34 21 1 165 563 - 34211165563 - 1 165 563 - 1165563
34 21 6 864 056 - 34216864056 - 6 864 056 - 6864056
