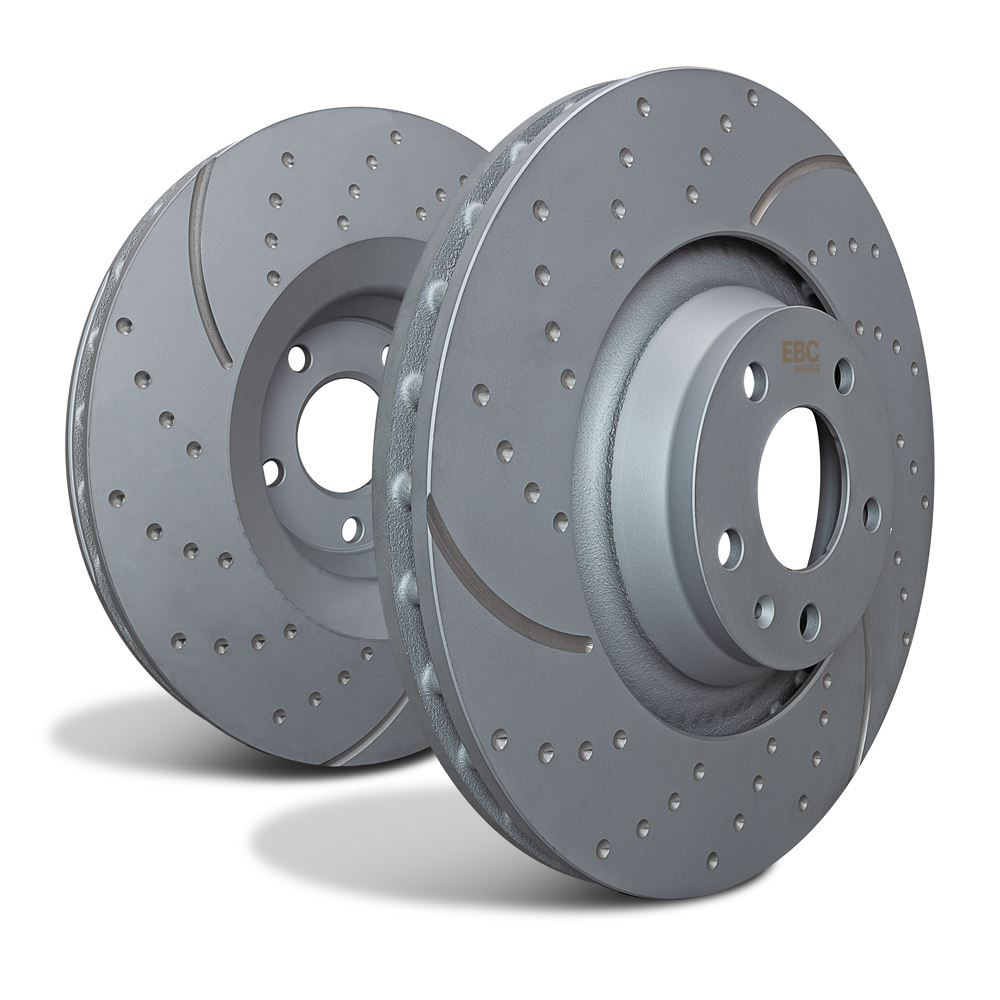

EBC GD SERIES SPORT Rear 298mm Brake Disc for BMW E39 5 Series - 34211163153

EBC GD SERIES SPORT Rear 298mm Brake Disc for BMW E39 5 Series - 34211163153

EBC GD Series sport rotors are 100% machined in the UK from R90-approved blanks, with the majority cast in the EU. They are a superb solution for fast street cars and 4x4s.

Now in their third generation, the rotors feature silver corrosion protection. The GD wide aperture slots help maintain even pad wear, run cooler, and expel dirt, mud, water, and dust from the braking area.

The dimple drilled rotor was invented by EBC back in the 90’s and has been imitated by many because of its ability to offer pad degassing without "Through Drilling" disc or rotor holes which has been shown to promote rotor cracks.

The wide aperture slots on the EBC units actually draw cool air under the brake pad and rotor interface and help cool the temperatures of the pad contact which can shoot up to well over 1000 degrees at the very heart of the brake pad during heavy braking and can cause brake fade or loss of brake effect.

All rotors including GD Sport Rotors are machined and finished in the UK or in the USA.

R90 Approved

Drilled and Grooved

Suitable for Fast Street Cars and 4x4's

Silver Corrosion Protection

Size:

Fitting Position: Rear Axle
Style: Vented
Number of Bolt Holes: 5
Diameter: 298mm
Height: 61mm
Thickness New: 20mm
Thickness Min: 18mm
PCD: 120
Centre Bore: 79

This item will fit the following Vehicles:

BMW 5 Series (E39) 520 Touring 2.00 1996-2000
BMW 5 Series (E39) 520 Touring 2.20 2000-2003
BMW 5 Series (E39) 523 2.50 1998-2003
BMW 5 Series (E39) 523 Touring 2.50 1996-2003
BMW 5 Series (E39) 525 2.50 2000-2003
BMW 5 Series (E39) 525 2.50 Turbo Diesel 2000-2003
BMW 5 Series (E39) 525 Touring 2.50 2000-2003
BMW 5 Series (E39) 525 Touring 2.50 Turbo Diesel 1996-2003
BMW 5 Series (E39) 528 2.80 1996-2003
BMW 5 Series (E39) 528 Touring 2.80 1996-2003
BMW 5 Series (E39) 530 2.90 Turbo Diesel 1998-2000
BMW 5 Series (E39) 530 2.90 Turbo Diesel 2000-2003
BMW 5 Series (E39) 530 3.00 1996-2000
BMW 5 Series (E39) 530 3.00 2000-2003
BMW 5 Series (E39) 530 Touring 2.90 Turbo Diesel 1998-2000
BMW 5 Series (E39) 530 Touring 2.90 Turbo Diesel 2000-2003
BMW 5 Series (E39) 530 Touring 3.00 1996-2000
BMW 5 Series (E39) 530 Touring 3.00 2000-2003
BMW 5 Series (E39) 535 3.50 1996-1998
BMW 5 Series (E39) 535 3.50 1997-2000
BMW 5 Series (E39) 535 3.50 2000-2003
BMW 5 Series (E39) 540 4.40 1996-2000
BMW 5 Series (E39) 540 4.40 2000-2003
BMW 5 Series (E39) 540 Touring 4.40 1996-2000
BMW 5 Series (E39) 540 Touring 4.40 2000-2003

Replaces Genuine BMW Part Number:

34 21 1 163 133 - 34211163133 - 1 163 133 - 1163133
34 21 1 163 153 - 34211163153 - 1 163 153 - 1163153
34 21 1 164 175 - 34211164175 - 1 164 175 - 1164175
34 21 1 164 840 - 34211164840 - 1 164 840 - 1164840
34 21 6 767 060 - 34216767060 - 6 767 060 - 6767060
