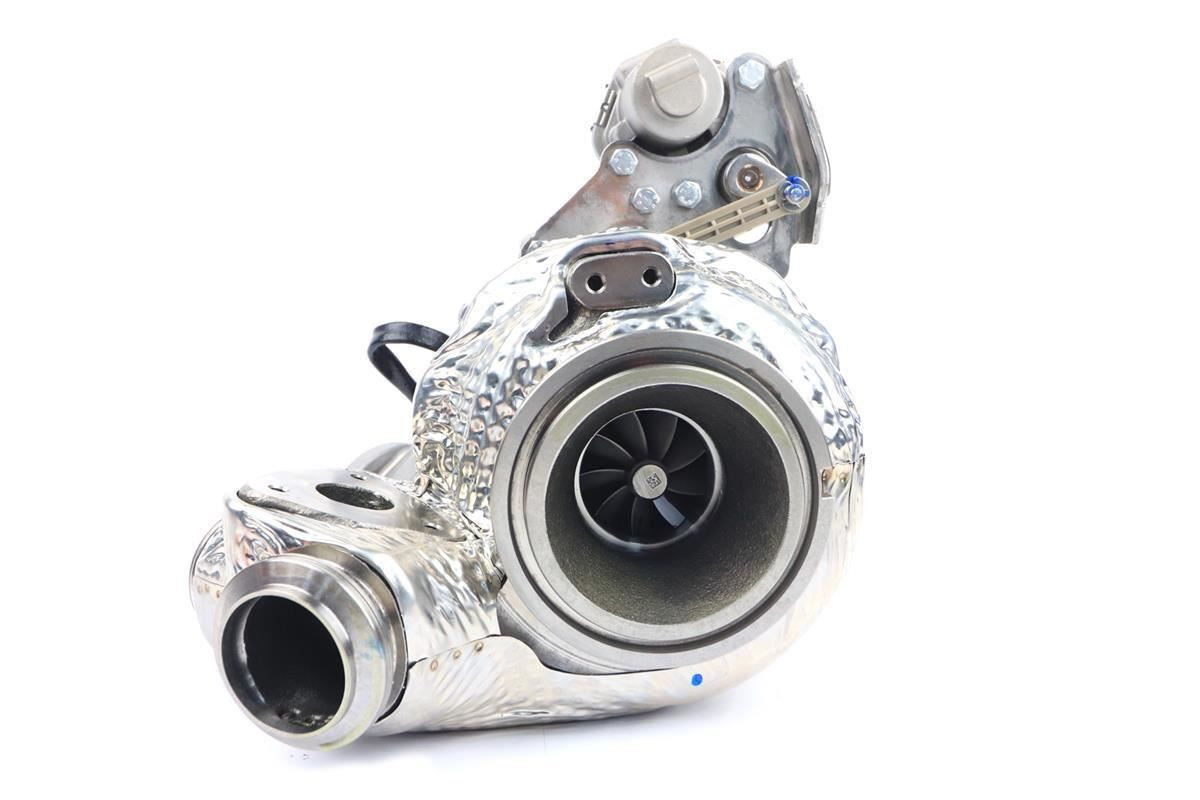

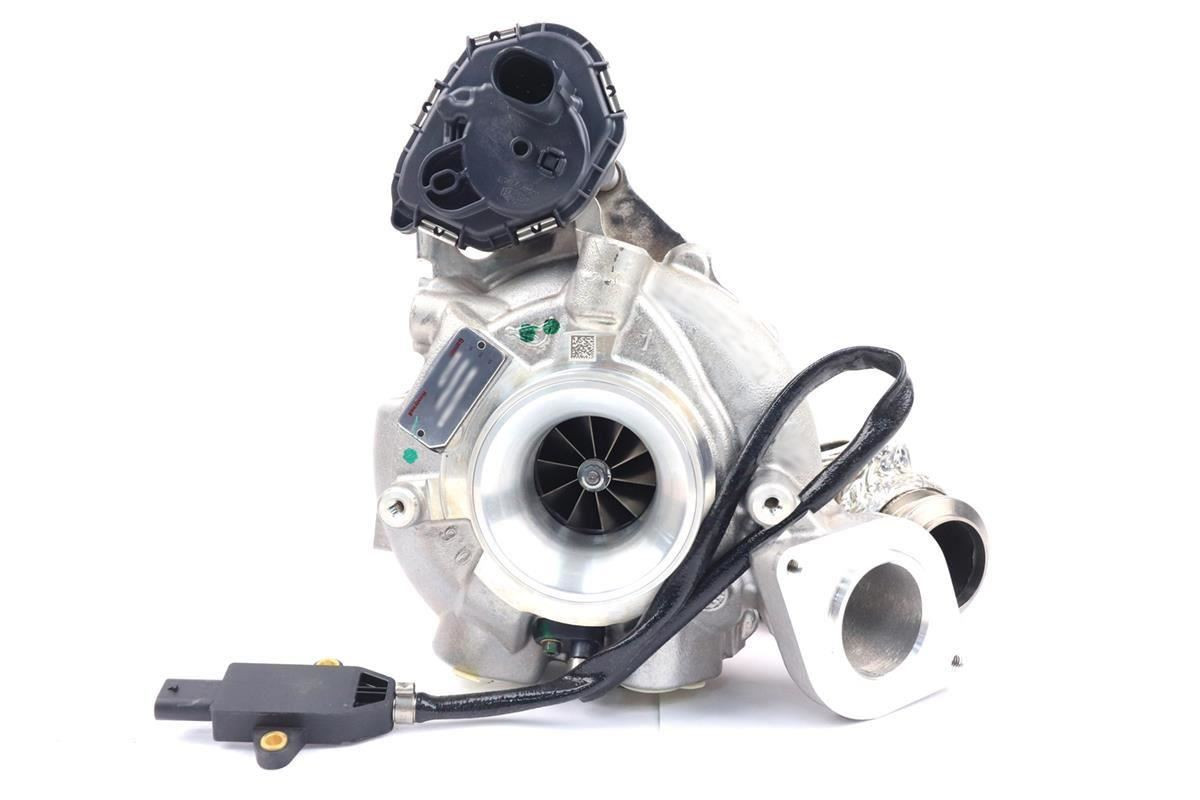

Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit

SKU:
DSD5601.2
Shipping:
Calculated at Checkout
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
  • Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit
£1,800.00
(Inc. VAT)
£1,500.00
(Ex. VAT)

Description

Garrett GTD2263VZ 3.0 TDI Turbocharger Upgrade Kit

Brand NEW Garrett GTD2263VZ Turbocharger Kit

This turbo is capable of around 350bhp when tuned. We would rate the stock GTD2060VZ to just over 300bhp

  • Increase in Performance
  • OEM Turbocharger Upgrade
  • Specs:

    Turbo Comp Ind - Comp Exd - Extended Tip - Blades - A.R - Turbine In - Turbine Ex
    GTD2263VZ 44.5 63.1 66.9 6+6 54 50.1 42.9
    GTD2060VZ 42.9 60 62.1 10 60 47 42.7

    THIS TURBO NOW INCLUDES THE TURBO TO MAF TIP SILICONE TO REPLACE THE STOCK ITEM

    Please select from the above options if you are fitting the turbo with, 'EGR Deleted' or 'Retain EGR'

    If you are retaining the EGR you will need a different metal Turbo to EGR pipe, this will be supplied with the kit.

    This Kit Consists of:

    1x GTD2263VZK Turbocharger
    1x Black TIP Silicone Pipe
    1x EGR Pipe (If retaining EGR)
    TIP Breather Fitting
    All Required Clamps

    This Kit will fit the following Vehicles:

    Audi A4 / Avant - CSWB (218) CRTC (272)

    Audi A4 / S4 / Avant / quattro - CSWB (218) CRTC (272)

    Audi A5 / S5 Coupe Sport - CSWB (218)

    Audi A6 / Avant - CZVC (211) CZVD (211) CRTF (211) CZVA (218) CZVB (218) CRTE (218) CRTD (272)

    Audi A6 / S6 / Avant / quattro - CZVC (211) CZVD (211) CRTF (211) CZVA (218) CZVB (218) CRTE (218) CRTD (272)

    Audi A6 allroad quattro - CZVF (190) CZVC (211) CRTF (211) CRTE (218) CZVA (218) CRTD (272)

    Audi A7 Sportback - CZVF (190) CZVD (211) CZVC (211) CRTF (211) CZVB (218) CZVA (218) CRTE (218) CRTD (272)

    Audi Q7 - CRTE (218) CVMD (249) CUEA (258) CVZA (258) CRTC (272)

    Audi A7 Sportback - CZVE (190)

    VW Amarok - DDXA (160) DDXB (201) DDXC (201) DDXE (258)

    Replaces Genuine VW Part Numbers:

    059145873DB - 059145873 DB - 059 145 873 DB

    059145873BE - 059145873 BE - 059 145 873 BE

    059145873BJ - 059145873 BJ - 059 145 873 BJ

    059145873BP - 059145873 BP - 059 145 873 BP

    059145873CH - 059145873 CH - 059 145 873 CH

    059145873CL - 059145873 CL - 059 145 873 CL

    MODIFICATIONS TO THE ACTUATOR ON SOME MODELS ARE REQUIRED, THIS INVOLVES SWAPPING THE ACTUATOR AND THE MODIFICATIONS TO THE BRACKET/COMPRESSOR HOUSING TO INSTALL CORRECTLY.

    Tuning these vehicles with this turbo is critical and we highly advise someone experience with these carrying out the work. EMPs will need to be logged

    The fitted speed sensor can be left unplugged and the compressor housing water ports left open
