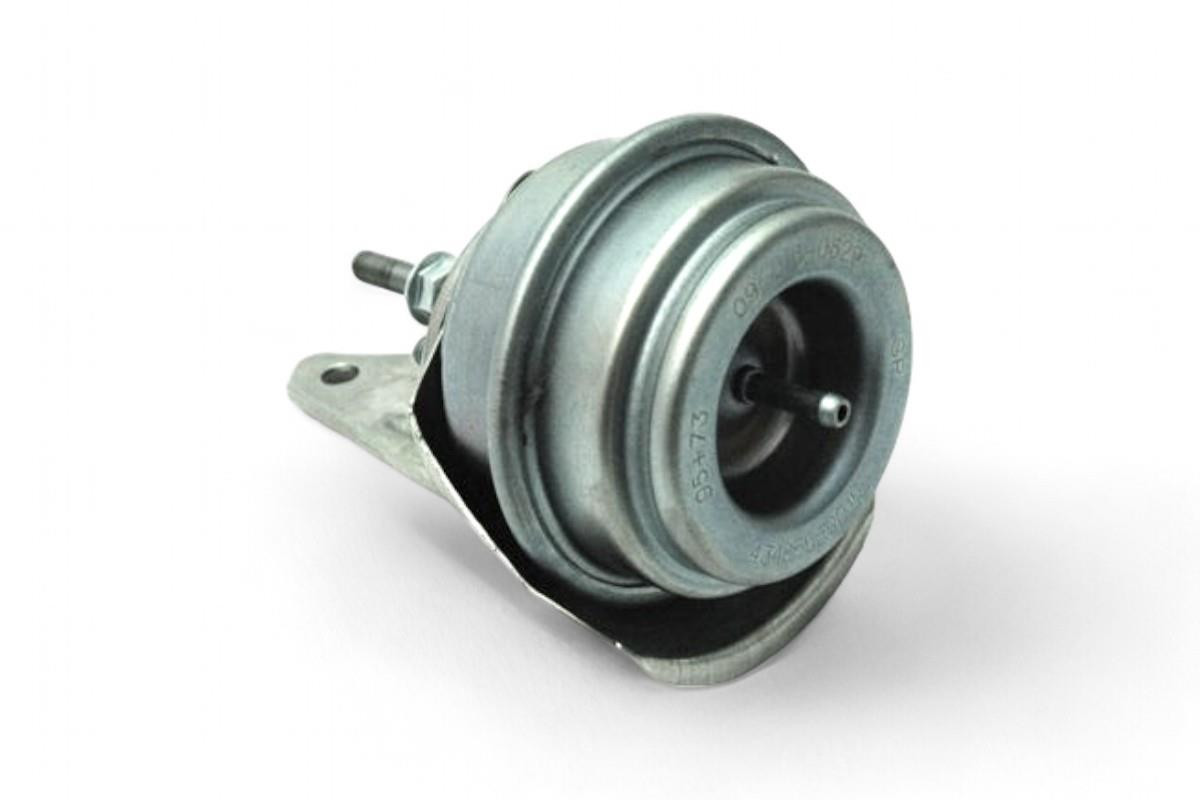

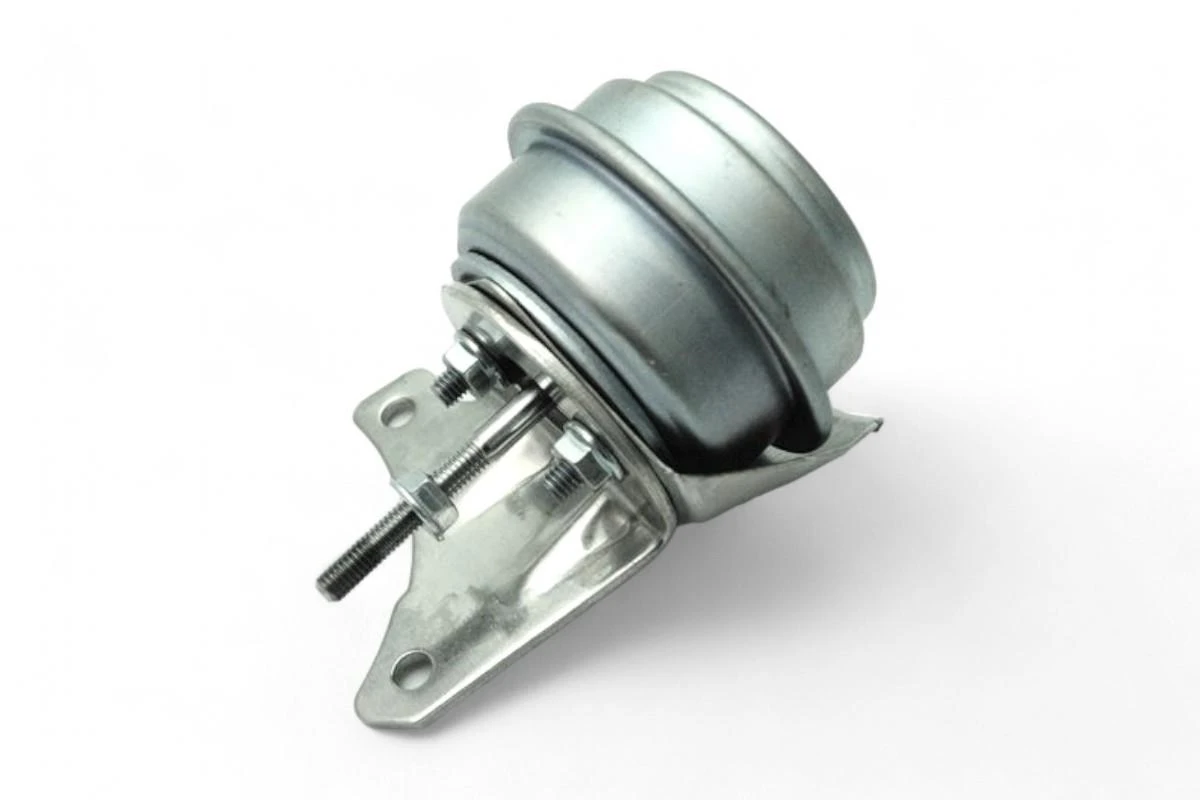

Garrett Vacuum Actuator for GT1749V, GT1749VA and GT1749VB Turbochargers

SKU:
DSD1083
Shipping:
Calculated at Checkout
  • VNT Vacuum Actuator
  • VNT Vacuum Actuator
  • VNT Vacuum Actuator
  • VNT Vacuum Actuator
£40.00

Description

Vacuum Actuator for Garrett GT1749 Series

Fits ALL Garrett Turbochargers found on the VW / Audi / Seat and Skoda 1.9 and 2.0 TDI Engines

  • Direct replacement for standard actuator
  • Perfect to replace old or broken actuator that can give symptoms of a damaged turbo
  • 5 minutes to fit with the turbo off the car

This kit consists of:
Vacuum Actuator

Actuator Bracket

These Actuators are a direct replacement for the standard actuator on the Garrett GT1749 series turbochargers, such as the GT1749V, GT1749VA and GT1749VB

They are perfect to replace an old, broken actuator that can give the symptoms of a damaged turbo and are zinc coated for a long life. The actuators fail when they get rusty inside or the diaphram breaks

Fitting takes around 5 minutes with the turbo off the car. All you need to do is measure the length of the rod on your current turbo, remove the actuator, swap the rod from your old actuator and then fit the new actuator

 Fits the following turbocharger part numbers

038 253 019 C  -  038253019 C  -  038253019C

038 253 019 CX  -  038253019 CX  -  038253019CX

038 253 019 CV  -  038253019 CV  -  038253019CV

03G 253 016 L  -  03G253016 L  -  03G253016L

03G 253 016 LX  -  03G 253 016LX  -  03G253016LX

03G 253 014 R  -  03G253014 R  -  03G253014R

 03G 253 014 RX  -  03G253014 RX  -  03G253014RX

038 253 019 A  -  038253019 A  -  038253019A

038 253 019 AX  -  038253019 AX  -  038253019AX

038 253 019 AV  -  038253019 AV  -  038253019AV

03G 253 016 K  -  03G253016 K  -  03G253016K

03G 253 016 KX  -  03G253016 KX  -  03G253016KX

038 253 019 D  -  038253019 D  -  038253019D

038 253 019 DX  -  038253019 DX  -  038253019DX

03G 253 016 E  -  03G253016 E  -  03G253016E

03G 253 014 E  -  03G253014 E  -  03G253014E

03G 253 016 F  -  03G253016 F  -  03G253016F

This will fit vehicles with the following engine codes:

VW Beetle - ALH 90, ATD 100

 VW Bora - ALH 90, ATD 100, AHF / ASV 110, AUY / AJM 115, ASZ 130, ARL 150

VW Golf Mk4 - ALH 90, ATD 100, AHF / ASV 110, AUY / AJM 115, ASZ 130, ARL 150

VW Golf Mk5 - BKD / AZV 140

VW Jetta - BKD / AZV 140

 VW Sharan - AUY / AJM / BVK 115

VW Polo - ASV 110

VW Passat - AVF / AWX 130, BKP 140

 VW Caddy Mk2 - ALH 90

 Seat Alhambra - AUY / BVK 115

Seat Cordoba - AUY / AJM 115

Seat Leon - ALH / AGR 90, AHF / ASV 110, ASZ 130, ARL 150

 Seat Toledo - ALH / AGR 90, AHF / ASV 110, ASZ 130, ARL 150

 Audi A3 8L - ALH 90, ATD 100, AHF / ASV 110, ASZ 130

Audi A3 8P - BKD / AZV 140

Audi A4 - AVF / AWX 130

 Skoda Octavia - ALH / AGR 90, ATD / AXR 100, AHF / ASV 110, ASZ 130

Skoda Octavia MK2 - BKD / AZV 140

Skoda Fabia - ATD / AXR / BEW 100, ASZ 130

Made in the UK
