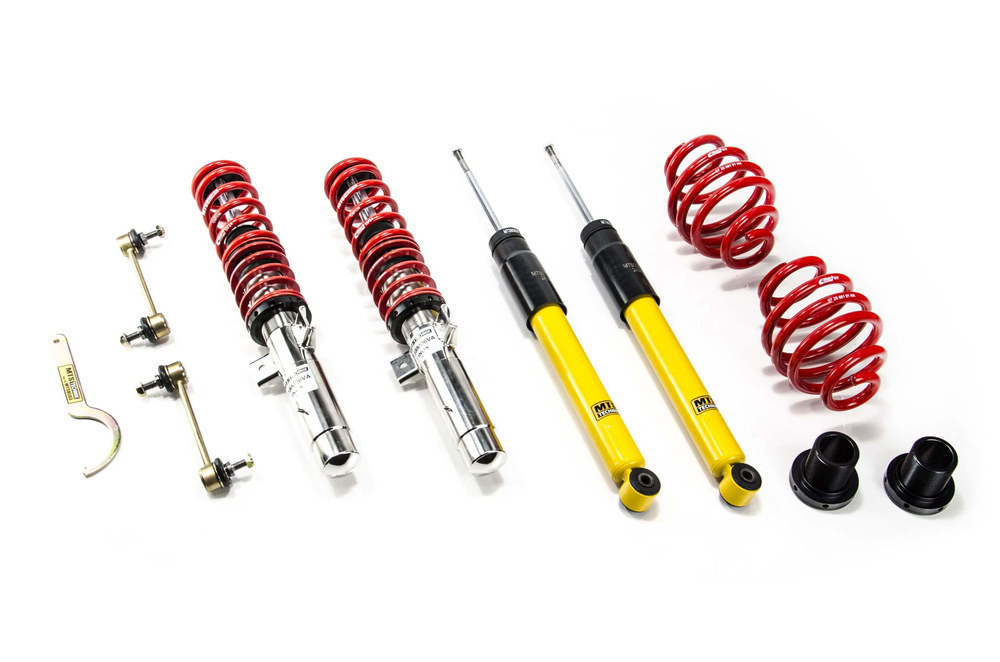

MTS Technik Coilovers (Comfort, Inox) for BMW 3 (E46) / 3 Coupe (E46)
RELIABLE AND AFFORDABLE COMFORT SUSPENSION FROM MTS TECHNIK Comfort: The Comfort series suspension is the most balanced setup with softer spring rates — ideal for daily driving while still offering noticeable lowering.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
A complete set ready for assembly, also including sway bar links, adapted for lowering.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers.
Features by configuration
XMTSGWBM100-C, XMTSGWBM118-C:
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| XMTSGWBM03-C | XMTSGWBM100-C | XMTSGWBM118-C | |
|---|---|---|---|
| Configuration | |||
| Top mounts | Stock (not included) | Camber adjustable (front + rear) | Camber adjustable (front) |
| Variant note | set includes stabilizer links | set includes stabilizer links | set includes stabilizer links |
| Lowering (mm) | |||
| Front | 20 - 70 mm | 40 - 90 mm | 40 - 90 mm |
| Rear | 20 - 65 mm | 20 - 65 mm | 20 - 65 mm |
| Axle load (kg) | |||
| Front | -1030 kg | -1030 kg | -1030 kg |
| Rear | -1215 kg | -1215 kg | -1215 kg |
| Spring rates (N/mm) | |||
| Front main spring | 60 N/mm | 60 N/mm | 60 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm | 20 N/mm |
| Rear main spring | 45 - 82 - 110 N/mm | 45 - 82 - 110 N/mm | 45 - 82 - 110 N/mm |
| Approval | |||
| TÜV | yes | no | no |
| Documents | |||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• Not for 4x4.
• Stabiliser bars included.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Including M-Technik.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
BMW 3 (E46) - 316 i / 318 d / 318 i / 320 d / 320 i / 323 i / 325 i / 328 i / 330 d / 330 i
BMW 3 Compact (E46) - 316 ti / 318 td / 318 ti / 320 td / 325 ti
BMW 3 Convertible (E46) - 318 Ci / 320 Cd / 320 Ci / 323 Ci / 325 Ci / 330 Cd / 330 Ci
BMW 3 Coupe (E46) - 316 Ci / 318 Ci / 320 Cd / 320 Ci / 323 Ci / 325 Ci / 328 Ci / 330 Cd / 330 Ci
BMW 3 Touring (E46) - 316 i / 318 d / 318 i / 320 d / 320 i / 325 i / 328 i / 330 d / 330 i
MTS TECHNIK PART NUMBER:
XMTSGWBM03-C
XMTSGWBM100-C — Camber F+R
XMTSGWBM118-C — Camber Front
