Description

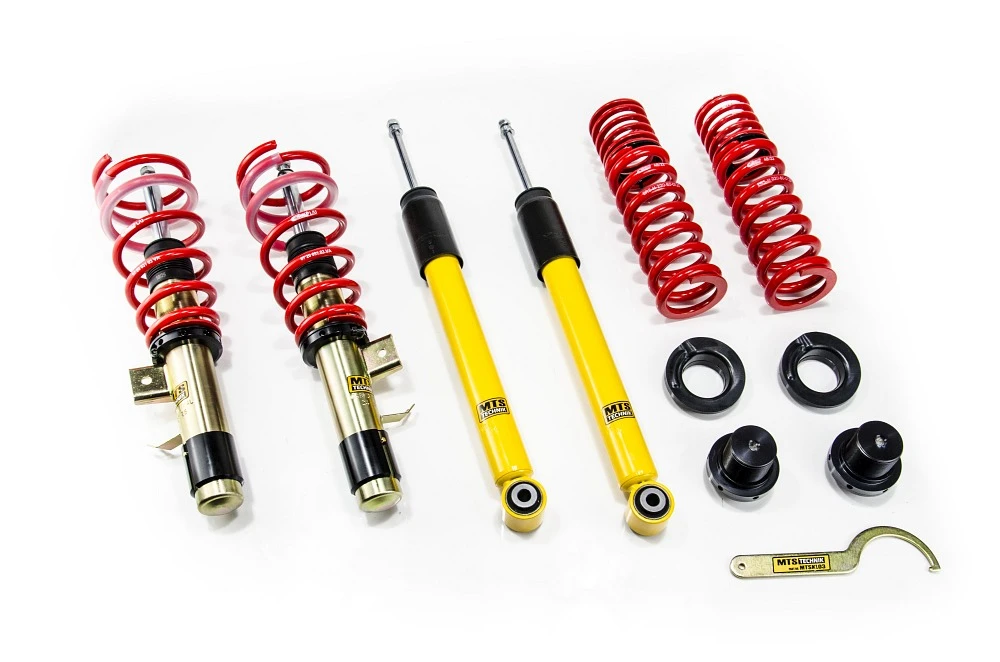

MTS Technik Coilovers (Street, Gold) for Toyota SUPRA (DB) / BMW Z4 Roadster (G29)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM127, MTSGWBM128:
The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWBM126 | MTSGWBM127 | MTSGWBM128 | |
|---|---|---|---|
| Configuration | |||
| Top mounts | Stock (not included) | Camber adjustable (front) | Camber adjustable (front + rear) |
| Lowering (mm) | |||
| Front | 20 – 55 mm | 20 – 55 mm | 20 – 55 mm |
| Rear | 20 – 55 mm | 20 – 55 mm | 20 – 55 mm |
| Axle load (kg) | |||
| Front | -880 kg | -880 kg | -880 kg |
| Rear | -995 kg | -995 kg | -995 kg |
| Spring rates (N/mm) | |||
| Front main spring | 30 - 45 N/mm | 30 - 45 N/mm | 30 - 45 N/mm |
| Rear main spring | 120 N/mm | 120 N/mm | 120 N/mm |
| Front helper spring | 120 N/mm | 120 N/mm | 120 N/mm |
| Rear helper spring | 20 N/mm | 20 N/mm | 20 N/mm |
| Approval | |||
| TÜV | no | no | no |
| Documents | |||
| Downloads | ⬇ Installation manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• Rear thread adjustment block is mounted on the top.
• Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
Notes by configuration
MTSGWBM127, MTSGWBM128:
- The kit includes 2 upper front camber plates.
This Kit will fit the following Vehicles:
BMW Z4 Roadster (G29) - M40 i / sDrive 30 i / sDrive 20 i
Toyota SUPRA (DB) - 2.0 (DB82, DB81, DB86) / 2.0 (DB21, DB22, DB23, DB26) / 3.0 GR (DB41, DB42, DB43, DB45, DB46)
MTS TECHNIK PART NUMBER:
MTSGWBM126
MTSGWBM127 — Camber Front
MTSGWBM128 — Camber F+R
