Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines

SKU:
DSD5500.1
Shipping:
Calculated at Checkout
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
  • Solenoid Injector Upgrade for Mk6 / Mk7 Oval Port 2.0 TDI CR Engines
£2,400.00 - £3,000.00 (Inc. VAT)
£2,000.00 - £2,500.00 (Ex. VAT)

Description

Solenoid Injector Upgrade for Oval Port MK6 / Mk7 2.0 TDI Common Rail CR Engines

All injectors supplied are all brand new Bosch units and Digitally Calibrated to the most extreme accuracy
These can safely take up to 300bar over the Stock 2000bar pressure

Estimated Power Capabilities:

Stock (03L) Injectors - ~280bhp / Stock (04L) Injectors - ~200bhp
Stage 1 - 360bhp
Stage 2 - 450bhp+
Stage 3 - 500bhp+

These figures are the limit of the injectors. To reach these limits you will also require other supporting mods (see below)

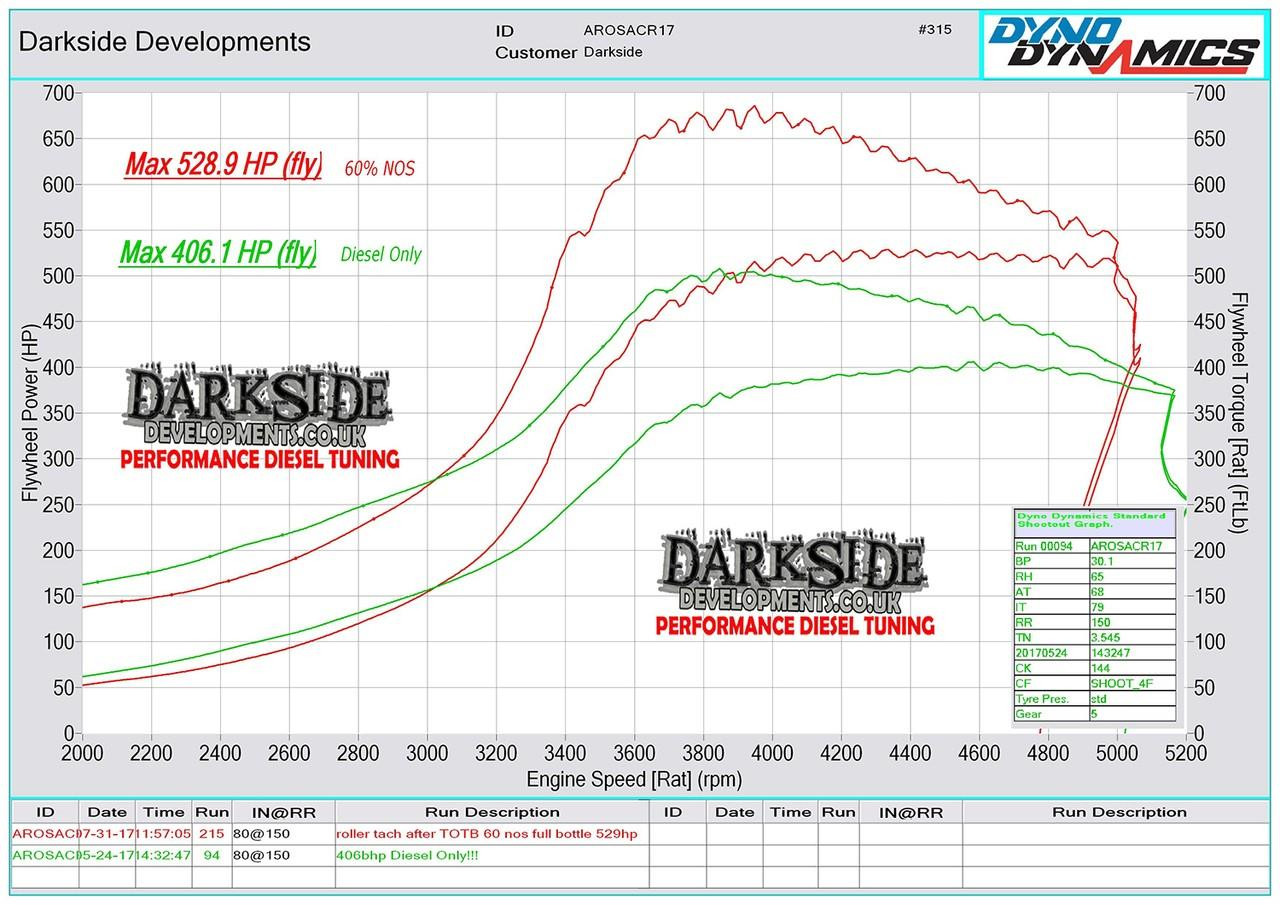

All parts have be developed and tested on our Arosa drag car - https://www.darksidedevelopments.co.uk/arosa-mk2-2-0-16v-common-rail/

Steps to be taken when upgrading 2.0 TDI Common Rail Engines

Larger Turbo - You will need a turbo capable of the power you are trying to achieve

CP3 Fuel Pump - The stock CP4 Pumps will experience Rail Drain at around 250bhp

CP3 Fuel Pump + Cams (Stock Injectors) - To max out the stock injectors (~280bhp) you will require the CP3 Pump + Cams or Ported Head
For 280bhp+ Upgraded Injectors are Required

CP3 Fuel Pump + Ported Head + Cams + Upgraded Injectors - All these are required to achieve over 300bhp

Upgraded Cams can be found here - https://www.darksidedevelopments.co.uk/products/performance-race-camshaft-kit-for-1-6-2-0-tdi-common-rail-engines.html
CP3 Pump can be found here - https://www.darksidedevelopments.co.uk/products/cp3-fuel-pump-conversion-kit-for-2-0-common-rail-engines.html

Please Note:

Stock CP4 Fuel Pump will not work with Stage 2 & 3 Injectors, this would cause Limp Mode due to low rail pressure so a CP3 Pump would be required

Stage 2 & 3 Injectors will also not be effective without head work or cams, but can be installed to shorten the injection duration

The ECU Software will have to be re-calibrated when fitting these injectors for a smooth idle and safe Exhaust Gas Temperatures (EGT)

Replaces VW Part Number:

03L130277J - 03L130277 J - 03L 130 277 J
03L130277Q - 03L130277 Q - 03L 130 277 Q
03L130855CX - 03L130855 CX - 03L 130 855 CX
04L130277 - 04L 130 277
04L130277AC - 04L130277 AC - 04L 130 277 AC
04L130277AC - 04L130277 AC - 04L 130 277 AC
03L130277J - 03L130277 J - 03L 130 277 J
03L130277Q - 03L130277 Q - 03L 130 277 Q

Also replaces Bosch Part Numbers:

0 445 110 646 - 0445110646

0 445 110 368 - 0445110368

0 986 435 166 - 0986435166

These are an upgrade for all the following engine codes found in most of the VAG range:

Audi A1 - CFHB (136) CFHD (143)

Audi A3 / S3 - CFFA (136) CLJA (140) CFFB (140) DEJA (150) CRUA (150) CRLB (150) CFGB (170)

Audi A3 Cabriolet - CFFA (136) CFFB (140) CRLB (150)

Audi A4 / Avant - CJCC (120) CJCB (136) CJCA (143) CGLC (177)

Audi A4 / S4 / Avant / quattro - CJCC (120) CJCB (136) CJCA (143) CGLC (177)

Audi A4 allroad quattro - CJCB (136) CJCA (143) CGLC (177)

Audi A5 / S5 Cabriolet - CJCA (143) CGLC (177)

Audi A5 / S5 Coupe Sport - CJCB (136) CJCA (143) CGLC (177)

Audi A6 / Avant - CGLC (177)

Audi A6 / S6 / Avant / quattro - CGLC (177)

Audi Q2 - DFGA (150)

Audi Q3 - CFFA (136) CLJA (140) CFFB (140) CUVC (150) CFGC (177)

Audi Q5 - CJCB (136) CJCA (143) CGLB (170) CGLC (177)

Audi TT / TTS Coupe / Roadster - CFGB (170)

Seat Altea - CFHC (140) CFJA (170)

Seat Ateca - DFFA (150)

Seat Exeo - CJCC (120) CJCA (143) CGLB (170)

Seat Ibiza - CFHD (143)

Seat Leon - CXXA (90) CLHB (90) CLHA (105) CRVA (110) CXXB (110) DBKA (110) CRKB (110) CLCB (140) CFHC (140) CRVC (143) CRLB (150) CRMB (150) CRBC (150) CKFC (150) CFJA (170) CRGA (177) CUNA (184) CUPA (184)

Skoda Octavia - CFHF (110) CLCA (110) CLCB (140) CFHC (140)

Skoda Superb - CLJA (140) CFFB (140) CFGB (170)

Skoda Yeti - CFHA (110) CFHF (110) CLCA (110) CFHC (140) CLCB (140) CFJA (170)

VW Amarok - CNFA (122) CSHA (180) CNEA (180)

VW Beetle - CUUA (110) CFFB (140) CVCA (150) CUUB (150) DELA (150)

VW Beetle Cabrio - CUUA (110) CFFB (140) CVCA (150) DELA (150) CUUB (150)

VW Caddy - CFHE (85) CFHF (110) CLCA (110) CFHC (140) CLCB (140) CFJA (170)

VW Eos - CFFA (136) CFFB (140)

VW Golf - CLCA (110) CFHB (136) CFFA (136) CFHC (140) CFFB (140) CRUA (150) DEJA (150) CFGB (170)

VW Golf Plus - CLCA (110) CFHB (136) CFHC (140)

VW Golf Variant - CRUA (150) DEJA (150)

VW Jetta - CUUA (110) CLCA (110) CFHC (140) CLCB (140) CFFB (140) CVCA (150) CUUB (150) DELA (150)

VW Jetta Variant - CLCA (110)

VW Novo Fusca - CUUA (110) CFFB (140) DELA (150) CVCA (150) CUUB (150)

VW Passat / Variant - CFFA (136) CFFB (140) CLLA (170) CFGB (170) CFGC (177)

VW Passat CC - CFFA (136) CFFB (140) CLLA (170) CFGB (170)

VW Scirocco - CFHB (136) CFHC (140) CFGB (170) CFGC (177)

VW Tiguan - CFFD (110) DFGC (116) CFFA (136) CFFB (140) CLJA (140) DFGA (150) CFGB (170)

VW Touran - CFHF (110) CLCA (110) CFHC (140) CFJA (170) CFJB (177)

VW Vento - CUUA (110) CLCA (110) CFHC (140) CLCB (140) CFFB (140) DELA (150) CVCA (150) CUUB (150)

VW Vento Variant - CLCA (110)

Audi A3 / S3 - CRLC (136)

Audi A3 Cabriolet - CRLC (136)

Audi A4 / Avant - DEUC (122) DEUB (136) CSUB (136) CMFA (143) DEUA (150) CSUA (150) CJCD (150) CMFB (150) CGLD (163) CMGB (177)

Audi A4 / S4 / Avant / quattro - DEUC (122) DEUB (136) CSUB (136) CMFA (143) DEUA (150) CMFB (150) CSUA (150) CJCD (150) CGLD (163) CMGB (177)

Audi A4 allroad quattro - CSUB (136) CJCD (150) CSUA (150) CGLD (163)

Audi A5 / S5 Cabriolet - CJCD (150) CSUA (150) CGLD (163)

Audi A5 / S5 Coupe Sport - CSUB (136) CMFA (143) CMFB (150) CJCD (150) CSUA (150) CGLD (163)

Audi A6 / Avant - DDCA (136) CSUE (136) CGLE (136) CSUB (136) DDCB (150) CSUD (150) CGLD (163) CMGB (177)

Audi A6 / S6 / Avant / quattro - CGLE (136) DDCA (136) CSUE (136) CSUB (136) DDCB (150) CSUD (150) CGLD (163) CMGB (177)

Audi Q3 - DFTC (120) CUVD (120) DFTB (136) CUVB (136) DFTA (150) DBBA (150) CFGD (163) CLLB (177)

Audi Q5 - CSUB (136) CJCD (150) CSUA (150) CGLA (163) CGLD (163) CMGA (170) CMGB (177)

Please provide the correct VIN / Vehicle Registration Number when checking out so we can ensure you are ordering the correct part
