Wavetrac ATB LSD for 02M 2WD MQ350 6 Speed Manual Transmissions

SKU:
10.309.190WK
Shipping:
Calculated at Checkout
  • Wavetrac ATB LSD for 02M 2WD MQ350 6 Speed Manual Transmissions

Please Email Prior to Ordering to Check Availability

£1,392.00
(Inc. VAT)
£1,160.00 (Ex. VAT)

Description

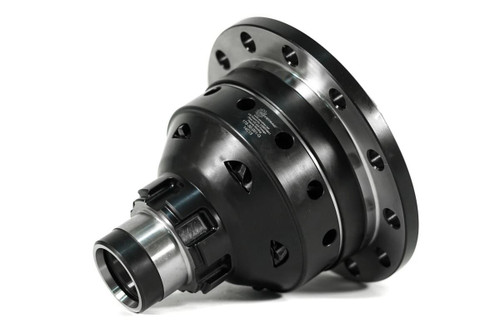

Wavetrac ATB LSD for 02M 2WD MQ350 6 Speed Manual Transmissions

Wavetrac ATB Limited Slip Differential for 6 Speed Manual 2WD 02M Gearbox / Transmission

Wavetrac are the only gear diff on the market that does not lose all drive when one axle is unloaded. Axles become unloaded in aggressive driving, track cornering, extremely slick surfaces, etc. It happens more than most people realise.

An example to explain how this work is that when you have a conventional gear diff, you're on a race track for a track day and during cornering your inside wheel bumps over the curbing. This is normal for track driving. The issue is that for the brief moments your inside tire becomes unloaded when bouncing over curbs, your other wheel is not getting drive / is not putting power down. Gear diffs need load on both axles in order to function. The result on a track (or during aggressive driving) is that there are many times when a normal gear diff supplies only intermittent power to the gripping wheel.

The difference with the Wavetrac is the patented cam device in the Wavetrac diff prevents loss of drive when that inside wheel is unloaded. The device is able to generate a load inside the diff (to replace the lost load as it happens) that can then be biased to the gripping wheel - in the end making more consistent power delivery through a corner. That makes the car more predictable, and faster overall.

  • Patented Carbon Fibre Bias Plate for the pinions
  • ARP Bolts used throughout for superior faster reliability
  • 9310 steel gears run in billet or forged steel bodies
  • Manufactured & Designed in the USA
  • Patented Wave Profile eliminates the effect of a near to and zero load condition drive ability issues found in all other gear type ATB LSDs
  • One of the most underrated benefits of the Wavetrac is its smooth delivery of power near the limit. Its patented design makes for a very predictable, smooth addition of power when you need it most - when things are at their limits: on the edge of traction mid-corner and using throttle to keep it there; or coming into a corner a little hot, but quickly back on it to maintain exit speed...
    These situations are often subjective to the driver, but the benefit can be felt. The Wavetrac makes you faster because it lets you drive with confidence. Smooth is fast.

    We have the ARP Ring Gear Bolts Listed Here:

    https://www.darksidedevelopments.co.uk/products/arp-02m-02q-limited-slip-diff-lsd-bolt-kit.html

    We have the 02M Differential Bearing Kit listed here:

    https://www.darksidedevelopments.co.uk/products/02m-differential-bearing-kit-including-shim-kit-and-seals.html

    This Kit will fit the following Vehicles:

    VW Golf Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150

    VW Bora / Jetta Mk4 - AJM, AUY 115 / ASZ 130 / ARL 150

    VW Polo - ASZ, BLT 130

    VW Sharan - ANU 90 / AUY 115 / ASZ 130 / BTB 150

    Audi A3 8L - AJM, AUY 115 / ASZ 130 / ARL 150

    Seat Leon 1M - AJM, AUY 115 / ASZ 130 / ARL 150

    Seat Ibiza Mk4 - ASZ, BLT 130 / BPX, BUK 160

    Seat Cordoba - ASZ, BLT 130

    Seat Toledo - ASZ, BLT 130

    Seat Alhambra - ANU 90 / AUY 115 / ASZ 130 / BTB 150

    Skoda Octavia Mk1 - ASZ 130

    Skoda Fabia vRS - ASZ, BLT 130

    Ford Galaxy - ANU 90 / AUY 115 / ASZ 130 / BTB 150

    Wavetrac Part Numbers:

    10.309.190WK - 10-309-190WK - 10309190WK - 10 309 190 WK
