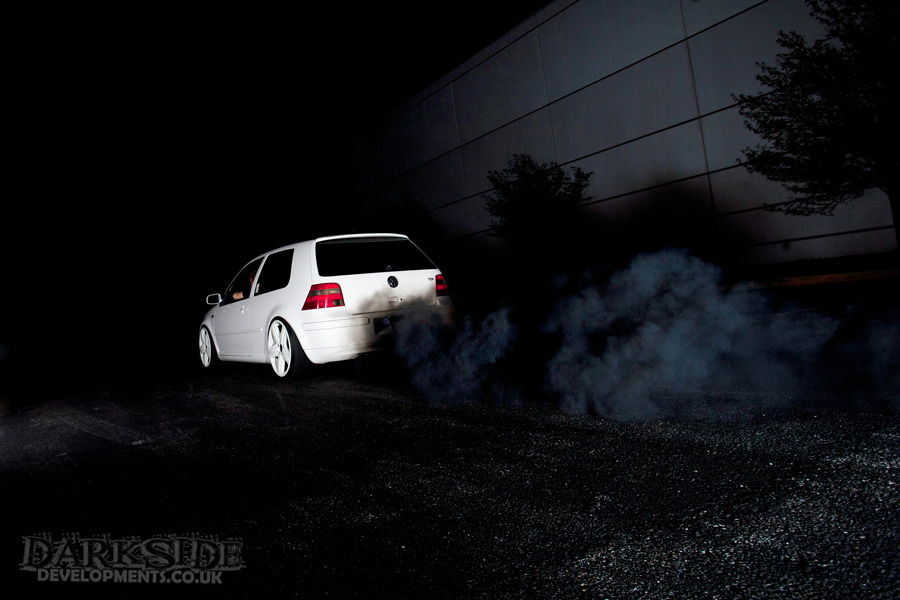

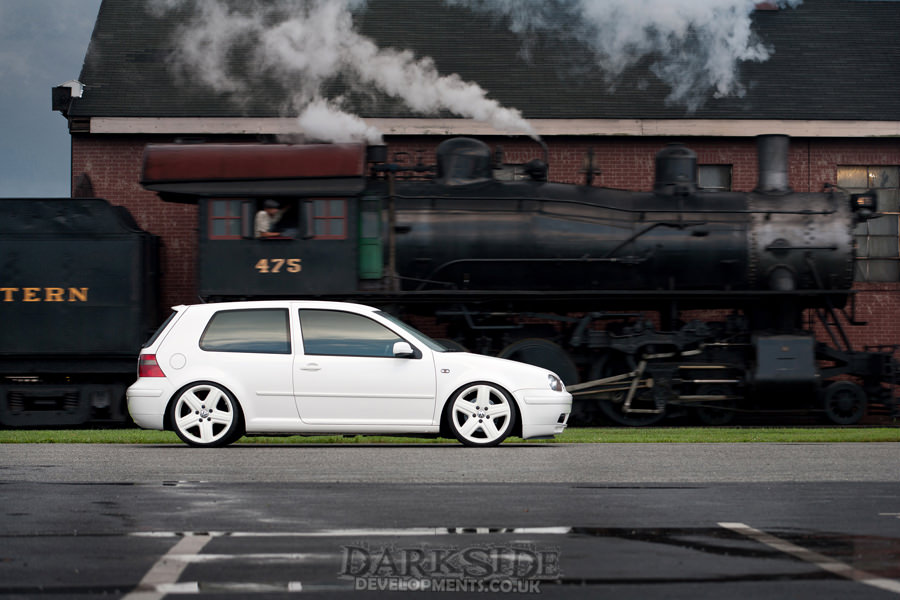

Golf MK4 90 1.9 8v (ALH)

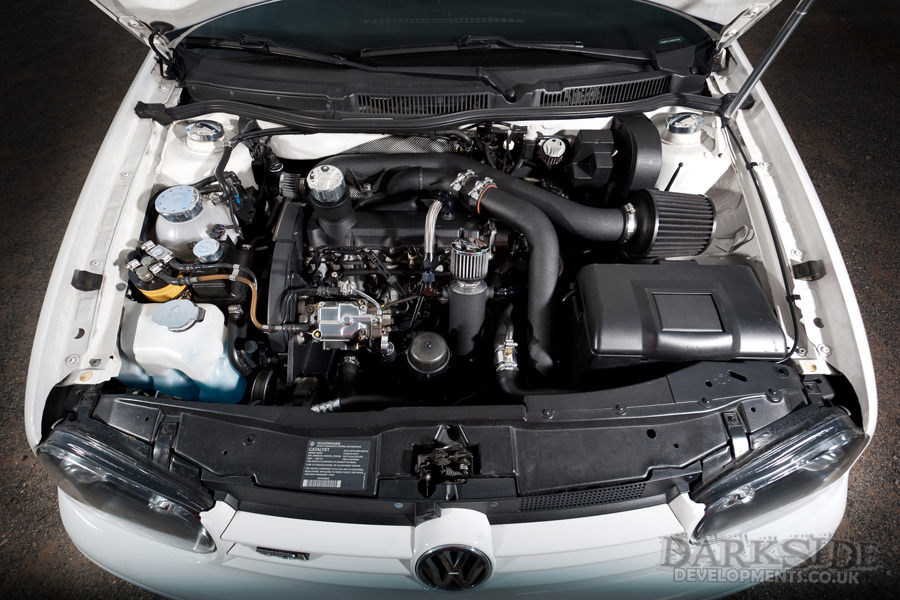

ALH TDI Engine (90BHP)

Original ALH motor bored, resurfaced, blueprinted, and balanced

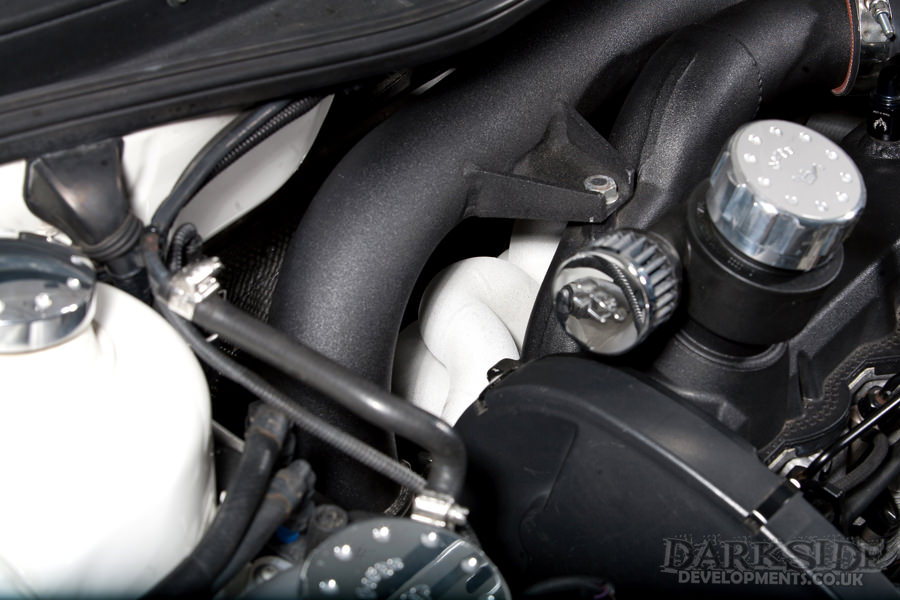

Darkside Developments VNT 22/60 turbo kit on tubular manifold and 3" downpipe
Swaintech Whitelightning coating on manifold and turbo housing
Stage 6 software by Rocketchip
Dblias 260 camshaft
Rosten dual valve springs
Rosten Titanium retainers
Stg4 ported, polished, and rebuilt head by Passenger Performance
.275 HFLO-X Race Nozzles
ARP head stud kit
80mm oversized ASV pistons
18.5-1 compression pistons via reshaped combustion bowls by Performance Diesel Engineering
Swaintech coated piston tops
Integrated rifle drilled H-beam rods
Calico treated rod bearings
ARP rod bolts
Eurospec main girdle
ARP main bolts
Eurospec full steel oil pan
Eurojet 3" exhaust, w/ custom 4" turndown tip, and deleted muffler
Allstar Performance catch can
Vibrant CCV scavenging kit routed into downpipe
AEG crankcase breather with K&N filter
OEM Euro PD130 Passat intake manifold
Dieselgeek EGR cooler delete kit
Custom FMIC and intercooler/Intake piping
CAT 2 fuel filter kit
Kerma fuel filter widget
11mm injection pump
PD in tank lift pump
OEM PD130 Passat oil cooler
Fluidampr crank damper
Gruvenparts billet p/s pump pulley
Mishimoto aluminum radiator
42 draft billet VR6 coolant "Y"
OEM 5.5L Audi S3 washer fluid bottle
Forge and Jcaps billet caps/covers
Stainless Steel hardware and clamps
Powdercoated oil filter housing, accessory bracket, injector lines, valve cover, intake manifold, and all piping

EST. 250BHP & 400Ft/Lbs - Dyno to follow

1/4 Mile - 13.252 @ 105.49

Rebuild and powdercoated 02J
G60 stock weight flywheel
Southbend Stage 5 hybrid clutch
Peloquin differential/bolt kit
108mm (1.8T/VR6) output flanges
Raxle Bulletproof axles
B&M front to back short shift kit
Gruvenparts side to side shift reduction
DubNuts billet shifter bracket bushings
USP stainless clutch slave cylinder line
034 Street density motor/trans mounts powder coated
EIP dogbone mount

OEM Toureg "Atheo" wheels 19"x9" et60 color matched candy white
215/35-19 Falken 452 tires
OEM lug bolt covers
Eurolock wheel locks painted black
FK wheel adapters 30mm front, 35mm rear
FK Silverline+X coilovers
Neuspeed 25mm adjustable fr sway bar
Neuspeed 28mm adjustable rear sway bar
Eurosport lower tie bar
VW Motorsports front strut mounts
TT/R32 and Prothane front control arm bushings
TT/R32 subframe bushings
H2Sport front spindles
Rear axle beam centered

OEM 20AE 312mm front brakes
OEM 20AE 256mm rear brakes
Hawk HPS brake pads
Eurospec drilled/slotted rotors, powder coated hats/edges
calipers smoothed and painted black
Autotech SS brake line kit
Motul Dot 5.1 fluid

OE Front euro bumper
OEM 4-motion Golf valance smoothed/painted
OEM Seat cupra R lip
OE Rear euro bumper
OEM rear valence smoothed/painted, w/ exhaust cutout to mirror tow loop cutout
Rolled front fenders
OEM US GTI taillights
OEM euro smoked side markers
FK projector headlights w/ retrofitted 20th trim rings
Clear Lamin-x headlight film
6000K HID Low Beam and 3000K HID UNSHIELDED Fogs
OEM Polo rear wiper
Custom hatch spoiler
OEM Blue mirror glass
Custom TDI grill badge
OE Sharon antenna
35% window tint
LED Tag Lights
Delaware Historic Society Low-digit Porcelain License plate

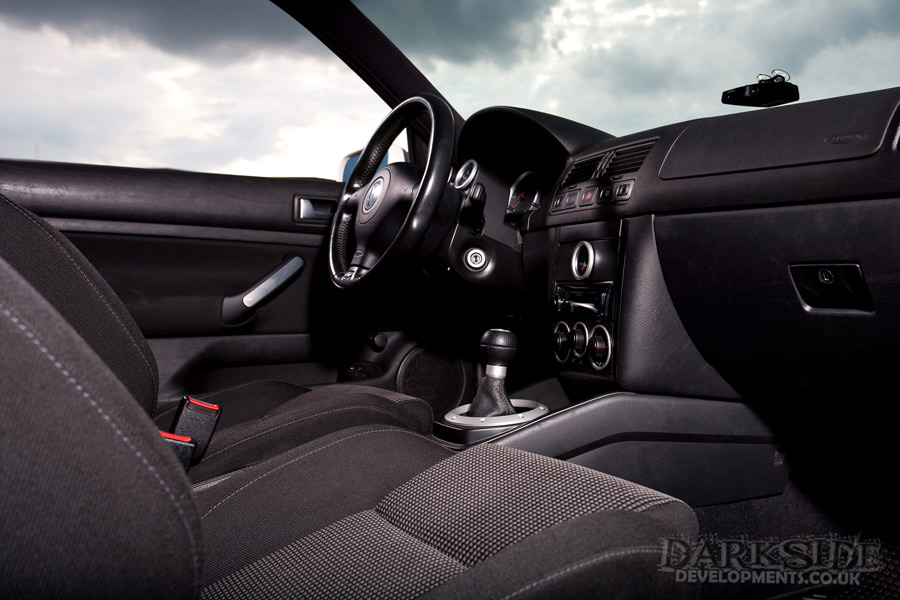

Headliner and pillars rewrapped in black
OEM 20AE visors, clips, handles, hatch surround, interior lights
OEM 20AE gauge cluster surround
OEM 20AE shift boot
OEM R32 seat belts
OEM R32 Steering wheel
OEM R32 door pins
OEM GLI door handles
OEM GLI door release pulls
OEM GLI ash tray cover
OEM GLI e-brake boot
OEM Jetta dash vents
OEM 05 GTI square bolster seats
OEM New beetle headrests
OEM Turbo S Beetle dead pedal
OEM TT pedal covers
OEM Seat Arosa full function headlight switch and HVAC controls
MHW TT shift surround
Momo Race-airleather shift knob
OEM Unbranded Monster mats
OEM W8, black, non sunroof, dome light assembly
Maniacs billet/silver ignition surround
Newsouth indigo boost, EGT, and oil temp gauges with silver surrounds mounted in dual column pod and OEM radio blank panel
Kenwood Excelon head unit, MTX 10" sub, MTX 300w amp
Red/white LED Interior Lights
