Darkside GTB Turbo Kit for 1.9 8v TDI Engines

SKU:
DSD1190.1
Shipping:
Calculated at Checkout
  • Darkside 1.9 8v TDI Golf Platform Turbo Kit with Garrett GTB2260VK Turbocharger
  • Darkside 1.9 8v TDI Polo / Fabia / Ibiza Turbo Kit with Garrett GTB2260VK Turbocharger
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • 4Motion Downpipe
  • Skoda Fabia VRS 1.9TDi 8v - GTB2260VK with Firad 120%, Ported Head
  • Darkside 1.9 8v TDI Golf Platform Turbo Kit with Garrett GTB2260VK Turbocharger
  • Darkside 1.9 8v TDI Polo / Fabia / Ibiza Turbo Kit with Garrett GTB2260VK Turbocharger
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • Darkside GTB Turbo Kit for 1.9 8v TDI Engines
  • 4Motion Downpipe
  • Skoda Fabia VRS 1.9TDi 8v - GTB2260VK with Firad 120%, Ported Head
£1,150.00

Description

Darkside Developments GTB Turbo Kit for 1.9 8v TDI Engines

Direct Bolt on Kit for the 1.9 8v TDI VW Group Engines

  • Increase in performance
  • Will out perform any of the common Hybrid Turbos
  • CNC Machined Billet Collector and Head Flange
  • Maintain economy and drivability
  • Bolt on performance upgrade with no modification needed
  • Multiple turbo options

The Kit is designed to fit the following 1.9 TDI vehicles:

VW Golf Mk4
VW Beetle
VW Bora
VW Golf Mk5
VW Jetta
Audi A3 8L
Audi A3 8P
Seat Leon 1M
Seat Leon 1P
Seat Toledo
Skoda Octavia Mk1
Skoda Octavia Mk2

VW Polo 9N/9N2/9N3
Seat Ibiza Mk4
Seat Cordobra
Skoda Fabia Mk1

VW Transporter T5

We also do a downpipe for the VW Golf 4Motion, Audi A3 Quattro, Skoda Octavia 4x4 and the Seat Leon 4x4



The kit will also fit the Mk2 and Mk3 Golf Platform Vehicles with a modified rear engine mount

The manifold will work with the PD150/PD130/PD105 Turbo Inlet Pipe (TIP) along with a PD150/PD130/PD105 Intake Manifold

 The Downpipe is slightly different dependant on what platform you are fitting the kit to, but all fit into the stock position, so will work with most aftermarket Exhaust Systems with a reducer. Please state the OD of your system if you would like the correct size reducer supplying. If not the pipe supplied will be 3"

 This is a true ‘Bolt-On’ Big Turbo conversion that is future proof, as well as being proven to give big power and have perfect daily drivability

Here are just a handful of vehicles with the Turbo Kits fitted:

https://www.darksidedevelopments.co.uk/ibiza-cupra-mk4-1-9-8v-buk/

https://www.darksidedevelopments.co.uk/ibiza-mk4-1-9-8v-asz/

https://www.darksidedevelopments.co.uk/seat-leon-mk2-1-9-8v-bxe/

https://www.darksidedevelopments.co.uk/golf-mk4-90-1-9-8v-alh/

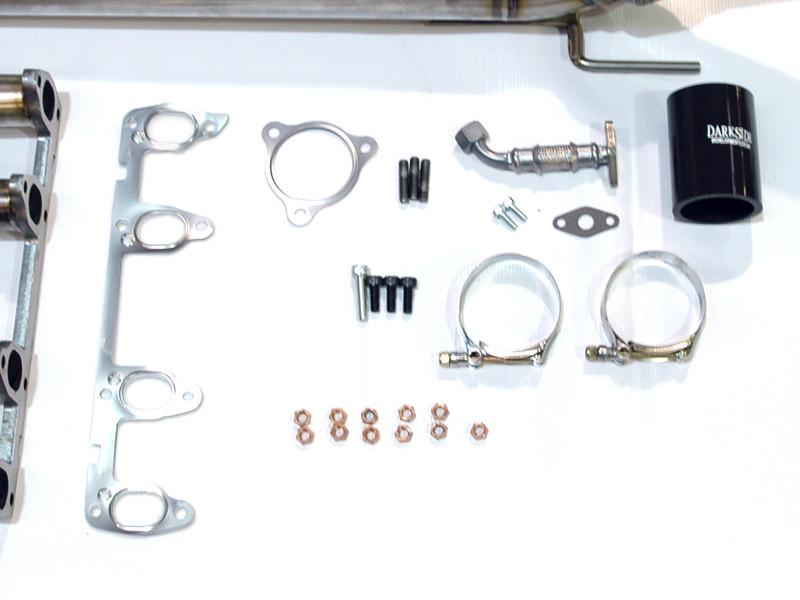

Included in the Kit:

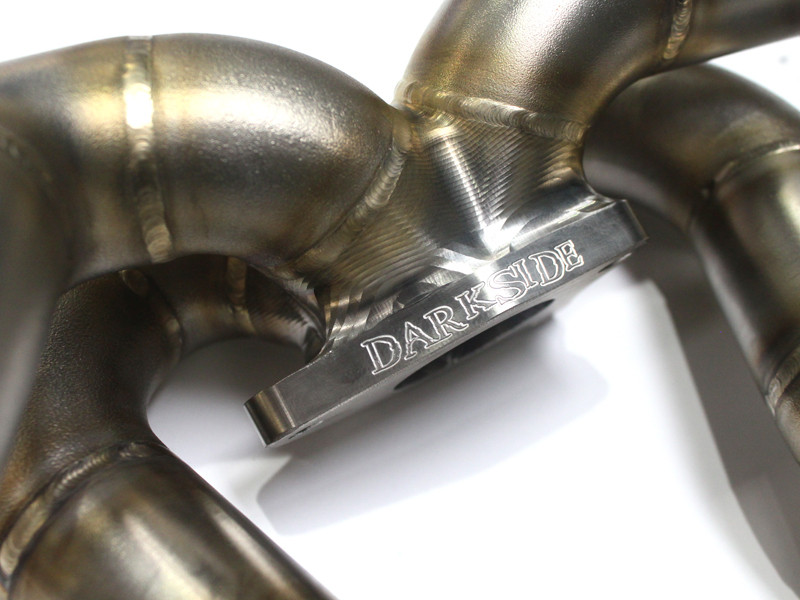

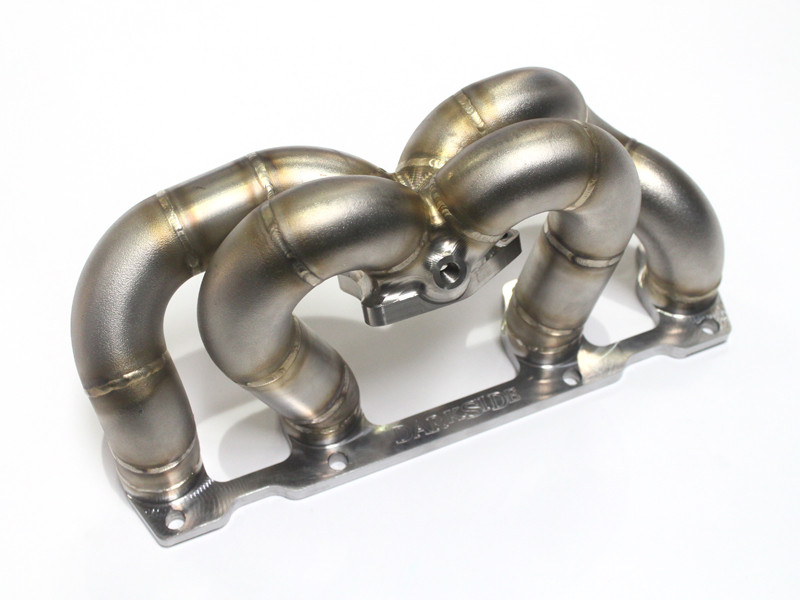

Stainless Tubular Exhaust Manifold With Billet Collector and Head Flange
3” Stainless Downpipe with Stainless 4" Flexi and Dual Fitment Flange
Genuine VW OEM Manifold Gasket
OEM Inlet Manifold Gasket
Genuine VW OEM Downpipe Gasket
Darkside Braided Oil Feed Line
Genuine VW OEM Oil Return Line
Genuine VW OEM Oil Return Gasket
Silicone Turbo Inlet Pipe Connector Hose
Stainless Clamps
All other nuts and bolts required for fitment

If you select a Turbocharger, you will also receive the following:

Brand New Garrett GTB Turbocharger with VNT17 Lever Conversion
or
Brand New Melett Turbocharger with MFS Billet Compressor Wheel & Actuator Lever Conversion
Brand New Vacuum Actuator
Laser Cut and CNC Folded Stainless Actuator Bracket



For the GTB Turbo Kit with this Turbo please select the 'NO TURBO' option above. You can then purchase the turbo using the following link:
https://www.darksidedevelopments.co.uk/products/rebuilt-garrett-gtb2260vk-turbocharger-with-mfs-billet-compressor-wheel-and-vacuum-conversion.html

The only part not included in the kit is a boost outlet pipe. As there are many combinations of intercooler setup, we do not have one definite solution that will suit all builds, normally a 2" silicone 90° bend is all thats required



There are 3 different models of the GTB Turbocharger. There is the GTB1756VK, GTB2056VK and GTB2260VK. All are completely interchangeable, so if you start with the GTB1756VK and decide to upgrade, all you need to swap is the turbocharger unit itself, all the existing pipework will bolt right up. We also now offer the GTD2872VRK turbo. This is the same size turbo used on our Seat Arosa and proven to produce over 400bhp (Without Nos) and over 500bhp (With Nos) with the right supporting modifications.



Here is a comparison of the various wheel sizes of the popular turbochargers, alongside the GTB and GTD Series turbochargers. Bare in mind that the GTD turbos have the latest 5th Generation VNT System, which is far superior to the previous systems, resulting in quicker spool and lower manifold pressures at high RPMs compared to older Gen Turbo's




Above is also a rough guide to what sort of power you can expect from each turbo, with a comparison to other popular turbochargers. This is assuming you have the appropriate supporting modifications for the individual turbocharger. The power figures are what is considered achievable under 'safe' parameters (Injection Duration, Exhaust Gas Temperature and Exhaust Manifold Pressures). Greater power has been achieved in the past with each setup, but in many cases this was pushing many of the components past their safe operating limits

 GTD2872VRK - Please expect around a 6 week lead time on these turbochargers unless otherwise discussed

More about Melett

About Melett

Melett is the market leader for precision engineered turbocharger parts and is renowned for producing OE quality parts to help the turbo aftermarket produce the highest quality repairs. The same commitment to engineering excellence has been applied to produce Melett complete turbochargers, providing a cost effective alternative to a new OE turbocharger.

  • Engineered in the UK to match the OEM design
  • Manufactured to Melett quality standards
  • Built, balanced and flowed in the UK by Melett
  • Providing a solution where no repair option exists
  • Restart the repair cycle by retaining the exchange turbo

Why choose a Melett Turbocharger?

By servicing the aftermarket, Melett not only benefit from analysing turbo failures they also benefit from future knowledge of the latest technologies. Combining this knowledge with expertise allows them to correct inherent design issues and also upgrade old turbo designs. Melett Turbochargers are manufactured to Melett drawings, created by our in-house engineering team, and the majority of parts are produced on Melett owned and controlled tooling. During the development stage, all turbochargers undergo extensive in-house and vehicle testing to assure performance and durability levels. Vehicle testing includes validating engine emissions, torque, power, transient response and fuel economy, ensuring every Melett Turbocharger matches the OE specification. Built to the strictest quality standards, all Melett Turbochargers are balanced and flowed in our dedicated UK production facility.
