T5.1 2.0 Common Rail

VW Transporters make up a high percentage of the vehicles we deal with. We tune many 2.0 TDI CR 84 / 102 / 140 bhp models. All of these models have pretty much the same hardware and are capable of similar results, however the limiting factor on the 84 / 102 variants is the 5 speed gearbox.

From prior testing we have found the 02Z 5 speed gearbox is not much use over 200bhp / 330lb/ft on these vehicles. This is providing you can find a clutch and flywheel to handle the power.

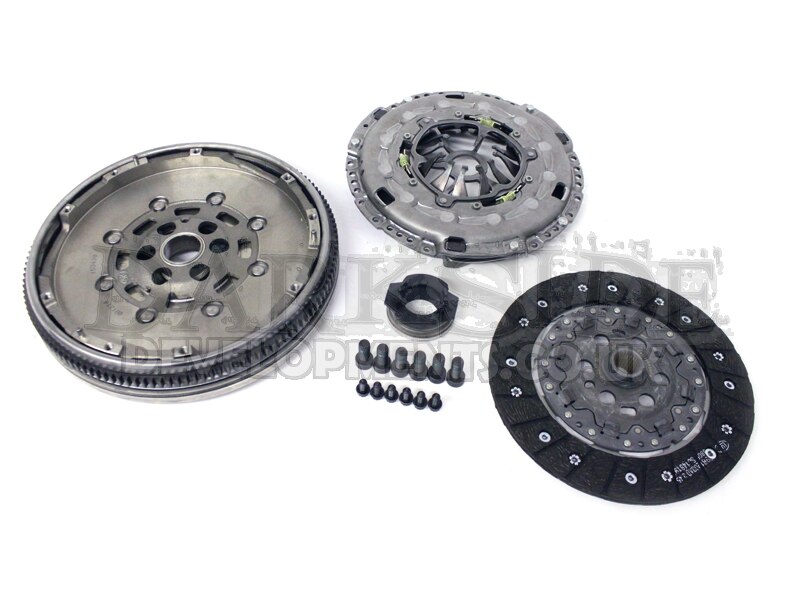

The standard 228mm clutch and dual mass flywheel are usually good up to around 170bhp / 300lb/ft.

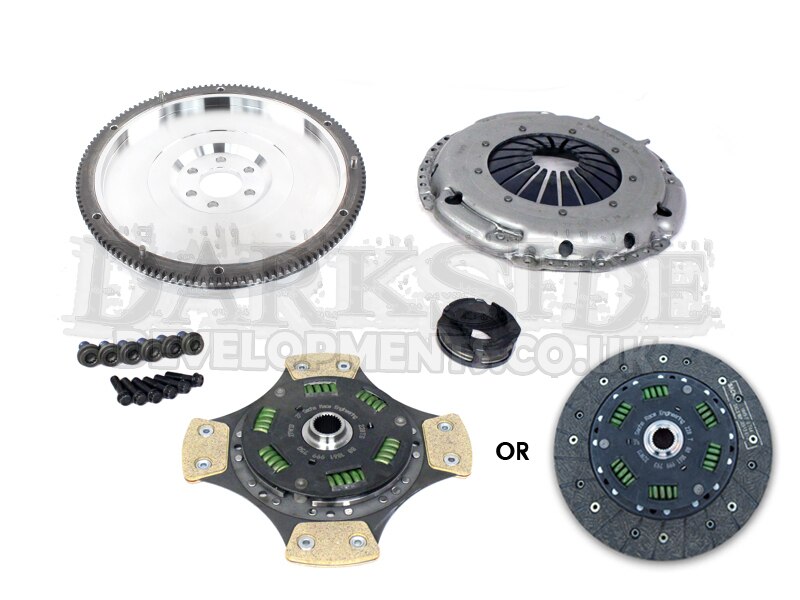

We do have this single mass flywheel conversion kit available, however most users prefer minimal noise and vibration so choose to cap power and torque and retain the stock dual mass set up.

As well as power / torque limitations, the 02Z 5 speed is also prone to bearing failures. Rebuild kits can be purchased relatively cheap however labour to remove and rebuild the gearbox is not cheap!

For anyone looking to reliably run 200bhp or more a 6 speed conversion is the only option:

The Conversion

The 0A5 - 6 speed box can be sourced from the T5.1 - 2.0 TDI 136, 140 or 182 models.

Vehicles with engine codes;

CAAE / CCHB 136, CAAC / CCHA 140, CFCA 182

0A5 Gearbox Sub Code;

KUP, MKB, MQX, PAP, PAT, PAU, PAV, NTF

Due to the high demand and minimal availability they command a high price.

The gearbox alone is usually around £1000. We usually recommend budgeting ~£3000 for gearbox, parts, clutch, flywheel and installation.

You will also need to consider the following parts when carrying out the conversion:

Other Parts Needed:

Starter Motor - 02M911024X - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-starter-motor.html
Right Shaft - 7E0407272T - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-right-hand-driveshaft.html
Left Shaft - 7H0407271AS - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-left-hand-driveshaft.html
Linkage Mount - 7H0711781F - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-linkage-mount.html
Linkage Cables - 7H2711877AH - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-linkage-cables.html
6 Speed Gear Knob Badge - 7H0711144C - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-gear-knob-badge.html
Left Gearbox Mount - 7H0399151H - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-left-hand-gearbox-mount.html
Front Support Bush - 7H0199848D - https://www.darksidedevelopments.co.uk/products/front-engine-mount-for-volkswagen-transporter-2-0-2-5-tdi.html
Front Support - 7E0199343 - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-front-support-bracket.html
Subframe Bolts - N91035202 - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-subframe-bolt-kit.html
Clutch Line - 7H2721462D - https://www.darksidedevelopments.co.uk/products/vw-transporter-6-speed-clutch-line.html
Bellhousing Bolts - https://www.darksidedevelopments.co.uk/products/vw-transporter-bellhousing-bolt-kit-for-6-speed-manual-transmission.html
Oil - G 052171A2 - https://www.darksidedevelopments.co.uk/products/genuine-vw-transmission-oil-for-6-speed-manual-02m-02q-g-052-171-a2.html

T5 1.9 PD

Carrying out this conversion to the 1.9 PD is very similar to the above however the rear engine mount requires modification to allow the driveshaft bearing to be mounted.

Modified Gearbox Mount - https://www.darksidedevelopments.co.uk/products/transporter-t5-1-9-tdi-rear-engine-mount-for-6-speed-gearbox-conversion.html

We have done several of these conversions now including this 324bhp & 430ft/lbs T5.1 CR102 CAAB:
https://www.darksidedevelopments.co.uk/transporter-t5-1-2-0-16v-cr102-caab/
