1.6 16v TDI Common Rail MLS Head Gasket

SKU:
DSD7314
Shipping:
Calculated at Checkout
  • 1.6 16v TDI Common Rail MLS Head Gasket
£36.00
(Inc. VAT)
£30.00 (Ex. VAT)

Description

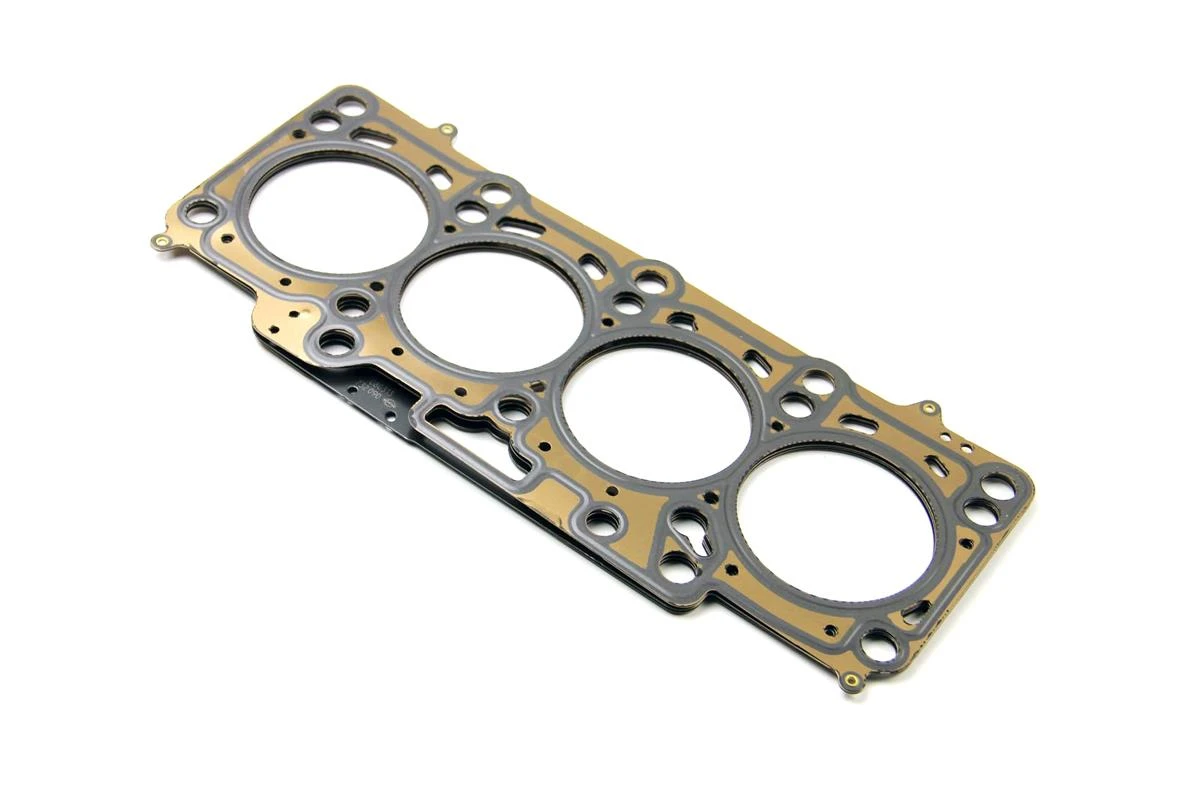

1.6 16v TDI Common Rail MLS Head Gasket

Multi Layered Steel (MLS) Head Gasket for 1.6 16v TDI Common Rail Diesel VAG Engines

Please select from the option list which thickness gasket you require. This is based on the piston protrusion when the Engine is built up. The number of holes can be seen on the Silver Tab that sticks out on the front of the Engine

When changing the head gasket, please ensure you get the same thickness as previously fitted (unless the rods or pistons have been changed), otherwise you will have running issues

1 Hole Head Gasket Characterisitcs:

Thickness - 1.55mm
Diameter - 80.7mm
Piston protrusion to - 1.00mm
Piston protrusion from - 0.91mm
2 Hole Head Gasket Characterisitcs:

Thickness - 1.63mm
Diameter - 80.7mm
Piston protrusion to - 1.10mm
Piston protrusion from - 1.01mm
3 Hole Head Gasket Characterisitcs:

Thickness - 1.71mm
Diameter - 80.7mm
Piston protrusion to - 1.20mm
Piston protrusion from - 1.11mm

We also have Complete Head Sets listed for the 1.6 TDI Engines, find link here:

This item will fit the following Vehicles:

Audi A1 - CAYB (90) CAYC (105)

Audi A3 / S3 - CAYB (90) CAYC (105)

Audi A3 Cabriolet - CAYC (105)

Seat Altea - CAYB (90) CAYC (105)

Seat Ibiza - CAYB (90) CLNA (105) CAYC (105)

Seat Leon - CAYB (90) CAYC (105)

Seat Toledo - CAYB (90) CLNA (105) CAYC (105)

Skoda Fabia - CAYA (75) CAYB (90) CAYC (105)

Skoda Octavia - CAYC (105)

Skoda Rapid - CAYB (90) CLNA (105) CAYC (105)

Skoda Roomster - CAYB (90) CAYC (105)

Skoda Routan - CAYB (90) CAYC (105)

Skoda Superb - CAYC (105)

Skoda Yeti - CAYC (105)

VW Beetle - CAYC (105)

VW Beetle Cabrio - CAYC (105)

VW Caddy - CAYE (75) CAYD (102)

VW Golf - CAYB (90) CAYC (105)

VW Golf Cabriolet - CAYC (105)

VW Golf Plus - CAYB (90) CAYC (105)

VW Jetta - CAYB (90) CAYC (105)

VW Novo Fusca - CAYC (105)

VW Passat / Variant - CAYC (105)

VW Polo - CAYA (75) CAYB (90) CAYC (105) CLNA (105)

VW Polo / Vento - CLNA (105)

VW Touran - CAYB (90) CAYC (105)

VW Vento - CAYC (105)

1 Hole Head Gasket VW Part Numbers:

03L103383BQ - 03L103383 BQ - 03L 103 383 BQ
03L103383BT - 03L103383 BT - 03L 103 383 BT
03L103383F - 03L103383 F - 03L 103 383 F
03L103383J - 03L103383 J - 03L 103 383 J

2 Hole Head Gasket VW Part Numbers:

03L103383CA - 03L103383 CA - 03L 103 383 CA
03L103383G - 03L103383 G - 03L 103 383 G
03L103383K - 03L103383 K - 03L 103 383 K

3 Hole Head Gasket VW Part Numbers:

03L103383BS - 03L103383 BS - 03L 103 383 BS
03L103383H - 03L103383 H - 03L 103 383 H
03L103383L - 03L103383 L - 03L 103 383 L
03L103383CB - 03L103383 CB - 03L 103 383 CB
