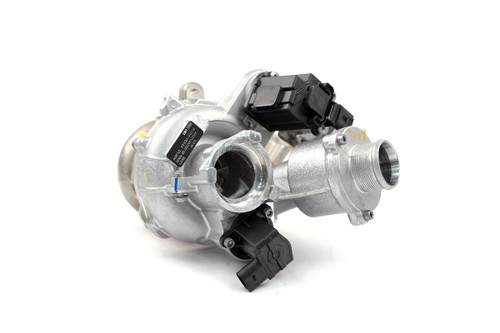

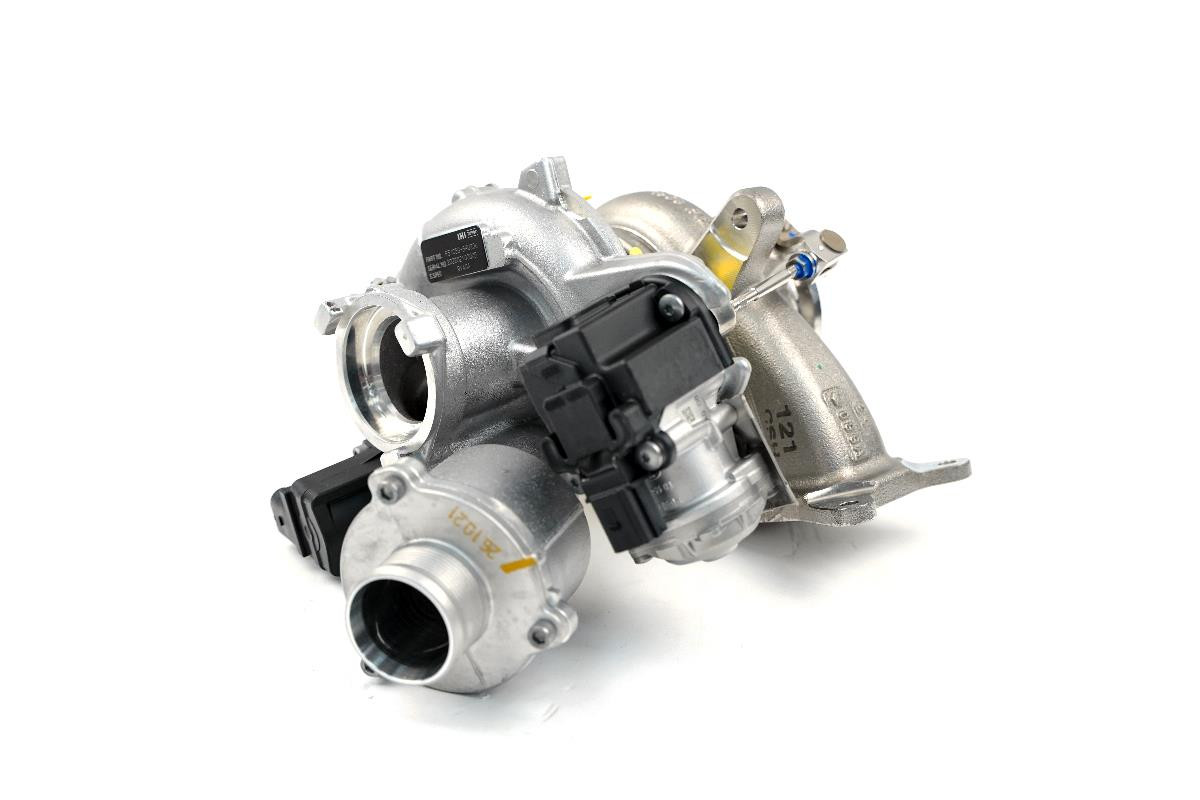

2.0 TFSI Mk7 Golf R IHI IS38 Turbocharger

BMTS 2.0 TFSI Mk7 Golf R IHI IS38 Turbocharger - Upgrade for 2.0 TFSI Petrol Engines

Direct replacement for original part on the Golf R Mk7 Platform

This turbocharger can also be used as an upgrade for the lower horsepower 2.0 TFSI MQB Platform Vehicles

Previously manufactured by IHI however now manufactured and supplied through BMTS (Bosch Mahle Turbo Systems)

Power Capabilities:

This Turbocharger is capable of around 380 BHP+

Turbocharger Specs:

Compressor Wheel Inducer - 45.2mm
Compressor Wheel Exducer - 58mm

Turbine Wheel Inducer - 54.7mm
Turbo Wheel Exducer - 47.4mm

This Item is an Upgrade for the Following Vehicles:

Seat Alhambra

Skoda Octavia

Skoda Superb

VW Sharan

Audi A1 - CWZA (231)

Audi A3 / S3 - CNTC (220) CHHB (220)

Audi A3 Cabriolet - CNTC (220)

Audi TT / TTS Coupe / Roadster - CNTC (220) CHHC (230)

VW Golf - CXCA (210) CNTA (211) CXCB (220) CHHB (220) CXDA (220) CHHA (230)

VW Passat / Variant - CXDA (220) CHHB (220)

VW Tiguan - CHHB (220)

This item will fit the following Vehicles:

Skoda Superb

Audi A3 / S3 - CJXB (280) CJXF (286) CYFB (292) CJXC (300)

Audi A3 Cabriolet - CJXF (286) CJXC (300)

Audi TT / TTS Coupe / Roadster - CYFB (292)

Seat Leon - CJXE (265) CJXA (280) CJXH (290)

VW Golf - CJXE (265) CJXB (280) CYFB (292) CJXC (300) CJXG (310)

VW Passat / Variant - CJXA (280)

Equivalent VW Part Numbers:

06K145702H - 06K145702 H - 06K 145 702 H
06K145702J - 06K145702 J - 06K 145 702 J
06K145702M - 06K145702 M - 06K 145 702 M
06K145702N - 06K145702 N - 06K 145 702 N
06K145704K - 06K145704 K - 06K 145 704 K
06K145722A - 06K145722 A - 06K 145 722 A
06K145722H - 06K145722 H - 06K 145 722 H
06K145722T - 06K145722 T - 06K 145 722 T
06K145874F - 06K145874 F - 06K 145 874 F
06K145874N - 06K145874 N - 06K 145 874 N

Upgrade for Genuine VW Part Numbers:

06K145702K - 06K145702 K - 06K 145 702 K
06K145702L - 06K145702 L - 06K 145 702 L
06K145702Q - 06K145702 Q - 06K 145 702 Q
06K145702R - 06K145702 R - 06K 145 702 R
06K145702T - 06K145702 T - 06K 145 702 T
06K145722G - 06K145722 G - 06K 145 722 G
06K145722L - 06K145722 L - 06K 145 722 L
06K145874C - 06K145874 C - 06K 145 874 C
06K145874J - 06K145874 J - 06K 145 874 J
06K145874L - 06K145874 L - 06K 145 874 L
06K145874M - 06K145874 M - 06K 145 874 M
06K145874Q - 06K145874 Q - 06K 145 874 Q
