BMW M47 / M47N / M57 / M67 Engine EGR Delete / Race Pipe

This kit replaces the EGR Valve. This can be used if you are wanting to remove the Anti Shudder Valve (ASV) or if the vehicle isn't fitted with one

Our EGR Delete Kit is machined from a Single Billet so there are no welds. This improves appearance and also strength

Our unique Grub Screw design allows for the neatest possible install, removing the bulky brass fitting found on other EGR Delete Kits. The tiny hole also eliminates the need to fit an 'in-line' reducer to stop the boost guage from fluttering under heavy load. The design also means that customers who will not be using the boost takeoff will have a clean looking install.

As our design is almost exactly the same profile as the standard EGR Valve, which allows all the stock fixings to be used

  • Reduces inlet air temperatures = more power
  • Prevents inlet and turbo from clogging up
  • Brushed aluminium finish
  • Made in the UK
  • Please note that this is machined from one single piece as the pipe is under strain and welded pipes can crack

    Please Note: Once the valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emmisions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

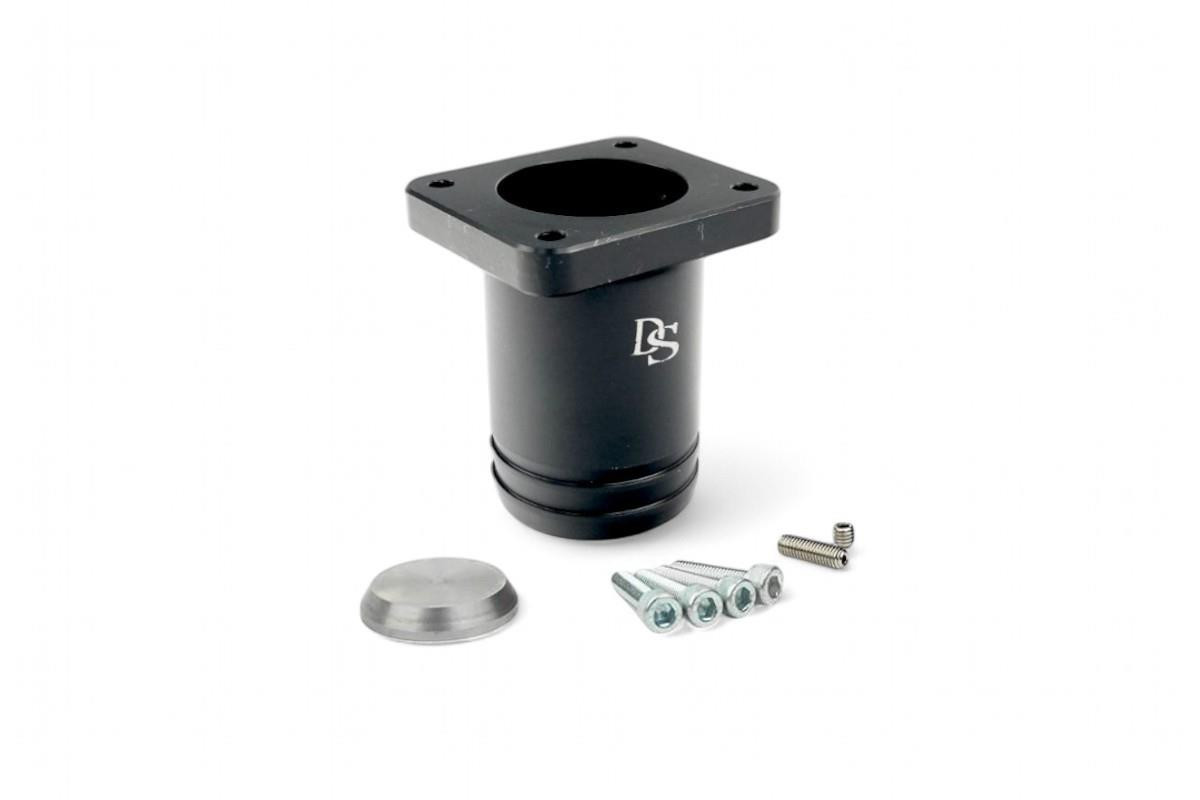

    Our EGR Delete kit consists of:

    Darkside Developments Double Flange Race Pipe
    Machined Cap (For Cooler Pipe)
    4 x M6 x 20mm BZP Bolts
    Vented Grub Screw (Boost Guage Takeoff)
    Grub Screw (to block Boost Port)
    2 x Water Pipe Blanks (With Cooler Delete)
    2 x Mikalor Clamps (With Cooler Delete)
    Small EGR Blanking Plate (With Cooler Delete)
    2 x Cap Head Bolts (With Cooler Delete)
    57mm 90 Silicone Hose (With Cooler Delete)
    2 x T-Bolt Clamps (With Cooler Delete)

    For more information on EGR Valves and Removal see here

    Series / Chassis

    E38 / E39 / E46 / E53 / E65


    318d / 318td / 320Cd / 320d / 320td / 330d / 330xd / 520d / 525d / 530d / 730d / 740d / X5


    M47 / M47N / M57 / M67

    This Kit will fit the following Vehicles:

    E38 M57 730d Saloon
    E38 M67 740d Saloon
    E39 M47 520d Saloon
    E39 M47 520d Touring
    E39 M57 525d Saloon
    E39 M57 525d Touring
    E39 M57 530d Saloon
    E39 M57 530d Touring
    E46 M47 318d Saloon
    E46 M47 318d Touring
    E46 M47 320d Saloon
    E46 M47 320d Touring
    E46 M47N 318d Saloon
    E46 M47N 318d Touring
    E46 M47N 318td Compact
    E46 M47N 320Cd Convertible
    E46 M47N 320Cd Coupe
    E46 M47N 320d Saloon
    E46 M47N 320d Touring
    E46 M47N 320td Compact
    E46 M57 330d Saloon
    E46 M57 330d Touring
    E46 M57 330xd Saloon
    E46 M57 330xd Touring
    E53 M57 X5 3.0d SAV
    E65 M67 740d Saloon

    Replaces the BMW Part Numbers:

    11 71 7 804 378 - 11717804378 - 7 804 378 - 7804378
    11 71 7 785 452 - 11717785452 - 7 785 452 - 7785452
    11 71 7 785 794 - 11717785794 - 7 785 794 - 7785794
    11 71 2 248 717 - 11712248717 - 2 248 717 - 2248717

    Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country

    Fitting Costs

    Darkside Developments offers professional in-house fitting for all products at our workshop located in Barnsley, South Yorkshire

    Labour Time (Hours) Labour Cost
    3 £150 + VAT
