Bosch Pressure and Temperature Sensor Kit (Designed for Fuel & Oil)

Bosch Universal Combined Pressure and Temperature Sensor Kit (Designed for Fuel & Oil)

This sensor is designed to measure relative gasoline pressure and gasoline temperature in port injection systems.

The pressure measurement of the sensor is by means of a piezoresistive element which is acted on by a silicon diaphragm in contact with the fluid being measured. The reference (relative) pressure is provided via an opening in the sensor housing and acts on the active upper side of the silicon diaphragm.

Application:

Application 1 - 0 to 10 bar (a)

Applicaiton 2 - -40c to 140°C

Reference - Relative

Max Pressure - 20 bar

Operating Temp Range - -40 to 140°C

Media Temp Range - -40 to 140°C

Storage Temp Range - -30 to 80°C

Fuel Compatibility - Engine Oils / Most Gasoline & Diesel Fuels

Max Vibration - 80 m/s2 at 20 to 260 Hz // 60 m/s2 at 260 to 520 Hz

Sensitivity - 400 mV/bar at Us = 5 V

Offset - 500 mV at Us = 5v

Technical Specifications:

Mechanical Data

Male Thread - M10x1
Weight Without Wire - 36g
Wrench Size - 27mm
Installation Torque - 40Nm
Sealing - Sealed Cone

Electrical Data

Power Supply Us - 4.75 to 5.25v
Max Power Supply Us Max - 16v
Full Scale Output Ua - 0.5 to 4.5v ratiometric
Current Is - 10 mA

Characteristic 1:

Response Time T10/90 - Pressure: <5 ms. Temperature: 9s (response time of temperature signal in oil dip bath 20 to 100°C)
Compensated Range - -40 to 130°C
Tolerance (FS) at Us - +/-2% at 25 to 85°C

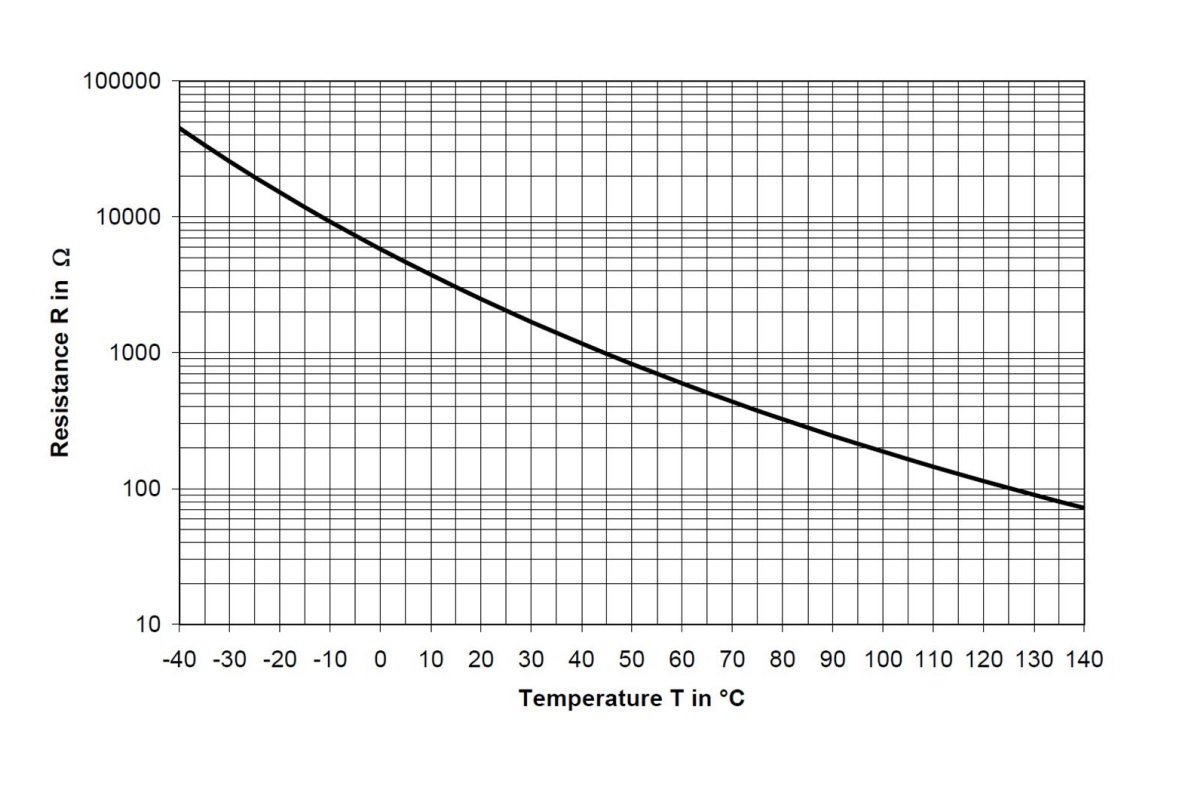

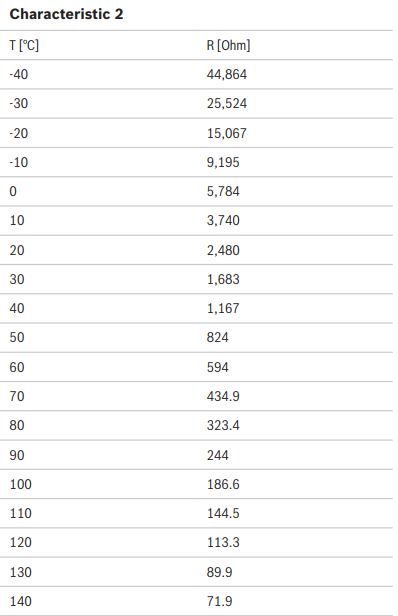

Characteristic 2:

Installation Notes:

The sensor can be connected directly to most control units.

For temperature measurement please use a pull-up resistor with an optimal value of 4.6 kOhm.

Please note that using the adapter F 02U 002 956-01 in connection
with the PST-F 1 the ambient conditions could be changed (e.g. medium
temperature dissipation or undesired vibrations).

The sensor has a protection for overvoltage, reverse polarity and shortcircuit.

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging
System at our homepage.

Safety Note
The sensor is not intended to be used for safety related applications
without appropriate measures for signal validation in the application
system.

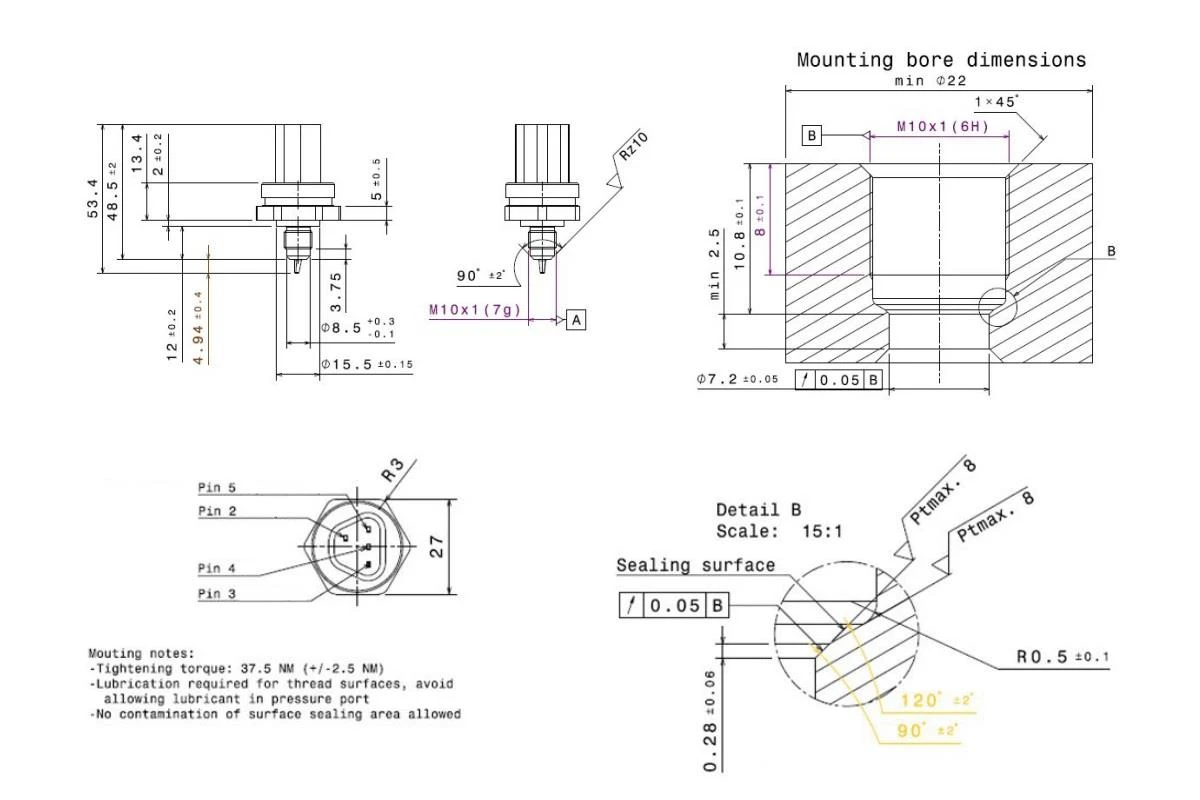

DIMENSIONS:

This Kit Consists of:

1x Bosch Sensor
1x Required Plug

Bosch Part Numbers:

F 02U V0U 194-01 - F02UV0U194-01
0261 230 340 - 0261230340
