Cylinder MLS Head Gasket for VAG Mk7 MQB Platform 1.6 TDI CR

OEM Replacement Cylinder MLS Head Gasket for VAG Mk7 MQB Platform 1.6 TDI CR Diesel Engines

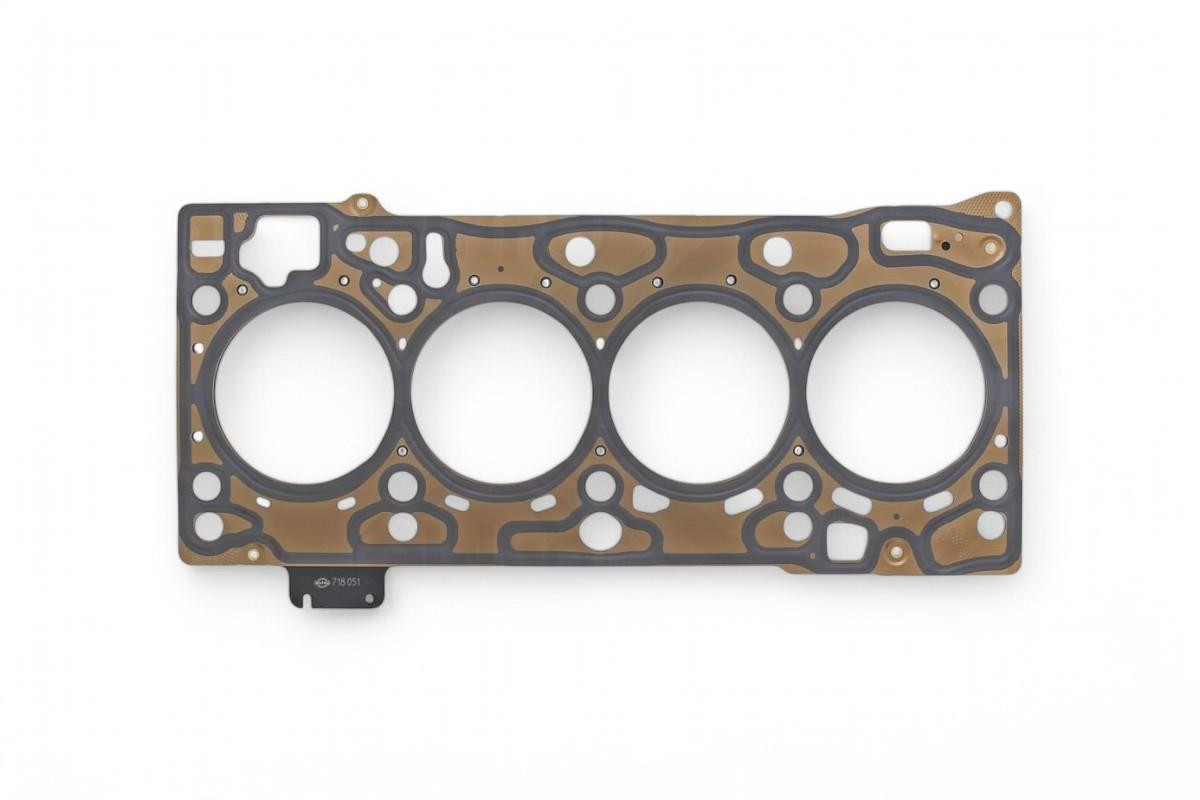

Multi Layer Steel (MLS) Head Gasket for the 1.6 TDI CR Mk7 Diesel Engines.

Please select from the option list which thickness gasket you require. This is based on the piston protrusion when the Engine is built up. The number of holes can be seen on the Silver Tab that sticks out on the front of the Engine.

When changing the head gasket, please ensure you get the same thickness as previously fitted (unless the rods or pistons have been changed), otherwise you will have running issues.

OEM Replacement

Available in 1, 2 or 3 hole thickness

1 Hole Head Gasket:

-Thickness: 1.55mm
-From Piston Crown Protrusion: 0.91mm
-To Piston Crown Protrusion: 1mm
Part Number: 04L 103 383 - 04L103383
04L103383C - 04L103383 C - 04L 103 383 C

2 Hole Head Gasket:

-Thickness: 1.63mm
-From Piston Crown Protrusion: 1.01mm
-To Piston Crown Protrusion: 1.1mm
Part Number: 04L103383A - 04L103383 A - 04L 103 383 A
04L103383D - 04L103383 D - 04L 103 383 D

3 Hole Head Gasket:

-Thickness: 1.71mm
-From Piston Crown Protrusion: 1.11mm
-To Piston Crown Protrusion: 1.2mm
Part Number: 04L103383B - 04L103383 B - 04L 103 383 B
04L103383E - 04L103383 E - 04L 103 383 E

This Kit Consists of:

1x MLS Cylinder Head Gasket

This item will fit Vehicles with the following Engine Codes:

Audi A1 - CXMA (115)

Audi A3 / S3 - CLHA (105) DBKA (110) CXXB (110) CRKB (110)

Audi A3 Cabriolet - CXXB (110) CRKB (110) DDYA (115)

Audi Q2 - DDYA (115)

Seat Ateca - DDYA (115)

Seat Leon - CXXA (90) CLHB (90) CLHA (105) DBKA (110) CXXB (110) CRKB (110)

Seat Toledo - CXMA (115)

Skoda Octavia - CXXA (90) CRKA (90) CLHB (90) CLHA (105) CXXB (110) CRKB (110)

Skoda Rapid - CXMA (115)

Skoda Superb - DCXA (120)

VW Golf - CXXA (90) CRKA (90) CLHB (90) CLHA (105) DBKA (110) CXXB (110) CRKB (110)

VW Golf Sportsvan - CXXA (90) CRKA (90) DBKA (110) CXXB (110) CRKB (110)

VW Passat / Variant - DCZA (120) DCXA (120)

VW Tiguan - DGDB (115)

VW Touran - CRKB (110) DGDA (115)

Replaces Genuine VAG Part Number:

04L103383 - 04L 103 383
04L103383C - 04L103383 C - 04L 103 383 C
04L103383A - 04L103383 A - 04L 103 383 A
04L103383D - 04L103383 D - 04L 103 383 D
04L103383B - 04L103383 B - 04L 103 383 B
04L103383E - 04L103383 E - 04L 103 383 E
