Darkside 3" DPF / CAT Delete Downpipe for VW Amarok 3.0 TDI V6

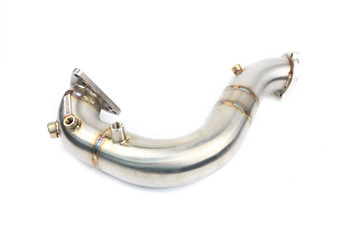

This 3" Stainless Steel Downpipe is a straight replacement to remove the factory Diesel Particulate Filter (DPF) and first catalytic converter (CAT) on the 3.0 TDi VW Amarok

Our DPF Delete Pipe / De-Cat Pipe only removes the first CAT (off the turbo) / DPF Canister

Downpipe also includes replacement gaskets for either end and v-band clamp

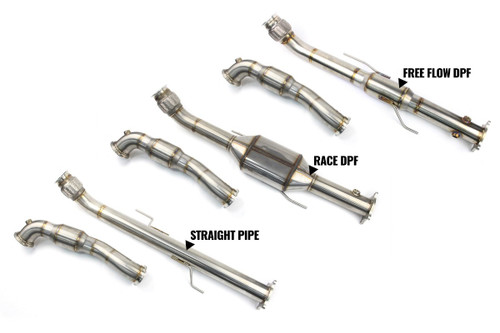

Choose from the following options:

Race DPF - Cainster with Race DPF
Free Flow DPF - Fake Canister (Empty Box)
Straight Pipe

To fit the following Vehicles (Engine Code can be found on a sticker on the Cam Belt Cover or in the Boot):

VW Amarok 3.0 V6 - DDXA, DDXB, DDXC, DDXE

OE Part reference:

Part 1 CAT - 2H6 254 200 AX - 2H6254200 AX - 2H6254200AX
2H6254200B - 2H6254200 B - 2H6 254 200 B
2H6254200BX - 2H6254200 BX - 2H6 254 200 BX


DPF - 2H6 254 500 X - 2H6254500 X - 2H6254500X
2H6254500B - 2H6254500 B - 2H6 254 500 B
2H6254500BX - 2H6254500 BX - 2H6 254 500 BX

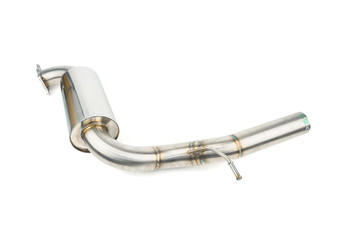

We also list a secondary CAT delete downpipe and CAT-Back Exhaust System:

Secondary CAT Delete Downpipe - https://www.darksidedevelopments.co.uk/products/darkside-3-secondary-de-cat-exhaust-for-vw-amarok-3-0-tdi-v6.html

CAT-Back Exhaust System -

When buying the DPF Delete Pipe you will require a custom ECU Remap to erase any fault codes or engine management lights. We will not be responsible for any problems that may occur with any other tuners software

Our DPF Delete Pipes are supplied with only a Lambda Sensor Boss. The Pre-Turbo EGT Boss is located in the Exhaust Manifold on the Turbocharger. All other EGT and Pressure Sensors are not required when removing the DPF, leaving them in the downpipe can eventually lead to sensor failure, creating a fault in the ECU and possibly a Check Engine Light in the Instrument Cluster. With the correct DPF Delete Software, these sensors are removed entirely so they can be unplugged and removed from the car. If your tuner cannot remove these faults, the sensors should be left plugged in and wrapped out of the way

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country

We must advise it is illegal to remove any emission control devices or increase the exhaust noise limit on vehicles permitted to drive on public roads in the UK, and most other countries around the world. (Please check the rules and laws relating to this in your country.)
Any parts supplied, or work carried out by Darkside Developments would be strictly for off road use. This means we can not accept any responsibility for vehicles being driven on public roads where removal of emission control devices is prohibited.
