Darkside Billet G60 Flywheel and Sachs VR6 Clutch Kit 5 Speed 02J / 02A / 02R

Darkside Billet G60 Singlemass Flywheel (SMF) and Sachs VR6 Clutch Kit 5 Speed Manual 02J / 02A / 02R

Single Mass Flywheels are a popular conversion to Dual Mass Flywheels found on the 1.9 TDI and 1.8T Mk4 Golf platform when running increased power, this kit is suitable for vehicles fitted with a 02J / 02A / 02R 5 Speed manual gearbox.

Our kit has been used on vehicles with 300Ft/Lbs+ (410Nm) with no issues. We had one in our Mk2 Caddy TDI Van which has 318Ft/Lbs (430Nm) and it works perfectly.

We recommend the 10kg flywheel for road car applications as this is a similar weight to the dual mass flywheel so driving characteristics remain unchanged.

The 7kg flywheel is more suited to race and fast road petrol applications as where faster reving and more engine breaking is required.

Built to handle increased Power

More reliability over the stock DMF

Rated to 300Ft/Lbs+ of torque

Billet Single Mass Flywheel - Made in the UK

Option for 7kg or 10kg

Torque Settings:

Flywheel Bolts - 60 Nm + 90°

Clutch Pressure Plate Bolts - 20 Nm

Noise once fitted:

As with most of the Single Mass Flywheel Kits Available, there will be some noise at low RPMs and at idle. This is completely normal and will not damage your gearbox or engine.

In some cases the dust tin may need slight modification with the 10kg flywheel.

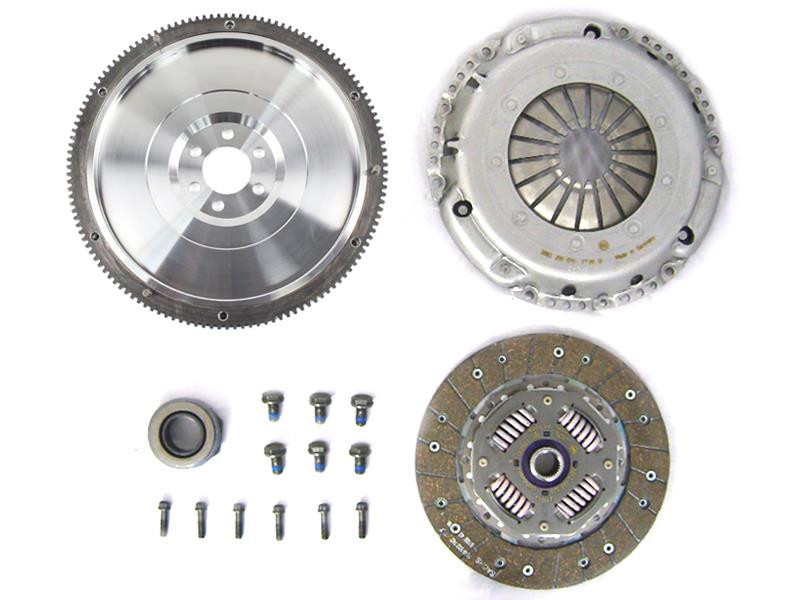

This Kit Consists of the following:

Darkside CNC Machined G60 228mm Single Mass Flywheel (10 kg)
Genuine SACHS VR6 Clutch Disc
Genuine SACHS VR6 Pressure Plate
Genuine SACHS Release Bearing
OE Flywheel and Pressure Plate Bolts

Replacement Sachs VR6 Clutch Kit:

https://www.darksidedevelopments.co.uk/products/sachs-vr6-clutch-kit-for-g60-flywheel.html

Darkside G60 Billet Flywheel & Sachs SRE Clutch Kit - 02J / 02A / 02R

https://www.darksidedevelopments.co.uk/products/darkside-g60-billet-flywheel-sachs-sre-clutch-kit-02j-02a-02r.html

Darkside G60 Single Mass Billet Flywheel & Clutch Kit for 5 Speed 02J / 02A / 02R

https://www.darksidedevelopments.co.uk/products/darkside-g60-single-mass-billet-flywheel-clutch-kit-for-5-speed-02j-02a-02r.html

Fitment Data

This Kit will fit Vehicles with the following Engine Codes:

Audi A1 - CUSB (90)

Audi A2 - BHC (75) AMF (75)

Audi A3 / S3 - CAYB (90) AGR (90) BKC (105) BLS (105) CAYC (105) BXE (105) ASV (110) AHF (110) BVZ (150) BVY (150) BMB (150) BLY (150) BLX (150) BLR (150) AXW (150) ARX (150) AUM (150) ARZ (150) AQA (150) AGU (150) APP (180) AUQ (180) AJQ (180)

Audi A3 Cabriolet - BLS (105) CAYC (105)

Audi TT / TTS Coupe / Roadster - AUM (150) BVP (163) AWP (180) ATC (180) AUQ (180) ARY (180) AJQ (180) BVR (190)

Seat Altea - BXF (90) BKC (105) BJB (105) CAYC (105) BXE (105) BLS (105) BVZ (150) BVY (150) BLY (150) BLR (150)

Seat Cordoba - AGR (90)

Seat Cordoba / Vario - ALH (90) AGR (90) ASV (110) AYP (155) AQX (155)

Seat Ibiza - CUSB (90) ALH (90) AGR (90) CUTA (105) ASV (110) BLX (150) BKV (150) BJX (150) AYP (155) AQX (155) BBU (179)

Seat Leon - AGR (90) BXF (90) BKC (105) CAYC (105) BXE (105) BLS (105) ASV (110) AHF (110) BVZ (150) BVY (150) BLY (150) BLR (150)

Seat Toledo - CUSB (90) AGR (90) BXE (105) BLS (105) BKC (105) BJB (105) ASV (110) AHF (110) AFN (110) BVZ (150) BVY (150) BLY (150) BLR (150)

Skoda Fabia - CUSA (75) CUSB (90) CUTA (105)

Skoda Octavia - AGR (90) CAYC (105) BXE (105) BLS (105) BKC (105) BJB (105) CLCA (110) ASV (110) AHF (110) AUM (150) ARX (150) BVZ (150) BVY (150) BVX (150) BLY (150) BLX (150) BLR (150) ARZ (150) AGU (150) AUQ (180)

Skoda Rapid - null

Skoda Superb - BLS (105) BXE (105)

Skoda Yeti - CLCA (110) CFHA (110)

VW Beetle - BPS (150) BPR (150) BKF (150) AWU (150) AWV (150) AVC (150) APH (150)

VW Beetle Cabrio - AWU (150) BKF (150) AWV (150) BPS (150) BPR (150) BEK (180)

VW Bora - AGR (90) ALH (90) AXR (101) BRM (103) BXE (105) BKC (105) ASV (110) AHF (110) AUM (150) AGU (150) BAE (150) AWW (150) AWD (150) BTK (150) BGQ (150) BGP (150) CCCA (170) CBUA (170) CBTA (170) AWP (180) AUQ (180) BEK (180)

VW Caddy - BLS (105) BJB (105)

VW Clasico / Jetta - AXR (101) AWW (150) AWD (150) AUQ (180) BEK (180) AWP (180)

VW Golf - AGR (90) ALH (90) BRU (90) CAYB (90) BXJ (90) BXF (90) BKC (105) CAYC (105) BLS (105) BXE (105) AFN (110) ASV (110) AHF (110) CLCA (110) CBDC (110) BLY (150) BLX (150) AXW (150) ARZ (150) AUM (150) AGU (150) AWW (150) AWD (150) CBUA (170) CBTA (170) BLG (170) BEK (180) AUQ (180) AWP (180)

VW Golf / Variant syncro / Rallye / Country - AHU (90)

VW Golf Cabriolet - AVG (110) AFN (110)

VW Golf Plus - CAYB (90) BXJ (90) BXF (90) BRU (90) CAYC (105) BXE (105) BLS (105) BKC (105) CLCA (110) CBDC (110)

VW Golf Variant - AFN (110) CBUA (170) CBTA (170)

VW Jetta - ALH (90) AGR (90) CAYB (90) BRM (103) CAYC (105) BLS (105) BXE (105) BKC (105) AHF (110) ASV (110) BGQ (150) BVX (150) AUM (150) AGU (150) AWW (150) AWD (150) BTK (150) BGP (150) BVZ (150) BVY ) CBDC (110) AFN (110) BVZ (150) BVY (150) BVX (150)

VW Polo - BJX (150) BBU (179)

VW Polo Classic / Variant - ALH (90) AGR (90) ASV (110)

VW Sagitar - BPL (150)

VW Touran - CAYB (90) BXJ (90) BXF (90) BRU (90) AVQ (100) CAYC (105) BXE (105) BLS (105) BKC (105) BLY (150) BLX (150) AXW (150) CFUA (150) BPL (150)

VW Vento - BRM (103) BXE (105) BKC (105) AFN (110) BTK (150) BGQ (150) BGP (150) CCCA (170) CBUA (170) CBTA (170)

VW Vento Variant - BXE (105) CCCA (170) CBUA (170) CBTA (170)

Replaces Genuine VAG Flywheel Part Numbers (May fit more):

028105264E - 028105264 E - 028 105 264 E
028105264G - 028105264 G - 028 105 264 G
028105264J - 028105264 J - 028 105 264 J
028105264K - 028105264 K - 028 105 264 K
028105266G - 028105266 G - 028 105 266 G
028105266N - 028105266 N - 028 105 266 N
028105266P - 028105266 P - 028 105 266 P
028105269B - 028105269 B - 028 105 269 B
028105269BX - 028105269 BX - 028 105 269 BX
037105269K - 037105269 K - 037 105 269 K
037105269KV - 037105269 KV - 037 105 269 KV
038105264E - 038105264 E - 038 105 264 E
038105264J - 038105264 J - 038 105 264 J
038105264K - 038105264 K - 038 105 264 K
038105266AE - 038105266 AE - 038 105 266 AE
038105266AQ - 038105266 AQ - 038 105 266 AQ
038105266BC - 038105266 BC - 038 105 266 BC
044105269C - 044105269 C - 044 105 269 C
06A105264A - 06A105264 A - 06A 105 264 A
06A105264C - 06A105264 C - 06A 105 264 C
06A105264F - 06A105264 F - 06A 105 264 F
06A105264K - 06A105264 K - 06A 105 264 K
06A105264L - 06A105264 L - 06A 105 264 L

Replaces Genuine VAG Clutch Kit Part Numbers (May fit more):

038141025P - 038141025 P - 038 141 025 P
038141025PX - 038141025 PX - 038 141 025 PX
03G141015AA - 03G141015 AA - 03G 141 015 AA
03G141015G - 03G141015 G - 03G 141 015 G
03G141015J - 03G141015 J - 03G 141 015 J
03G141015JX - 03G141015 JX - 03G 141 015 JX
03G141015K - 03G141015 K - 03G 141 015 K
03G141015KX - 03G141015 KX - 03G 141 015 KX
03G141015N - 03G141015 N - 03G 141 015 N
03G141016 - 03G 141 016
03G141016A - 03G141016 A - 03G 141 016 A
03G141016AX - 03G141016 AX - 03G 141 016 AX
03G141016X - 03G141016 X - 03G 141 016 X
03G141025E - 03G141025 E - 03G 141 025 E
03G141025N - 03G141025 N - 03G 141 025 N
03G141031Q - 03G141031 Q - 03G 141 031 Q
03L141015P - 03L141015 P - 03L 141 015 P
