Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI

SKU:
DSD1053
Shipping:
Calculated at Checkout
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
  • Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI
£54.00
(Inc. VAT)
£45.00
(Ex. VAT)

Description

Darkside Braided Oil Feed Line for 1.9 and 2.0 TDI

Braided Turbo Oil Feed Pipe / Line for VW Group 1.9 / 2.0 PD / PPD TDI Engines & 2.0 CR TDI Round Port Engines

Fits ALL VW / Audi / Seat and Skoda Vehicles with the 1.9 and 2.0 TDI engine codes listed below

  • Designed to replace the standard hard line found on the 1.9 and 2.0 TDi VW group engines
  • Can be used with stock turbochargers as well as upgraded turbochargers when the stock oil line doesnt quite reach
  • Used in all our GTB Turbo Kits
  • Much improved design over standard, can be used muitiple times without any issues
  • Made in the UK
  • We offer Braided Oil Feeds for both the Transverse Engines and the Longditudinal Engines, Please select from the above options

    This Kit Consists of:

    Darkside Developments Braided Oil Feed Line
    x2 Banjo Bolts
    x4 Copper Washers
    x2 P-Clips

    Fitment Data

    This item will fit the following Vehicles:

    Transverse Oil Feed

    Audi A3 / S3 - ALH (90) AGR (90) BKC (105) BXE (105) BLS (105) ASV (110) AHF (110) AZV (136) BKD (140) BMM (140) BMN (170)

    Audi A3 Cabriolet - BLS (105)

    Seat Alhambra - ASZ (131) BRT (140) BTB (150)

    Seat Altea - BXF (90) BJB (105) BKC (105) BXE (105) BLS (105) AZV (136) BMM (140) BKD (140) BMN (170)

    Seat Cordoba - AGR (90)

    Seat Cordoba / Vario - BMS (80) AGR (90) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)

    Seat Ibiza - BMS (80) BXJ (90) AGR (90) BMT (100) ATD (100) AXR (101) BLS (105) BLT (131) ASZ (131)

    Seat Leon - BXF (90) ALH (90) AGR (90) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AZV (136) BKD (140) BMM (140) BMN (170)

    Seat Toledo - BXF (90) ALH (90) AGR (90) BJB (105) BXE (105) BKC (105) BLS (105) AHF (110) ASV (110) AZV (136) BKD (140) BMM (140) BMN (170)

    Skoda Fabia - BMS (80) ATD (100) AXR (101) BSW (105) BLS (105) BLT (131) ASZ (131)

    Skoda Octavia - AGR (90) ALH (90) BKC (105) BJB (105) BXE (105) BLS (105) ASV (110) AHF (110) AZV (136) BKD (140) BMM (140) BMN (170)

    Skoda Roomster - BMS (80) AXR (101) BSW (105) BLS (105)

    Skoda Routan - BMS (80) AXR (101) BSW (105) BLS (105)

    Skoda Superb - BXE (105) BLS (105) BMP (140) BKD (140)

    VW Beetle - ALH (90)

    VW Bora - AGR (90) ALH (90) BEW (100) BRM (103) BKC (105) BXE (105) ASV (110) AHF (110) AUY (115) AJM (115) BKD (140)

    VW Caddy - BSU (75) BJB (105) BLS (105) BMM (140)

    VW Campmobile T ype 2 / T2 - BRR (84) AXC (85) BRS (102) AXB (105)

    VW Clasico / Jetta - ALH (90) BEW (100)

    VW Derby - AGR (90)

    VW Diesel Industrial Motor - CBHA (64) BJC (72) CBJB (75) AVM (86) CBKA (100)

    VW Eos - BMM (140)

    VW Golf - BRU (90) BXJ (90) BXF (90) AGR (90) ALH (90) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AUY (115) AJM (115) BVB (131) AZV (136) BKD (140) BMM (140) BMN (170)

    VW Golf Plus - BRU (90) BXJ (90) BXF (90) BKC (105) BXE (105) BLS (105) BEE (131) BVB (131) AZV (136) BKD (140) BMM (140)

    VW Jetta - ALH (90) AGR (90) BEW (100) BRM (103) BKC (105) BXE (105) BLS (105) AHF (110) ASV (110) AUY (115) AJM (115) AZV (136) BKD (140) BMM (140) BMN (170)

    VW Jetta Variant - ALH (90) AGR (90) BXE (105) AHF (110) ASV (110) AUY (115) AJM (115)

    VW Passat / Variant - BKC (105) BLS (105) BXE (105) BWV (115) BWV (120) BVE (122) BMA (136) BKP (140) BMP (140) BUZ (163) BMR (170)

    VW Polo - BWB (70) BMS (80) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)

    VW Polo Classic / Variant - AGR (90) ATD (100) BLT (131) ASZ (131)

    VW Sharan - ASZ (131) BVH (136) BRT (140) BTB (150)

    VW Touran - BRU (90) BXF (90) BXJ (90) AVQ (100) BKC (105) BXE (105) BLS (105) AZV (136) BKD (140) BMM (140) BMN (170)

    VW Transporter Kombi - BRR (84) AXC (85) BRS (102) AXB (105)

    VW Vento - BRM (103) BKC (105) BXE (105) BKD (140)

    VW Vento Variant - BXE (105)

    Audi A3 / S3 - BUY (163)

    Audi A3 / S3 - BKC (105) BXE (105) BLS (105) ASZ (131) CBAA (136) AZV (136) CBEA (140) BMM (140) BKD (140) CBAB (140) BMN (170) CBBB (170)

    Audi A3 Cabriolet - BLS (105) CBAA (136) CBAB (140)

    Audi TT / TTS Coupe / Roadster - CBBB (170)

    Seat Alhambra - ANU (90) AUY (115) BVK (115) ASZ (131) BRT (140) BTB (150)

    Seat Altea - BXF (90) BKC (105) BXE (105) BLS (105) BJB (105) AZV (136) BKD (140) BMM (140) CEGA (170) BMN (170)

    Seat Arosa - AMF (75)

    Seat Cordoba / Vario - BNM (68) AMF (75) AAZ (75) BNV (80) BMS (80) ALE (90) AHU (90) 1Z (90) BMT (100) ATD (100) AXR (101) AFN (110) BLT (131) ASZ (131)

    Seat Exeo - CAGC (120) CAGA (143) CAHA (170)

    Seat Ibiza - BNM (68) AAZ (75) AMF (75) BMS (80) BNV (80) ALE (90) 1Z (90) BXJ (90) AHU (90) BMT (100) ATD (100) AXR (101) BLS (105) AFN (110) BLT (131) ASZ (131) ARL (150) BPX (160) BUK (160)

    Seat Leon - BXF (90) AXR (101) BKC (105) BXE (105) BLS (105) ASZ (131) AZV (136) BMM (140) BKD (140) ARL (150) CEGA (170) BMN (170)

    Seat Toledo - AAZ (75) ALE (90) 1Z (90) AHU (90) AXR (101) BJB (105) BKC (105) BXE (105) BLS (105) AFN (110) ASZ (131) AZV (136) BKD (140) BMM (140) ARL (150) CEGA (170) BMN (170)

    Skoda Fabia - ASY (64) BNM (68) AMF (75) BMS (80) BNV (80) ATD (100) AXR (101) BSW (105) BLS (105) BLT (131) ASZ (131)

    Skoda Octavia - ATD (100) AXR (101) BKC (105) BJB (105) BXE (105) BLS (105) ASZ (131) AZV (136) BKD (140) BMM (140) BMN (170) CEGA (170)

    Skoda Roomster - BNM (68) BNV (80) BMS (80) AXR (101) BSW (105) BLS (105)

    Skoda Routan - BNM (68) BMS (80) BNV (80) AXR (101) BLS (105) BSW (105)

    Skoda Superb - BXE (105) BLS (105) BKD (140) BMP (140) CBBB (170)

    Skoda Yeti - CBDB (140) CEGA (170)

    VW Beetle - ATD (100) BEW (100) BSW (105) CJAA (140)

    VW Beetle Cabrio - AXR (101) BSW (105) CJAA (140)

    VW Bora - BEW (100) ATD (100) AXR (101) BRM (103) BKC (105) BXE (105) ASZ (131) CJAA (140) CBEA (140) BKD (140) ARL (150)

    VW Caddy - BSU (75) ALE (90) AHU (90) 1Z (90) BJB (105) BLS (105) BMM (140)

    VW Campmobile Type 2 / T2 - BRR (84) AXC (85) BRS (102) AXB (105)

    VW Clasico / Jetta - AAZ (75) 1Z (90) AHU (90) BEW (100) AXR (101)

    VW Eos - BMM (140) CBAB (140)

    VW Fox - BNM (68)

    VW Golf - AHU (90) BXF (90) 1Z (90) BEW (100) ATD (100) AXR (101) BKC (105) BXE (105) BLS (105) CBDC (110) AFN (110) ASZ (131) CBDA (136) CBAA (136) AZV (136) CBAB (140) CJAA (140) BKD (140) CBDB (140) BMM (140) ARL (150) CBBB (170) BMN (170)

    VW Golf Cabriolet - JK (54) CY (70)

    VW Golf Plus - BXJ (90) BRU (90) BXF (90) BKC (105) BXE (105) BLS (105) CBDC (110) CBDA (136) AZV (136) CBDB (140) BKD (140) BMM (140)

    VW Golf Variant - AAZ (75) ALE (90) 1Z (90) AHU (90) AFN (110) CJAA (140)

    VW Jetta - AHU (90) BEW (100) ATD (100) AXR (101) BRM (103) BKC (105) BXE (105) BLS (105) ASZ (131) CBDA (136) AZV (136) CBEA (140) CBDB (140) CJAA (140) BKD (140) BMM (140) ARL (150) CEGA (170) BMN (170)

    VW Jetta Variant - BEW (100) ATD (100) AXR (101) BXE (105) ASZ (131) CBEA (140) CJAA (140) ARL (150)

    VW Lupo - AYZ (61) ANY (61) AMF (75)

    VW New Beetle - BEW (100) BSW (105)

    VW Novo Fusca - CJAA (140)

    VW Polo - BNM (68) BWB (70) BAY (75) AMF (75) BMS (80) BNV (80) BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)

    VW Polo Classic / Variant - AMF (75) BNV (80) ALE (90) 1Z (90) AHU (90) ATD (100) AFN (110) ASZ (131)

    VW Polo Sedan - BAY (75) AMF (75)

    VW Scirocco - CBDB (140) CBBB (170)

    VW Sharan - ANU (90) BVK (115) AUY (115) ASZ (131) BVH (136) BRT (140) BTB (150)

    VW Tiguan - CBAA (136) CBAB (140) CBBA (163) CBBB (170)

    VW Touareg - BKW (313) BWF (313) AYH (313) BLE (313) CBWA (350)

    VW Touran - BRU (90) BXJ (90) BXF (90) AVQ (100) BKC (105) BLS (105) BXE (105) AZV (136) BKD (140) BMM (140) BMN (170)

    VW Transporter Kombi - AXC (85) BRS (102) AXB (105)

    VW Vento - AAZ (75) ALE (90) AHU (90) 1Z (90) BRM (103) BKC (105) BXE (105) AFN (110) CJAA (140) CBEA (140) BKD (140)

    VW Vento Variant - BXE (105) CBEA (140) CJAA (140)

    Audi A3 / S3 - CBAA (136) CBEA (140) CBAB (140) CBBB (170)

    Audi A3 Cabriolet - CBAA (136) CBAB (140)

    Audi TT / TTS Coupe / Roadster - CBBB (170)

    Seat Altea - CEGA (170)

    Seat Leon - CEGA (170)

    Seat Toledo - CEGA (170)

    Skoda Octavia - CEGA (170)

    Skoda Superb - CBBB (170)

    Skoda Yeti - CBDB (140) CEGA (170)

    VW Beetle - CJAA (140)

    VW Beetle Cabrio - CJAA (140)

    VW Bora - CJAA (140) CBEA (140)

    VW Diesel Industrial Motor - CJDA (102) CJDD (102)

    VW Eos - CBAB (140)

    VW Golf - CBDC (110) CBDA (136) CBAA (136) CBDB (140) CBAB (140) CJAA (140) CBBB (170)

    VW Golf Plus - CBDC (110) CBDA (136) CBDB (140)

    VW Golf Variant - CJAA (140)

    VW Jetta - CBDA (136) CBEA (140) CBDB (140) CJAA (140) CEGA (170)

    VW Jetta Variant - CBEA (140) CJAA (140)

    VW Novo Fusca - CJAA (140)

    VW Passat / Variant - CBDC (110) CBAA (136) CBAB (140) CBAC (143) CBBB (170)

    VW Passat CC - CBAA (136) CBAB (140) CBAC (143) CBBB (170)

    VW Scirocco - CBDB (140) CBBB (170)

    VW Tiguan - CBAA (136) CBAB (140) CBBA (163) CBBB (170)

    VW Vento - CBEA (140) CJAA (140)

    VW Vento Variant - CBEA (140) CJAA (140)

    Longditudinal Oil Feed:

    Audi A4 / Avant - AVB (100) BKE (115) AJM (115) BRB (116) CAGC (120) BVG (121) BVF (126) AWX (131) AVF (131) BNA (136) BRF (136) CAGB (136) BRE (140) BPW (140) BLB (140) CMEA (143) CAGA (143) BVA (163) CAHB (163) BRD (170) CAHA (170)

    Audi A4 / S4 / Avant / quattro - AVB (100) ATJ (115) BKE (115) BRB (116) CAGC (120) BVG (121) BVF (126) AVF (131) AWX (131) BNA (136) BRF (136) CAGB (136) BPW (140) BRE (140) BLB (140) CAGA (143) CMEA (143) BVA (163) CAHB (163) BRD (170) CAHA (170)

    Audi A4 / S4 Cabriolet / quattro - BPW (140)

    Audi A4 allroad quattro - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

    Audi A5 / S5 Cabriolet - CAHB (163) CAHA (170)

    Audi A5 / S5 Coupe Sport - CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

    Audi A6 / Avant - AJM (115) BVG (121) AWX (131) AVF (131) BRF (136) BNA (136) CAGB (136) BRE (140) BLB (140) CAHB (163) CAHA (170)

    Audi A6 / S6 / Avant / quattro - BVG (121) AVF (131) AWX (131) BRF (136) BNA (136) CAGB (136) BRE (140) BLB (140) CAHB (163) CAHA (170)

    Audi Q5 - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

    Seat Exeo - CAGC (120) CAGA (143) CAHA (170)

    Skoda Superb - AVB (100) AVF (131) AWX (131)

    VW Passat / Variant - AVB (100) ATJ (115) AJM (115) AVF (131) AWX (131) BHW (136) BGW (136)

    VW Passat syncro - ATJ (115)

    Audi A4 / S4 Cabriolet / quattro - BRC (136)

    Skoda Superb - BSV (105) BPZ (116) BWW (124) BSS (140)

    VW Passat / Variant - BPZ (116)

    Replaces Genuine VW Part Numbers (Transverse):

    038145771AA - 038145771 AA - 038 145 771 AA
    038145771N - 038145771 N - 038 145 771 N
    045115677A - 045115677 A - 045 115 677 A
    N0208192 - N0208192 - N02 081 92
    038145771N - 038145771 N - 038 145 771 N

    038145771 - 038 145 771
    038145771AE - 038145771 AE - 038 145 771 AE
    038145771AG - 038145771 AG - 038 145 771 AG
    038145771AH - 038145771 AH - 038 145 771 AH
    038145771B - 038145771 B - 038 145 771 B
    038145771D - 038145771 D - 038 145 771 D
    038145771G - 038145771 G - 038 145 771 G
    038145771H - 038145771 H - 038 145 771 H
    038145771R - 038145771 R - 038 145 771 R
    03G145771G - 03G145771 G - 03G 145 771 G
    03G145771H - 03G145771 H - 03G 145 771 H
    03G145771J - 03G145771 J - 03G 145 771 J
    03G145771Q - 03G145771 Q - 03G 145 771 Q
    03G145771R - 03G145771 R - 03G 145 771 R
    038145771G - 038145771 G - 038 145 771 G
    038145771AG - 038145771 AG - 038 145 771 AG
    03G145771Q - 03G145771 Q - 03G 145 771 Q
    03G145771R - 03G145771 R - 03G 145 771 R
    03G145771J - 03G145771 J - 03G 145 771 J
    038145771AH - 038145771 AH - 038 145 771 AH
    038145771H - 038145771 H - 038 145 771 H

    Replaces Genuine VW Part Numbers (LONGITUDINAL):

    038145771E - 038145771 E - 038 145 771 E
    038145771L - 038145771 L - 038 145 771 L
    038145771Q - 038145771 Q - 038 145 771 Q
    03G145771B - 03G145771 B - 03G 145 771 B
    03L145771A - 03L145771 A - 03L 145 771 A
    03L145807 - 03L 145 807
    038145771L - 038145771 L - 038 145 771 L
    03G145771B - 03G145771 B - 03G 145 771 B
    03L145771A - 03L145771 A - 03L 145 771 A

    Banjo Sizes:

    Turbo Side - M10
    Oil Filter End - M12

    Factory oil feed torque setting do not apply to this part. A slight nip on the copper o-rings should be sufficent to seal. If a slight leak occures nip again. This should not exceed around 15 ft/lbs

    Total Length (End to End) - 880mm

    This Oil Feed line is designed to replace the standard hard line found on the 1.9 and 2.0 TDI VW Group Engines. It will fit with the stock turbocharger but is particularly useful if you have changed turbochargers and the stock oil line doesn't quite fit. We use these on our GTB Turbo Kits

    These are much improved on the standard design as it eliminates the taper fitting on the turbo end, which usually gets damaged when removed, requiring a complete new Oil Feed from VW. This hose can be used multiple times without any issues

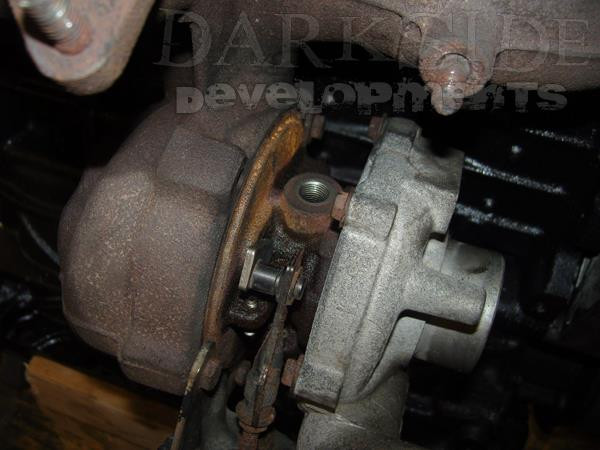

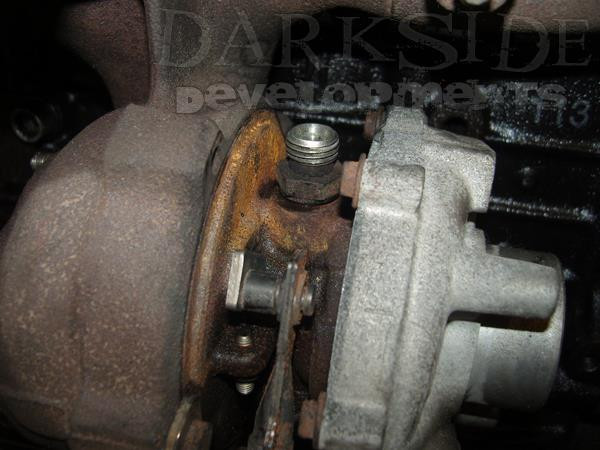

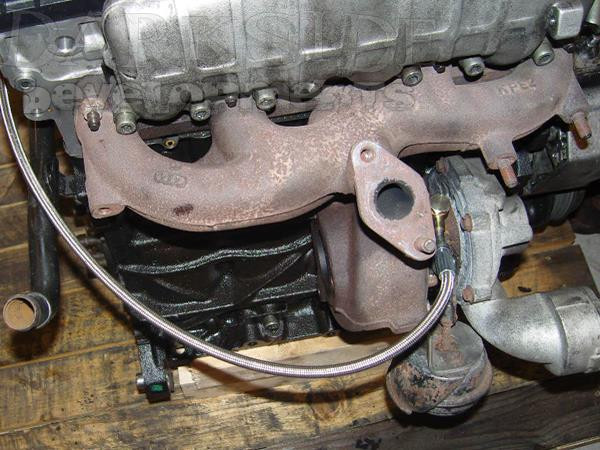

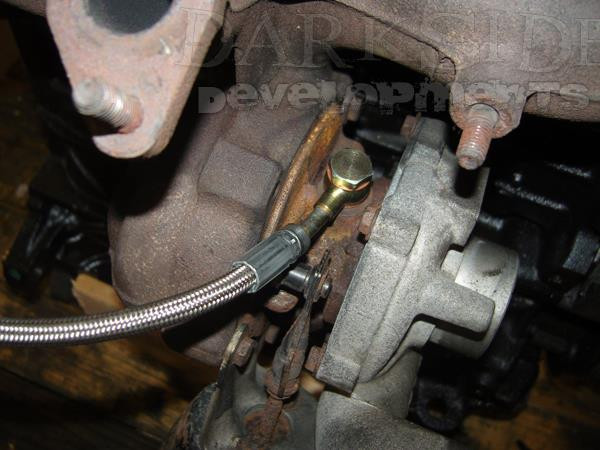

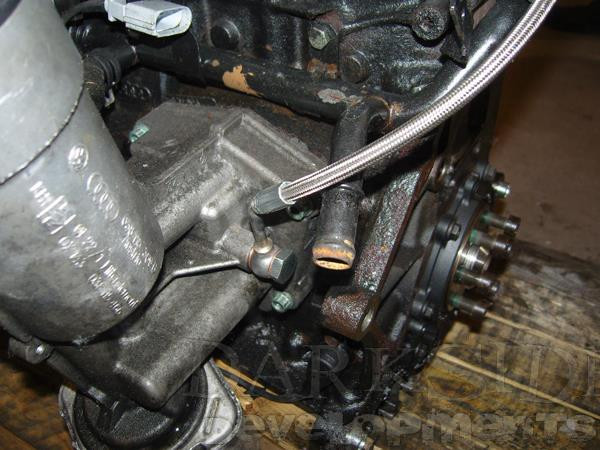

    Please see photos above for fitting instructions

    Made in the UK

    Fitting Costs

    Darkside Developments offers professional in-house fitting for all products at our workshop located in Barnsley, South Yorkshire

    Labour Time (Hours) Labour Cost
    1.5 £75 + VAT
    For more Information or to make a booking, please CONTACT US
