Darkside Front Mount Intercooler (FMIC) for 2.0 TDI & TFSI / 2.7 & 3.0 TDi Audi B8 / MLB Platform

Darkside Audi B8 / MLB Platform / Porsche Macan 2.0 TFSI / TDI & 2.7 / 3.0 TDi Front Mount Intercooler (FMIC)

Fits ALL Audi B8 / MLB Platform 2.0 TFSI / TDI, 2.7 and 3.0 TDi Vehicles & Porsche Macan 3.0 TDI Vehicles

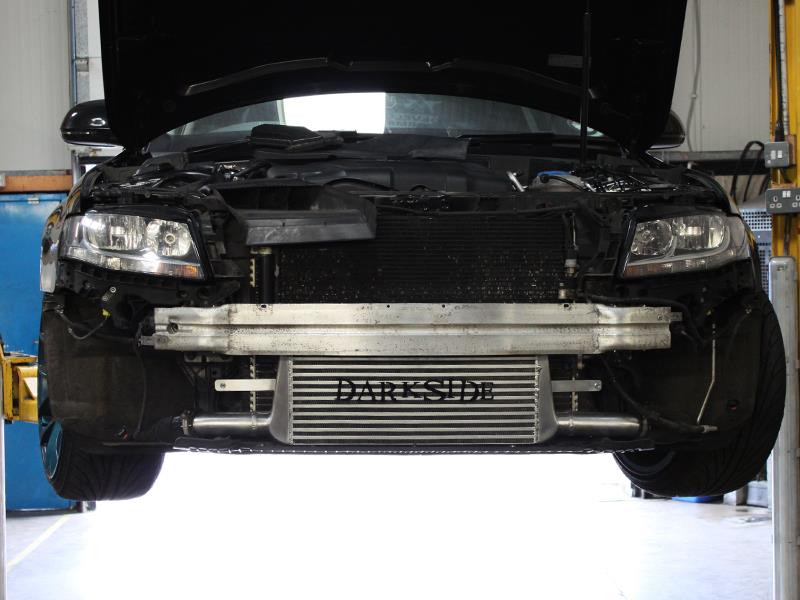

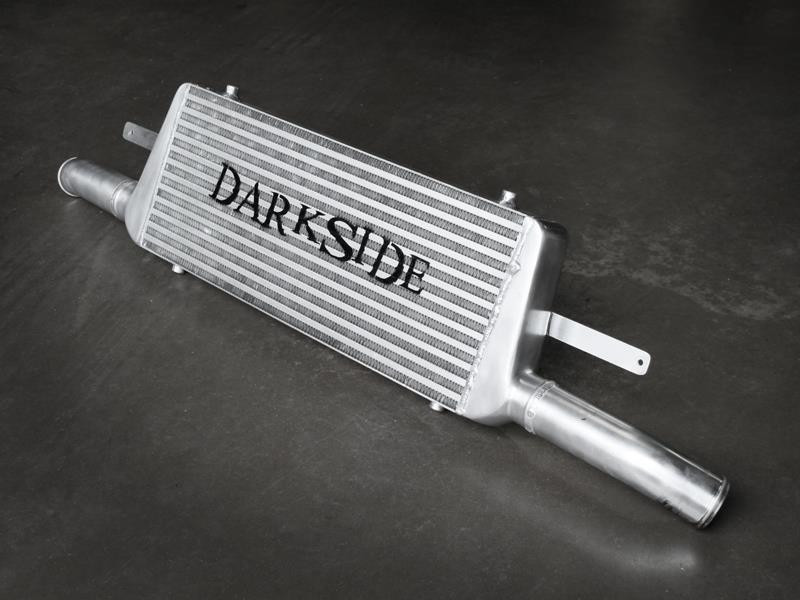

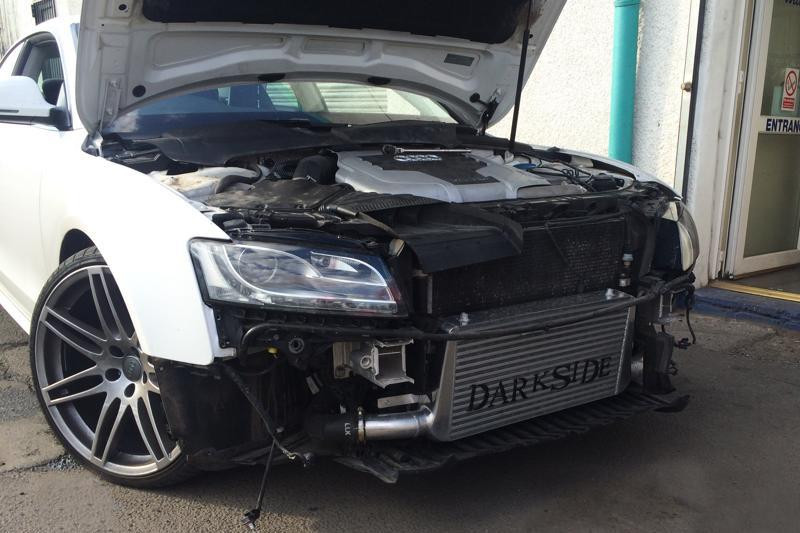

This Uprated Intercooler is a direct replacement for the standard intercooler found on the Audi 2.0 TDI / TFSI, 2.7 and 3.0 TDi B8 Platform Vehicles

The Standard Pipework can also be used rather than requiring a custom pipework kit

All fittings and bolts which are required to install are included in the kit

This may require slight trimming of the under tray
Full fitting guide available

2.0 TDI / TFSI Intercooler Core Dimensions:

OE Intercooler: 665mm x 134mm x 58mm
Darkside Uprated Intercooler: 560mm x 230mm x 65mm | 5.3kg (Approx)

Larger 2.0 TFSI + 2.7 / 3.0 TDI Intercooler Core Dimensions:

OE Intercooler: 720mm x 140mm x 80mm
Darkside Uprated Intercooler: 600mm x 300mm x 75mm | 8kg (Approx)

Replaces VW/Audi/Porsche Part Numbers:

2.0 TDi / TFSI

8K0 145 805 P - 8K0145805 P - 8K0145805P
8K0 145 805 G - 8K0145805 G - 8K0145805G

Large 2.0 TFSI + 2.7 / 3.0 TDi

8K0 145 805 AC - 8K0145805 AC - 8K0145805AC
8K0 145 805 E - 8K0145805 E - 8K0145805E
8K0 145 805 R - 8K0145805 R - 8K0145805R
95B 145 805 A - 95B145805 A - 95B145805A

Fitment:

2.0 TFSI / TDI:
Core Size: 560mm x 230mm x 65mm
Inlet and Outlet: 57mm (2.25")

This will fit the following 2.0 TFSI / TDI engines:

Audi A4 / Avant - CJCC (120) CAGC (120) CJCB (136) CAGB (136) CJCA (143) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A4 / S4 / Avant / quattro - CJCC (120) CAGC (120) CJCB (136) CAGB (136) CJCA (143) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A4 allroad quattro - CAGB (136) CJCB (136) CAGA (143) CJCA (143) CAHB (163) CAHA (170)

Audi A5 / S5 Cabriolet - CJCA (143) CAHB (163) CAHA (170)

Audi A5 / S5 Coupe Sport - CJCB (136) CAGB (136) CJCA (143) CAGA (143) CAHB (163) CAHA (170)

Audi Q5 - CJCB (136) CAGB (136) CJCA (143) CAGA (143) CAHB (163) CGLB (170) CAHA (170)

Audi A4 / Avant - CDHA (120) CABA (120) CMFA (143) CJCD (150) CDHB (160) CABB (160) CGLD (163) CJEB (170) CMGB (177) CGLC (177) CFKA (179) CDNB (179) CAEA (179) CPMA (210) CDNC (211) CAEB (211) CPMB (220) CAED (220) CNCD (225)

Audi A4 / S4 / Avant / quattro - CDHA (120) CABA (120) CMFA (143) CJCD (150) CDHB (160) CABB (160) CGLD (163) CJEB (170) CMGB (177) CGLC (177) CFKA (179) CDNB (179) CAEA (179) CPMA (210) CDNC (211) CAEB (211) CPMB (220) CAED (220) CNCD (225)

Audi A4 allroad quattro - CJCD (150) CGLD (163) CGLC (177) CPMA (210) CDNC (211) CPMB (220) CNCD (225)

Audi A5 / S5 Cabriolet - CJCD (150)

CDHB (160) CGLD (163) CJEB (170) CJEE (177) CGLC (177) CDNB (179) CAEA (179) CPMA (210) CDNC (211) CAEB (211) CPMB (220) CAED (220) CNCD (225) CNCE (230)

Audi A5 / S5 Coupe Sport - CMFA (143) CJED (144) CMFB (150) CJCD (150) CDHB (160) CGLD (163) CJEB (170) CABD (170) CGLC (177) CDNB (179) CPMA (210) CDNC (211) CAEB (211) CPMB (220) CAED (220)

Audi A6 / Avant - CGLE (136) CGLD (163) CMGB (177) CGLC (177) CDNB (179) CYGA (190) CHJA (211) CAEB (211)

Audi A6 / S6 / Avant / quattro - CGLE (136) CGLD (163) CMGB (177) CGLC (177) CDNB (179) CYGA (190) CHJA (211) CAEB (211)

Audi A6L - CDNB (179) CDZA (180)

Audi A7 Sportback - CYGA (190)

Audi Q5 - CJCD (150) CGLD (163) CGLA (163) CMGA (170) CMGB (177) CGLC (177) CDNB (179) CDZA (180) CNCB (180) CPMA (210) CADA (211) CHJA (211) CDNC (211) CAEB (211) CPMB (220) CNCD (225) CNCE (230)

Large - 2.0 TFSI, 2.7 / 3.0 TDI:
Core Size: 600mm x 300mm x 75mm
Inlet and Outlet: 63mm (2.5")

This will fit the following 2.7 / 3.0 TDI engines:

Audi A4 / Avant - CGKB (163) CAMB (163) CGKA (190) CAMA (190) CLAB (204) CCWB (211) CCWA (239) CCLA (239) CAPA (240) CKVC (245) CKVB (245) CDUC (245)

Audi A4 / S4 / Avant / quattro - CGKB (163) CAMB (163) CGKA (190) CAMA (190) CLAB (204) CCWB (211) CCWA (239) CCLA (239) CAPA (240) CKVC (245) CKVB (245) CDUC (245)

Audi A4 allroad quattro - CCWA (239) CKVB (245) CDUC (245)

Audi A5 / S5 Cabriolet - CGKB (163) CGKA (190) CLAB (204) CKVD (218) CCWA (239) CKVC (245) CDUC (245)

Audi A5 / S5 Coupe Sport - CGKB (163) CAMB (163) CGKA (190) CAMA (190) CLAB (204) CCWB (211) CKVD (218) CCWA (239) CAPA (240) CKVC (245) CKVB (245) CDUC (245)

Audi A6 / Avant - CLAB (204) CLAA (204) CZVD (211) CZVC (211) CRTF (211) CTCB (211) CZVB (218) CZVA (218) CRTE (218) CTCC (218) CPNB (239) CKVC (245) CKVB (245) CDUD (245) CDUC (245)

Audi A6 / S6 / Avant / quattro - CLAB (204) CLAA (204) CZVD (211) CZVC (211) CRTF (211) CTCB (211) CZVB (218) CZVA (218) CRTE (218) CTCC (218) CPNB (239) CKVC (245) CKVB (245) CDUD (245) CDUC (245)

Audi A6 allroad quattro - CZVF (190) CLAA (204) CZVC (211) CRTF (211) CZVA (218) CRTE (218) CKVC (245) CDUD (245)

Audi A7 Sportback - CZVF (190) CLAB (204) CLAA (204) CZVD (211) CZVC (211) CRTF (211) CTCB (211) CZVB (218) CZVA (218) CRTE (218) CTCC (218) CPNB (239) CKVC (245) CKVB (245) CDUD (245) CDUC (245)

Audi A8 - CLAB (204) CTBB (211) CDTB (211) CPNB (239) CPNA (239) CDTC (250) CMHA (250) CDTA (250) CTBA (258) CTBD (262)

Audi A8 / S8 quattro - CLAB (204) CTBB (211) CDTB (211) CPNB (239) CPNA

(239) CDTC (250) CMHA (250) CDTA (250) CTBA (258) CTBD (262)

Audi Q5 - CCWB (211) CPNB (239) CCWA (239) CDUD (245) CTBC (250) CTBA (258)

And the following 2.0 TFSI engines:

Audi A6 / Avant - CYPB (249) CYPA (252) CYNB (252)

Audi A6 / S6 / Avant / quattro - CYPB (249) CYPA (252) CYNB (252)

Audi A7 Sportback - CZVE (190) CYPB (249) CYPA (252) CYNB (252)

Porsche Macan - 3.0 TDI
