Garrett GT1749VB (ARL PD150) VNT17 Turbocharger Upgrade with Modified Outlet for 1.9 PD100/115 & VE90/110 8v TDI Diesel Engines

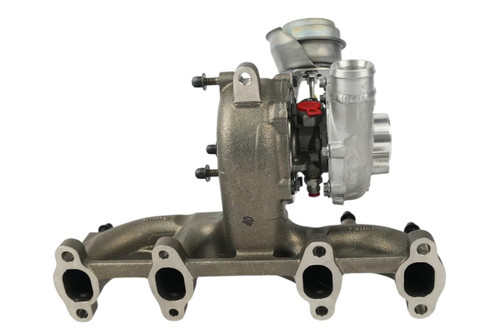

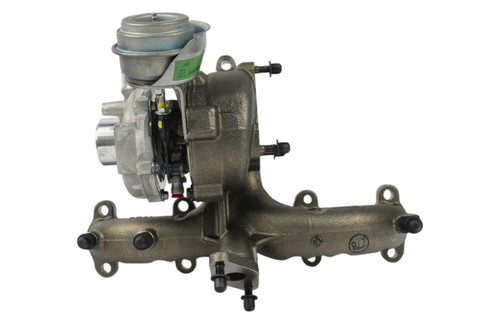

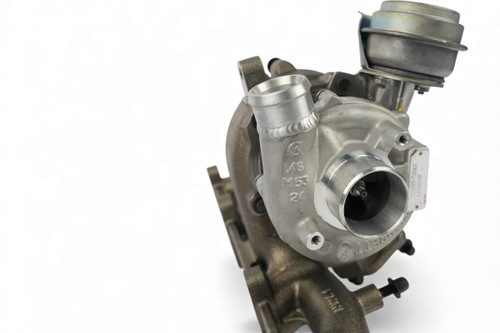

The Garrett GT1749VB is originally from the 1.9 8v TDI PD150 ARL engine found in the Mk4 Golf, Bora, Leon and Toledo. We have modified the stock Garrett unit, changing the compressor cover outlet to a straight fitting without clip and the actuator setting.

With these modifications made this turbo can now be bolted onto the 1.9 TDI engines listed below, along with supporting parts this turbo will be capable of pushing 190bhp.

Rated to approx. 190bhp

Can be retro fitted for increased performance

Popular Bolt-on upgrade for 1.9 TDI engines

Installation:

Once fitted to the below vehicle you will need a custom remap to suit. To acheive the potential of the turbo you will need to upgrade the Injectors / Nozzles to suit.

The OE EGR Cooler has to be removed when installing this turbo.

When fitting this turbocharger to MK2 / MK3 Golf / Caddy Platform (VNT Turbo Models) Vehicles, you will require a Custom VNT Rear Engine Mount.

This can be also be fitted MK2 / MK3 Golf / Caddy Platform (Wastegate Turbo Models), we would advise that you carry out the research on how to convert the Wastegate to VNT before purchasing. You may also require:

Custom VNT Rear Engine Mount

Darkside 2.5" Stainless De-Cat Downpipe for VNT 1.9 TDI Caddy Mk2, Mk2 & Mk3 Golf

Turbocharger Fitting / Gasket Kit for Mk4 1.9 PD 8v GT1749MV

https://www.darksidedevelopments.co.uk/products/turbocharger-fitting-gasket-kit-for-mk4-1-9-pd-8v-gt1749mv.html

This Kit will fit Vehicles with the following Engine Codes:

Audi A3 / S3 - ALH (90) ATD (100) ASV (110) AHF (110)

Seat Alhambra - AHU (90) 1Z (90) BVK (115) AUY (115)

Seat Cordoba / Vario - ALE (90) AHU (90) 1Z (90)

Seat Ibiza - ALE (90) AHU (90) 1Z (90)

Seat Leon - ALH (90) ASV (110) AHF (110)

Seat Toledo - ALH (90) ALE (90) AHU (90) 1Z (90) AHF (110) ASV (110)

Skoda Octavia - ALH (90) ATD (100) AHF (110) ASV (110)

VW Beetle - ALH (90)

VW Bora - ALH (90) ATD (100) AHF (110) ASV (110) AUY (115) AJM (115)

VW Caddy - ALE (90) AHU (90) 1Z (90)

VW Clasico / Jetta - AAZ (75) ALH (90) AHU (90)

VW Diesel Industrial Motor - BJC (72) AVM (86)

VW Golf - AAZ (75) AGR (90) ALE (90) 1Z (90) AHU (90) ALH (90) ATD (100) ASV (110) AHF (110) AUY (115) AJM (115)

VW Golf / Variant syncro / Rallye / Country - ALE (90) AHU (90) 1Z (90)

VW Golf Cabriolet - 1Z (90) ALE (90) AHU (90) AFN (110)

VW Golf Variant - ALE (90) AHU (90) 1Z (90)

VW Jetta - AAZ (75) AHU (90) ALH (90) ATD (100) AHF (110) ASV (110) AJM (115) AUY (115)

VW Jetta Variant - ALH (90) ATD (100) ASV (110) AHF (110) AUY (115) AJM (115)

VW Passat / Variant - AHU (90) 1Z (90)

VW Polo Classic / Variant - 1Z (90) ALE (90) AHU (90)

VW Sharan - AHU (90) 1Z (90) BVK (115) AUY (115)

VW Vento - ALE (90) AHU (90) 1Z (90)

Upgrade for Genuine VAG Part Numbers:

038253019C - 038253019 C - 038 253 019 C
038253019CX - 038253019 CX - 038 253 019 CX
038253019D - 038253019 D - 038 253 019 D
038253019DV - 038253019 DV - 038 253 019 DV
038253019DX - 038253019 DX - 038 253 019 DX
038253019N - 038253019 N - 038 253 019 N
038253019NV - 038253019 NV - 038 253 019 NV
038253019NX - 038253019 NX - 038 253 019 NX
03G253014E - 03G253014 E - 03G 253 014 E
03G253014EX - 03G253014 EX - 03G 253 014 EX
03G253014R - 03G253014 R - 03G 253 014 R
03G253014RX - 03G253014 RX - 03G 253 014 RX
03G253016L - 03G253016 L - 03G 253 016 L
03G253016LX - 03G253016 LX - 03G 253 016 LX
028145701Q - 028145701 Q - 028 145 701 Q
028145701J - 028145701 J - 028 145 701 J
028145701JX - 028145701 JX - 028 145 701 JX
028145702F - 028145702 F - 028 145 702 F
028145702FX - 028145702 FX - 028 145 702 FX
