Darkside 57mm Alloy Hard Pipework Kit for VW Golf Mk5, Audi A3 8P, Seat Leon 1P, and Skoda Octavia Mk2 2.0 16v TDI PD170 (BMN / BMR) Engines

Our 57mm Alloy Intercooler Pipework Kit is for use with the standard Front Mounted intercooler on the 2.0 16v TDI PD170 BMN / BMR Engines or can also be used with the S3 Intercooler modified to fit (See options above). This Pipe Kit eliminates the problematic clip connectors.

Replaces the standard rubber and plastic hoses which are known to degrade and crack over time causing boost leaks and loss of power.

Dependant on your turbo and intercooler setup we will supply our custom CNC machined clip connectors which are used when retain the standard turbo or standard intercooler.

57mm Alloy Pipes for increased flow

Replaces plastic pipes and weak joints which are prone to boost leaks

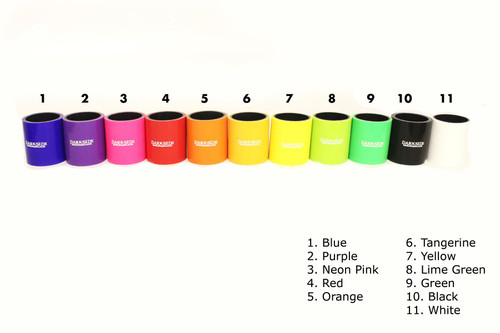

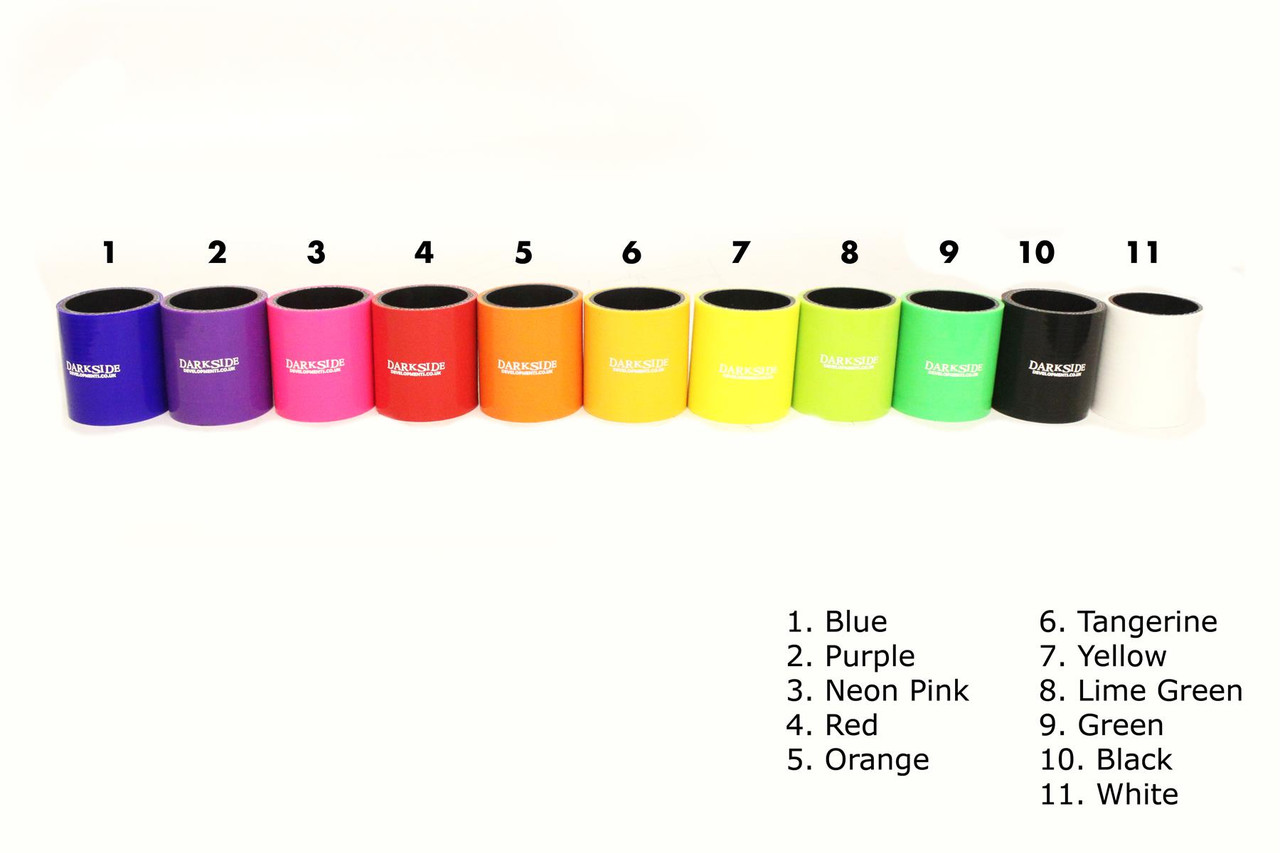

3 Ply Silicone Hoses - (12 Colours Available)

Stainless Steel T-Bolt Clamps for Secure Fitting

Designed and Manufactured in the UK

IMPORTANT! On vehicles retaining the stock turbocharger the original turbo clip and aluminimum pipe over the gearbox is retained

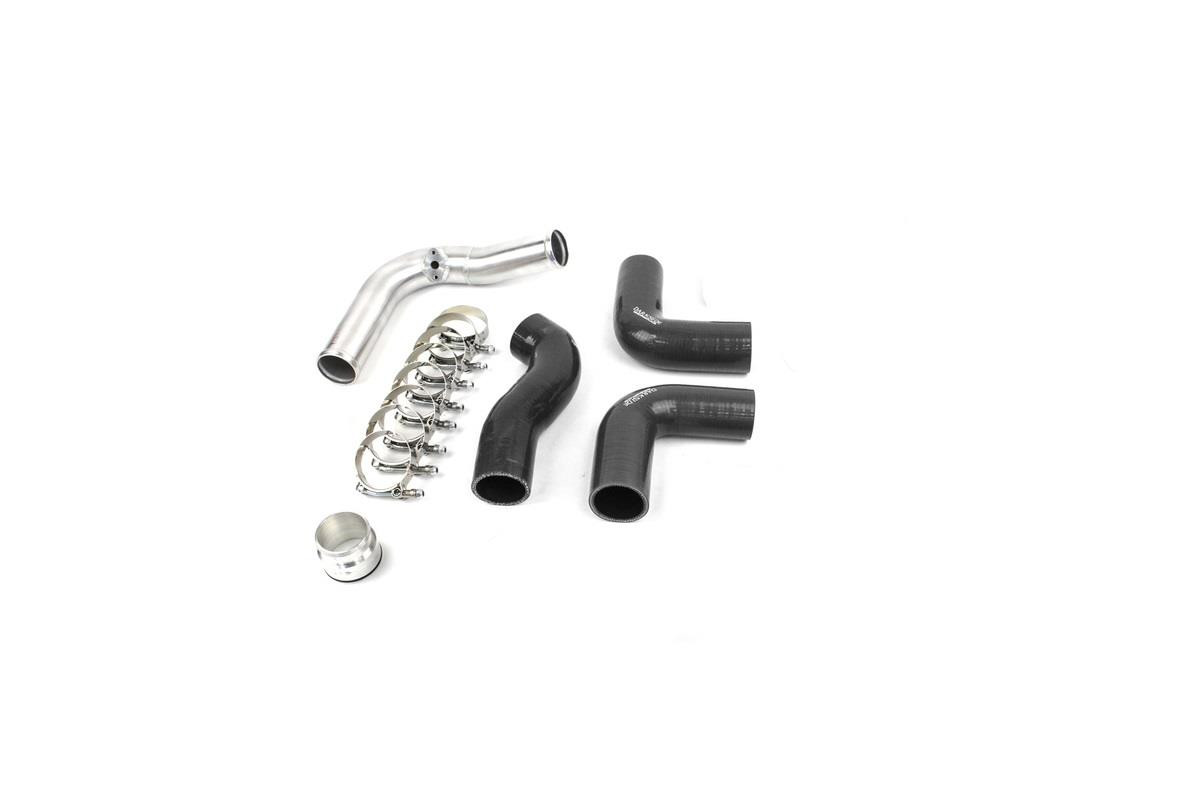

Pipework Kit Options:

Turbo Options

Standard / Hybrid Turbo - Turbo Clip Connector Adapter and Silicone Hose
GTB Turbo Kit - 90 Degree Silicone Hose

Intercooler Options

Retain Standard BMN Intercooler - 2 Intercooler Clip Connector Adapters and Silicone Hoses
S3 Intercooler - Silicone Hoses

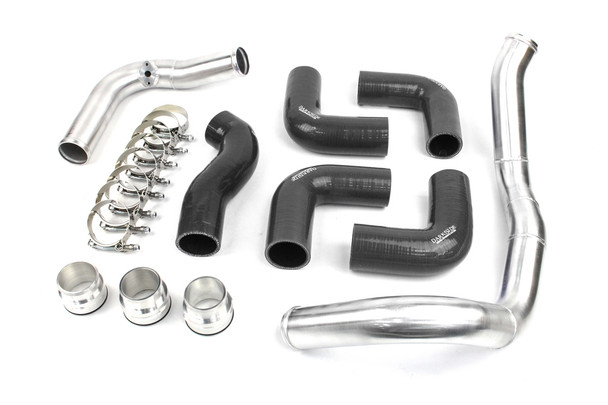

This Kit Consists of the following:

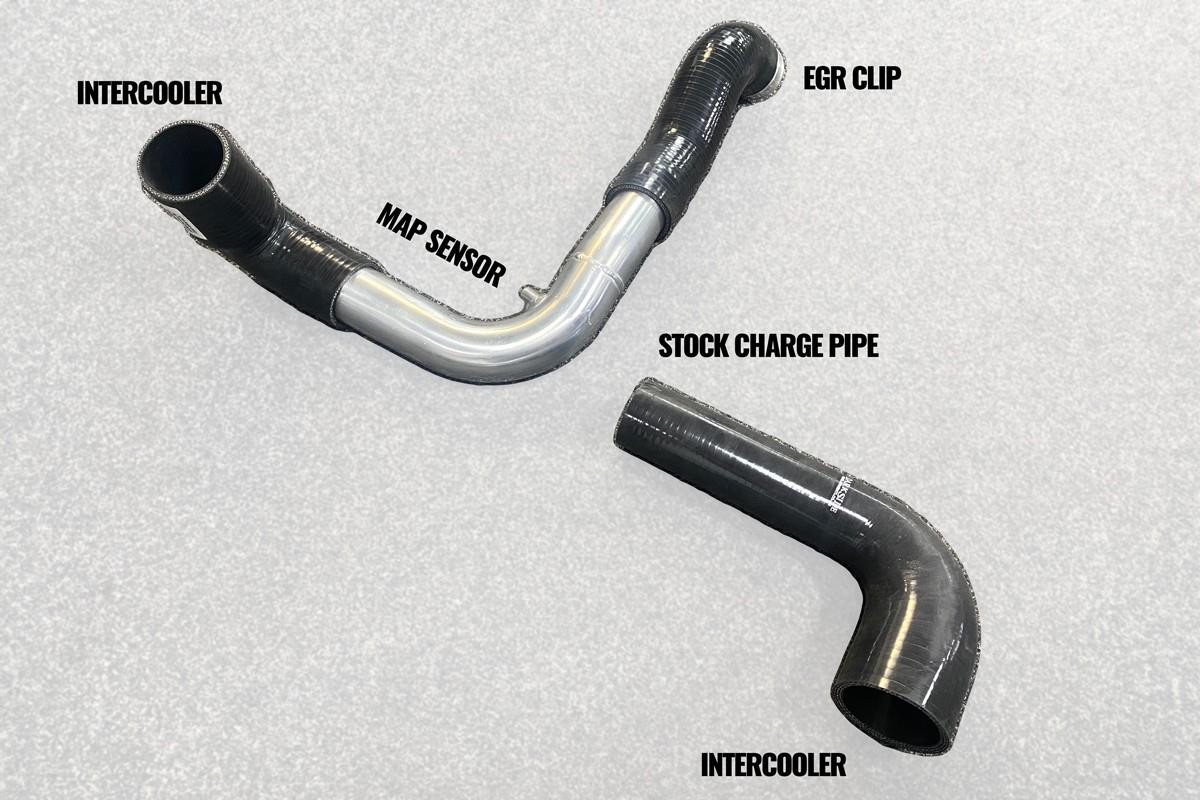

57mm Alloy Pipe Kit with MAP Sensor Boss
CNC Machined Clip Connector Adapters with Viton Seals (Optional)
3 Ply Silicone Boost Hoses
Stainless Steel T-Bolt Clamps
Stainless Steel Clamps

Darkside Uprated S3 (FMIC) Intercooler for Mk5 / Mk6 Platform Vehicles - 70mm Outlets

https://www.darksidedevelopments.co.uk/products/darkside-uprated-s3-intercooler-for-mk5-mk6-platform-vehicles.html

Audi S3 (FMIC) Intercooler for Mk5 / Mk6 Platform Vehicles

https://www.darksidedevelopments.co.uk/products/audi-s3-intercooler-for-mk5-mk6-platform-vehicles.html

This Kit will fit Vehicles with the following Engine Codes:

Audi A3 - BMN (170)

Seat Altea - BMN (170)

Seat Leon - BMN (170)

Skoda Octavia - BMN (170)

VW Golf - BMN (170)

VW Jetta - BMN (170)

VW Touran - BMN (170)

VW Passat - BMR (170)

All the silicones included in the kit may require slight Trimming to suit your set up, These are left long to take in to consideration tolerances between cars

(Sometimes the turbo clip can be quite tight to push in due the tolerances we have them machined to. We have found that warming the turbo compressor housing with a heat gun helps the clip push in)
