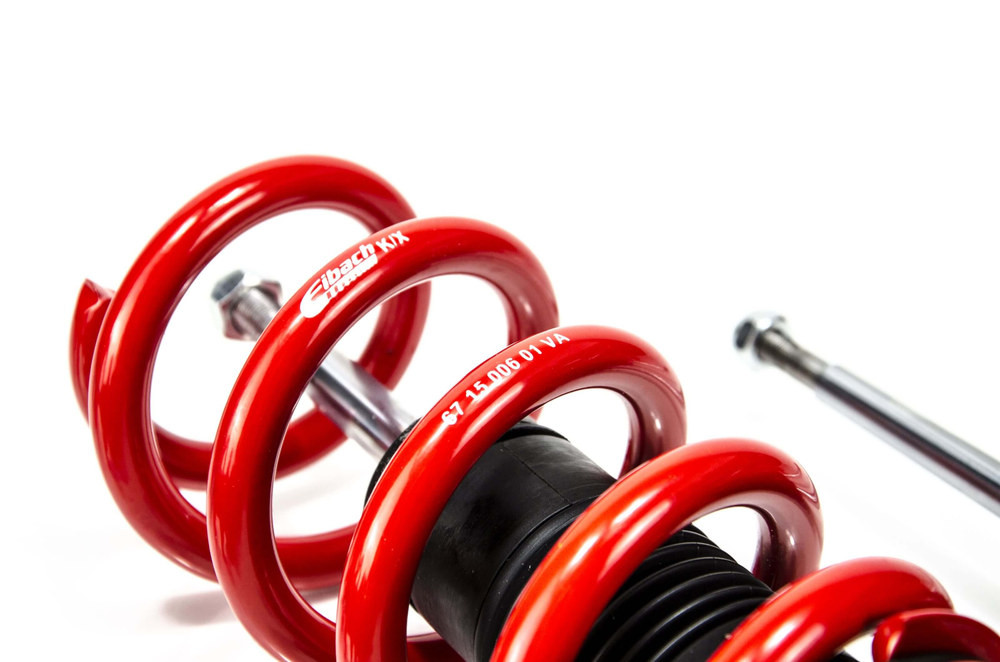

MTS Technik Coilovers (Street, Gold) for Audi A4 B7 (8E) / A4 B6 (8E)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Configuration & specifications
| MTSGWAU01 | MTSGWAU02 | |
|---|---|---|
| Configuration | ||
| Top mounts | Stock (not included) | Stock (not included) |
| Lowering (mm) | ||
| Front | 35 - 65 mm | 35 - 65 mm |
| Rear | 35 - 65 mm | 35 - 65 mm |
| Axle load (kg) | ||
| Front | -1080 kg | 1081 - 1250 kg |
| Rear | -1150 kg | -1150 kg |
| Spring rates (N/mm) | ||
| Front main spring | 102 N/mm | 122 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm |
| Rear main spring | 66 N/mm | 66 N/mm |
| Approval | ||
| TÜV | yes | yes |
| Documents | ||
| Downloads | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).• Only for vehicles without NIVO / OEM pneumatic suspension.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
This Kit will fit the following Vehicles:
Seat EXEO (3R) - 1.6 / 1.8 T / 1.8 TSI
Audi A4 B6 (8E) - 2.4 / 1.6 / 1.8 T / 1.9 TDI / 2.0 / 2.0 FSI / 2.5 TDI / 3.0
Audi A4 B7 (8E) - 1.6 / 1.8 T / 1.9 TDI / 2.0 / 2.0 TDI / 2.0 TDI 16V / 2.0 TFSI / 2.5 TDI / 2.7 TDI / 3.0 / 3.2 FSI
MTS TECHNIK PART NUMBER:
MTSGWAU01
MTSGWAU02
