Description

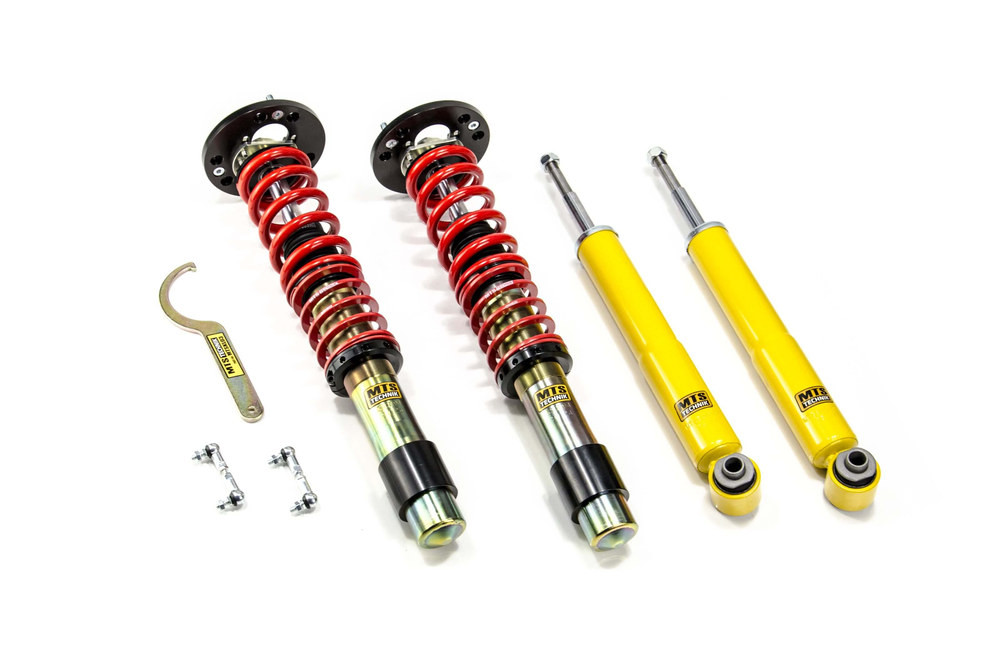

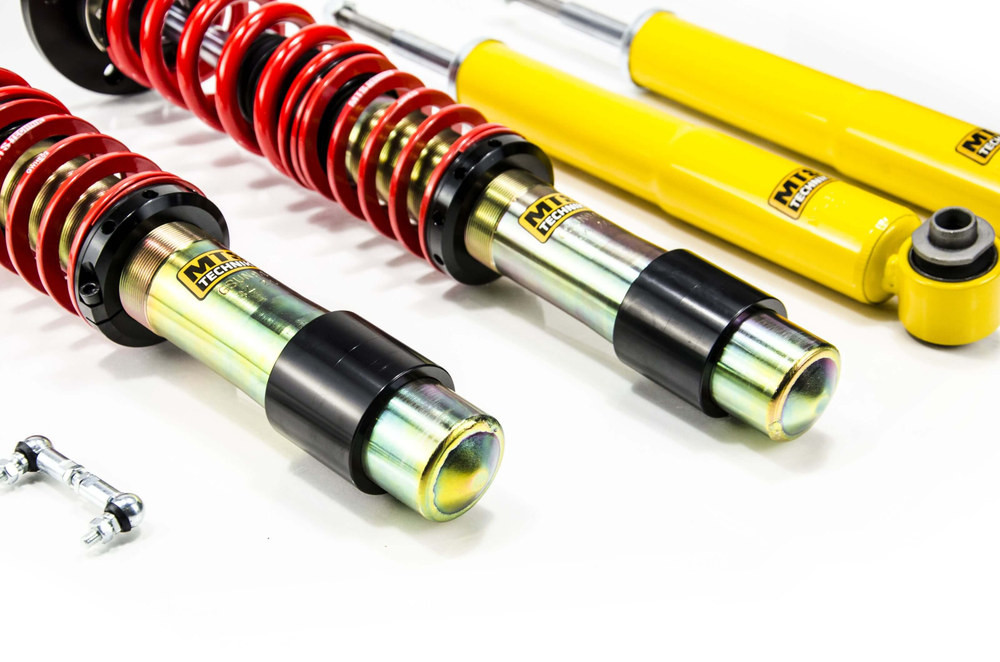

MTS Technik Coilovers (Street, Gold) for BMW 5 Touring (E39)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Features by configuration
MTSGWBM108, MTSGWBM109 — Camber adjustable (front):

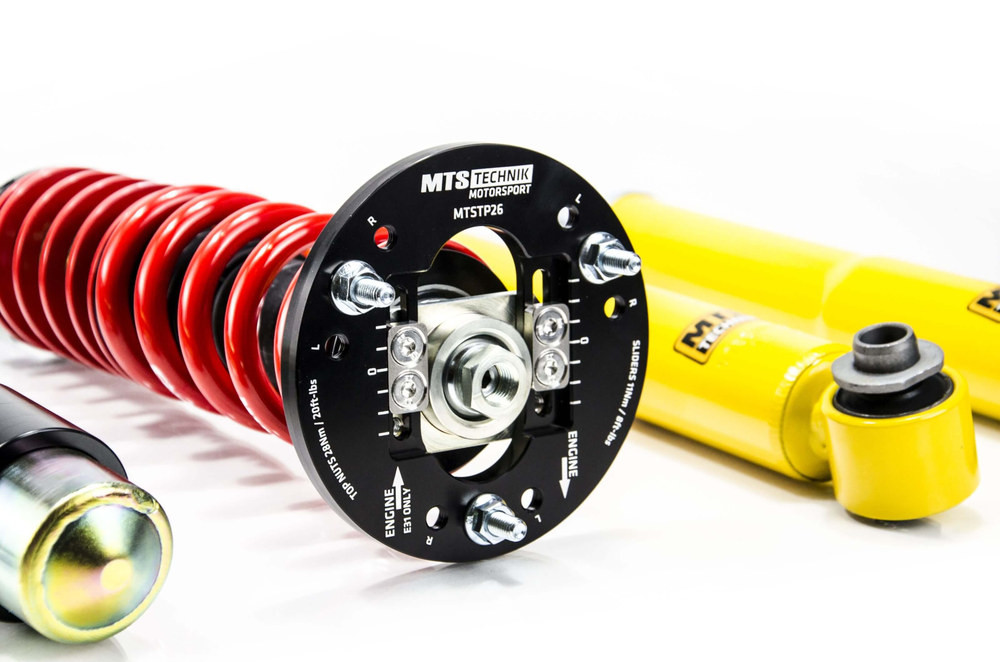

The camber plates allow the wheel angle adjustment and increase the precision of driving.
Configuration & specifications
| MTSGWBM108 | MTSGWBM109 | MTSGWBM34 | MTSGWBM35 | |
|---|---|---|---|---|
| Configuration | ||||
| Top mounts | Camber adjustable (front) | Camber adjustable (front) | Stock (not included) | Stock (not included) |
| Rear suspension | NIVO (self-leveling) | Universal / NIVO conversion to springs | NIVO (self-leveling) | Universal / NIVO conversion to springs |
| Lowering (mm) | ||||
| Front | 40 - 85 mm | 40 - 85 mm | 20 - 70 mm | 20 - 70 mm |
| Rear | 10 - 40 mm | 10 - 40 mm | 10 - 40 mm | 10 - 40 mm |
| Axle load (kg) | ||||
| Front | -1095 kg | -1095 kg | -1095 kg | -1095 kg |
| Rear | -1410 kg | -1410 kg | -1410 kg | -1410 kg |
| Spring rates (N/mm) | ||||
| Front main spring | 70 N/mm | 70 N/mm | 70 N/mm | 70 N/mm |
| Front helper spring | 20 N/mm | 20 N/mm | 20 N/mm | 20 N/mm |
| Rear main spring | — | 120 N/mm | — | 120 N/mm |
| Rear helper spring | — | 5.66 N/mm | — | 5.66 N/mm |
| Approval | ||||
| TÜV | no | no | yes | yes |
| Documents | ||||
| Downloads | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Camber assembly manual ⬇ Spare parts list | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate | ⬇ Installation manual ⬇ Spare parts list ⬇ TÜV certificate |
Notes
• Not for 4x4.• Only for vehicles without EDC.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
Notes by configuration
MTSGWBM108 — Camber adjustable (front):
- The kit includes 2 upper front camber plates.
MTSGWBM109, MTSGWBM35 — Universal / NIVO conversion to springs:
- For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.
MTSGWBM34, MTSGWBM35 — Stock (not included):
- Vehicles equipped with EDC and / or V8 engines will need additional OE parts. FRONT AXLE: 2x dome bearing (BMW part: 31336752735), 2x washer (BMW part: 31336776760), 2x sealing washer (BMW part: 31331110196).
This Kit will fit the following Vehicles:
BMW 5 Touring (E39) - 520 d / 520 i / 523 i / 525 d / 525 i / 525 tds / 528 i / 530 d / 530 i / 540 i
MTS TECHNIK PART NUMBER:
MTSGWBM108 — Camber Front
MTSGWBM109 — Camber Front
MTSGWBM34
MTSGWBM35
