Description

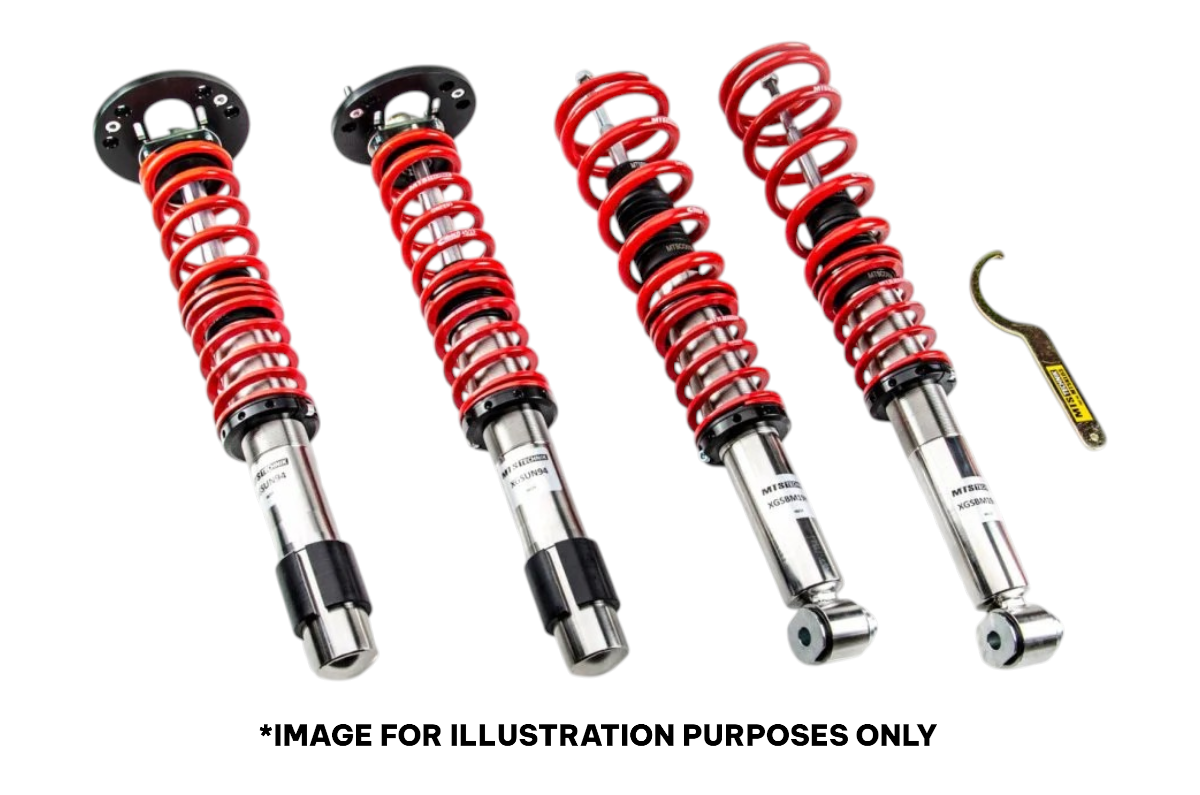

MTS Technik Coilovers (Street, Inox) for Cupra FORMENTOR (KM) / Skoda KAROQ (NU)
RELIABLE AND AFFORDABLE STREET SUSPENSION FROM MTS TECHNIK Street: The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.Key Features
2 year warranty with no mileage limit to confirm high quality.
Suspension components characterized by increased corrosion resistance and made of the highest quality materials.
The use of twin-tube technology guarantees stable shock absorber performance.
Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Coilover springs made by Eibach, the world leader in the sport springs industry.
Stainless steel threaded shock absorbers.
Configuration & specifications
| XMTSGWCU03 | |
|---|---|
| Configuration | |
| Top mounts | Stock (not included) |
| Lowering (mm) | |
| Front | 25 – 60 mm |
| Rear | 20 – 70 mm |
| Axle load (kg) | |
| Front | -1100 – -1090 kg |
| Rear | -1150 – -980 kg |
| Spring rates (N/mm) | |
| Front main spring | 40 N/mm |
| Rear main spring | 28 - 55 N/mm |
| Approval | |
| TÜV | no |
| Documents | |
| Downloads | ⬇ Installation manual ⬇ Spare parts list |
Notes
• Front and rear axle height adjustable (threaded shock absorber housing).• Not for 4x4.
• If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
This Kit will fit the following Vehicles:
Audi Q3 (F3) - 35 TFSI Mild Hybrid / 35 TFSI
Audi Q3 Sportback (F3) - 35 TFSI / 35 TFSI Mild Hybrid
Cupra ATECA (KH) - 1.5 TSI
Cupra FORMENTOR (KM) - 2.0 TDI / 1.5 eTSI / 1.5 TSI / 2.0 TSI / 1.4 e-Hybrid VZ / VZ 1.5 e-HYBRID / 1.5 e-HYBRID / 1.4 e-Hybrid / VZ 2.0
Seat ATECA (KH) - 2.0 TDI / 1.0 TSI / 1.6 TDI / 1.5 TSI / 1.4 TSI
Skoda KAROQ (NU) - 2.0 TDI / 1.6 SRE / 1.4 TSI / 1.0 TSI / 1.5 TSI / 1.6 TDI
Volkswagen TIGUAN (AD1/AX1) - 1.4 TSI / 1.5 TSI / 1.6 TDI
Volkswagen TIGUAN ALLSPACE (BW2/BJ2) - 1.4 TSI / 1.5 TSI
MTS TECHNIK PART NUMBER:
XMTSGWCU03
