Pagid S2488 RSL 1 Brake Pads for Alcon CAR9549 D52 / Brembo 07.7293. 6 piston [type 164 or B24 family] Caliper - S2488L01001

Used in GT cars, Touring cars and prototype endurance racing. Due to the high friction and good modulation, often used in sprint races as well.

RSL 1 is a low metallic resin bonded material containing steel and aramid fibers with high heat resistance. It maintains a constant friction level over a wide range of temperatures. Its low wear rate and disc friendliness make this material appropriate for endurance races.

HIGH FRICTION COEFFICIENT

LONG PAD AND DISC LIFE

GOOD FRICTION STABILITY VS. TEMPERATURE

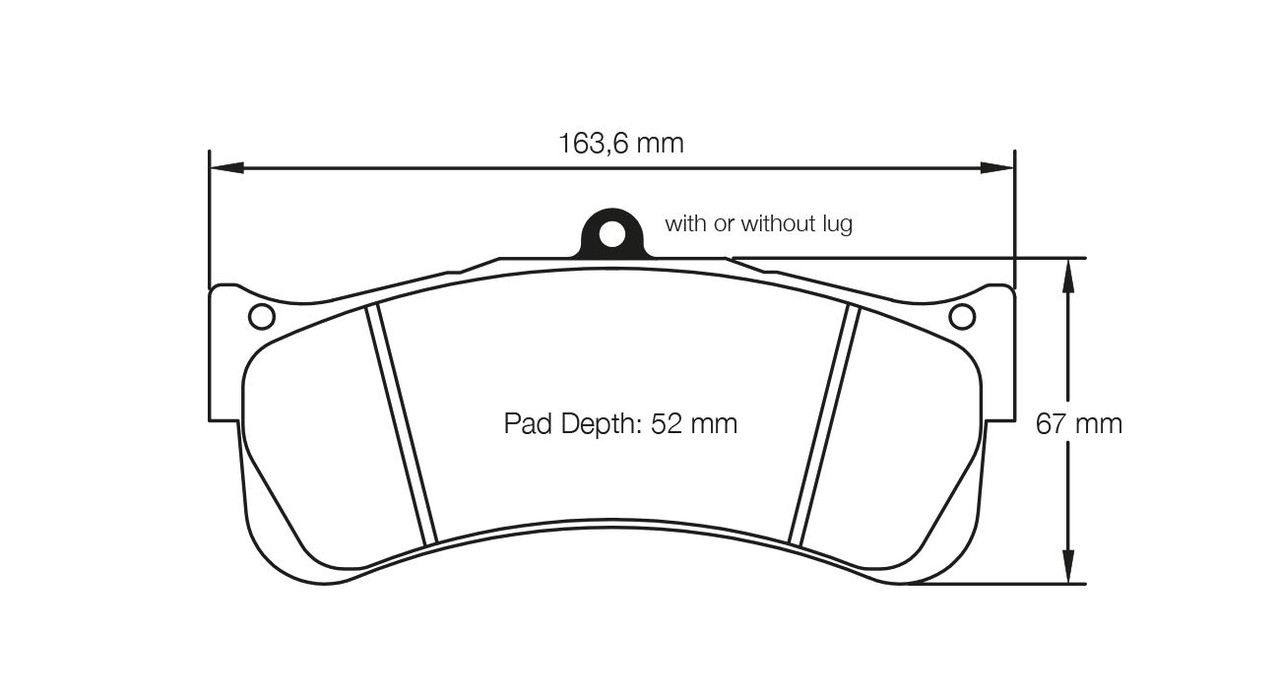

Size:

Pad Length: 163.6 mm
Pad Width: 67.0 mm
Pad Thickness: 29.0 mm

Pad Shape Number:

2488

Pad Compound:

RSL 1

This item will fit the following Vehicles:

Ave-Riley AR2 LMP3 [race car] (17 -)
Ginetta LMP3 [race car] (15 -)
Lamborghini Gallardo GT3 [race car] (14 - 15)
Alpine A110 Cup & GT4 (17 -)
Aston Martin Vantage V12 GT3 [race car] sprint (15 - 17)
Ave-Riley AR2 LMP3 [race car] (17 -)
Ginetta LMP3 [race car] (15 -)
Lamborghini Gallardo GT3 [race car] (14 - 15)
Porsche 997 GT3 RSR (07 - 12)

Suitable for Brake Calipers:

Alcon CAR9549 D52

Pagid Part Number:

S2488L01001

Illustrations are for identification purpose only.Even if shown in the drawing, accessories such as clips, springs, rivets, wear indicators, damping shims etc. are generally not part of PAGID Racing brake pads.
