Pagid S2488 RSL 2E Brake Pads for Alcon CAR9549 D52 / Brembo 07.7293. 6 piston [type 164 or B24 family] Caliper - S2488L2E001

GT cars, Touring cars and prototype endurance racing. Due to excellent modulation characteristics often also used in sprint races.

RSL 2 is based on the RSL 1 compound but has been further improved in terms of pad and disc life as well as friction stability vs. temperature. It is a low metallic resin bonded material containing steel and aramid fibers. Furthermore, it maintains a constant friction level over a wide range of temperatures.

MEDIUM HIGH FRICTION COEFFICIENT

LONG PAD AND DISC LIFE

EXCELLENT FRICTION STABILITY VS. TEMPERATURE

Size:

Pad Length: 163.6 mm
Pad Width: 67.0 mm
Pad Thickness: 29.0 mm

Pad Shape Number:

2488

Pad Compound:

RSL 2E

This item will fit the following Vehicles:

Ave-Riley AR2 LMP3 [race car] (17 -)
Ginetta LMP3 [race car] (15 -)
Lamborghini Gallardo GT3 [race car] (14 - 15)
Alpine A110 Cup & GT4 (17 -)
Aston Martin Vantage V12 GT3 [race car] sprint (15 - 17)
Ave-Riley AR2 LMP3 [race car] (17 -)
Ginetta LMP3 [race car] (15 -)
Lamborghini Gallardo GT3 [race car] (14 - 15)
Porsche 997 GT3 RSR (07 - 12)

Suitable for Brake Calipers:

Alcon CAR9549 D52

Pagid Part Number:

S2488L2E001

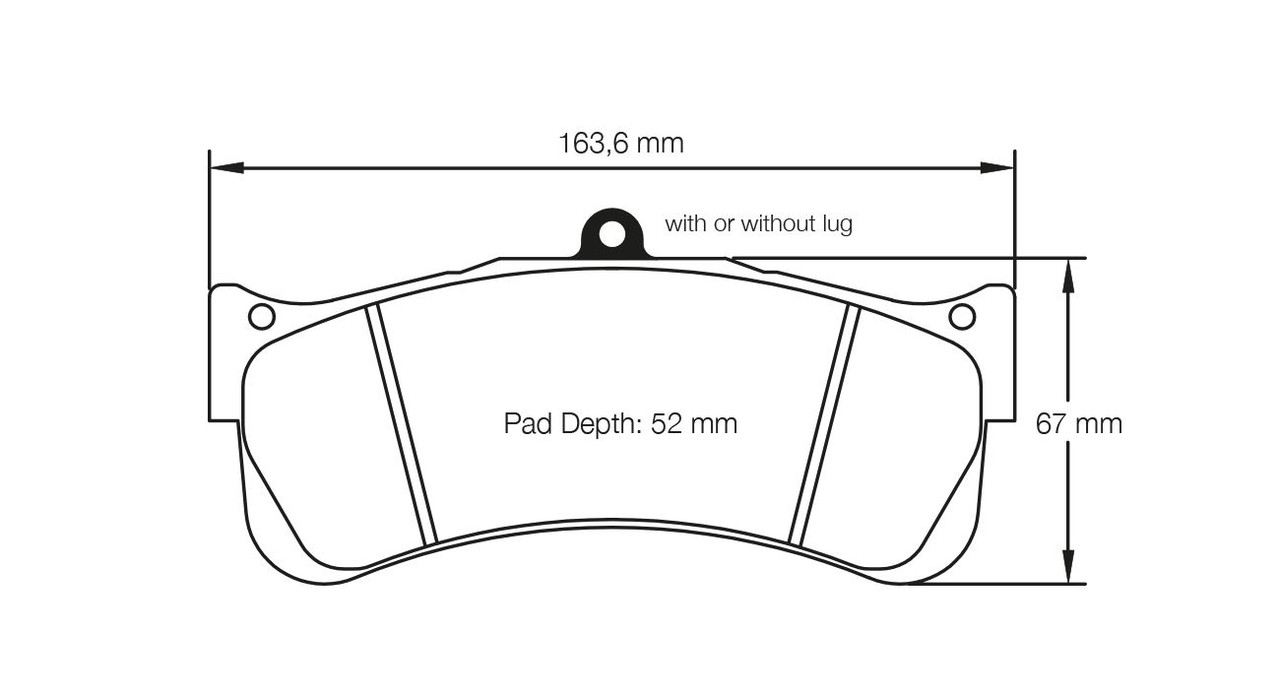

Illustrations are for identification purpose only.Even if shown in the drawing, accessories such as clips, springs, rivets, wear indicators, damping shims etc. are generally not part of PAGID Racing brake pads.
