Description
PowerAlign Wheel Mounting Guide Pin - PF99-512-15
Available singularly to suit a specific vehicle or as a handy 4-piece workshop kit, our new PowerAlign Wheel Mounting Guide Pins are designed to allow the safer mounting and easy alignment of heavy alloy wheels on most common cars to use lug bolts. The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.Proven using simulated and real-world testing, the new mounting pins use high-strength CNC-machined AISI 303 Stainless Steel, some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printed protective sleeves for ease of identification and anodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.Please click here to view all sizes available and for a wider-reaching application list in the form of anew user-friendly drop-down search functionCompound
Road SeriesLocation on Vehicle
Adjustment
Fixed
The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.

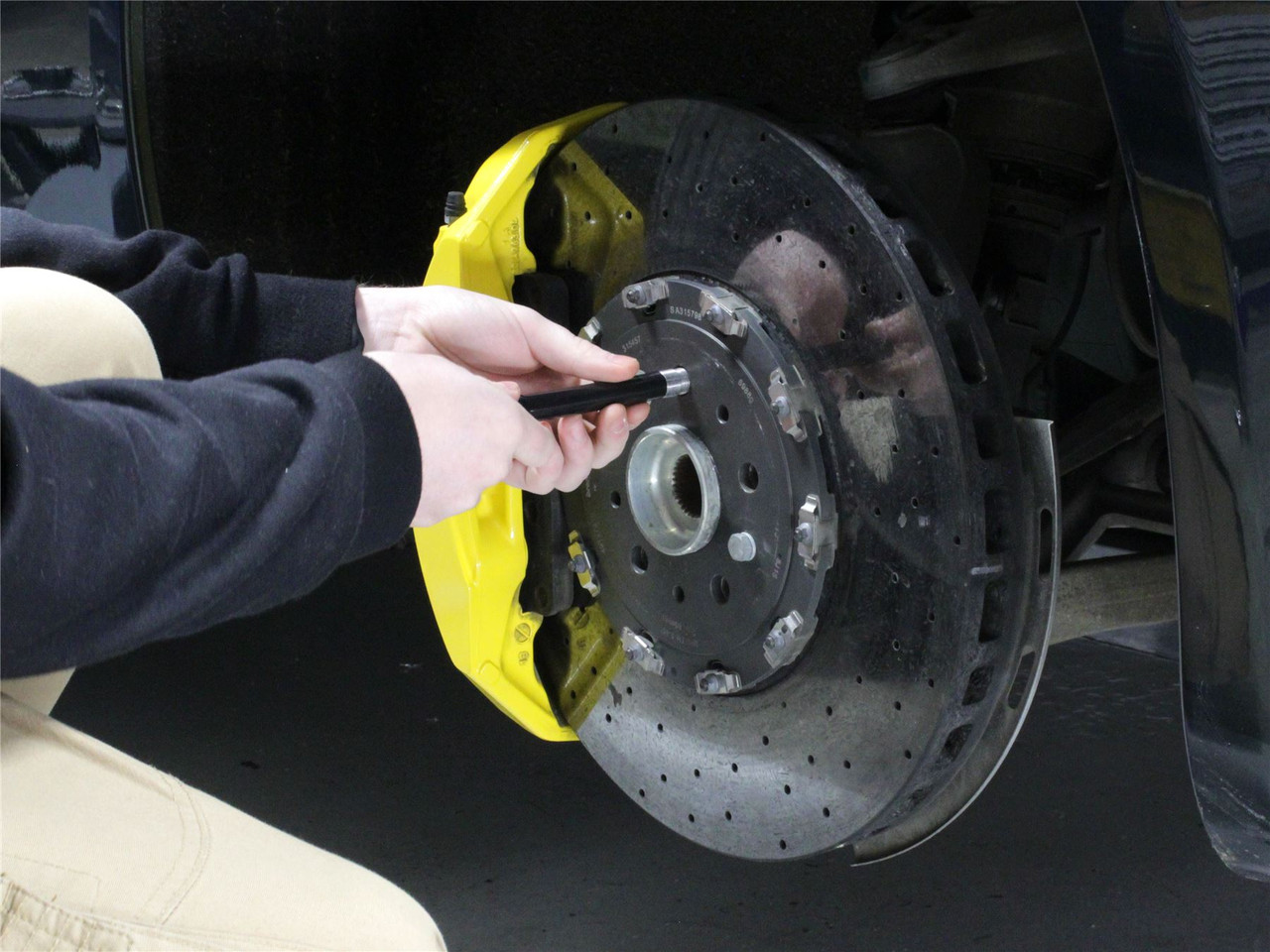

Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.
This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.

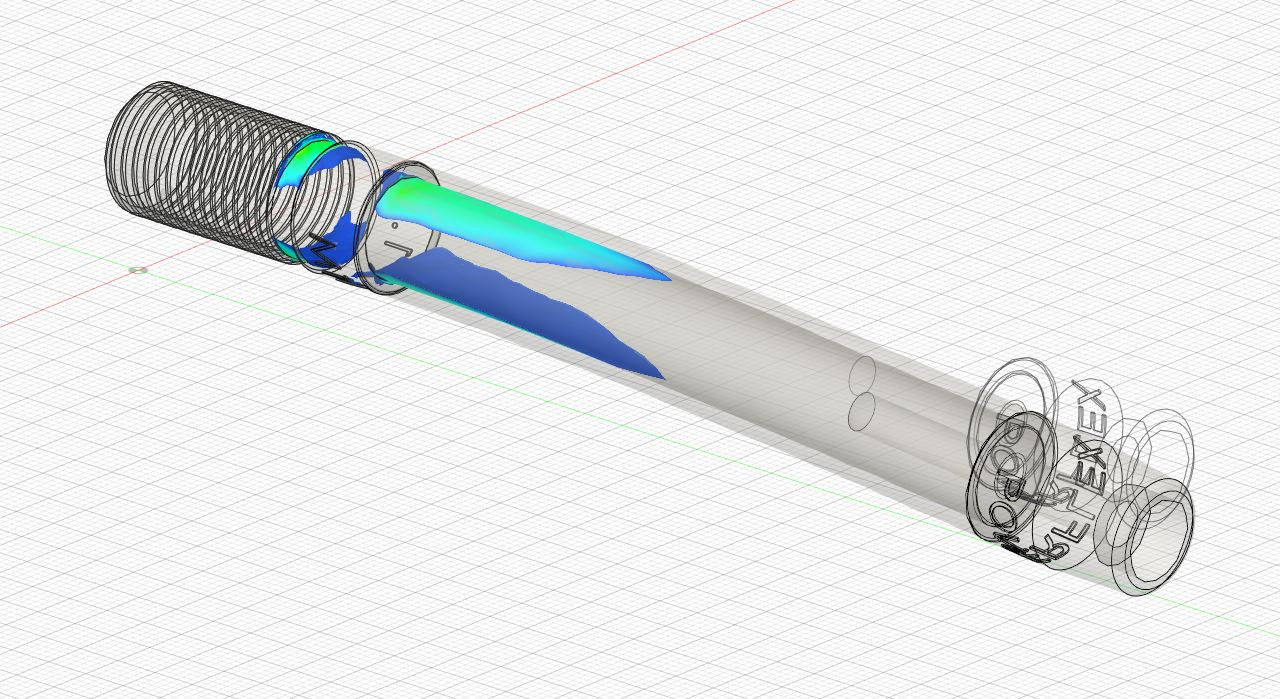

Proven using simulated and real-world testing, the new mounting pins usehigh-strength CNC-machined AISI 303 Stainless Steel , some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printedprotective sleeves for ease of identification andanodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.
Included in the Kit:
1 x PF99-512-15 - PowerAlign Wheel Mounting Guide PinReplaces Part Numbers
71111093774 - 711110937 74 - 711 110 937 74
Fitment
To fit the following vehicles
50 - 1975-197880, 90 inc Avant - 1973-1996
A2 - 8Z - 1999-2005
3 Series - E21 - 1975-1978
3 Series - E21 - 1978-1983
3 Series - E30 - inc M3 - 1982-1991
3 Series - E36 - Compact - 1993-2000
3 Series - E36 - inc M3 - 1990-1998
3 Series - E46 - Compact - 1999-2006
3 Series - E46 - M3 inc CSL - 1999-2006
3 Series - E46 - RWD - 1999-2006
3 Series - E46 - Xi & XD - 1999-2006
3 Series - E90, E91, E92, E93 - M3 - 2005-2013
3 Series - E90, E91, E92, E93 - RWD - 2005-2013
3 Series - E90, E91, E92, E93 - xDrive - 2005-2013
5 Series - E28 - 1982-1988
5 Series - E34 - 1988-1996
5 Series - E39 - 520 to 530 - 1996-2004
5 Series - E39 - 520 to 530 Touring - 1996-2004
5 Series - E39 - 535 to 540 - 1996-2004
5 Series - E39 - 540 Touring - 1996-2004
5 Series - E39 - M5 - 1996-2004
5 Series - E60, E61 - E60 Saloon - 2003-2010
5 Series - E60, E61 - E60 & E61 M5 - 2005-2010
5 Series - E60, E61 - E60 & E61 xDrive - 2003-2010
5 Series - E60, E61 - E61 Touring - 2003-2010
6 Series - E24 - 1982-1989
6 Series - E63, E64 - 2003-2010
6 Series - E63, E64 - M6 - 2005-2011
7 Series - E32 - 1988-1994
7 Series - E38 - 1994-2002
7 Series - E65, E66, E67 - 2001-2008
8 Series - E31 - 1989-1999
E9 2.5CS-3.0CSL - 1968-1975
X Series - E84 - X1 sDrive - 2008-2015
X Series - E84 - X1 xDrive - 2008-2015
Z Series - E30 - Z1 - 1988-1991
Z Series - E36 - Z3 inc M - 1994-2002
Z Series - E85, E86 - Z4 - 2003-2009
Z Series - E89 - Z4 - 2009-
Z Series - E85 & E86 - Z4M - 2006-2009
Z Series - E52 - Z8 - 1998-2003
R50 & R52 & R53 Gen 1 - 2000-2006
Arosa - 6H - 1997-2004
Cordoba Mk1 - 6K - 1993-2002
Ibiza Mk3 - 6K - 1993-2002
Inca - 6K - 1996-2003
Mii - KF - 2011-
Toledo Mk1 - 1L - 1992-1999
Citigo - NF - 2011-
Caddy Mk1 - 14 - 1985-1996
Corrado 53L - 50 - 1989-1995
Golf Mk1 inc Cabriolet - 1973-1994
Golf Mk2 2WD - 1G - 1985-1992
Golf Mk2 4WD inc Rallye & Country - 1G - 1985-1992
Golf Mk3 2WD - 1H - 1992-1998
Golf Mk3 4WD Syncro - 1H - 1993-1997
Jetta Mk1 - 1979-1984
Jetta Mk2 - 1G - 1985-1992
Jetta Mk3 - 1H - 1992-1998
Lupo - 6X - 1999-2006
Polo / Derby Mk1 & Mk2 - 80 & 86 & 87 - 1975-1994
Polo Mk3 - 6N - 1995-2002
Scirocco Mk1 & Mk2 - 53 - 1973-1992
Up! inc. GTI - 2011-
