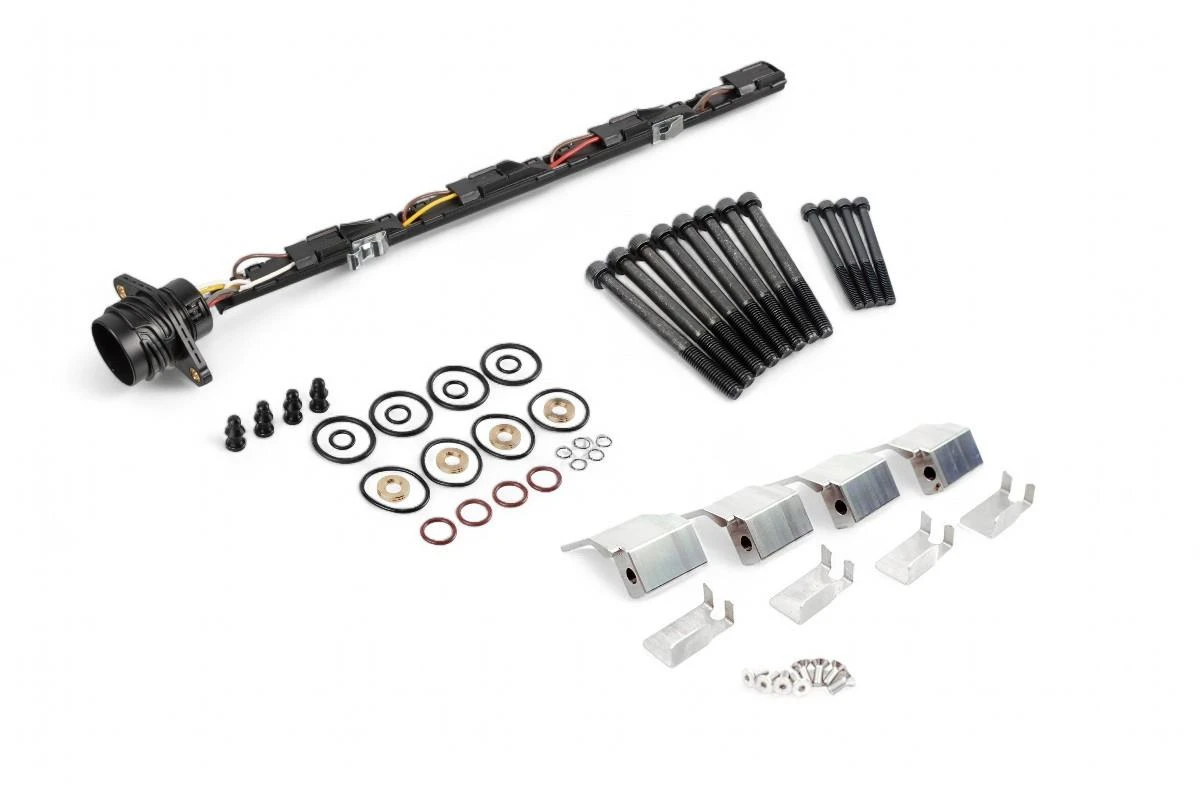

VAG 1.9 8v PD TDI Injector Retainer Overhaul Kit
PD Injector Retainer Overhaul Kit for VAG 1.9 8v TDI Diesel Engines Complete Injector Retainer Overhaul Kit for VAG 1.9 8v TDI PD Engines, includes 07eins injector retainer kit, OE Injector Bolt Kit, Bosch Injector Seals and Darkside Injector Wiring Loom. This is a PD Injector body holder kit / repair kit for the prevention of damage to PD injector seats in the Cylinder Heads The OE design of the PD injector hold down bracket is not the best, clamp force is only applied to one side which allows for movement on the opposing side wearing down the injector seats in the cylinder head. In the majority of cases, it wouldn't be necessary to replace a damaged / worn cylinder head when fitted with the injector body holder set. The injectors now become centred and will once again seal correctly around the worn / damaged sealing surface This kit allows the injectors to be screwed together as one complete, compact unit. Resulting in the best possible centering in their sealing seats.This Kit Consists of:
4x OE Injector Bolts8x OE Rocker Cover Bolts
4x Bosch Injector Seal Kits
1x Darkside Injector Wiring Loom
1x Injector Retainer Kit
1.9 TDI PD Injectors can be found here:
https://www.darksidedevelopments.co.uk/search-results/?q=1.9+TDI+PD+injector
Reinforced PD Injector Seals can be found here:
https://www.darksidedevelopments.co.uk/products/reinforced-viton-seals-for-pd-injectors.html
Fitment Data
This Kit will fit Vehicles with the following Engine Codes:
Audi A3 / S3 - ATD (100) AXR (101) BKC (105) BXE (105) BLS (105) ASZ (131) BMM (140)
Audi A3 Cabriolet - BLS (105)
Audi A4 / Avant - AVB (100) BKE (115) AJM (115) AVF (131) AWX (131) BPW (140)
Audi A4 / S4 / Avant / quattro - AVB (100) AJM (115) BKE (115) AWX (131) AVF (131) BPW (140)
Audi A4 / S4 Cabriolet / quattro - BPW (140)
Audi A6 / Avant - AJM (115) AVF (131) AWX (131)
Audi A6 / S6 / Avant / quattro - AWX (131) AVF (131)
Seat Alhambra - ANU (90) AUY (115) ASZ (131)
Seat Altea - BXF (90) BKC (105) BXE (105) BLS (105) BJB (105) BMM (140)
Seat Cordoba / Vario - BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
Seat Ibiza - BXJ (90) BMT (100) ATD (100) AXR (101) BLS (105) BLT (131) ASZ (131) BUK (160) BPX (160)
Seat Leon - BXF (90) BKC (105) BXE (105) BLS (105) BMM (140) ARL (150)
Seat Toledo - BJB (105) BKC (105) ARL (150)
Skoda Fabia - ATD (100) AXR (101) BSW (105) BLS (105) ASZ (130)
Skoda Octavia - ATD (100) AXR (101) BJB (105) BKC (105) BXE (105) BLS (105) BMM (140)
Skoda Roomster - AXR (101) BSW (105) BLS (105)
Skoda Routan - AXR (101) BSW (105) BLS (105)
Skoda Superb - AVB (100) BLS (105) BXE (105) BMP (140)
VW Beetle - ATD (100) BEW (100) BSW (105)
VW Beetle Cabrio - AXR (101) BSW (105)
VW Bora - BEW (100) ATD (100) AXR (101) BRM (103) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Caddy - BST (70) BDJ (70) BJB (105)
VW Campmobile Type 2 / T2 - AXC (85) AXB (105)
VW Clasico / Jetta - BEW (100)
VW Diesel Industrial Motor - CBHA (64) CBKA (100)
VW Eos - BMM (140)
VW Golf - BDK (75) BRU (90) BXF (90) BEW (100) ATD (100) AXR (101) BKC (105) BXE (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Golf Plus - BRU (90) BXF (90) BKC (105) BXE (105)
VW Jetta - BEW (100) ATD (100) AXR (101) BRM (103) BLS (105) AUY (115) AJM (115) ASZ (131) ARL (150)
VW Jetta Variant - ATD (100) BEW (100) AXR (101) BXE (105) AJM (115) AUY (115) ASZ (131) ARL (150)
VW New Beetle - BEW (100) BSW (105)
VW Passat / Variant - AVB (100) BKC (105) BXE (105) BLS (105) AJM (115) BHW (136) BGW (136) BMP (140)
VW Passat syncro - AJM (115)
VW Polo - BMT (100) ATD (100) AXR (101) BLT (131) ASZ (131)
VW Polo Classic / Variant - ATD (100)
VW Sharan - ANU (90) AUY (115) ASZ (131)
VW Touran - BRU (90) BXF (90) AVQ (100) BKC (105) BXE (105)
VW Transporter Kombi - AXC (85) AXB (105) BRS (101) BRR (84)
VW Vento - BRM (103)
VW Vento Variant - BXE (105)
Audi A4 / S4 Cabriolet / quattro - BRC (136)
Skoda Superb - BSV (105) BWW (124) BSS (140)
Replaces Genuine Injector Bolt Part Numbers:
038103385A - 038103385 A - 038 103 385 A
Replaces Genuine Rocker Cover Bolt Part Numbers:
038103714A - 038103714 A - 038 103 714 A
Replaces Genuine Injector Wiring Loom Part Numbers:
038971600 - 038 971 600
038973131 - 038 973 131
Replaces Genuine Injector Seal Part Numbers:
038198051 - 038 198 051
038198051A - 038198051 A - 038 198 051 A
038198051C - 038198051 C - 038 198 051 C
038198051A - 038198051 A - 038 198 051 A
Replaces Genuine Retainer Part Numbers:
038130069B - 038130069 B - 038 130 069 B
Suitable for the following Genuine Injector Part Numbers:
038130073BA - 038130073 BA - 038 130 073 BA
038130073BC - 038130073 BC - 038 130 073 BC
038130073BE - 038130073 BE - 038 130 073 BE
038130073AR - 038130073 AR - 038 130 073 AR
038130073AN - 038130073 AN - 038 130 073 AN
038130073Q - 038130073 Q - 038 130 073 Q
038130079FX - 038130079 FX - 038 130 079 FX
038130079MX - 038130079 MX - 038 130 079 MX
038130079SX - 038130079 SX - 038 130 079 SX
038130073AG - 038130073 AG - 038 130 073 AG
038130079AM - 038130079 AM - 038 130 079 AM
038130079AQ - 038130079 AQ - 038 130 079 AQ
038130073BL - 038130073 BL - 038 130 073 BL
038130073BN - 038130073 BN - 038 130 073 BN
038130073AL - 038130073 AL - 038 130 073 AL
038130073AJ - 038130073 AJ - 038 130 073 AJ
038130073P - 038130073 P - 038 130 073 P
038130073BP - 038130073 BP - 038 130 073 BP
038130073D - 038130073 D - 038 130 073 D
038130073F - 038130073 F - 038 130 073 F
