Verkline Front Adjustable Tubular Wishbones for MQB Platform

SKU:
WAS-017
Shipping:
Calculated at Checkout
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
  • Verkline Front Adjustable Tubular Wishbones for MQB Platform
£846.00
(Inc. VAT)
£705.00 (Ex. VAT)

Description

Verkline Front Adjustable Tubular Wishbones for MQB Platform

Verkline Adjustable Tubular Front Race Lowered Wishbones for MQB Audi RS3 S3 A3 8V / Volkswagen Golf Mk7 / Seat Leon 5F

When using the car on the track the cornering forces are bending the rubber in the wishbones, resulting in changing the desired geometry of the car
This can lead to slower track times and ineffective tire usage.

These uniball control arms stop this from happening.

Most of the cars that are used on track are lowered compared to stock. Lowering the car has the undesirable effect of moving the chassis lower than the balljoint and excessive lowering results in the situation where the wishbone is pointing upwards at the wheel end. This means you need more steering lock when cornering, the car is sluggish to respond and doesn’t feel as communicative.

Please Note: - These can only be used with Verkline front tubular subframes

Product Functionalities:

Adjustment both caster and camber (up to -4.5 degrees)
No rubber to bend, you will not lose the geometry set when doing alignment
Corrected bump steer
Works with Verkline tubular subframe ONLY
Enables removal of the wishbones without the need for removal of the subframe

Features:

T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets
Proven motorsport M18 uniballs
Plug and play to use with the car inc xenon sensors
Properties:

Tensile: 700 - 900MPa
0.2% Yield 620MPa minimum
Hardness Test: 201min - 262 max HB or 210min - 275max HV.


T45 is a very unique seamless carbon based steel tube that has been used in many applications in different industries. It is stronger than Co-Mo 4130 tubing that is also used in motorsport. It is widely used in the aerospace sector in equipment such as pilot seats and crew seats due to the materials ability to withstand high G forces without snapping or splitting. This material is a Carbon Manganese based and conforms to the full Aerospace Specification laid down by British Standards.

This Kit Consists of:

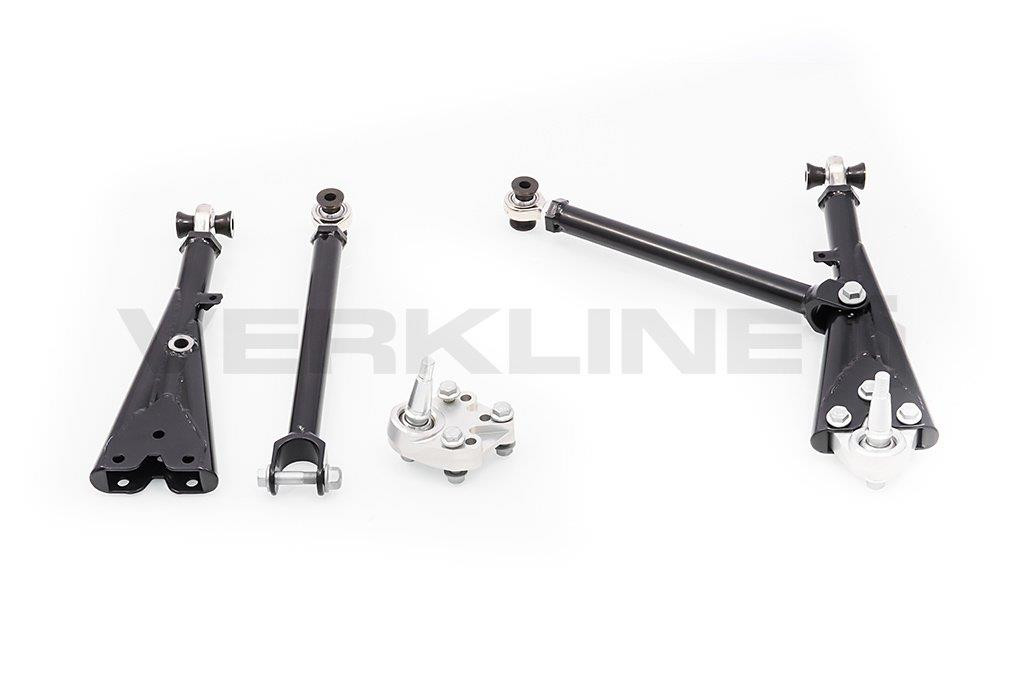

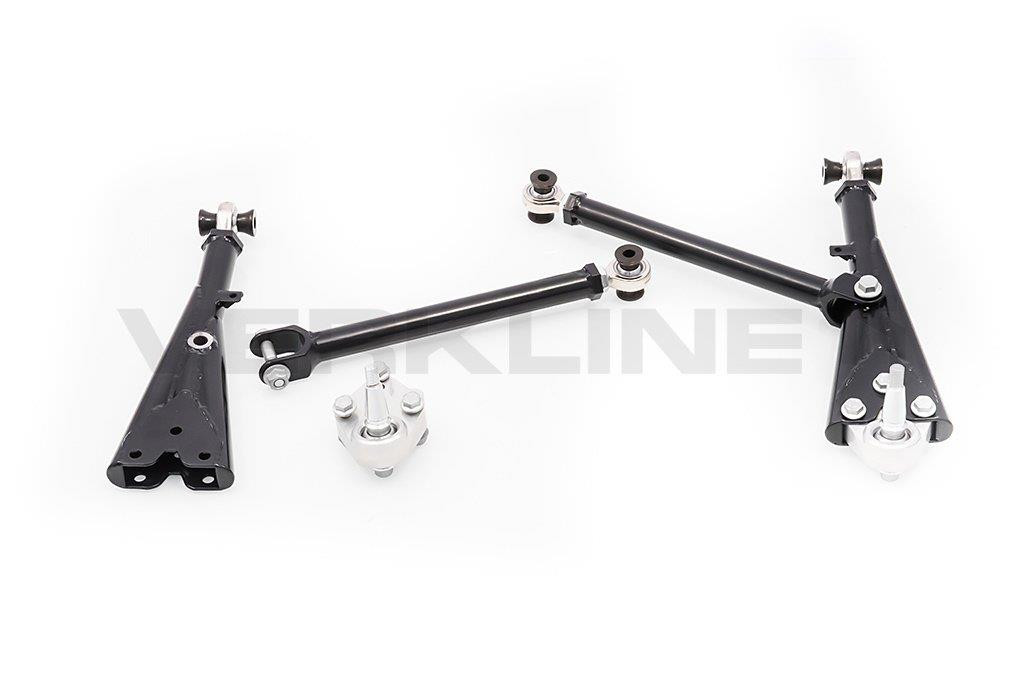

Pair of Front Tubular Wishbones (Control Arms) with ALL Hardware for Install
Set of Spacers to Reposition the Steering Rack and Front Anti-roll Bar. Both 20mm Up. See Photo in Listing.
Four Rubber Caps for Uniball Protection

This Kit will fit the following Vehicles:

Audi A3 / S3 / RS3 (8V and 8VFL MQB) - 2013 Onwards
Audi TT / TTS / TTRS (8S) - 2014
Volkswagen Golf / GTI / R (Mk7 MQB) - 2012
Seat Leon (5F MQB) - 2012
Other MQB Based Cars

Sold only for off road, race track and racing applications only
