Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles

SKU:
WAS-040
Shipping:
Calculated at Checkout
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
  • Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles
£840.00
(Inc. VAT)
£700.00 (Ex. VAT)

Description

Verkline Spherical Adjustable Rear Trailing Arm Kit for Mk5 / Mk6 Platform Vehicles

Verkline Spherical Adjustable Rear Trailing Arm Kit for Audi RS3 / S3 / A3 8P / Golf MK5 / Mk6 / Audi TT 8J / Seat Leon 5F

Anti-squat suspensions are used to reduce body squat by altering the rear suspension so that the forces resulting from accelerating pass through the control arms and suspension linkage rather than through the coilovers or struts

On these vehicles rear suspension setup, we can define our anti-squat by inclination of a line which connects the wheel center and chassis mounting point of the trailing arm. Most of the cars are lowered with aftermarket suspension components. In the picture below the car is lowered and OEM wishbone (and our +0 setup) in MQB car has anti-squat line pointing down (red line), it means that the car has negative anti-squat value. It causes excessive suspension displacement under acceleration and reduces responsiveness.

To correct this Verkline have come up with an adjustable rear trailing arm. When the wishbone in the car is used in +20 setup anti-squat value (green line) is corrected and it is back to factory settings.


If the car wishbone is used in +40 setup anti-squat value (blue line). It makes suspension move even less, thus resulting in faster response of the car from stand still or when exiting the corner. Also when there is less suspension movement camber and toe are less affected (better predictability of the car)
With the increase of anti-squat You also get higher values of rear anti-lift. It keeps Your rear suspension low under braking, which increases grip and car predictability. This allows You to brake later and go into a corner with higher speed and confidence.


Product Functionalities:

3 position anti-squat and anti-lift adjustability (0 / +20 / +40)
The OEM wishbone bends during normal operation and this increases when the car is lowered or camber / toe is increased. Verklines CNC billet wishbone has spherical bearings to avoid that and it is also a big increase of stiffness, resulting in better handling in corner exit and under acceleration
High quality, metal spherical bearings instead of rubber bushings, meaning you will not lose the geometry that is set when doing alignment
Same weight as OEM part, regarding additional functionality
Please Note:

Because of the adjustable design it is necessary to use dedicated rear sway bar adjustable end links. OEM and other aftermarket rear end links will not be suitable.
Features:

This is a bolt-on kit, no modifications necessary to the car
Wishbone comes pre assembled
CNC machined arm out of 7075 T6 aluminum
TIG welded high strength steel mountings
Parking brake line brackets
Includes all necessary parts to mount on the car

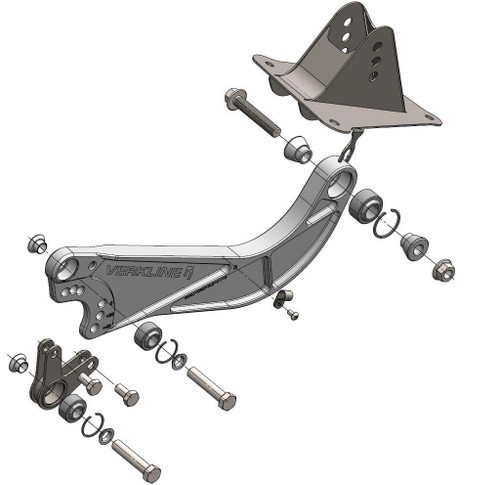

This Kit Consists of:

2x Aluminium Wishbones Anodized in Black with Spherical Bearings
2x Steel Adjustment Chassis Mounting Bracket in Black
2x Steel Adjustment Trailing Arm Steel Bearing Carrier in Black
2x Dedicated Rear Sway Bar Adjustable End Links
Bolt Kit

This Kit will fit the following Vehicles:

Audi A3 / S3 / RS3 (8P) - 2003 – 2012
Audi TT / TTS / TTRS (8J) - 2004 – 2013
Volkswagen Golf / GTI / R32 (Mk5 / Mk6) - 2004 – 2012
Seat Leon Mk2 (1P) - 2005 – 2012

Replaces Genuine VW Part Numbers:

1K0505223G - 1K0505223 G - 1K0 505 223 G
1K0505223H - 1K0505223 H - 1K0 505 223 H
1K0505223K - 1K0505223 K - 1K0 505 223 K
1K0505224G - 1K0505224 G - 1K0 505 224 G
1K0505224H - 1K0505224 H - 1K0 505 224 H
1K0505224K - 1K0505224 K - 1K0 505 224 K

Please Note:

Installation of this rear trailing arm kit will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin.
