VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters

SKU:
DSD1117.1
Shipping:
Calculated at Checkout
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters
  • VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters

ITEM ON PRE-ORDER - Expected dispatch date is 03 04 2024

£210.00
(Inc. VAT)
£175.00 (Ex. VAT)

Description

VW Caddy Mk3 / Mk4 Rear Lowering Kit / Leaf-Spring Adjusters

Fits Caddy Mk3 / Mk4 2K Van Rear Axle (FWD & 4Motion)

Our lastest design combines both our previous low and super low kits

  • Fully adjustable height options from ~50mm - ~100mm
  • Hidden shackles and more ground clearance
  • CNC Laser Cut and Zinc Electroplated to prevent corrosion
  • Shackle Support Blocks to reduce side to side axle movement
  • The Lowering Kit allows you to flip the rear axle on your Caddy 2K Van and then adjust the ride height to suit
    This kit will also fit Maxi and 4Motion models
    Our new kit has been designed to accommodate all ride heights keeping the rear wheel as central as possible in the arch
    Our twin location plates allow the rear axle to be moved back on lower applications where the wheel is bought towards the front of the wheel arch
    They are full adjustable with 6 different height options. The beauty of this setup is that you can adjust the height as many times as you like by simply adjusting 2 bolts. Perfect if you like to run low but still want the option of carrying some weight. If you do not want so many options, you can cut the plates down to your desired length
    One of the features we have kept on our new kit to keeping the length of the rear hangers short allowing them to tuck behind the rear bumper. This also aids ground clearance as we found the old 'low kit' shackles hung quite low, which could cause problems going up steep driveways or kerbs
    We also have available front lowering springs and coilovers to fit alongisde this rear lowering kit. Please see links below.

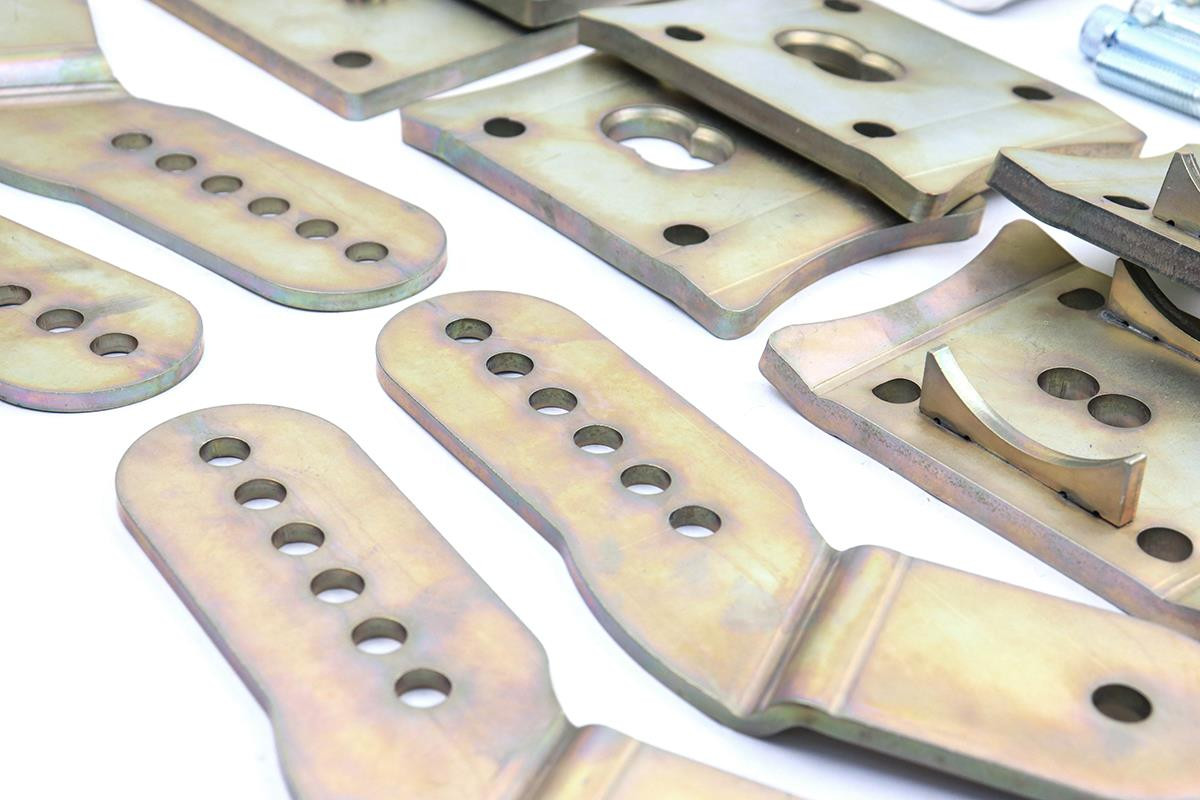

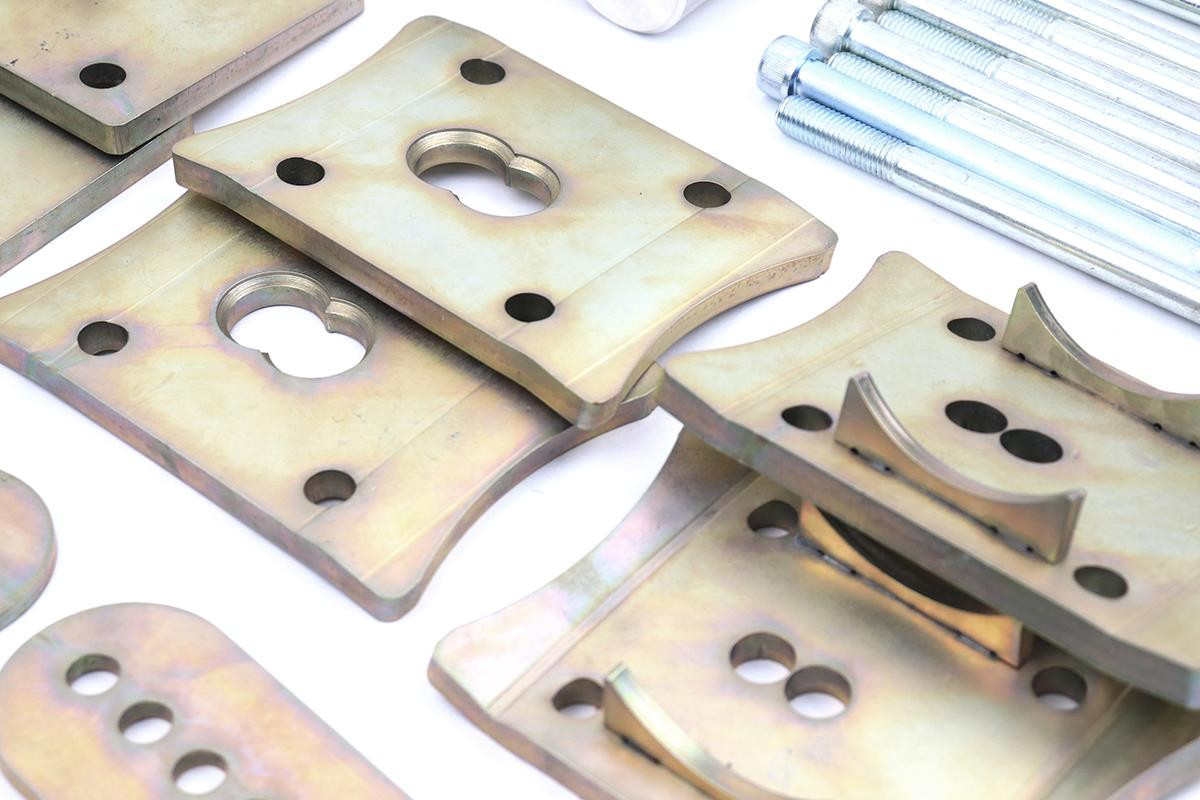

    This kit consists of:

    4 x Adjustable Shackle Plates (2 per side)
    6 x Axle Sandwich Plates (3 Per Side)
    8 x Hi-Tensile Bolts
    8 x Nyloc Nuts
    16 x Washers
    2 x Shackle Support Blocks

    H&R 40-60mm Front Lowering Springs

    https://www.darksidedevelopments.co.uk/products/h-r-front-lowering-springs-for-vw-caddy-mk3-mk4.html

    Bilstein B14 Front Adjustable Coilovers

    https://www.darksidedevelopments.co.uk/products/vw-caddy-mk3-mk4-van-bilstein-b14-front-adjustable-coilovers.html

    Eibach 60mm Front Lowering Springs:

    https://www.darksidedevelopments.co.uk/products/eibach-60mm-front-lowering-springs-for-vw-caddy-mk3-mk4.html

    Bilstein Rear Shock Absorbers:

    https://www.darksidedevelopments.co.uk/products/vw-caddy-mk3-mk4-van-bilstein-b8-rear-shock-absorbers.html

    We now offer this kit for vehicles with Twin Rear Leaf Springs. This kit is supplied with longer bolts for the sandwich plates
    Please select from the above options if you require this.

    If you have previously purchased the Lowering Kit and require the longer bolts for twin leaf spring vehicles, we have them listed here - https://www.darksidedevelopments.co.uk/products/bolt-kit-for-caddy-rear-lowering-kit-vehicles-with-twin-leaf-spring.html

    PLEASE NOTE - This kit is for 'Off Road Use' Only

    Once fitted you may notice side to side movement in the rear axle, this movement is normal and present from factory but not usually noticeable with the stock wheels and ride height. With the van lowered the wheel becomes closer to the body to this movement is highlighted and easier to notice, more so with aftermarket wheels that protude further from the arch

    The parts are CNC Laser Cut and then Zinc Electroplated to prevent corrosion

    We also have a full fitting guide, please see our Website

    Estimated Fitting Costs

    Darkside Developments offers professional in-house fitting for all products at our workshop located in Barnsley, South Yorkshire

    Estimated Labour Time (Hours) Labour Cost
    180
    For more Information or to make a booking, please CONTACT US
