Darkside 3.5" Performance Turbo Intake Pipe (TIP) & Air Intake / Induction Kit for BMW F Series 35d / 40d N57Z 3.0 Bi-Turbo Diesel Engines

Replacement for the Restrictive Standard Plastic TIP Pipe found on the F Series N57Z Engines with the addition of our 3D Printed Aluminium Turbo Intake Pipe for maximum flow.

Although our induction kit alone proved to remove restrictions on the N57N & N57Z diesel engines, it just didn't cut it for our big power M4D project. We found that the stock plastic elbow that connects direct to the turbocharger was also restrictive in places. Because of this we decided to scan and design a high flow elbow to increase airflow and remove an restrictions...and 3D print it out of Aluminium!

This 3.5" Intake Pipe coupled with a Ramair PRORAM Air Filter Increases performance and airflow over the stock restrictive intake pipe

Please Note: The factory Engine Cover can be retained with some modification, please see listing photos.

SOFTWARE REQUIRED! - ONCE FITTED, YOUR VEHICLE WILL NEED TUNING TO SUIT

We can carry out this service for £100+VAT, please contact us for more details.

*Only recommended to install on higher power applications where the EGR and DPF has been removed, otherwise there may be issues calibrating the MAF*

Made From 3.5" Aluminium

Powder Coated Textured Black for Durability

High Flow for Maximum Performance

Designed and manufactured in the UK

Thermostat Housing:

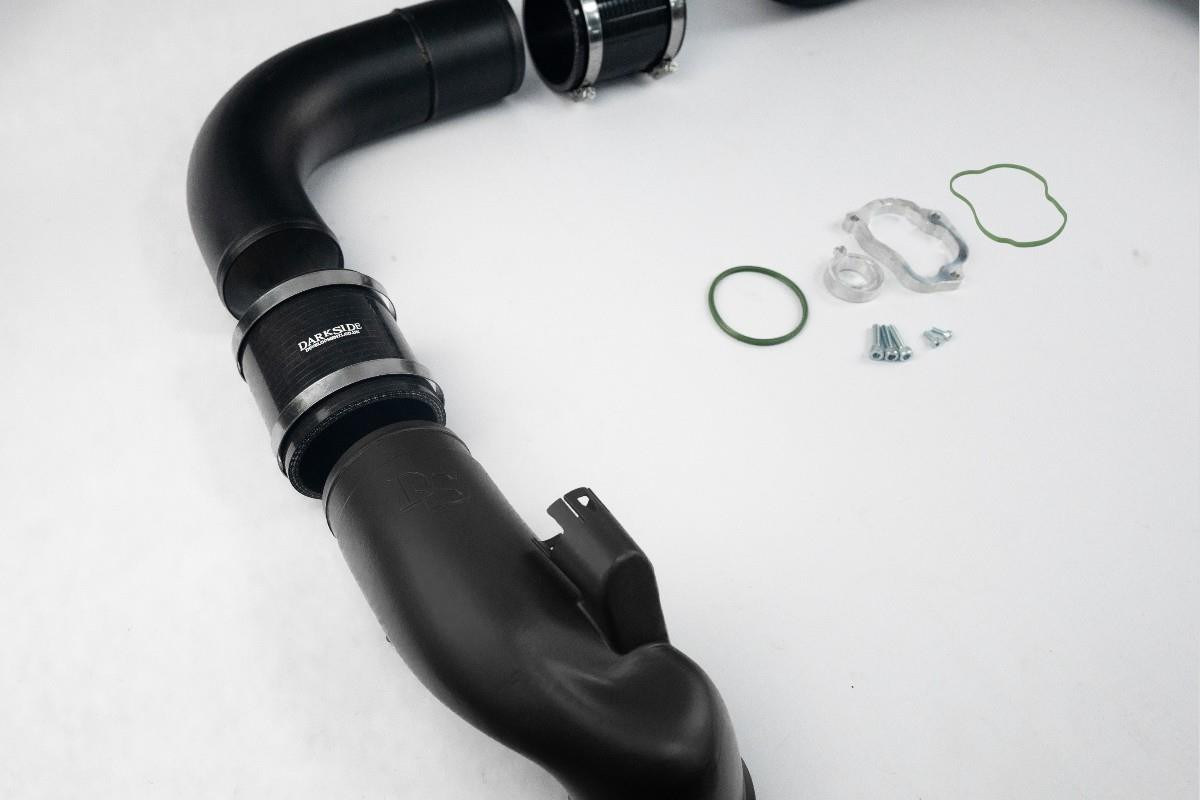

Due to increasing the TIP pipes overall size, the thermostat housing fouls the new 3D Printed Part. To resolve this we supply CNC machined thermostat housing spacers to offest the coolant outlet, allowing the stock coolant pipe to be reused.

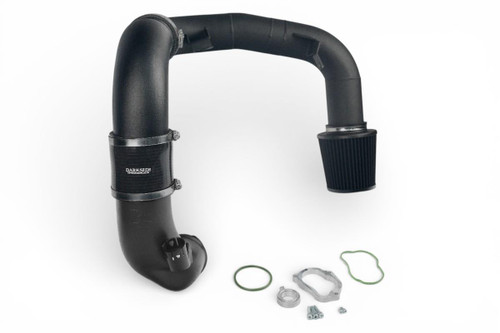

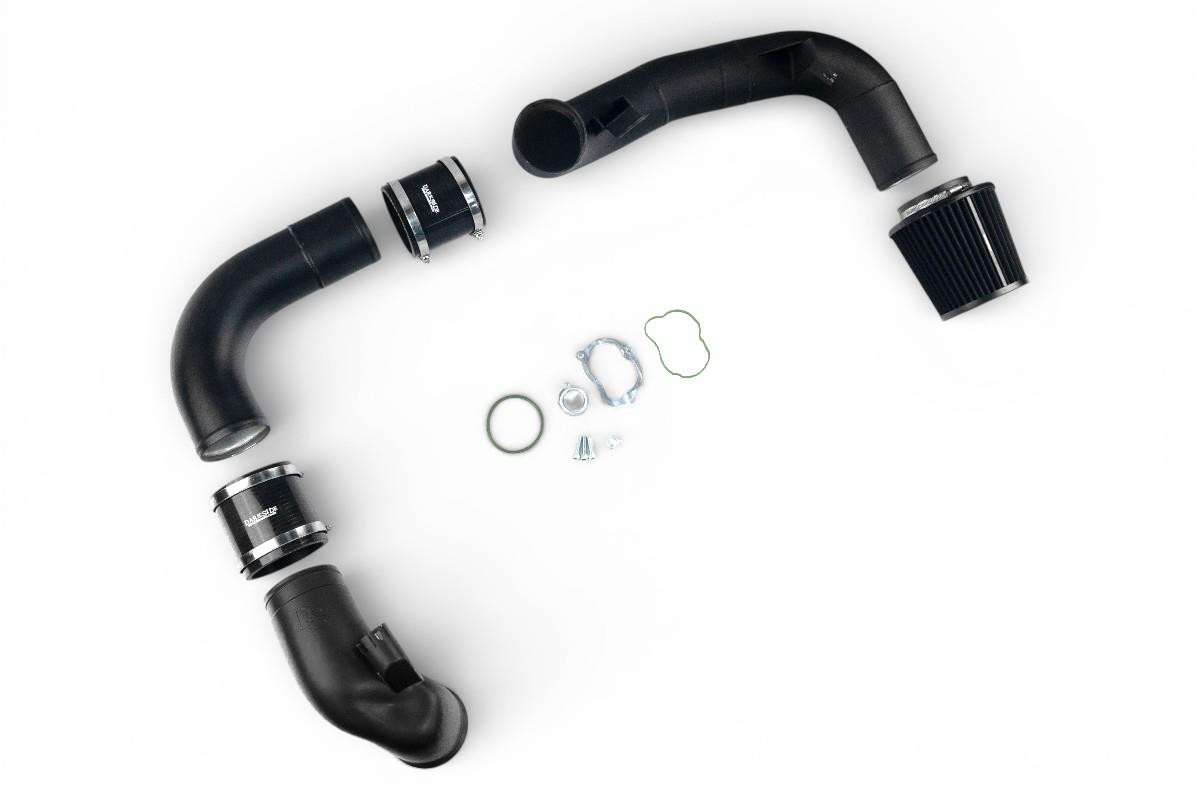

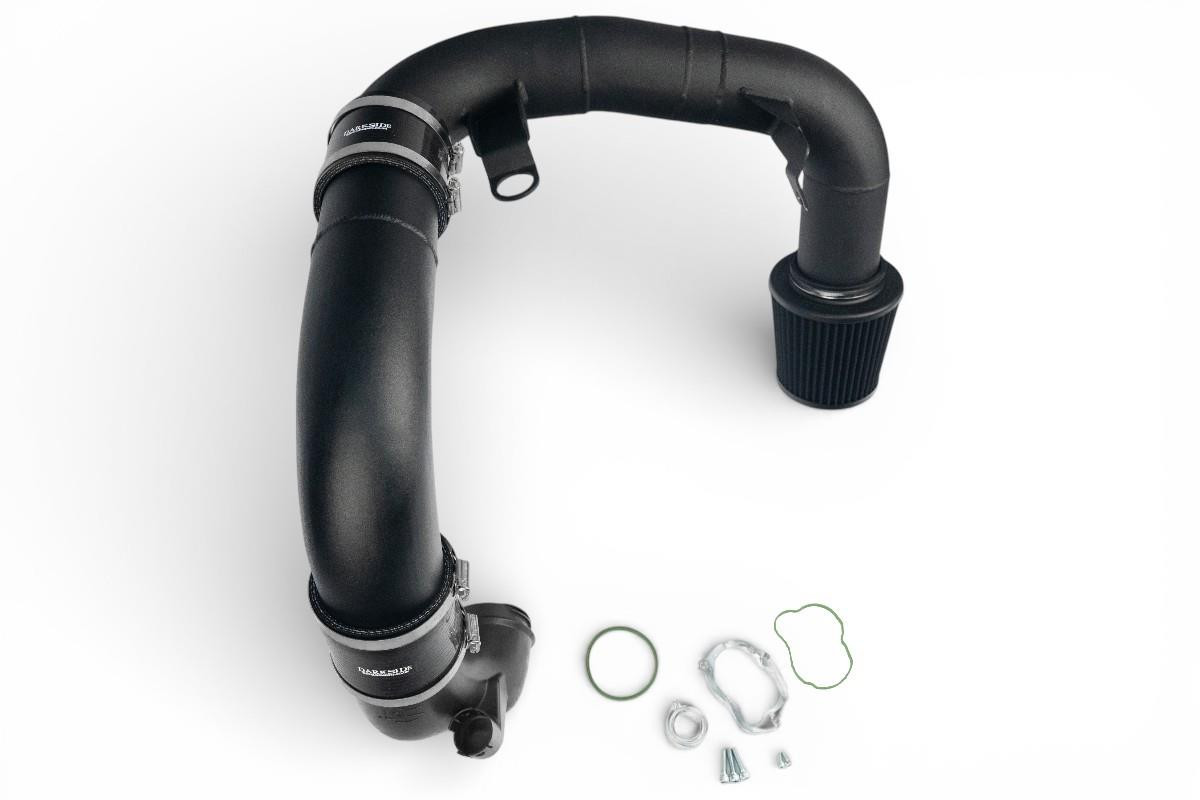

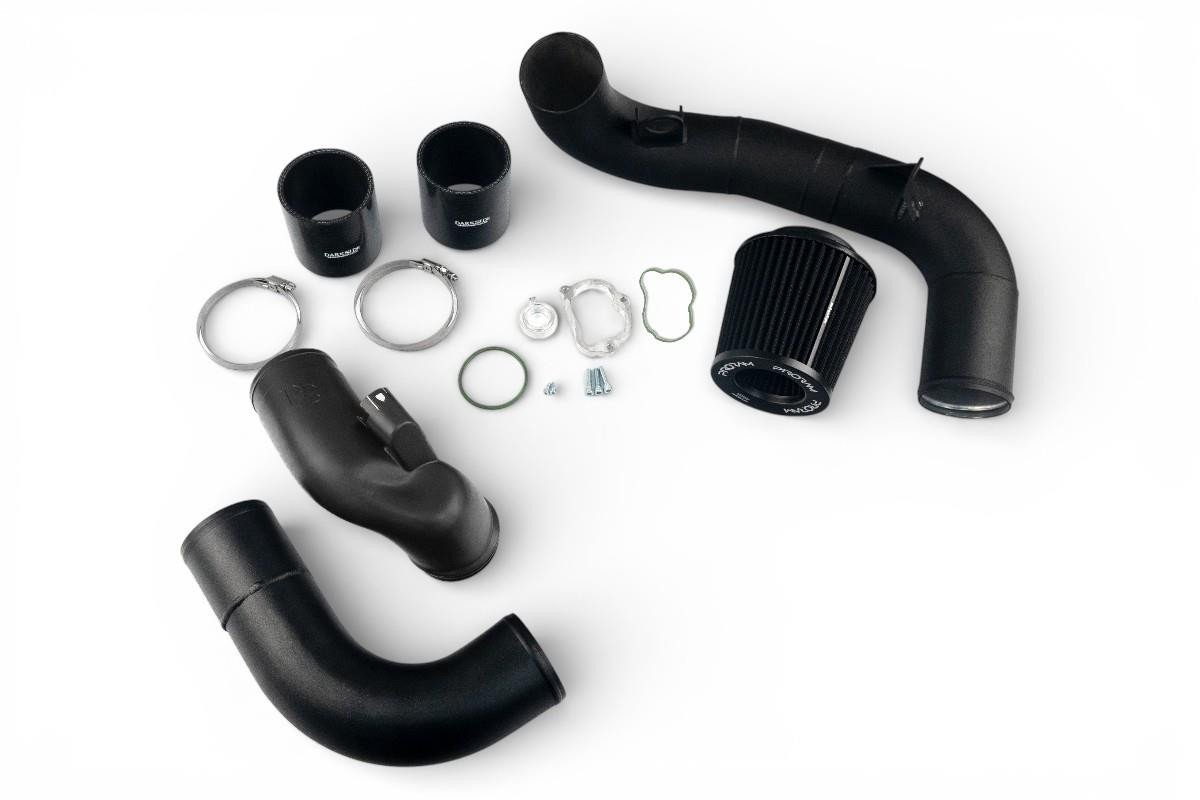

This Kit Consists of the Following:

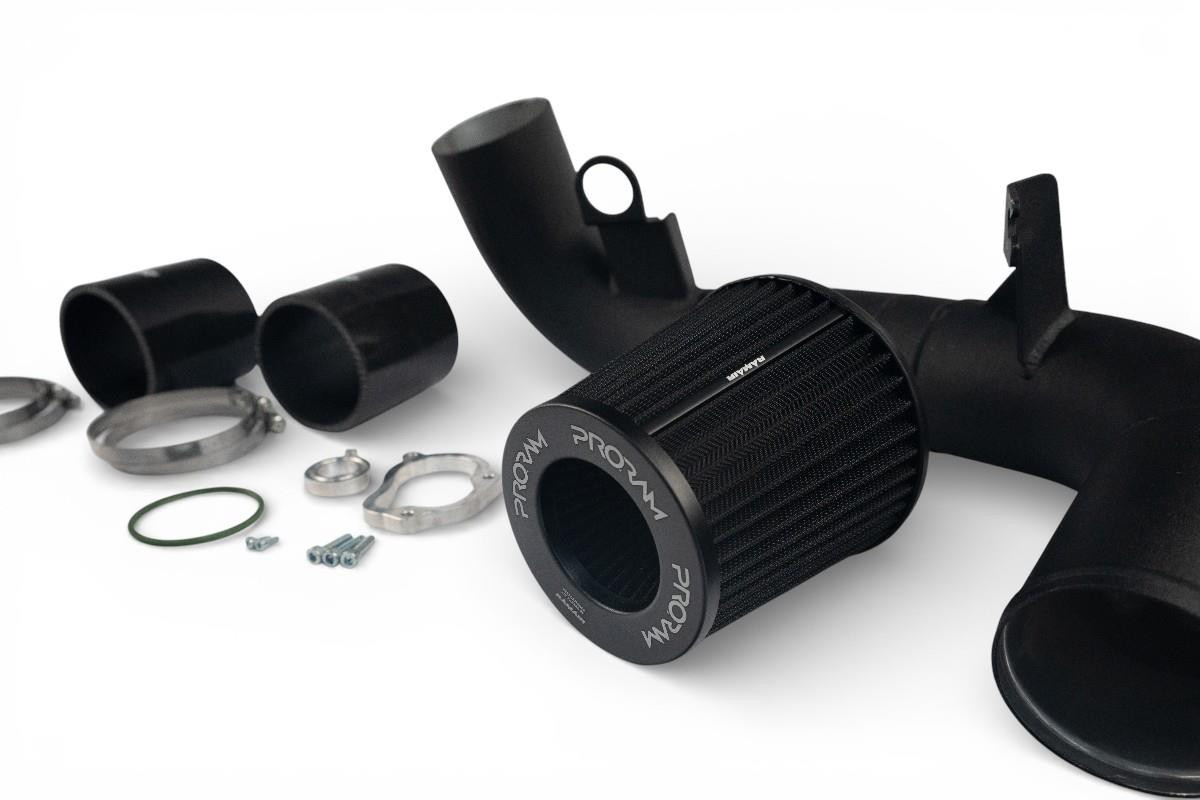

1x Ramair PRORAM Pleated Air Filter
1x 3.5" Aluminium Upper Intake Pipe
1x 3.5" Aluminium Lower Intake Pipe

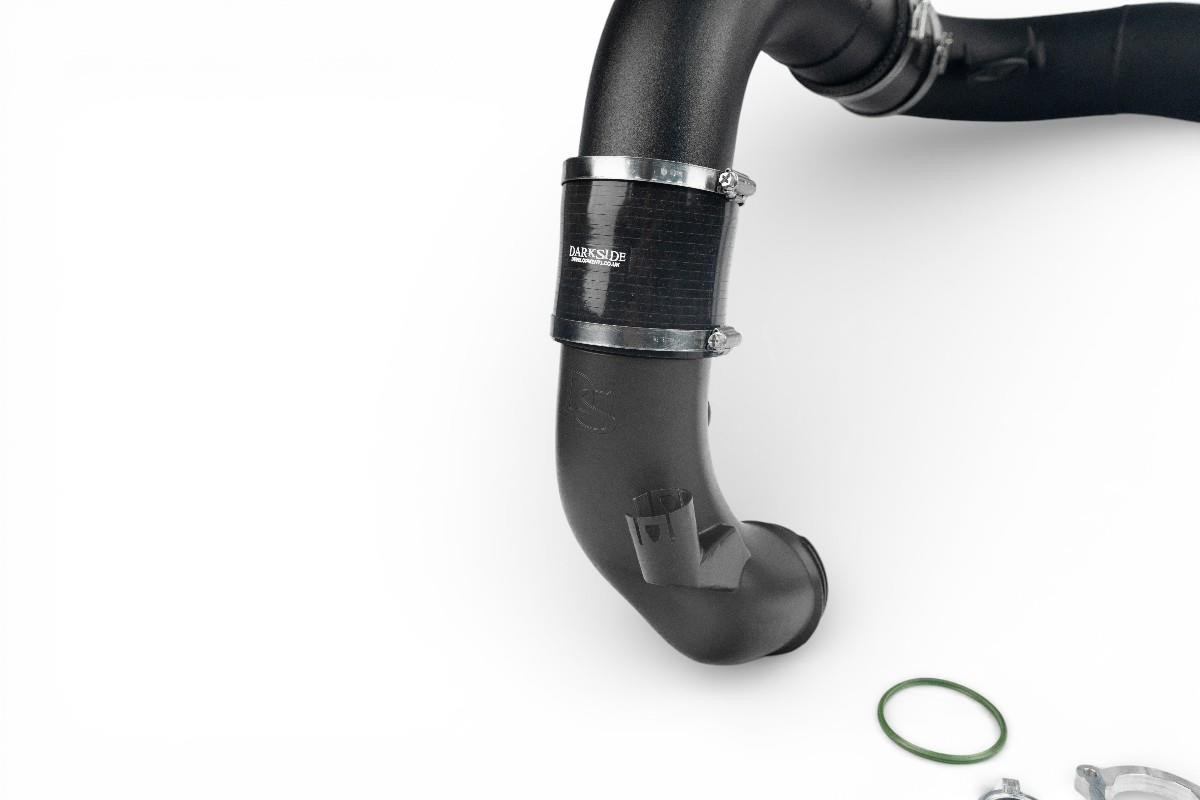

1x Custom 3D Printed Aluminium Intake Elbow
2x Silicone Couplers
Thermostat Housing Spacer Kit
Installation Hardware

(Lower Kit) Partial Lower TIP Pipe Kit with 3D Printed Aluminium Inlet (for use with Darkside Induction Kit):

https://www.darksidedevelopments.co.uk/products/bmw-f-series-n57z-35d-40d-performance-3d-printed-aluminium-turbo-intake-tip-pipe.html

(3D Printed Lower Part) Darkside 3D Printed Aluminium BMW F Series 35d / 40d Turbo Intake Elbow:

https://www.darksidedevelopments.co.uk/products/darkside-3d-printed-aluminium-bmw-f-series-35d-40d-turbo-intake-elbow.html

(Top Part) BMW F Series 30d / 35d / 40d 3.5" Performance Air Intake / Induction Kit:

https://www.darksidedevelopments.co.uk/products/bmw-f-series-30d-35d-40d-3-5-performance-air-intake-induction-kit.html

Series / Chassis

F30 / F30N / F31 / F31N / F34 / F34N / F32 / F33 / F33N / F36 / F25 / F26 / F15 / F16

Models

335dX / 435dX / 35dX / 40dX

Engines

N57Z

This Kit will fit Vehicles with the following Engine Codes:

F30 335dX Sedan N57Z
F30N 335dX Sedan N57Z
F31 335dX Touring N57Z
F31N 335dX Touring N57Z
F34 335dX Gran Turismo N57Z
F34N 335dX Gran Turismo N57Z
F32 435dX Coupe N57Z
F33 435dX Convertible N57Z
F33N 435dX Convertible N57Z
F36 435dX Gran Coupe N57Z
F25 X3 35dX SUV N57Z
F26 X4 35dX SAC N57Z
F15 X5 40dX SUV N57Z
F16 X6 40dX SAC N57Z

Replaces Genuine BMW Part Numbers:

13 71 8 509 817 - 13718509817 - 8 509 817 - 8509817
13 71 4 743 398 - 13714743398 - 4 743 398 - 4743398

Suitable for Intake Pipe Part Numbers:

13 71 8 507 565 - 13718507565 - 8 507 565 - 8507565
13 71 8 573 869 - 13718573869 - 8 573 869 - 8573869
13 71 8 573 761 - 13718573761 - 8 573 761 - 8573761
