BMW F Series N57Z 35d / 40d Performance 3D Printed Aluminium Turbo Intake TIP Pipe

BMW F Series N57Z 35d / 40d Performance 3D Printed Aluminium Turbo Intake TIP Pipe

BMW F Series N57Z 35d / 40d Performance 3D Printed Aluminium Turbo Intake TIP Pipe

Although our induction kit alone proved to remove restrictions on the N57N & N57Z diesel engines, it just didn't cut it for our big power M4D project. We found that the stock plastic elbow that connects direct to the turbocharger was also restrictive in places. Because of this we decided to scan and design a high flow elbow to increase airflow and remove an restrictions...and 3D print it out of Aluminium!

This Kit has been designed to work with our induction kit only, for customers who have previously purchased the 3.5" 35d / 40d Darkside Kit

Increased Air Flow

Replaces restrictive pipe

3.5" Outlet to be used with our induction kit

Thermostat Housing:

Due to increasing the TIP pipes overall size, the thermostat housing fouls the new 3D Printed Part. To resolve this we supply CNC machined thermostat housing spacers to offest the coolant outlet, allowing the stock coolant pipe to be reused.

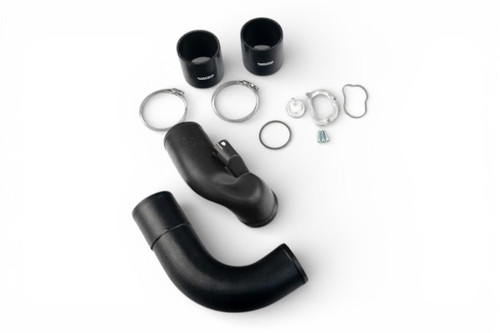

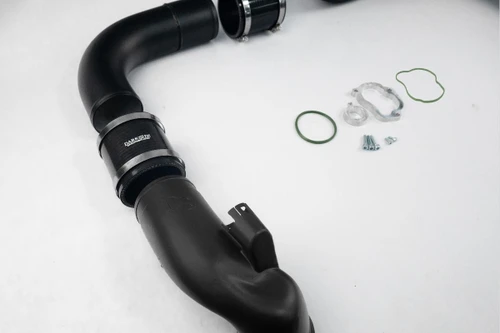

This Kit Consists of the Following:

1x 3.5" Aluminium Lower Intake Pipe
1x Custom 3D Printed Aluminium Intake Elbow
2x Silicone Couplers
Thermostat Housing Spacer Kit
Installation Hardware

(Complete Kit) BMW F Series N57Z 35d / 40d 3.5" Performance Turbo Intake Pipe & Induction Kit:

https://www.darksidedevelopments.co.uk/products/bmw-f-series-n57z-35d-40d-3-5-performance-turbo-intake-pipe-induction-kit.html

(Lower Kit) BMW F Series N57Z 35d / 40d Performance 3D Printed Aluminium Turbo Intake TIP Pipe:

https://www.darksidedevelopments.co.uk/products/bmw-f-series-n57z-35d-40d-performance-3d-printed-aluminium-turbo-intake-tip-pipe.html

(Upper Kit) BMW F Series 30d / 35d / 40d 3.5" Performance Air Intake / Induction Kit:

https://www.darksidedevelopments.co.uk/products/bmw-f-series-30d-35d-40d-3-5-performance-air-intake-induction-kit.html

(3D Printed Lower Part Only) Darkside 3D Printed Aluminium BMW F Series 35d / 40d Turbo Intake Elbow

https://www.darksidedevelopments.co.uk/products/darkside-3d-printed-aluminium-bmw-f-series-35d-40d-turbo-intake-elbow.html

Series / Chassis

F30 / F30N / F31 / F31N / F34 / F34N / F32 / F33 / F33N / F36 / F25 / F26 / F15 / F16

Models

335dX / 435dX / 35dX / 40dX

Engines

N57Z

This Kit will fit Vehicles with the following Engine Codes:

F30 335dX Sedan N57Z
F30N 335dX Sedan N57Z
F31 335dX Touring N57Z
F31N 335dX Touring N57Z
F34 335dX Gran Turismo N57Z
F34N 335dX Gran Turismo N57Z
F32 435dX Coupe N57Z
F33 435dX Convertible N57Z
F33N 435dX Convertible N57Z
F36 435dX Gran Coupe N57Z
F25 X3 35dX SUV N57Z
F26 X4 35dX SAC N57Z
F15 X5 40dX SUV N57Z
F16 X6 40dX SAC N57Z

Replaces Genuine BMW Part Numbers:

13 71 8 509 817 - 13718509817 - 8 509 817 - 8509817
13 71 4 743 398 - 13714743398 - 4 743 398 - 4743398

Suitable for Intake Pipe Part Numbers:

13 71 8 507 565 - 13718507565 - 8 507 565 - 8507565
13 71 8 573 869 - 13718573869 - 8 573 869 - 8573869
13 71 8 573 761 - 13718573761 - 8 573 761 - 8573761
