Darkside 1.9 8v TDI VE 90 / 110 & PD100 / PD115 EGR Delete / Race Pipe (51mm)

Fits ALL VW / Audi / Seat and Skoda Vehicles with the VE 90 (ALH) / ASV (110) Engines and the PD ATD (100) and AJM (115) Engines

We use a 51mm (2") Pipe Diameter as we have found that the 57mm Pipe found in kits from other retailers are almost impossible to install with the standard EGR Intercooler Hose (with Clip Connector removed). The 51mm Pipe means the Rubber Hose slides easily over the pipe whilst still being secure. The twin grooves prevent the hose from slipping

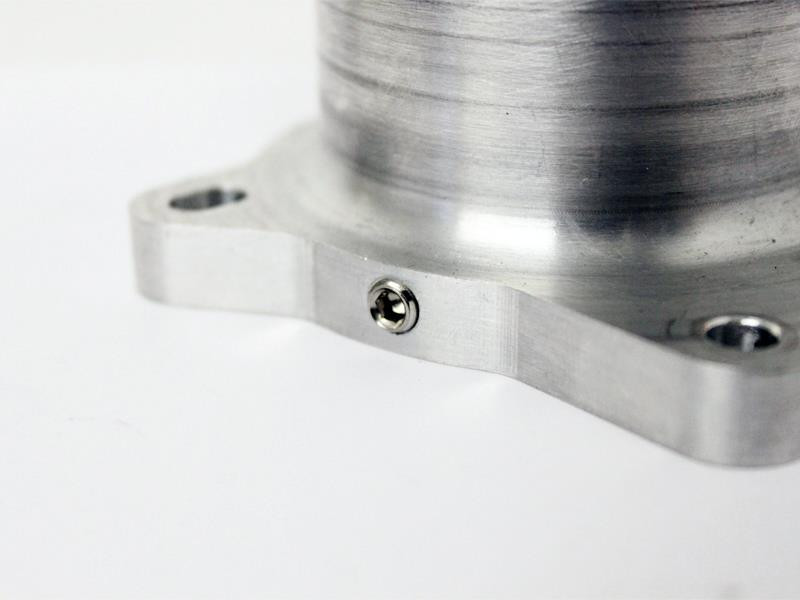

Our unique Flange Design offers countersunk bolt holes, which keep the product looking neat when bolted to the manifold. This also means you can reuse the standard bolts rather than swapping for longer items. There are also no welds on the pipe as they are CNC Machined from a single aluminium billet

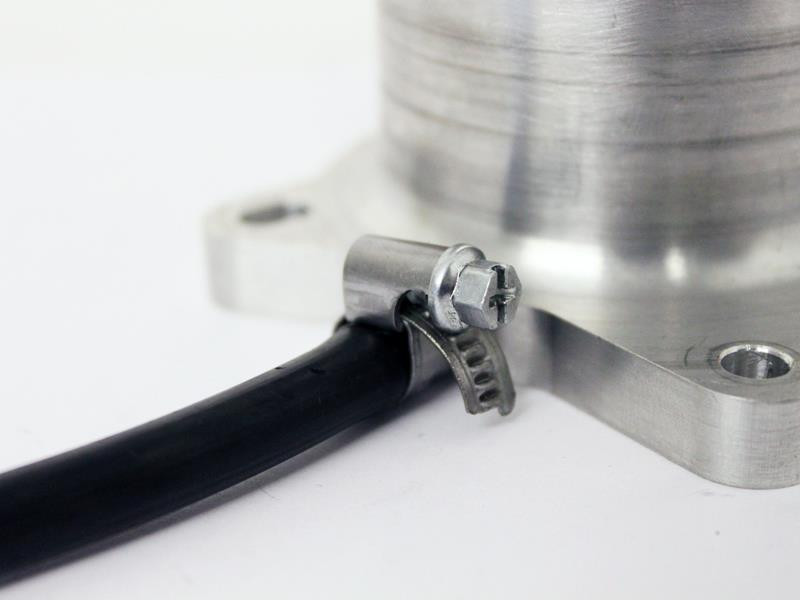

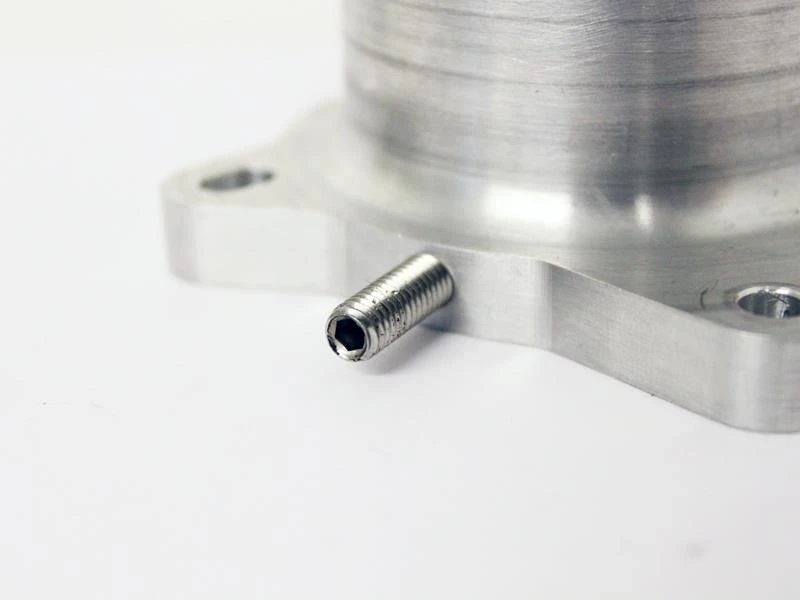

Our unique Grub Screw design allows for the neatest possible install, removing the bulky brass fitting found on other EGR Delete Kits. The tiny hole also eliminates the need to fit an 'in-line' reducer to stop the boost gauge from fluttering under heavy load. The design also means that customers who will not be using the boost takeoff will have a clean looking install

Please note that this will not fit the PD130 / PD150 inlet manifold, we have these listed in our store

Reduces inlet air temperatures = more power

Prevents inlet and turbo from clogging up

CNC Machined from a single aluminum billet

Made in the UK

Please Note:

This kit consists of:

Darkside Developments Race Pipe (51mm Diameter)
Darkside EGR Blanking Plate (for Turbo EGR Port)
2 x M8 Nuts
Vented Grub Screw (Boost Gauge Takeoff)
Grub Screw (to block Boost Port)
O-Ring Seal
Mikalor 60mm Stainless Steel Hose Clamp
3x EGR Delete to Inlet Bolts

Please Note:

Once the valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emmisions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

For more information on EGR Valves and Removal see here

https://www.darksidedevelopments.co.uk/egr-removal-delete/

This Kit will fit the following Vehicles:

1.2 TDi Engines

VW Lupo - ANY (60)

Audi A2 - ANY (60)

1.4 TDi Engines

VW Lupo - AMF (75)

Seat Arosa - AMF (75)

Seat Ibiza - AMF (75)

Skoda Fabia - AMF (75)

Audi A2 - AMF (75)

1.9 TDi Engines

VW Golf Mk4 - AGR / ALH (90), ATD (100), ASV / AHF (110), AJM / AUY (115)

VW Bora - AGR / ALH (90), ATD (100), ASV / AHF (110), AJM / AUY (115)

VW Beetle - ALH (90)

VW Caddy - ALH (90)

VW Polo - AGR / ALH (90), ASV (110), ATD (100)

Audi A3 - AGR / ALH (90), ATD (100), AHF / ASV (110)

Seat Cordoba - AGR / ALH (90), ASV (110)

Seat Leon - AGR / ALH (90), AHF / ASV (110)

Seat Toledo - AGR / ALH (90), AHF / ASV (110)

Seat Ibiza - AGR / ALH (90), ASV (110)

Skoda Octavia - AGR / ALH (90), ATD (100), AHF / ASV (110)

VW Passat - AVB (100)

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country
