Darkside Billet Single Mass Flywheel (SMF) & Clutch Kit for VW 02M 6 Speed

Darkside CNC Billet Single Mass Flywheel and Sachs Race Clutch Kit

Complete Single Mass Flywheel and SRE Clutch Kit (Organic / SIntered Disc Option) for VAG Vehicles fitted with 02M 6 Speed Gearboxes

This Kit is a direct replacement for the Standard Dual Mass Flywheel and Clutch Kit and is a perfect upgrade for vehicles running modified vehicles with increased power.

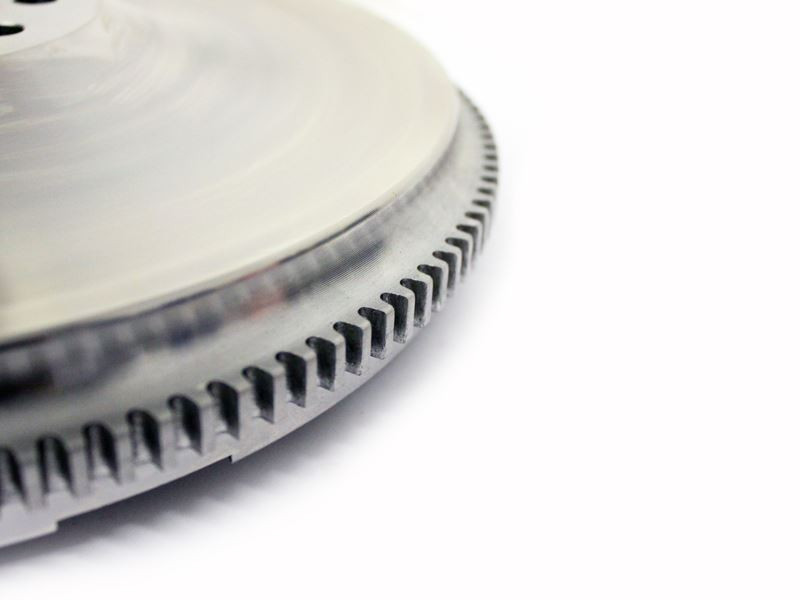

Darkside Billet CNC Machined Solid 10Kg Flywheel

Sachs Race Pressure Plate for increased hold

Sachs Race Clutch Disc for superior strength

Capable of handling up to 500Ft/Lbs+ or 680Nm+ of torque with the sintered disc

Power / Torque Rating:

Organic Kit (Daily Use) - 400Ft/Lbs / 540Nm

Sintered Paddle Kit (Fast Road / Track Use) - 500Ft/Lbs+ / 680Nm+

The Organic Disc will give a stock like bite, with a heavier pedal feel due to the upgraded Pressure Plate. This makes it a good Daily use setup as well as occasional Track use.

The Sintered disc is only recommended for use on a Fast Road, Race or Track car due to the increased grab caused by the sintered facings, as this makes driving in traffic more difficult and increases wear rate.

Reliability:

Both kits are easily rebuilt when the Clutch Facings are worn out, meaning you will not require a new Flywheel or Pressure Plate. The expected life is 50 - 60K Miles for the Organic Kit, and 20 - 30k for the Sintered Kit.

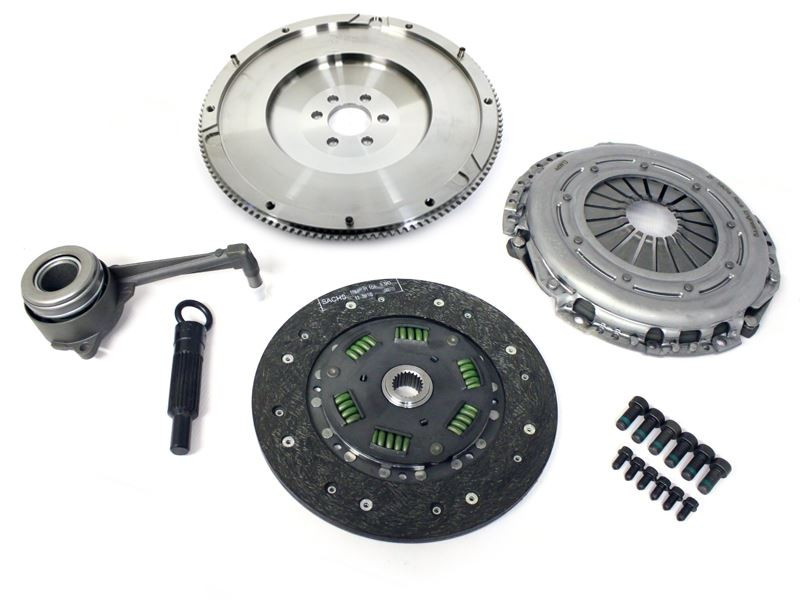

This kit consists of:

Darkside Billet CNC Machined Solid 10Kg Flywheel
Sachs Race Pressure Plate for increased hold
Sachs Race Clutch Disc for superior strength (Choice of Organic or Sintered)
Sachs Release Bearing / CSC

We also offer an OEM Sachs DMF with Sachs SRE Clutch Kit if you want to retain the comfort of a Dual Mass:

https://www.darksidedevelopments.co.uk/products/sachs-1-9-tdi-6-speed-02m-dual-mass-flywheel-with-sachs-sre-performance-clutch-kit.html

For customers looking to remove the Dual Mass Flywheel on a budget, we offer the Valeo SMF Kit

https://www.darksidedevelopments.co.uk/products/valeo-1-9-tdi-6-speed-02m-single-mass-flywheel-and-clutch-kit-smf.html

This Kit will fit the following Vehicles:

Audi A3 / S3 - ASZ (131) AQA (150) ARY (180) APP (180) AJQ (180) AMK (209) AUL (209) APY (209) BAM (225)

Audi TT / TTS Coupe / Roadster - AUM (150) AWP (180) ATC (180) ARY (180) APP (180) AJQ (180) AUQ (180) AMU (225) BAM (225) APX (225)

Seat Alhambra - ANU (90) BVK (115) AUY (115) BRT (140)

Seat Cordoba / Vario - BLT (131) ASZ (131)

Seat Ibiza - BLT (131) ASZ (131) CFHD (143) BUK (160) BPX (160)

Seat Leon - AKL (100) AEH (100) APG (125) AGN (125) ASZ (131) ARL (150) AJQ (180) AUQ (180) ARY (180) APP (180) AMK (209) BAM (225)

Seat Toledo - AKL (100) AEH (100) APG (125) AGN (125) ASZ (131) ARL (150) AJQ (180) APP (180) AUQ (180) ARY (180) AMK (209) BAM (225)

Skoda Fabia - BLT (131) ASZ (131)

Skoda Octavia - AQM (68) ALH (90) AGR (90) ATD (100) AXR (101) ASV (110) AHF (110) ASZ (131)

VW Beetle - BNU (180) AWP (180)

VW Bora - ATD (100) AUY (115) AJM (115) ASZ (131) ARL (150) AWP (180) AUQ (180)

VW Clasico / Jetta - AWP (180)

VW Golf - ATD (100) AUY (115) AJM (115) ASZ (131) ARL (150) AWP (180) AUQ (180)

VW Jetta - ATD (100) AUY (115) AJM (115) ASZ (131) ARL (150) AUQ (180) AWP (180)

VW Jetta Variant - ATD (100) AUY (115) AJM (115) ASZ (131) ARL (150) AUQ (180)

VW Polo - BLT (131) ASZ (131)

VW Polo Classic / Variant - ASZ (131)

VW Sharan - ANU (90) BVK (115) AUY (115) BVH (136) BRT (140)

PLEASE NOTE - As with most of the Single Mass Flywheel Kits, there will be some noise at low RPMs and at idle. This is completely normal and will not damage your gearbox or engine.
