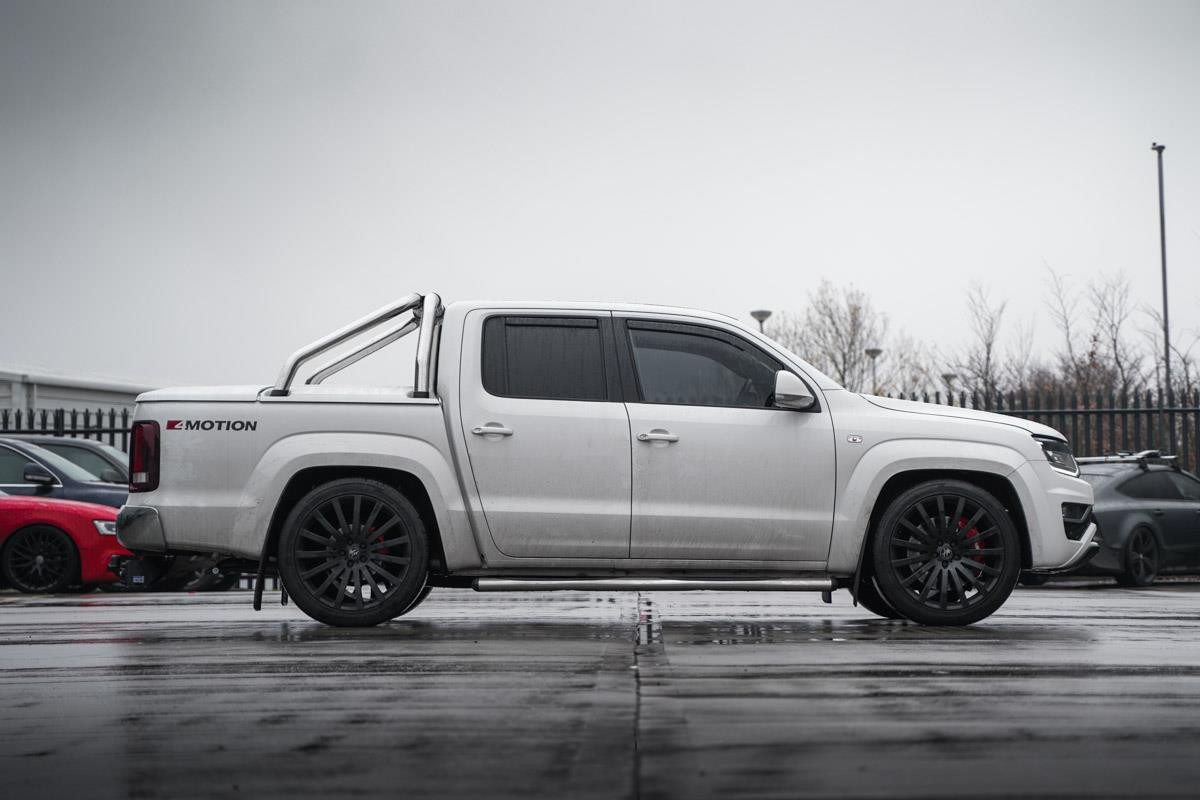

Darkside VW Amarok Bilstein Lowering Kit

Front and Rear Lowering Kit for VW Amamrok

Fully adjustable height options from ~50mm - ~125mm

CNC Laser Cut and Zinc Electroplated to prevent corrosion

Bilstein Shocks and Dampers

Custom Rear Springs and Adjustable Shackles

Front Height Adjustment:

Lowering (Approx) = 50mm - 125mm

Rear Height Adjustment:

Lowering (Approx) = 50mm - 125mm
The rear height can be adjusted multiple ways to achieve the perfect set up suited to you. Various configurations of the rear leaf springs and packers can achieve your rough height based on your carrying weight, while the rear adjustable shackles offer fine adjustment to dial it in.
PLEASE NOTE: Lowering on the rear is limited by the amount of weight you plan on carrying. On the lower settings the max carrying weight will reduced as the axle will contact the chassis leg. The bump stops will need trimming for clearance.

Please Note:

"These Dampers are designed based on OE VW load rating, but capable of handling more as they're heavier duty "

THIS KIT CONSISTS OF:

2 x Bilstein B14 Front Coilover Struts
2 x Bilstein B14 Front Coilover Springs
2 x Bilstein B6 Rear Dampers
2 x Darkside Rear 3 Point Height Adjustable Shackles
2 x Custom Darkside 2.0 / 3.0 Rear Leaf Spring Lowering - 50mm to 125mm
SuperPro Amarok Complete Rear Leaf Spring Bush Kit

For more information on Lifting and Lowering VW Amarok's please read our blog:

https://www.darksidedevelopments.co.uk/Blog/vw-amarok-suspension-guide/

This Kit will fit the following Vehicles:

VW Amarok - All models

The amount of lowering will vary between 2.0 TDI and 3.0 TDI models as well as the vehicle spec and tyre sizes
